Ford Mondeo ABS Light: Causes & Fixes

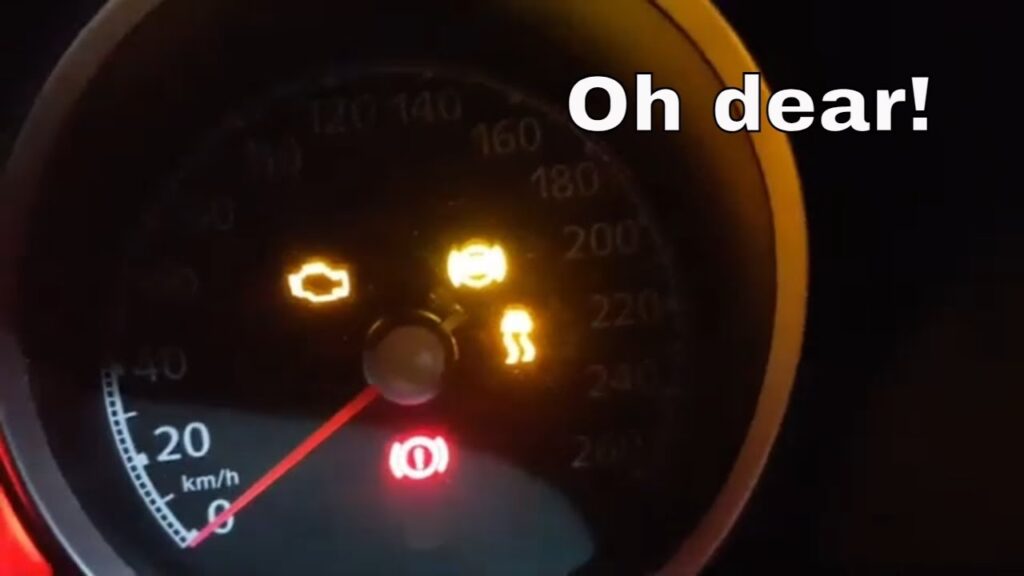

Understanding the ABS Warning Light in Your Ford Mondeo

The anti-lock braking system (ABS) is a crucial safety feature in your Ford Mondeo, designed to prevent your wheels from locking up during heavy braking. This system ensures you maintain steering control and directional stability, even in challenging situations, allowing you to manoeuvre around obstacles. When the ABS warning light illuminates on your Mondeo's dashboard, it signifies a malfunction within this vital system. This guide will delve into the common reasons behind an illuminated ABS light and provide actionable steps for diagnosis and resolution.

The ABS light can be triggered by a variety of issues, including malfunctioning wheel speed sensors, critically low brake fluid levels, a blown fuse or faulty relay, insufficient tyre pressure, or a defect within the ABS control module itself. It's important to understand that when the ABS light is on, the anti-lock braking functionality is disabled. While your vehicle will still brake, it will operate like a traditional braking system. However, if the dedicated BRAKE warning light also illuminates concurrently, this indicates a more serious issue within the primary braking system, necessitating an immediate cessation of driving due to the risk of complete brake failure.

Common Causes of an Illuminated ABS Light

1. Faulty Wheel Speed Sensor

Your Ford Mondeo is equipped with an ABS sensor at each wheel hub. These sensors meticulously measure the rotational speed of each wheel and transmit this data to the ABS control unit. Should a sensor fail, sending inaccurate or no speed information, the ABS warning light will illuminate. Given their exposed location near the wheels, wheel speed sensors are particularly susceptible to damage from road debris, salt, and general wear and tear. This makes a faulty wheel speed sensor a frequent culprit for an illuminated ABS light.

Diagnosing a Wheel Speed Sensor Issue

Physically inspecting a wheel speed sensor for obvious damage is often insufficient for accurate diagnosis. The most reliable method to identify a malfunctioning sensor is by using an OBDII scanner. Connecting a compatible scanner to your Mondeo's diagnostic port will allow you to retrieve error codes. These codes not only confirm an ABS issue but also pinpoint the specific sensor that is reporting a fault. Once identified, the faulty sensor will need to be replaced.

Important Note: Ensure that the OBDII scanner you use is capable of reading ABS-specific codes, as not all generic scanners can.

Damaged Wiring or Corroded Connectors

Before condemning the sensor itself, it's prudent to inspect the wiring and connectors associated with the suspect sensor. A damaged wire or a corroded connector can interrupt the signal, even if the sensor is functioning correctly. Look for any signs of physical damage, fraying, or corrosion on the wiring harness and the sensor's electrical connector. Addressing these issues may resolve the ABS light without the need for a new sensor.

2. Low Brake Fluid Level

An excessively low level of brake fluid in the reservoir can also trigger the ABS warning light in your Mondeo. The brake fluid reservoir is typically located under the bonnet, and its level should be checked against the 'MIN' and 'MAX' markings. If the fluid level is low, topping it up might temporarily extinguish the ABS light. However, it is imperative to investigate the underlying cause of the low fluid level.

Why is the Brake Fluid Low?

The common reasons for low brake fluid include:

• Worn Brake Pads: As brake pads wear down, the brake caliper pistons extend further, requiring more brake fluid to fill the increased space.
• Worn Rotors: Similar to worn pads, severely worn rotors can also contribute to a lower fluid level.
• Brake System Leaks: The most critical cause is a leak within the brake system. Check for any signs of fluid seepage around the brake lines, calipers, or wheel hubs.

If a leak is detected, it must be repaired immediately, as it compromises the entire braking system.

3. Faulty ABS Pump or Control Module

The ABS pump, often integrated into the Hydraulic Control Unit (HCU), comprises both electronic and electro-hydraulic components. Its function is to modulate hydraulic pressure to the brakes during ABS activation, preventing wheel lock-up. A malfunction within the ABS pump or the control module can lead to the illumination of the ABS warning light, and a corresponding fault code will be stored in the system's memory. Diagnosis requires an OBDII scanner to read these codes.

ABS control modules are generally robust and can last for well over 100,000 miles, but like any electronic component, they can eventually fail.

4. Low Tyre Pressure

Underinflated tyres can surprisingly trigger the ABS light. When a tyre is underinflated, its overall diameter is reduced, causing that particular wheel to rotate at a faster speed relative to the other wheels. The ABS control module monitors these speed differences. If it detects a significant discrepancy, it can trigger an ABS fault code, often associating it with the speed sensor of the underinflated wheel.

Tyre Pressure Monitoring System (TPMS)

In Ford Mondeos equipped with a Tyre Pressure Monitoring System (TPMS), an underinflated tyre will typically also illuminate the dedicated TPMS warning light. If both the ABS and TPMS lights are illuminated, checking and correcting your tyre pressures is a logical first step.

5. Blown Fuse or Faulty Relay

Like any electrical system, the ABS can be affected by a blown fuse or a faulty relay. These components protect the system from electrical surges and regulate power flow. If a fuse protecting the ABS system blows or a relay fails, the system will cease to function, resulting in the illuminated warning light.

Consult your Ford Mondeo's owner's manual or the fuse box cover for the precise location of the ABS fuses and relays. If a fuse is found to be blown, replace it with a new one of the correct amperage rating. If the issue persists, the relay may be faulty and require replacement.

Is it Safe to Drive with the ABS Light On?

When the ABS warning light is illuminated, the anti-lock braking system is deactivated. Your Mondeo's brakes will revert to a conventional braking system, meaning the hydraulic pressure from the master cylinder to the brake calipers remains unaffected. In dry conditions and with moderate braking, you can typically still stop the vehicle safely. However, in wet, icy, or snowy conditions, or during emergency braking, you may experience a loss of steering control, as the wheels could lock up.

Therefore, it is crucial to drive with extreme caution when the ABS light is on and to have the issue diagnosed and repaired as soon as possible. It's also worth noting that the electronic stability control (ESC) system often works in conjunction with the ABS. Consequently, the ESC warning light may also illuminate. If the BRAKE warning light appears simultaneously, this indicates a failure in the primary braking system, and you must stop driving immediately and arrange for the vehicle to be towed to a repair facility.

How to Reset the ABS Light

1. Address the Underlying Issue First

Attempting to reset the ABS light without rectifying the fault that caused it to illuminate is futile. The warning light will simply re-illuminate as soon as the system detects the problem again. Once the underlying issue has been repaired, the ABS light should extinguish automatically. In some cases, after a repair, you may need to drive your Mondeo for a few miles to allow the system to recalibrate and clear the fault.

2. Using an OBDII Scanner

The most professional and recommended method to reset the ABS light is by using an OBDII scanner. After successfully diagnosing and repairing the fault, connect the scanner to your vehicle's OBDII port. Navigate through the scanner's menu to find the option to clear diagnostic trouble codes (DTCs). Select and clear all ABS-related codes. This process effectively resets the system and should turn off the warning light.

3. Disconnecting the Battery (Use with Caution)

As an alternative, if you do not have access to an OBDII scanner, you can attempt to reset the ABS light by disconnecting the vehicle's battery. This method essentially resets the vehicle's electronic control modules, including the ABS module.

Procedure:

1. Locate the battery in your Mondeo.
2. Using an appropriate wrench, disconnect the negative (-) terminal first, followed by the positive (+) terminal.
3. With the battery disconnected, press the horn button and turn on the headlights for a few moments. This helps to drain any residual electrical charge from the system.
4. Leave the battery disconnected for approximately 15 minutes.
5. Reconnect the battery terminals in the reverse order: positive (+) first, then the negative (-).

Caution: Disconnecting the battery can reset other vehicle settings, such as radio presets, clock, and idle parameters. Some modern vehicles may also require a radio code after the battery has been disconnected.

Utilising OBD2 Scanners for Diagnosis

Ford Mondeos are equipped with sophisticated onboard diagnostics (OBD) systems that provide valuable insights into potential malfunctions. An OBD2 scanner is an indispensable tool for diagnosing ABS issues.

Modern OBD2 scanners come in various forms, from dedicated handheld devices to smartphone-compatible adapters that utilise Bluetooth or Wi-Fi. To commence troubleshooting:

1. Connect the Scanner: Locate your Mondeo's OBDII data link connector, typically found under the dashboard on the driver's side. Connect the scanner or adapter to this port.
2. Ignition On: Turn the vehicle's ignition to the 'ON' position (without starting the engine).
3. Vehicle Information: Most diagnostic tools will prompt you to enter vehicle-specific information, such as make, model, engine type, and the Vehicle Identification Number (VIN). It is crucial to enter this data accurately, as manufacturer-specific codes may require this information for precise interpretation.
4. Scan for Codes: Initiate the scanning process. The scanner will communicate with the vehicle's ECUs and retrieve any stored diagnostic trouble codes (DTCs).
5. Interpret Codes: Analyse the retrieved codes. These codes will provide specific information about the detected fault, often indicating which component or circuit is experiencing an issue. For instance, a code might point directly to a faulty left-rear wheel speed sensor.

By understanding and acting upon the information provided by an OBD2 scanner, you can efficiently pinpoint the root cause of your Mondeo's ABS warning light.

Conclusion

The illuminated ABS warning light on your Ford Mondeo can be attributed to a range of potential issues, from a simple low tyre pressure to a more complex internal fault within the ABS module. The key to resolving this problem lies in accurate diagnosis, which is best achieved using an OBDII scanner to retrieve specific fault codes. These codes act as a roadmap, guiding you towards the source of the malfunction.

While DIY diagnosis is certainly possible with the right tools, for those less experienced with automotive diagnostics and repairs, it is highly recommended to seek the assistance of a qualified mechanic. A professional technician possesses the expertise and specialised equipment to swiftly and accurately diagnose ABS issues, ensuring your Mondeo's safety systems are restored to optimal working order.

Frequently Asked Questions (FAQs)

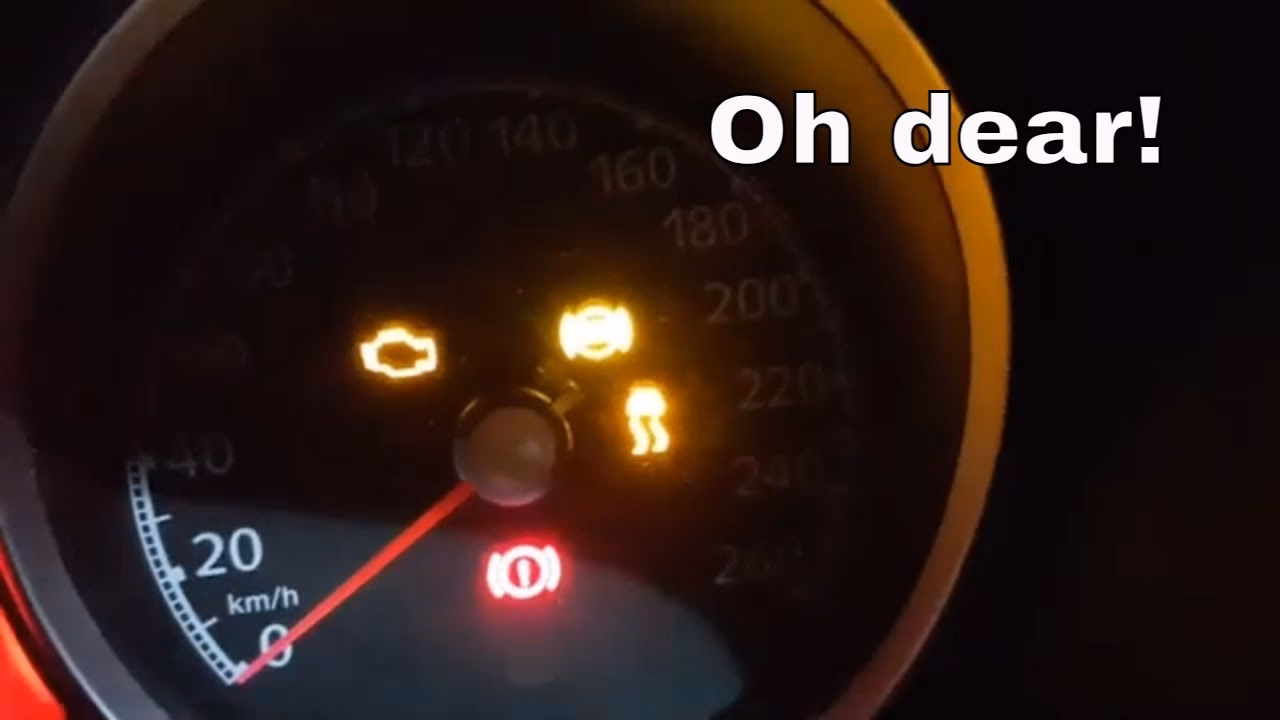

Q1: How do I know if my Ford Mondeo has ABS?

A1: Most Ford Mondeos manufactured since the late 1990s are equipped with ABS as standard. You can usually confirm by checking for an ABS warning light on your dashboard when you first start the engine (it should illuminate briefly and then turn off if the system is functioning correctly). You can also check your owner's manual or look for ABS components under the bonnet, such as the ABS control module and pump.

Q2: Can I drive my Mondeo with the ABS light on?

A2: Yes, you can typically drive your Mondeo with the ABS light on, but with extreme caution. The regular braking system will still function, but the anti-lock feature is disabled. This means in slippery conditions or during hard braking, you may lose steering control if the wheels lock up. If the BRAKE light also illuminates, do not drive the vehicle.

Q3: How much does it cost to fix an ABS light?

A3: The cost of repair can vary significantly depending on the cause. Replacing a wheel speed sensor might cost between £100-£300, while a faulty ABS module or pump could range from £500 to over £1000, including parts and labour. A blown fuse or low brake fluid is a much cheaper fix.

Q4: Will the ABS light turn off by itself?

A4: In some cases, if the issue was temporary (e.g., a brief electrical glitch or a very slightly low brake fluid level that corrected itself), the light might turn off after a few driving cycles. However, if there's a persistent fault, the light will remain illuminated until the underlying problem is resolved and the fault codes are cleared.

Q5: Do I need a special tool to reset the ABS light?

A5: While disconnecting the battery can sometimes reset the light, the most reliable and recommended method is to use an OBDII scanner to clear the fault codes after the repair has been completed. This ensures the system acknowledges the fix.
