Understanding Ford Mondeo Rear Suspension
The Ford Mondeo, a stalwart of the family car segment, has evolved significantly through its various generations. A crucial aspect of its driving dynamics and comfort lies in its rear suspension system. Whether you own a Mk3, Mk4, or even an earlier model, understanding how this system works and how to maintain it is key to ensuring a safe and enjoyable driving experience. This article delves into the specifics of the Mondeo's rear suspension, addressing common queries and providing valuable insights for owners.
Ford Mondeo Mk3: Struts and Shock Absorbers
The Ford Mondeo Mk3 (produced from 2000 to 2007) typically features a sophisticated multi-link rear suspension system. This design, while offering excellent handling and ride comfort, can be complex. A common question among Mk3 owners is whether the rear suspension utilizes struts. In the context of a McPherson strut system, the strut itself is a structural component that is part of the steering and suspension assembly, often housing the spring and damper. However, the Mondeo Mk3's rear suspension does not employ this type of integrated strut in the same way a front suspension might. Instead, it uses separate shock absorbers and coil springs.
The shock absorber, also known as a damper, is responsible for controlling the oscillation of the spring and dissipating the energy absorbed from bumps. The coil spring supports the vehicle's weight and absorbs the initial impact. When these components wear out, you might notice a harsher ride, increased body roll, or uneven tyre wear. Replacing these parts is a common maintenance task. For those looking to undertake this themselves, resources like YouTube tutorials often detail the process of shock absorber replacement and spring removal for the Mondeo Mk3. It's vital to ensure you have the correct tools, such as spring compressors, and follow safety procedures meticulously, as the compressed spring can store a significant amount of energy.
Common Issues with Mk3 Rear Suspension:
- Worn Shock Absorbers: Leading to a bouncy ride and reduced handling stability.
- Sagging Springs: Causing the rear of the car to sit lower, affecting alignment and potentially tyre wear.
- Bush Wear: The various bushes in the multi-link system can degrade over time, leading to knocking noises and imprecise handling.
Ford Mondeo Mk4: Body Kits and Aerodynamics
Moving to the Ford Mondeo Mk4 (produced from 2007 to 2014), the rear suspension design shares similarities with the Mk3, often still employing independent suspension with separate shock absorbers and springs. However, owners of the Mk4 might be more interested in aesthetic and aerodynamic enhancements. The mention of a "Vortex Body Kit" for the Mk4, specifically a rear wing extension, highlights a different aspect of vehicle modification. These extensions are typically bolt-on or adhesive accessories designed to complement the car's existing bodywork, often for styling purposes or to improve airflow.
It's important to note that such aftermarket parts are designed for specific models and trim levels. For instance, a rear bumper extension might be designed for "pre-facelift turnier models made between 2007-2010, only with standard bumpers." This specificity is crucial for ensuring a proper fit and maintaining the vehicle's intended aesthetic. The option for different exhaust cut-outs (quad exhausts or double left exhausts) further illustrates the customisation possibilities. While these body kit components don't directly alter the suspension's function, they can influence the vehicle's overall aerodynamic profile and visual stance.
Considerations for Body Kit Installations:
- Fitment: Always verify compatibility with your specific Mondeo Mk4 model year and trim.
- Material: Body kits can be made from various materials like PU, ABS plastic, or fibreglass, each with different durability and finishing characteristics.
- Professional Installation: For a seamless finish and to avoid damage, professional installation is often recommended.
Tyre Wear on Mk2 & Mk3 Mondeos
Tyre wear is a universal concern for all vehicle owners, and the Ford Mondeo Mk2 (produced from 1996 to 2000) and Mk3 are no exceptions. Uneven tyre wear, particularly on the front axle, can be a symptom of several underlying issues related to the suspension and steering alignment. Common patterns of front tyre wear include:
- Inner Edge Wear: Often indicates excessive camber. Camber is the inward or outward tilt of the tyre from the vertical axis.
- Outer Edge Wear: Suggests excessive positive camber or under-inflation.
- Feathering (saw-tooth pattern): This is typically caused by incorrect toe adjustment. Toe refers to the angle of the tyres relative to each other when viewed from above.
- Scalloping or Cupping: Irregular wear patterns can point to worn shock absorbers or wheel bearing issues.

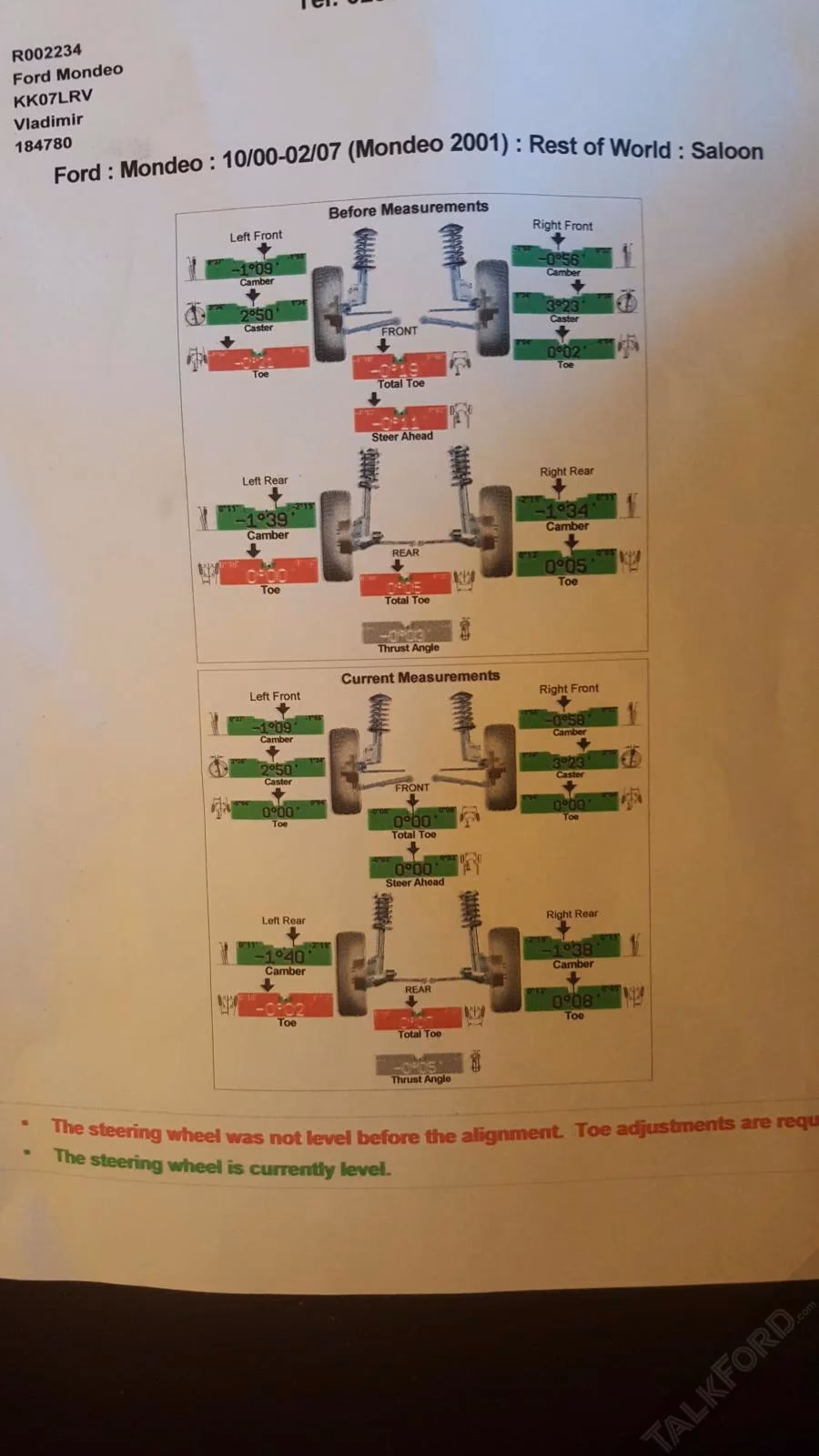

Maintaining proper wheel alignment is paramount for tyre longevity and safe handling. Factors influencing alignment include:
| Alignment Factor | Description | Impact on Tyre Wear |
|---|---|---|
| Camber | Inward/outward tilt of the tyre | Inner/outer edge wear |
| Toe | Inward/outward angle of tyres | Feathering, rapid wear |
| Caster | Forward/backward tilt of the steering axis | Primarily affects steering stability; less direct tyre wear impact |
If you notice premature or uneven tyre wear on your Mk2 or Mk3 Mondeo, it is advisable to have your wheel alignment checked by a qualified technician. They will use specialised equipment to measure and adjust camber, toe, and caster to the manufacturer's specifications.
Frequently Asked Questions (FAQs)
Q1: Does the Ford Mondeo Mk3 have rear suspension struts in the same way as a McPherson strut system?
A1: No, the Ford Mondeo Mk3 features a multi-link rear suspension with separate shock absorbers and coil springs, not integrated McPherson struts.
Q2: What are the signs of worn rear shock absorbers on a Mondeo?
A2: Signs include a bouncy or unstable ride, excessive body roll when cornering, and a tendency for the car to "dip" heavily under braking or acceleration. You might also notice fluid leaks from the shock absorber body.
Q3: Can I fit a rear wing extension from a Mk4 Mondeo to a Mk3?
A3: It is highly unlikely. Body kit components are designed for specific model generations and body styles. Trying to fit parts from different generations will almost certainly result in poor fitment and may require significant modification.
Q4: How often should I check my Mondeo's wheel alignment?
A4: It's recommended to check wheel alignment annually, or whenever you notice uneven tyre wear, the car pulling to one side, or after hitting a significant pothole or curb.
Q5: Are body kits like the Vortex kit legal?
A5: Generally, yes, provided they meet local regulations regarding vehicle modifications and road safety. However, it's always wise to check with your local authorities or a professional installer regarding specific requirements.
Conclusion
The Ford Mondeo, across its generations, offers a robust and capable platform. Understanding the nuances of its rear suspension, from the specific components in the Mk3 to the styling options for the Mk4, empowers owners to better maintain their vehicles. Addressing issues like worn shock absorbers and ensuring proper wheel alignment are fundamental to prolonging tyre life and maintaining the driving pleasure that the Mondeo is known for. Whether you're performing routine maintenance or considering aesthetic upgrades, a well-informed approach will yield the best results for your Ford Mondeo.
