Crankshaft Oil Seals: Your Engine's Guardian

Noticed unsettling oil puddles beneath your vehicle, or perhaps persistent stains near the engine block? These unwelcome sights often point to a leaking crankshaft oil seal – a deceptively small component that, if neglected, can precipitate significant engine complications. This vital seal acts as a silent sentinel, meticulously retaining the engine oil within the crankcase whilst simultaneously fending off the ingress of dirt and abrasive debris that could wreak havoc internally. However, subjected to relentless heat, constant friction, and the ceaseless rotation of the crankshaft, these seals are prone to inevitable wear and tear.

In this comprehensive guide, we will delve deep into the essential functions of crankshaft seals, equip you with the knowledge to identify the tell-tale signs of their failure, elucidate the distinctions and considerations for replacing front versus rear main seals, and provide expert advice on selecting the most appropriate aftermarket replacements to safeguard your engine's longevity and performance.

What Does a Crankshaft Oil Seal Do?

At its core, a crankshaft oil seal is a precision-engineered ring, typically crafted from durable rubber or advanced polymer compounds. It is strategically positioned at either end of the crankshaft, the pivotal rotating component of your engine that translates the linear motion of the pistons into rotational force. Its primary function is multifaceted: it meticulously prevents lubricating oil from escaping the engine's crankcase, which is under pressure, while simultaneously allowing the crankshaft to spin freely and efficiently. Without a properly functioning seal, oil would escape, leading to low oil levels, reduced lubrication, and ultimately, severe engine damage.

There are two primary types of crankshaft oil seals, each serving a critical role at a distinct location:

Both seals are absolutely critical to maintaining optimal engine performance and ensuring the long-term engine health. Their integrity directly impacts the engine's ability to maintain correct oil pressure and lubrication, which are fundamental for the smooth operation and longevity of all internal moving parts. The materials used, such as NBR (Nitrile Butadiene Rubber) for general applications and FKM (Fluoroelastomer) for high-temperature and chemical resistance, are chosen for their durability and ability to withstand the harsh operating conditions within an engine.

What Are the Symptoms of a Bad Crankshaft Seal?

A worn, hardened, or broken crankshaft oil seal rarely fails without providing noticeable warning signs. Recognising these symptoms early is paramount to preventing minor leaks from escalating into major, costly repairs. Here are the key indicators that your crankshaft seal may be failing:

• Oil Dripping from the Front or Rear of the Engine: This is arguably the most common and obvious symptom. For a front seal leak, you'll typically see oil accumulating under the front of the engine, often near the crankshaft pulley or timing cover. A rear main seal leak, on the other hand, will result in oil drips appearing further back, usually beneath the bell housing (the casing that connects the engine to the transmission). These drips can range from small, consistent spots to larger puddles overnight.
• Dark Oil Stains Under the Car or Near the Bell Housing: Even before active dripping begins, you might observe dark, greasy stains on your driveway or garage floor. Inspecting the engine bay itself, particularly around the front pulley or where the engine meets the gearbox, may reveal visible streaks or accumulations of oil, indicating a slow but steady leak.
• Smell of Burning Oil While Driving: As oil leaks from a failing seal, it can drip onto hot exhaust components or other high-temperature engine parts. When this happens, the oil burns off, producing a distinctive, pungent odour of burning oil that can often be detected inside the vehicle's cabin, especially when the vehicle is stationary or after a drive.
• Visible Oil on the Crankshaft Pulley or Flywheel: If the front crankshaft seal is leaking, you might see oil flung outwards onto the crankshaft pulley, accessory belts, and surrounding engine components due to the rotation of the shaft. Similarly, a leaking rear main seal can contaminate the flywheel or flex plate, and in manual transmissions, it can saturate the clutch disc, leading to clutch slippage.
• Gradual Decrease in Oil Levels: While less specific than visible leaks, a consistently dropping engine oil level between oil changes, without any other apparent cause like burning oil through the exhaust, could indicate an external leak from a crankshaft seal. Regularly checking your dipstick is crucial for monitoring this.
• Increased Engine Vibration or Noise (Indirectly): Though less direct, a severe oil leak leading to critically low oil levels can indirectly cause inadequate lubrication to internal engine components. This lack of proper lubrication can manifest as increased engine noise (e.g., ticking, knocking) or vibrations as parts wear prematurely. This is a sign of a very serious problem that needs immediate attention.

Catching these signs early is crucial. Addressing a front seal leak is generally more straightforward, but if the issue is with the rear main seal, timely intervention can potentially save you from the extensive labour and cost associated with transmission removal, which is often required for its replacement.

How Do You Replace a Crankshaft Oil Seal?

Replacing a crankshaft oil seal, particularly the rear main seal, can be a complex and labour-intensive task that often requires specialised tools and a good degree of mechanical aptitude. While a professional mechanic is always recommended for such critical repairs, here’s a general overview of what the process entails for a basic replacement:

Essential Tools for the Job:

• Pulley Puller or Flywheel Tool: Essential for safely removing the crankshaft pulley (for the front seal) or locking the flywheel (for the rear seal) to access the seal.
• Seal Puller or Flat-Head Screwdriver: Used for carefully prying out the old seal without damaging the crankshaft or the seal bore.
• Oil Seal Installer or Mallet: A specific seal installer tool ensures the new seal is pressed in squarely and to the correct depth. A rubber mallet can be used carefully with a suitable drift, but precision is key to avoid damaging the new seal.
• Socket Set and Wrenches: For disconnecting various components and fasteners.
• Rags and Degreaser: For cleaning up oil spills and preparing surfaces.
• Sealant (RTV Silicone): May be required for specific applications or to seal components like the oil pan during reassembly.
• Torque Wrench: Absolutely critical for tightening fasteners to manufacturer specifications to prevent future leaks or damage.

General Replacement Steps:

1. Preparation and Safety: Always begin by disconnecting the vehicle's battery to prevent accidental electrical discharge. For a front seal, you'll need to gain access to the front of the engine, which may involve removing engine covers, accessory belts, and potentially the timing cover. For a rear main seal, the engine oil must be drained, and the transmission (and often the clutch/flywheel) must be removed, which is a significant undertaking.
2. Component Removal: Carefully remove the crankshaft pulley (for the front seal) using a pulley puller. For the rear main seal, once the transmission is out, you'll gain access to the flywheel/flex plate, which may also need to be removed.

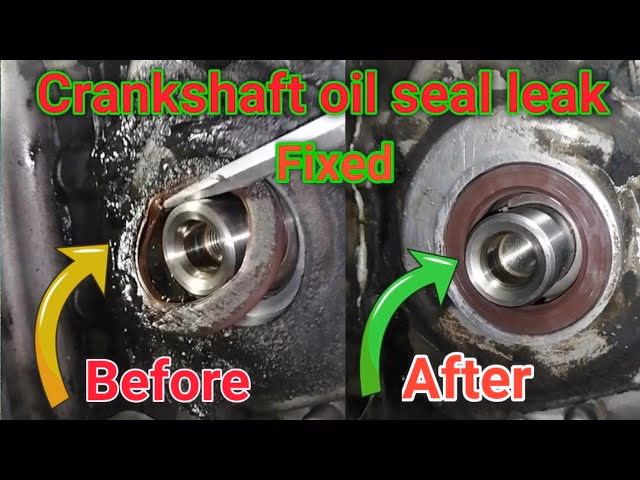

3. Extract the Old Seal: Using a seal puller or a carefully wielded flat-head screwdriver, gently pry out the old, worn seal. Exercise extreme caution to avoid scratching or marring the crankshaft surface or the seal bore in the engine block, as this can lead to leaks even with a new seal.
4. Clean and Inspect the Seal Groove: Thoroughly clean the seal bore and the crankshaft surface. Remove any old oil residue, dirt, or debris. Inspect both surfaces for any nicks, scratches, or wear patterns that could compromise the new seal's integrity. Any imperfections might require professional machining or engine repair.
5. Lubricate and Press the New Seal: Apply a thin film of clean engine oil to the inner and outer lips of the new seal. This lubrication aids in smooth installation and prevents damage to the seal. Using an appropriate seal installer tool, carefully and evenly press the new seal into its bore until it is fully seated and flush with the engine block or cover. Never hammer directly on the seal as this can deform it.
6. Reinstall Components: Reassemble all previously removed components in reverse order. Ensure all bolts are torqued to the manufacturer's specified values. If the rear main seal was replaced, this includes reinstalling the flywheel/flex plate, clutch (if applicable), and the transmission.
7. Add New Oil and Check for Leaks: Once everything is reassembled, refill the engine with the correct type and amount of new engine oil. Start the engine and let it run for a few minutes, then shut it off and carefully inspect the area around the new seal for any signs of leakage. It's advisable to check again after a short drive.

It cannot be stressed enough that replacing the rear main seal is a particularly challenging job, often requiring specialized lifting equipment and a significant amount of time and expertise. If you're not confident in your mechanical abilities, it is always wise to seek professional assistance. Utilising an accurate oil seal cross reference chart can also be invaluable in identifying the correct replacement part for your specific vehicle, ensuring a perfect fit and preventing further complications.

Can I Use Aftermarket Crankshaft Oil Seals?

Absolutely, using high-quality aftermarket crankshaft oil seals is not only a viable option but often a preferred one for many vehicle owners and mechanics. Reputable aftermarket manufacturers specialise in producing seals that meet or even exceed Original Equipment Manufacturer (OEM) standards, often offering superior materials and designs at a more competitive price point.

Benefits of Quality Aftermarket Seals:

• OEM-Level Precision Fit: Leading aftermarket brands invest heavily in research and development to ensure their seals match the exact dimensions and specifications of OEM parts, guaranteeing a precise fit and reliable sealing performance.
• Advanced Material Options: Aftermarket seals are available in various material compounds tailored to different operating conditions. For example, NBR (Nitrile Butadiene Rubber) seals are a cost-effective choice, offering excellent resistance to oils and fuels for most general applications. FKM (Fluoroelastomer), on the other hand, provides superior heat resistance and chemical compatibility, making it ideal for high-performance engines or vehicles operating in extreme temperatures.
• Broad Compatibility: Reputable aftermarket suppliers offer an extensive range of seals compatible with a vast array of vehicle makes and models, including popular brands like TOYOTA, HONDA, NISSAN, MITSUBISHI, and many others. This wide availability ensures you can find the right seal for almost any application.
• Cost-Effectiveness: Aftermarket seals typically offer significant cost savings compared to OEM parts, without compromising on quality or performance. This makes high-quality repairs more accessible.
• Innovation and Specialisation: Many aftermarket companies focus solely on seals, allowing them to innovate and refine designs. For instance, understanding the intricacies of a 'Skeleton Oil Seal' – which refers to the internal metal frame that provides structural rigidity to the rubber lip – highlights the engineering depth in aftermarket solutions that contribute to enhanced sealing performance and longevity.

When considering aftermarket seals, always choose a supplier known for their quality, reliability, and commitment to manufacturing standards. This ensures you're installing a part that will perform reliably and protect your engine effectively.

Should You Replace Both Crankshaft Seals at Once?

The decision to replace both the front and rear crankshaft seals simultaneously largely depends on the specific circumstances and the scope of other ongoing engine work. In most cases, it is generally not necessary to replace both seals if only one is actively leaking.

However, there are specific scenarios where replacing both seals concurrently makes sound practical and economic sense:

• Full Engine Rebuilds: If your engine is being completely disassembled for a rebuild, it is highly advisable to replace both crankshaft seals as part of the overhaul. The engine is already out of the vehicle and largely stripped down, making access to both seals significantly easier and more cost-effective than doing them separately later.
• Clutch or Flywheel Replacement: When replacing the clutch or flywheel in a manual transmission vehicle, the transmission must be removed, which provides direct and easy access to the rear main seal. Since the labour involved in transmission removal is the most significant cost for a rear main seal replacement, it is extremely prudent to replace the rear main seal at this time, even if it's not currently leaking. The front seal would typically not be included in this unless other front-of-engine work is also being performed.
• Timing Belt or Chain Replacement: For vehicles where the timing belt or chain requires the removal of the crankshaft pulley and timing cover, the front crankshaft seal becomes easily accessible. This is an opportune moment to replace the front seal as the associated labour costs for access are already being incurred.

Conversely, if only one seal is showing signs of leakage and no other major engine work is planned or underway, it is perfectly acceptable and often more economical to simply address the leaking seal. The labour involved in accessing each seal can be substantial and independent of the other, particularly for the rear main seal. Replacing a non-leaking seal 'just in case' when it requires significant additional labour might not be the most cost-efficient approach.

Ultimately, the decision should be based on a cost-benefit analysis considering the current labour being performed and the expected lifespan of the existing non-leaking seal. If in doubt, consult with a trusted mechanic who can provide advice based on your vehicle's specific condition and history.

Choosing the Right Crankshaft Oil Seal

Selecting the correct crankshaft oil seal is paramount for a successful repair and long-term sealing integrity. An incorrect seal can lead to immediate leaks, damage to the crankshaft, or premature failure. Here’s how to ensure you choose the right one:

• Know Your Vehicle Details: Always start with your vehicle's make, model, year, engine size, and VIN (Vehicle Identification Number). This information is crucial for accurate part lookup.
• OEM Part Number: If possible, obtain the original OEM part number from the old seal or your vehicle's service manual. This is the most reliable way to ensure an exact match. Many aftermarket suppliers provide cross-reference charts that convert OEM numbers to their aftermarket equivalents.
• Physical Dimensions: If an OEM part number isn't available, or for custom applications, the seal's precise dimensions are essential. This includes the inner diameter (ID), outer diameter (OD), and thickness (width). Accurate measurements are critical.
• Material Compatibility: As discussed, seals are made from various materials (e.g., NBR, FKM). Ensure the chosen material is suitable for your engine's operating temperatures and the type of oil or fluid it will be exposed to. FKM is generally preferred for its superior heat and chemical resistance in modern engines.
• Supplier Reputation: Purchase seals from reputable manufacturers or suppliers known for producing high-quality automotive parts. Inferior seals might fit but fail prematurely due to poor materials or manufacturing defects. Look for certifications or quality assurance statements.
• Seek Expert Advice: If you are unsure, do not hesitate to consult with an automotive parts specialist or a mechanic. They often have access to comprehensive databases and experience with various vehicle applications, allowing them to quickly match your needs to the correct seal. Providing photos of the old seal or the specific location can also greatly assist in identification.

Ensuring a reliable fit and the appropriate material for your crankshaft seal is a fundamental step in preventative maintenance, safeguarding your engine's internal components and preventing costly oil loss.

Frequently Asked Questions (FAQs)

1. What’s the best material for crankshaft seals?

The 'best' material depends on the specific application and operating conditions. NBR (Nitrile Butadiene Rubber) is a cost-effective and widely used material, suitable for most general engine applications due to its good resistance to petroleum-based oils and fuels at moderate temperatures. However, for engines operating at higher temperatures or exposed to aggressive synthetic oils and chemicals, FKM (Fluoroelastomer) is superior. FKM offers excellent heat resistance (up to 200°C or more) and superior chemical compatibility, making it the preferred choice for modern, high-performance engines and longer service life.

2. Can I cross-reference a crankshaft seal by part number?

Yes, absolutely. Cross-referencing by part number is one of the most reliable ways to find a compatible aftermarket crankshaft seal. Most reputable aftermarket seal manufacturers provide extensive cross-reference charts or online databases that allow you to input an OEM (Original Equipment Manufacturer) part number or a competitor's part number to find their equivalent product. This ensures you get a seal with the correct dimensions and material specifications for your vehicle.

3. Is the front crankshaft seal the same as the rear?

No, the front and rear crankshaft seals are typically not the same. They differ significantly in several aspects, including their physical dimensions (inner diameter, outer diameter, and thickness), design, and the environment they operate in. The front seal is usually smaller and designed for the timing cover area, while the rear main seal is often larger and much more robust, designed to withstand the higher temperatures and pressures where the engine meets the transmission. Furthermore, the installation procedure for each is vastly different, with the rear seal replacement being considerably more labour-intensive.

4. How long do crankshaft oil seals last?

The lifespan of crankshaft oil seals can vary significantly, typically ranging from 80,000 to 150,000 kilometres (approximately 50,000 to 90,000 miles) or even longer. Several factors influence their longevity, including the quality of the seal material (e.g., NBR vs. FKM), driving conditions (frequent short trips versus long highway drives), engine operating temperatures, regular oil changes, and the overall condition and age of the engine. Extreme heat, infrequent oil changes, and prolonged exposure to contaminants can all shorten a seal's life.

5. What happens if I ignore a leaking seal?

Ignoring a leaking crankshaft seal can lead to severe and costly engine damage. The most immediate consequence is a gradual but continuous loss of engine oil. If the oil level drops too low, it can lead to insufficient lubrication for critical engine components, resulting in increased friction, excessive wear, and ultimately, catastrophic engine failure due to overheating or metal-on-metal contact. Additionally, a leaking rear main seal can contaminate the clutch disc in manual transmissions, causing slippage and requiring premature clutch replacement. The burning oil can also produce unpleasant odours and potentially pose a fire risk if it accumulates on hot exhaust components.

6. Can you help match a seal if I don’t know the part number?

Yes, many specialist suppliers and mechanics can assist in matching a seal even without a specific part number. The most helpful information you can provide in such cases includes the precise dimensions of the seal (inner diameter, outer diameter, and thickness), the make, model, and year of your vehicle, and ideally, clear photos of the old seal and its location. With these details, experienced professionals can often identify the correct replacement using their extensive databases and expertise.

7. Do you offer crankshaft seals for trucks?

Absolutely. The principles of crankshaft oil seals apply to a wide range of vehicles, including commercial trucks and heavy-duty vehicles, in addition to passenger cars. Specialist automotive parts suppliers typically stock a comprehensive range of crankshaft seals designed to meet the demanding requirements of truck engines, which often operate under higher loads and for longer durations. These seals are engineered for durability and reliable performance in commercial applications.

Conclusion

A faulty crankshaft oil seal, while seemingly a minor component, holds significant sway over your engine's health. Neglecting a leak can swiftly transform a small, manageable issue into a major, expensive repair, potentially leading to critical engine damage from oil starvation. By diligently spotting the early symptoms of a failing seal and committing to a timely replacement with a high-quality, correctly specified aftermarket seal, you are engaging in vital preventative maintenance. This proactive approach not only saves you considerable time and money in the long run but, more importantly, ensures the continued protection and optimal performance of your cherished engine. Invest in the right seal, and safeguard your vehicle's heart.
