Mastering Your TDI Oil Change: Prevent Pinched Filters

Embarking on a DIY engine oil change for your Volkswagen Jetta, Golf, Sportwagen TDI, or Audi A3 TDI is a rewarding experience. Not only does it save you money, but it also provides invaluable peace of mind, knowing that your beloved diesel engine has received the precise care it deserves. This comprehensive guide will walk you through every step, ensuring a smooth process from start to finish, with a particular focus on avoiding common pitfalls like overfilling and, crucially, a pinched oil filter, which can lead to frustrating leaks and potential damage. Whether you're a seasoned mechanic or new to the world of car maintenance, our detailed instructions for your 2.0L CBEA/CJAA engine (specifically 8p generation 2010-2013 Audi A3 TDI and VW Jetta/Golf/Sportwagen TDI) will empower you to tackle this essential task with confidence.

Why DIY Your TDI's Oil Change?

Taking control of your vehicle's maintenance offers several compelling advantages. Firstly, it ensures that only the correct VW/Audi spec 507.00 engine oil is used – a critical detail for the longevity of your Diesel Particulate Filter (DPF) and to maintain your vehicle's warranty. Dealers, while generally reliable, have been known to make mistakes due to the lower volume of TDIs they service compared to petrol cars. Secondly, it saves you a significant amount on labour costs. Lastly, performing the oil change yourself allows you to inspect other components under your vehicle, catching potential issues before they become major problems. It's a hands-on way to truly understand and appreciate your vehicle.

The Heart of Your TDI: Understanding Engine Oil and Filters

The 2.0L common rail TDI engine is a sophisticated piece of engineering, and its lubrication needs are very specific. Using the wrong oil can have severe consequences, particularly for the DPF system.

The Non-Negotiable VW 507.00 Specification

For your common rail TDI engine, only engine oil meeting VW/Audi spec 507.00 engine oil should be used. This specification is designed to work in harmony with your vehicle's advanced emissions systems, especially the DPF, which traps soot from the exhaust. Oils that don't meet this standard can lead to premature clogging of the DPF, resulting in expensive repairs and reduced engine performance. Always keep your oil change receipts as proof for warranty purposes.

Here are some commonly approved oils that meet the VW 507.00 specification:

VW part numbers for 507.00 oil are: g v52 195 a1 (0.5 litre), gvw 052 195 m2 (1 litre), and gvw 052 195 m4 (5 litres).

Engine Variants and Oil Capacities

Your TDI might be equipped with either the CBEA or CJAA engine code. While largely similar, there are subtle differences, particularly in oil capacity. The CBEA engine (found in 2009 Jetta TDI and 2010-2012 Audi A3 TDI) typically requires 4.0 litres of oil, whereas the CJAA engine (in 2010 and newer Jetta, Golf, and Sportwagens) takes approximately 4.3 litres. Always check your dipstick as you fill to ensure you don't overfill.

Oil Filter Varieties

You might encounter two main types of oil filters for these engines. Some are described as having an accordion-style element (reportedly made by Purflux for Meyle/VW), while others have a straight element (often Mann/Hummel). Both types were fitted as standard on new vehicles and are perfectly acceptable. These filters are also shared with other VW Group vehicles like the VW R32 Golf and Audi TT V6.

Gearing Up: Essential Tools and Parts You'll Need

Before you begin, gather all necessary tools and parts. Having everything ready will make the process much smoother and prevent frustrating delays.

• Your chosen VW 507.00 spec engine oil (4.5 quarts / approx. 4.3 litres)
• New engine oil filter (VW/Audi part number: 071 115 562 c)
• Replacement O-rings for the oil filter cap (these usually come with the new filter)
• Oil drain pan (large enough to hold over 5 litres)
• Funnel for refilling oil
• Clean rags or paper towels
• Torque wrench (essential for correct tightening)
• Socket set: 19mm socket for the oil pan drain plug
• Socket set: 32mm or 1 1/4" socket for the oil filter housing cap
• 3/8" drive extension (a 1/2" extension might be too wide without a U-joint)
• Torx bits for splash shield removal:
  • For Audi A3: T15, T20, and T30 torx screws
  • For Jetta/Golf: T25 and T30 torx screws
• Safety glasses
• Gloves
• Jack and jack stands, or car ramps (ensure they are rated for your vehicle's weight)
• Wheel chocks
• Driveway spill absorber or cat litter for any spills

Safety First: Pre-Oil Change Essentials

Safety is paramount when working under a vehicle. Always ensure your car is securely supported to prevent accidents.

1. Park your car on a level, firm surface.
2. Engage the parking brake.
3. Place wheel chocks behind the rear wheels (if lifting the front) or front wheels (if lifting the rear).
4. Using a hydraulic jack, carefully raise the front of the vehicle. Consult your owner's manual for approved jacking points.
5. Once raised, immediately place sturdy jack stands under the vehicle's designated support points. Never rely solely on a jack. Gently lower the vehicle onto the stands to ensure stability. Give the car a gentle shake to confirm it's secure.
6. Allow the engine to cool down slightly. While warm oil drains better, scalding hot oil can cause burns.
7. Locate your used oil disposal facility. Most local auto parts stores or garages offer free disposal of used engine oil. Never dump used oil onto the ground or into drains, as it is highly polluting.

The Comprehensive DIY Oil Change Procedure (Under-Car Method)

This method allows for a complete drain of old oil and an opportunity to inspect the underside of your vehicle.

1. Accessing the Underbelly

• Remove the lower engine cover, also known as the black plastic splash shield. The screw types and locations vary slightly by model:
  • Audi A3: One T15 torx screw at the front, eight T20 torx screws along the sides, and three T30 torx screws at the rear.
  • Jetta/Golf: One T25 screw at the front, four T25 screws along each side, and three T30 screws along the rear.
• Once all screws are removed, slide the cover back towards the rear of the car to disengage it. It may require a specific angle to avoid snagging.

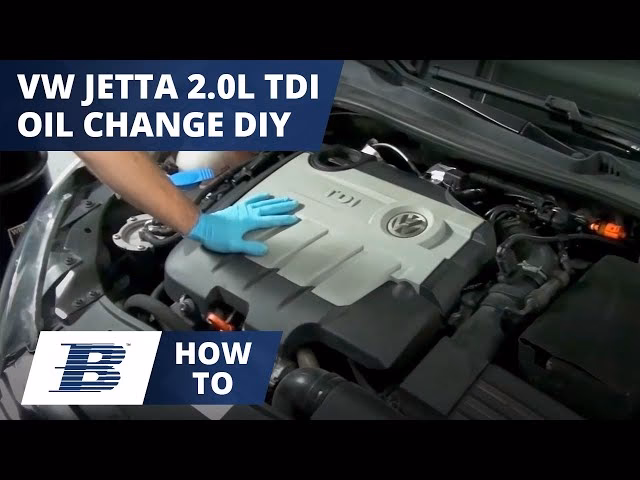

• Next, remove the top engine cover by simply pulling it straight up. It's held in place by rubber snaps.

2. Draining the Oil Filter Housing

• Locate the oil filter housing cap on top of the engine.
• Using your 3/8" extension and 32mm or 1 1/4" socket, carefully loosen the filter cap. A 1/2" extension typically won't fit without a U-joint.
• Once loose, lift the oil filter slightly. This action triggers a release valve within the housing, allowing most of the oil to drain from the filter housing into the oil pan below. This is a crucial design feature to ensure the filter is full of oil on cold starts.
• Allow the filter to sit unscrewed for a few minutes to drip dry further.
• Now, completely remove the oil filter and its cap assembly. Separate the old filter element from the cap. Be mindful of any small plastic tips on the filter; if one breaks off, ensure it's removed from the housing.
• If you wish to remove every last drop of old oil from the filter housing, a vacuum hand pump or turkey baster can be used to suck it out.

3. Draining the Engine Oil

• Position your oil drain pan directly beneath the oil pan drain plug.
• Using your 19mm socket, carefully loosen and remove the oil drain plug. Be prepared for the oil to come out quickly.
• Allow the oil to drain completely. This can take 10-15 minutes, especially if the engine is not fully warm.

4. The Critical Step: Avoiding and Addressing a Pinched Oil Filter O-Ring

This is where attention to detail is paramount to prevent leaks. The oil filter cap has two rubber O-rings: a large one around the main body of the cap and a smaller one at the tip of the central shaft.

• Carefully remove both the large and small O-rings from the old filter cap.
• Inspect the new O-rings that came with your new oil filter. They should be pliable and free from any nicks or deformities.
• To prevent a pinched O-ring: Generously lubricate both new O-rings with clean, fresh engine oil. This lubrication helps them slide smoothly into their grooves and prevents them from rolling, twisting, or getting caught as the cap is tightened. A pinched O-ring will not create a proper seal and will lead to an oil leak.
• Install the new O-rings onto their respective grooves on the filter cap. Ensure they sit flat and are not twisted.
• Attach the new oil filter element to the cap assembly, making sure it snaps securely into place.
• How do I fix a pinched oil filter? If, after tightening, you notice oil leaking from around the filter cap, or if the cap feels unusually difficult to tighten, it's highly likely an O-ring has been pinched or rolled. The immediate "fix" is to loosen the cap, remove it, and carefully inspect both O-rings. If either O-ring appears damaged, twisted, or deformed, it must be replaced. A pinched O-ring is compromised and cannot be reliably resealed. Fortunately, new O-rings are typically supplied with every new oil filter. Re-lubricate the new (or undamaged) O-rings thoroughly with clean oil and re-install the cap with care.

5. Reassembly and Refill

• Once the oil has finished draining, clean the area around the oil pan drain plug. Reinstall the drain plug and tighten it to the specified torque of 22 ft-lbs (30 Nm). Remember, the oil pan is often aluminium, so avoid overtightening, which can strip the threads.
• Fill the oil filter housing with a small amount of clean engine oil before installing the cap. This helps to pre-lubricate the filter and ensures the engine has oil flowing quickly on its first start.
• Carefully thread the oil filter cap assembly back into its housing. Hand-tighten it first, then use your socket and extension. Torque the filter cap to a maximum of 18 ft-lbs (25 Nm). Do not overtighten; the O-rings will create the seal.
• Begin refilling the engine with the new VW 507.00 spec oil. Start by adding 4.0 litres (for CBEA) or 4.3 litres (for CJAA).
• After adding the initial amount, wait a few minutes for the oil to settle, then check the oil level using your dipstick. Add more oil gradually, in small increments, until the level is just below the maximum mark on the dipstick. Avoid overfilling, as this can cause foaming, excessive pressure, and potential damage to seals or even the DPF.

6. Final Checks and Clean-up

• Double-check that both the oil drain plug and the oil filter cap are securely tightened and free of any leaks.
• Reinstall the lower engine splash shield and the top engine cover.
• Carefully lower your car from the jack stands.
• Start the engine and let it idle for 30 seconds to 1 minute. During this time, observe the dashboard for any warning lights (like a low oil pressure light) and listen for any unusual noises. Visually inspect under the car again for any signs of leaks.
• If any oil spilled on your driveway, wipe up the excess with towels. Then, sprinkle driveway spill absorber or basic kitty litter over the stain. Grind the absorber into a dust with your foot to maximise absorption. Let it sit for a few hours, then sweep it up and dispose of it properly.

The Alternative: Top-Side Oil Extraction Method

While the under-car method is generally preferred for a complete drain and inspection, an oil extractor can be used to pull the oil out through the dipstick tube. This method is cleaner and avoids the need to get under the car, but you'll still need to access the oil filter from the top.

• Ensure the engine is warm; warm oil flows much more easily.
• Insert the extractor tube down the dipstick tube until it reaches the bottom of the oil pan.
• Operate the hand pump on the extractor (like a Pela pump) to create a vacuum and draw the oil out. Avoid cheap extractors, as their tubing can collapse.
• Once the oil is extracted, the remaining steps for replacing the oil filter, O-rings, and refilling the engine are identical to the under-car method.

Common Pitfalls to Steer Clear Of

• Overfilling the Engine Oil: This is a very common mistake. Too much oil can lead to foaming, increased crankcase pressure, and potentially damage engine seals or even the DPF. Always fill incrementally and check the dipstick.
• Using the Wrong Oil Specification: As stressed, only VW 507.00 oil is acceptable. Using non-spec oil can drastically shorten the life of your DPF and may void your warranty.
• Forgetting to Replace or Lubricate O-Rings: Crucial for a leak-free seal. Always replace both O-rings on the filter cap and lubricate them with fresh oil.
• Overtightening Drain Plug or Filter Cap: The aluminium oil pan threads are fragile. Use a torque wrench for both the drain plug (22 ft-lbs / 30 Nm) and the filter cap (max 18 ft-lbs / 25 Nm).
• Not Checking for Leaks Post-Change: A quick visual check after starting the engine can save you from a bigger problem later on.

Frequently Asked Questions (FAQs)

Q: How often should I change my TDI's engine oil?

A: The recommended interval for these TDI models is every 10,000 miles or as needed, based on your driving conditions and vehicle's maintenance reminders.

Q: Can I use a different engine oil if I can't find VW 507.00 spec?

A: No, it is highly recommended to stick strictly to VW 507.00 specification oil, especially for warranty purposes and to protect your Diesel Particulate Filter (DPF). Using non-compliant oil can cause significant damage and costly repairs.

Q: What does it mean if my oil filter O-ring is "pinched"?

A: A pinched O-ring means the rubber seal has been improperly seated, twisted, or caught during installation of the oil filter cap. This prevents it from forming a proper seal, leading to oil leaks. The "fix" is to remove the cap, inspect the O-ring, and if damaged, replace it immediately with a new, lubricated one.

Q: Why is it important to lubricate the O-rings before installation?

A: Lubricating the O-rings with clean engine oil allows them to slide smoothly into place as the filter cap is tightened. This prevents them from rolling, twisting, or getting pinched, ensuring a proper, leak-free seal.

Q: Why should I remove the oil filter before draining the oil pan?

A: The oil filter housing on these TDI engines has a unique design feature. When the filter is removed, it opens a release valve that allows the oil contained within the filter housing to drain down into the oil pan. This ensures a more complete oil drain and prevents air from being trapped in the filter on engine start-up.

Q: What should I do if I accidentally overfill my engine oil?

A: If you overfill, it's crucial to drain the excess oil immediately. Overfilling can lead to foaming of the oil, increased crankcase pressure, and potential damage to engine seals or the DPF. You can use an oil extractor to carefully remove the excess through the dipstick tube.

Q: How do I properly dispose of used engine oil?

A: Never dump used engine oil. It is highly polluting. Take it to your local auto parts store, garage, or a designated waste disposal facility. Most offer free recycling of used automotive fluids.

Q: What are the torque specifications for the drain plug and oil filter cap?

A: The oil pan drain plug should be tightened to 22 ft-lbs (30 Nm). The oil filter cap should be tightened to a maximum of 18 ft-lbs (25 Nm). Using a torque wrench is highly recommended to prevent overtightening.

Q: My new oil filter came with two O-rings. Where do they go?

A: One larger O-ring goes around the main body of the oil filter cap, and a smaller O-ring typically goes on the tip of the central shaft of the cap. Both must be replaced and lubricated.

Conclusion

Performing a DIY engine oil change on your VW Jetta, Golf, Sportwagen TDI, or Audi A3 TDI is a straightforward task when approached with the right knowledge and tools. By adhering to the correct oil specifications, carefully following the steps, and paying close attention to critical details like O-ring lubrication, you can ensure your engine remains healthy, efficient, and free from leaks. This essential maintenance not only extends the life of your vehicle but also empowers you with a deeper understanding of its mechanics. Drive with confidence, knowing your TDI is running on properly maintained, clean oil.
