Mastering Brake Caliper Removal: Your UK Guide

Maintaining your vehicle's braking system is paramount for safety on the road. The brake caliper, a vital component, plays a crucial role in bringing your car to a halt. Whether you're replacing worn pads, upgrading your discs, or diagnosing a sticky piston, knowing how to properly remove a brake caliper is a fundamental skill for any home mechanic. This detailed guide will walk you through the process, ensuring you have the knowledge to perform this task safely and effectively, keeping your wheels turning – and stopping – smoothly.

Essential Tools for Caliper Removal

Before you begin, gather all the necessary tools. Having everything to hand will make the process smoother and safer. Here's what you'll need, along with a brief explanation for each:

• Flat Head Screwdriver: Primarily used for prying off retaining springs and, with careful application, potentially caps or small clips.
• Phillips Head Screwdriver: May be needed for small retaining screws that hold the brake disc to the hub assembly, though not always directly for caliper removal.
• 7mm Allen Wrench Socket: This is essential for unscrewing the caliper guide pins. Using a socket version with a ratchet allows for precise torque application during reassembly, which is crucial.
• 18mm Socket: Required for the larger bolts that secure the caliper carrier (bracket) to the hub assembly. Ensure it's a good quality socket to prevent rounding these often-tight bolts.
• Torque Wrench: An indispensable tool for tightening bolts to manufacturer specifications. This prevents both over-tightening (which can stretch or break bolts) and under-tightening (which can lead to components loosening).
• C-Clamp or F-Clamp: Used to compress the brake piston back into the caliper body, which is necessary to remove the caliper and later to fit new, thicker brake pads.
• New 18mm Bolts (e.g., N-907-085-02 for VW): Many manufacturers specify that the caliper carrier bolts are 'torque-to-yield' and must be replaced after removal. Always check your vehicle's service manual.
• Brake Cleaner: An aerosol cleaner specifically designed to degrease and remove brake dust, grime, and oil from brake components. It evaporates quickly and leaves no residue.
• Wire Brush: Excellent for scrubbing off stubborn rust, dirt, and old brake dust from the caliper carrier, hub, and other metal components, ensuring clean mating surfaces.
• Jack and Jack Stands: Absolutely non-negotiable for safely lifting and securely supporting your vehicle. Never work under a car supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling while it's jacked up. Place them on the wheels that remain on the ground.
• Gloves and Safety Glasses: Protect your hands from grime, brake dust (which can contain asbestos in older vehicles), and chemicals, and your eyes from debris and fluids.
• Drain Pan/Old Rags: For any potential brake fluid spills, though minimal if the brake line isn't disconnected.
• Brake Fluid (correct type for your vehicle): You may need to top up or bleed the system if fluid is lost or air enters the lines.

Safety First: Your Top Priority

Before you even think about touching a wrench, safety must be your absolute priority. Working on brakes involves heavy components and critical safety systems. Always ensure your vehicle is on a level, solid surface. Use a reliable jack to lift the car and always, without exception, support it securely with sturdy jack stands. Never rely solely on the jack. Chock the wheels that remain on the ground to prevent any movement. Wear safety glasses to protect your eyes from debris, brake dust, and fluids, and gloves to keep your hands clean and safe from harsh chemicals. If at any point you feel uncomfortable or unsure, please consult a qualified mechanic.

Step-by-Step Guide to Brake Caliper Removal

With your tools ready and safety measures in place, you can begin the process. The approximate time for this job is around 2 hours, but this can vary depending on your experience and if you encounter any seized components.

Preparation: Lifting and Accessing the Brakes

First, the obvious: before lifting the car, slightly loosen the lug nuts on the wheel you'll be removing while the car is still on the ground. This prevents the wheel from spinning. Then, jack the car up using the designated jacking points, place jack stands securely under the vehicle, and fully remove the wheel. With your vehicle safely elevated and supported, you'll have clear access to the brake assembly. Before proceeding, give the entire area a quick visual inspection. Look for any obvious signs of leaks, excessive wear, or damage to the brake lines or components.

Step 1: Remove the Retaining Spring

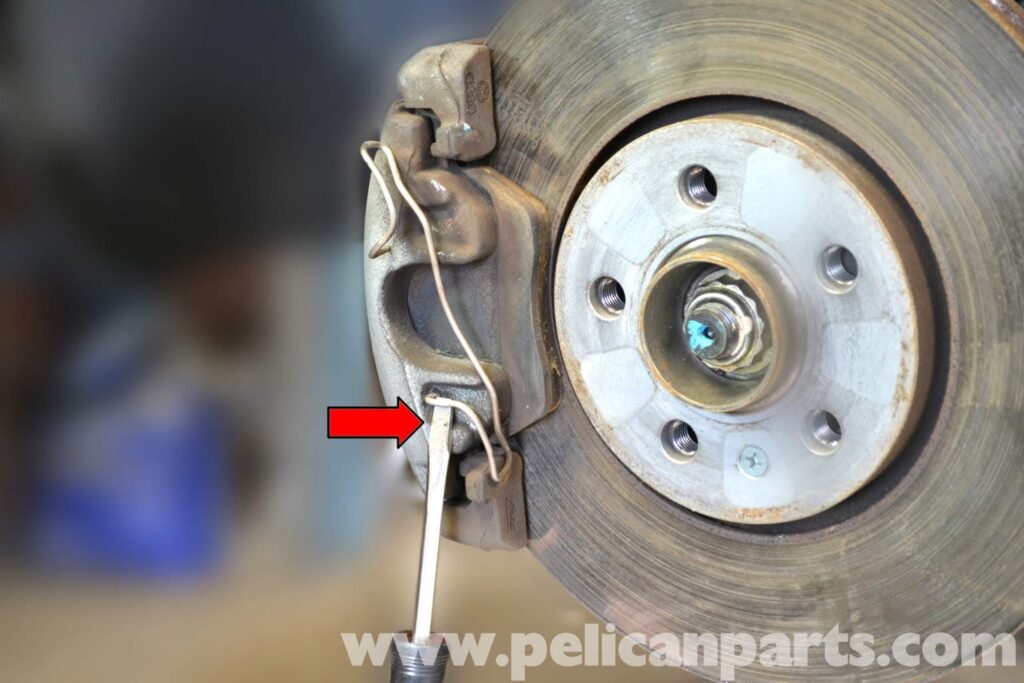

Locate the retaining spring on the front of the caliper. This spring applies pressure to the brake pads, keeping them snug and preventing rattles. Using your flat head screwdriver, carefully pry one end of the spring out of its mounting hole. It can be under tension, so be mindful of your grip. Once one end is free, the rest should unclip easily. Set it aside in a safe place where it won't be lost.

Note: If you're working on the driver's side (or passenger side, depending on your vehicle's specific setup), you may encounter a brake pad wear sensor. This small electrical wire plugs into the brake pad itself and alerts you when the pads are low. Gently unclip or unplug this sensor from its connector. Be careful not to pull on the wire itself, as it can be delicate.

Step 2: Access the Guide Pins

The caliper guide pins (sometimes called slider pins) allow the caliper to move freely back and forth as the pads wear. These pins are usually protected by rubber caps or plugs to keep out dirt and moisture. Use your flat head screwdriver or even your fingers to carefully pry off these caps, revealing the hexagonal heads of the guide pins underneath. Inspect the caps for tears; if damaged, they should be replaced to prevent corrosion of the guide pins.

Step 3: Compress the Brake Pads

Before removing the caliper entirely, it's often beneficial to push the brake piston back slightly. This creates more clearance and makes it easier to lift the caliper off the disc. Place one of the old brake pads (if it's still in place) against the piston, and position your C-clamp or F-clamp with one jaw on the back of the caliper and the other on the old pad. Slowly and steadily tighten the clamp, gently pushing the piston back into its bore. Do not force it. If you're replacing the rotor, this step might be less critical, but it always helps with clearance.

Step 4: Unscrew the Guide Pins

With the caps removed, insert your 7mm Allen wrench socket onto the head of each guide pin. Using your ratchet, turn counter-clockwise to loosen and remove both guide pins. These pins should come out relatively easily. If they are stiff, apply a small amount of penetrating oil. Once removed, inspect them for corrosion or damage. They should be clean and smooth; if not, consider replacing them or thoroughly cleaning them with a wire brush before reassembly.

Step 5: Remove and Support the Caliper

With the guide pins removed, the caliper should now be free to slide off the brake disc. Carefully lift the caliper off. Crucially, do not let the caliper hang by its flexible rubber brake line. This can stretch, damage, or even rupture the line, leading to brake failure. Instead, gently rest the caliper on a secure surface, such as the steering knuckle or suspension arm, ensuring the brake line is not under any tension. If there's no suitable resting place, you can use a strong wire hanger or bungee cord to suspend it from the suspension coil spring.

Step 6: Remove the Old Brake Pads

Once the caliper is off, the old brake pads will be exposed within the caliper carrier. They simply slide out. Note how they are oriented, especially if they have wear indicators or specific inner/outer designations. Inspect them for wear patterns – uneven wear can indicate issues with the caliper or other suspension components. Discard them responsibly.

Step 7: Unbolt the Caliper Carrier

Now that the caliper itself is out of the way, you can access the caliper carrier (also known as the caliper bracket or, as Bentley calls it, a "Ribbed Bolt" assembly). This is the robust metal frame that bolts directly to the vehicle's hub assembly and holds the brake pads in place. Locate the two large 18mm bolts that secure it. These bolts are often very tight and may require significant leverage, possibly even a breaker bar. Once loosened, fully remove both bolts. Keep them separate if you intend to reuse them, but as the instructions suggest, new ones are often preferred for safety.

Step 8: Clean Components Thoroughly

With the caliper and carrier detached, this is an excellent opportunity for thorough cleaning. Use brake cleaner to spray down the caliper, the caliper carrier, and the hub assembly. This will remove brake dust, grime, and any rust. For stubborn areas, particularly where the brake pads sit in the carrier, use a wire brush to scrub away corrosion and accumulated dirt. A clean surface ensures proper pad movement and prevents future issues. Ensure the guide pin bores on the caliper are also clean.

Step 9: Compress the Caliper Piston Fully

Before installing new, thicker pads, the caliper piston must be fully retracted into its bore. This is a critical step. Place one of your old brake pads against the piston face. Position your C-clamp or F-clamp with one jaw on the back of the caliper and the other on the old pad. Slowly and steadily tighten the clamp, pushing the piston all the way back until it's flush with the caliper body. This will displace brake fluid back into the master cylinder reservoir, so keep an eye on the fluid level – it shouldn't overflow. If it does, remove a small amount of fluid with a clean syringe.

Step 10: Install the New Rotor (If Applicable)

With everything clean, it's time for reassembly. If you're replacing the brake disc (rotor), carefully slide the new rotor onto the wheel hub. Many rotors have a small screw or bolt that holds them in place against the hub, preventing them from falling off when the wheel is removed. If your vehicle has one, install and lightly tighten this screw now (usually with a Phillips head screwdriver). Ensure the rotor sits flush against the hub face.

Step 11: Reinstall the Caliper Carrier

Position the cleaned caliper carrier back onto the hub assembly, aligning the bolt holes. Insert the new 18mm bolts (e.g., N-907-085-02 as specified) and hand-tighten them. Then, using your 18mm socket and torque wrench, tighten these bolts to the specified torque of 92 ft/lb. This precise torque is vital for safety and component integrity. Always use new bolts if recommended by the manufacturer, as they are designed for single-use stretch and can fail if reused.

Step 12: Install New Brake Pads

Now, install the new brake pads. Pay attention to their orientation; there's usually an inner and an outer pad. The inner pad often has spring clips or shims that interact with the caliper piston. Carefully push the inner pad into position, ensuring these metal clips engage correctly with the caliper piston. They should sit snugly without being forced. The outer pad will then slide into the caliper carrier. Ensure both pads slide freely in their respective slots within the carrier – if they bind, it means the carrier is still dirty or corroded, or the pads are not seated correctly.

Step 13: Reinstall and Torque Guide Pins

With the new pads in place, carefully slide the caliper back over the pads and onto the caliper carrier, aligning the holes for the guide pins. Insert the cleaned (or new) guide pins into their bores and hand-tighten them. Then, using your 7mm Allen wrench socket and torque wrench, tighten the guide pins to 21 ft/lb. Do not overtighten these, as it can damage the pins or the caliper body. Once torqued, replace the rubber caps over the guide pin heads to protect them from contaminants.

Step 14: Reinstall the Retaining Spring

Finally, re-install the retaining spring. This spring helps hold the pads in place and prevents rattling. It can be a bit tricky to re-engage, so use your flat head screwdriver to carefully leverage it back into its mounting holes. Ensure it's securely seated.

Final Steps: Wheels On and Brake Check

Once the caliper assembly is complete, re-install your wheel. Hand-tighten the lug nuts, then lower the vehicle until the wheel just touches the ground. Fully tighten the lug nuts in a star pattern to your vehicle's specific torque specifications (usually found in your owner's manual). Lower the vehicle completely and remove the jack stands. Before driving, pump the brake pedal several times until it feels firm. This re-seats the piston against the new pads. Finally, perform a short test drive in a safe area, gently applying the brakes to ensure they function correctly. New pads and rotors require a 'bedding-in' procedure, which involves several moderate stops from varying speeds to properly mate the pad and disc surfaces – consult your pad/rotor manufacturer's instructions for specifics.

Important Considerations & Tips for Brake Caliper Work

• Brake Fluid Management: When you compress the caliper piston, brake fluid is pushed back into the master cylinder. Ensure the brake fluid reservoir doesn't overflow. If it's full, remove some fluid with a clean syringe before compressing the piston. After reassembly and before driving, pump the brake pedal repeatedly until it feels firm. This pushes the piston back out against the pads and restores proper pedal feel.
• Brake Bleeding (Crucial!): While this guide focuses on caliper removal, if you disconnect the brake line from the caliper, or if the brake pedal feels spongy after the job, you must bleed the brake system. Air in the brake lines is dangerous as it can lead to a complete loss of braking power. Bleeding involves removing air bubbles from the hydraulic system.
• Torque Specifications are Not Suggestions: The torque values provided are absolutely critical. Over-tightening can strip threads or stretch bolts, leading to failure. Under-tightening can cause bolts to loosen, leading to components falling off. A torque wrench is an essential investment for brake work.
• Inspect Brake Hoses and Lines: While you have the wheel off and access, take the opportunity to inspect the flexible rubber brake hoses leading to the caliper. Look for cracks, bulges, or signs of wear. Any damage here necessitates replacement.
• Cleanliness is Key: Brake dust and dirt are abrasive and can cause premature wear or issues. Thoroughly cleaning all components with brake cleaner and a wire brush is not just for aesthetics; it ensures proper function and longevity.
• Bedding-In New Brakes: New brake pads and rotors need to be "bedded in" or "broken in." This process involves a series of moderate stops to transfer a thin, even layer of friction material from the pads to the rotors, optimising performance and preventing judder. Follow the specific bedding-in procedure recommended by the manufacturer of your new pads and rotors.

Torque Specifications Summary

Adhering to correct torque specifications is crucial for safety and component longevity. Always use a calibrated torque wrench for these critical fasteners:

Note: Always verify these specifications with your specific vehicle's service manual, as values can vary between models and manufacturers.

Common Issues and Troubleshooting During Caliper Removal

• Stuck Guide Pins: If the guide pins are seized due to corrosion, they can be very difficult to remove. Apply penetrating oil and let it soak. Sometimes, gentle tapping with a hammer (on a punch, not directly on the pin head) can help, but be careful not to damage the caliper. In severe cases, they may need to be drilled out or the caliper replaced.
• Seized Caliper Piston: If the piston won't retract even with a C-clamp, the caliper may be seized internally due to corrosion or a faulty seal. In this case, the caliper is faulty and needs to be rebuilt with a repair kit or replaced entirely. Never force a piston if it's excessively resistant, as this can damage the caliper or master cylinder.
• Stripped Bolts: If a bolt head rounds off or a thread strips, it can turn a simple job into a nightmare. Always use the correct size socket and ensure it's fully seated. If a bolt is stubborn, use a breaker bar for leverage. If a bolt does strip, you may need specialist tools (e.g., bolt extractors) or professional help.
• Brake Fluid Leakage: If you inadvertently damage a brake line or fitting, brake fluid will leak. This is a serious issue. Do not drive the car if brake fluid is leaking. The line must be repaired or replaced, and the system bled thoroughly.

Frequently Asked Questions (FAQs)

Q: How often should I inspect my brake calipers?

A: It's advisable to inspect your brake calipers and entire braking system at least once a year, or whenever you rotate your tyres. This allows you to catch potential issues like sticking pins or seized pistons early.

Q: Can I reuse the old caliper carrier bolts?

A: While some older vehicles allowed bolt reuse, many modern manufacturers (like VW, as indicated by the new bolt part number N-907-085-02) specify that these bolts are "torque-to-yield" or "stretch bolts" and must be replaced every time they are removed. Always check your vehicle's service manual or the bolt manufacturer's recommendations. Reusing them can lead to catastrophic failure.

Q: What if I can't compress the brake piston?

A: If the piston won't compress, it's likely seized due to internal corrosion or a failed seal. This means the caliper is faulty and needs to be rebuilt (if kits are available and you're comfortable) or, more commonly, replaced with a new or reconditioned unit.

Q: Do I need to bleed the brakes after replacing a caliper?

A: If you disconnect the brake line from the caliper, then yes, you absolutely must bleed the brake system to remove any air that has entered the lines. Even if you don't disconnect the line, it's often a good practice to perform a partial bleed or at least pump the pedal thoroughly before driving, as air can sometimes enter the system during piston compression.

Q: How do I know if my caliper needs replacing versus just cleaning?

A: If the caliper guide pins are seized solid, the piston won't retract, or if you see fluid leaks from the caliper body itself, it's likely time for a replacement or a rebuild. Simple sticking due to dirt and rust can often be resolved with thorough cleaning and new lubrication of the guide pins.

Conclusion

Removing and reinstalling a brake caliper is a manageable task for the competent DIY enthusiast, but it demands precision, patience, and a steadfast commitment to safety. Your vehicle's braking system is arguably its most critical safety feature, and any shortcuts or improper procedures can have severe consequences. By following this comprehensive guide, utilising the correct tools, adhering to torque specifications, and performing thorough post-installation checks, you can confidently maintain your vehicle's stopping power. If at any point you feel unsure or encounter unexpected difficulties, do not hesitate to consult a qualified mechanic. Your safety, and the safety of others on the road, depends on it.
