Octavia TFSI VRS Spline Bit Guide

Embarking on the task of changing the rear brake discs on your Skoda Octavia TFSI VRS can be a rewarding DIY endeavour, but it's crucial to have the right tools for the job. One of the most common points of confusion for enthusiasts tackling this particular task is identifying the correct spline bit required for the caliper carrier bolts. This guide aims to clarify that, providing you with the essential information to ensure a smooth and efficient brake replacement.

Understanding the Spline Bit Requirement

The Skoda Octavia TFSI VRS, particularly models from the period around 2006, utilises specific spline bolts for its rear brake caliper carriers. These bolts are designed to offer a high degree of torque resistance and are less prone to rounding off compared to conventional hex bolts. The information provided suggests that for your Octavia TFSI VRS, you will specifically need an M14 spline bit. This is not a common size found in every general toolkit, so it's worth ensuring you have this specific item before you begin.

The Importance of Leverage

Beyond just having the correct spline bit, the nature of these caliper carrier bolts often means they are tightened to a considerable torque. As experienced by many, including the owner of a 2006 Octavia TFSI vRS, you'll likely need a lot of leverage to loosen them. This can be achieved in a few ways:

• Breaker Bar: A long breaker bar provides significantly more leverage than a standard ratchet. Aim for a bar of at least half a metre in length for optimal torque application.
• Extension Bars: Using extension bars can help you get a better angle and position yourself comfortably to apply force.
• Impact Wrench (with caution): While an impact wrench can be effective, it needs to be used with care. Ensure you are using the correct spline bit to avoid damaging the bolt head. Start with lower torque settings and gradually increase if necessary.

It's vital to apply force smoothly and steadily. Jerky movements can increase the risk of rounding the bolt head or even snapping the bolt, which would introduce more complex repair issues.

Can You Change Discs Without Removing Carriers?

A common question that arises is whether it's possible to change the rear brake discs without completely removing the caliper carriers. The answer is generally yes, but with a significant caveat. If your rear brake discs are of a smaller diameter, it might be possible to manoeuvre the new discs into place without detaching the entire carrier assembly. However, this is often a tight fit and can be more challenging than the standard procedure.

For most Octavia TFSI VRS models, and particularly if you are replacing the discs and pads, it's usually more straightforward and recommended to remove the caliper carriers. This provides ample working space and reduces the risk of damaging components during the disc replacement. The caliper carrier bolts are typically secured with a substantial amount of torque, and removing the carrier allows for better access and control when undoing them.

Tools You'll Need (Summary)

To successfully change your Octavia TFSI VRS rear brake discs, consider gathering the following tools:

Step-by-Step (General Overview)

While a full guide is beyond the scope of this specific query, here's a general idea of the process:

1. Safety First: Ensure the vehicle is on a level surface, the handbrake is engaged (if working on the front), and the wheels are chocked. Loosen the wheel nuts slightly before jacking.
2. Jack Up and Support: Jack up the rear of the vehicle and support it securely on axle stands. Remove the rear wheel.
3. Access the Caliper: You'll need to remove the caliper from the disc. This usually involves removing slider pins. The caliper can then be hung out of the way, typically using a piece of wire or bungee cord. Do not let the caliper hang by the brake hose.

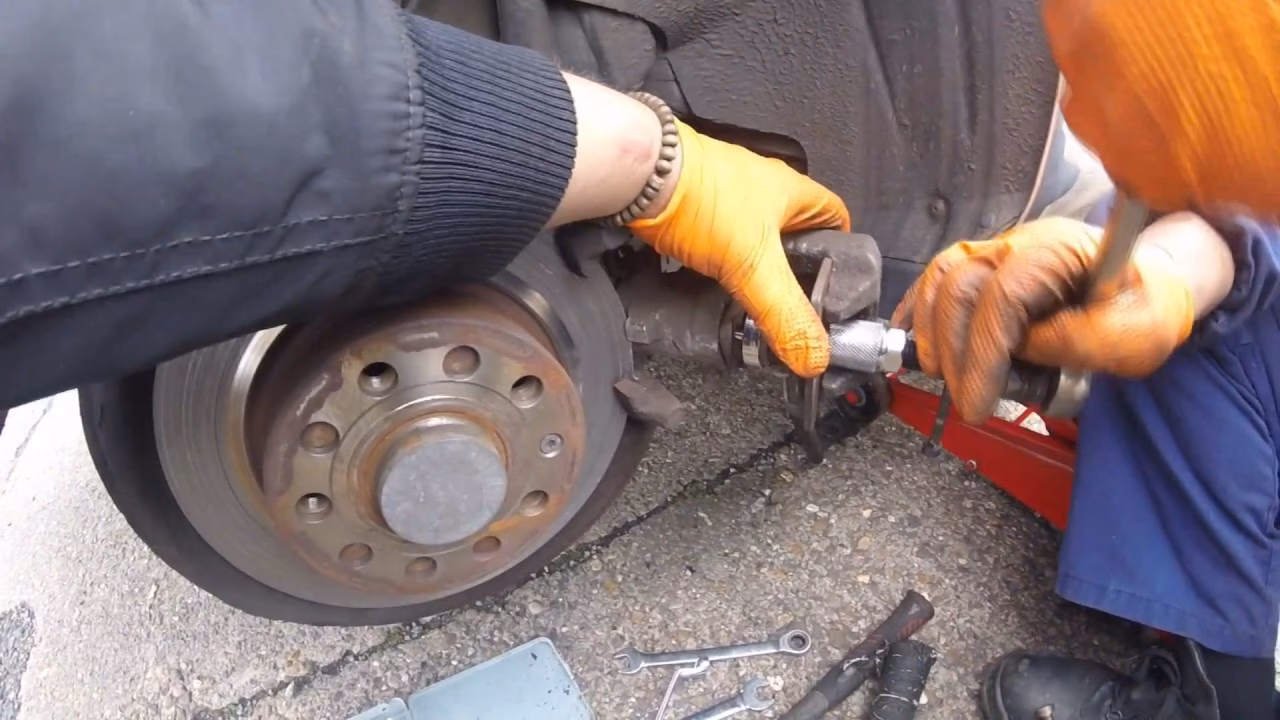

4. Remove the Caliper Carrier: This is where your M14 spline bit comes into play. Locate the bolts securing the caliper carrier to the hub assembly. Apply significant leverage to loosen these bolts.
5. Remove the Old Disc: Once the carrier is out of the way, the old brake disc should be free to be removed. It might be slightly seized on the hub, so a gentle tap with a rubber mallet or penetrating oil might be needed.
6. Prepare the Hub: Clean the hub surface thoroughly with a wire brush to remove any rust or debris. This ensures the new disc sits flush.
7. Fit the New Disc: Slide the new disc onto the hub.
8. Reassemble: Re-fit the caliper carrier, ensuring the M14 spline bolts are tightened to the correct torque specification. Re-install the caliper, ensuring slider pins are lubricated and tightened correctly.
9. Refit Wheel: Put the wheel back on and tighten the wheel nuts hand-tight.
10. Lower and Torque: Lower the vehicle and torque the wheel nuts to the manufacturer's specified value.
11. Bed In: New brake discs and pads need to be bedded in properly for optimal performance. Consult your new brake component's instructions for the recommended bedding-in procedure.

Frequently Asked Questions

Q1: What is a spline bit, and why is it used?

A spline bit is a type of screwdriver or socket bit that has a series of parallel grooves or splines around its circumference, rather than the traditional hexagonal or Torx shape. They are used for fasteners that require high torque transmission and offer increased resistance to cam-out (slipping out of the fastener head), thus reducing the risk of damage to both the tool and the fastener.

Q2: Are M14 spline bits common?

No, M14 spline bits are not as common as standard hex or Torx bits. They are often found in specialised automotive tool kits, particularly for European vehicles where such fasteners are more prevalent.

Q3: What happens if I use the wrong size spline bit?

Using the wrong size spline bit can lead to severe damage. It can round off the bolt head, making it extremely difficult, if not impossible, to remove. This can result in the need for more aggressive removal techniques, such as drilling or cutting, which can damage the surrounding components.

Q4: How much torque should the caliper carrier bolts be tightened to?

Torque specifications vary between vehicle models and years. For your Octavia TFSI VRS, it's essential to consult a workshop manual or reliable online resource for the precise torque value for the caliper carrier bolts. Overtightening or undertightening can compromise safety and performance.

Q5: Can I reuse the caliper carrier bolts?

It is generally recommended to replace caliper carrier bolts if they are designated as stretch bolts or if there is any sign of damage or wear. If they are standard bolts and in good condition, they can often be reused, but always clean the threads thoroughly and apply a small amount of anti-seize compound if recommended by the manufacturer (though avoid getting it on the bolt head or seating surface).

By ensuring you have the correct M14 spline bit and understanding the need for adequate leverage, you'll be well-equipped to tackle the rear brake disc replacement on your Octavia TFSI VRS. Remember to prioritise safety and always refer to your vehicle's specific service manual for detailed procedures and torque settings.
