Maintaining Your VW Golf Mk2's Fuel System: A Comprehensive Guide
It's a common sight on the road, a testament to German engineering and enduring style: the Volkswagen Golf Mk2. For many enthusiasts, owning a Mk2 is a labour of love, and ensuring its continued performance is paramount. One of the most critical, yet often overlooked, aspects of maintaining these vehicles is the fuel system. A healthy fuel system is the lifeblood of your engine, ensuring the correct amount of fuel is delivered precisely when needed. This article delves deep into the intricacies of the VW Golf Mk2's fuel delivery, focusing on common issues, repair solutions, and the technology that made it a legend.
Are VW Golf Mk2 Fuel Hoses Out of Stock? Addressing Your Concerns
One of the most frequent questions we encounter from Mk2 owners revolves around the availability of essential fuel system components. Specifically, are VW Golf Mk2 fuel hoses out of stock? The good news is that at reputable specialists, you can often find a comprehensive range of parts to tackle any fuel leak or degradation. We understand the frustration of a fuel leak – it's not only a safety concern but also detrimental to your engine's performance. That's why a wide selection of VW Golf Mk2 Fuel Hoses, Fuel Lines, and associated parts are readily available. Whether you need fuel hoses of various sizes, a specific Fuel Injector Line Kit for your GTI 8V, an External Fuel Pump to Fuel Tank Return Hose for your 8v or 16v GTI, a Return Fuel Hose for your GTI, or even Flexible Fuel Hose Joiners, the parts are out there. Shopping with confidence from leaders in VW Engine Parts means you can get your Mk2 back to peak condition, with express delivery often available to minimise downtime.
Understanding Fuel Injectors: The Heart of Fuel Delivery

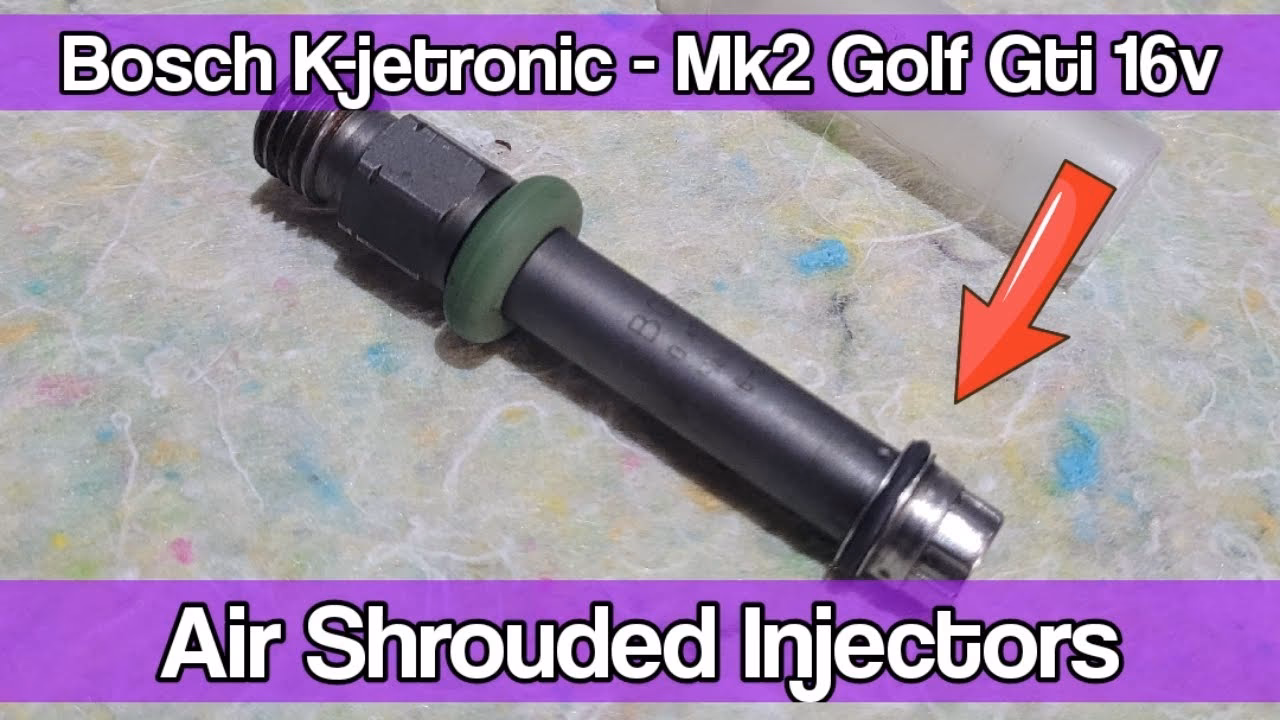

Before we delve into the specific systems, it's beneficial to understand the fundamental operation of a fuel injector. On modern cars equipped with an oxygen sensor, a sophisticated system adjusts the fuel mixture. However, the core component, the fuel injector itself, is remarkably simple in its basic design. Fuel injectors are essentially spring-loaded check valves fitted with precise nozzles. Their operation is triggered when the fuel system pressure rises sufficiently to overcome the tension of an internal counterspring. Once this threshold is met, the injector opens and sprays fuel in a fine, atomised mist into the engine's intake manifold or directly into the combustion chamber, depending on the injection type.
The Marvel of K-Jetronic: How It Works

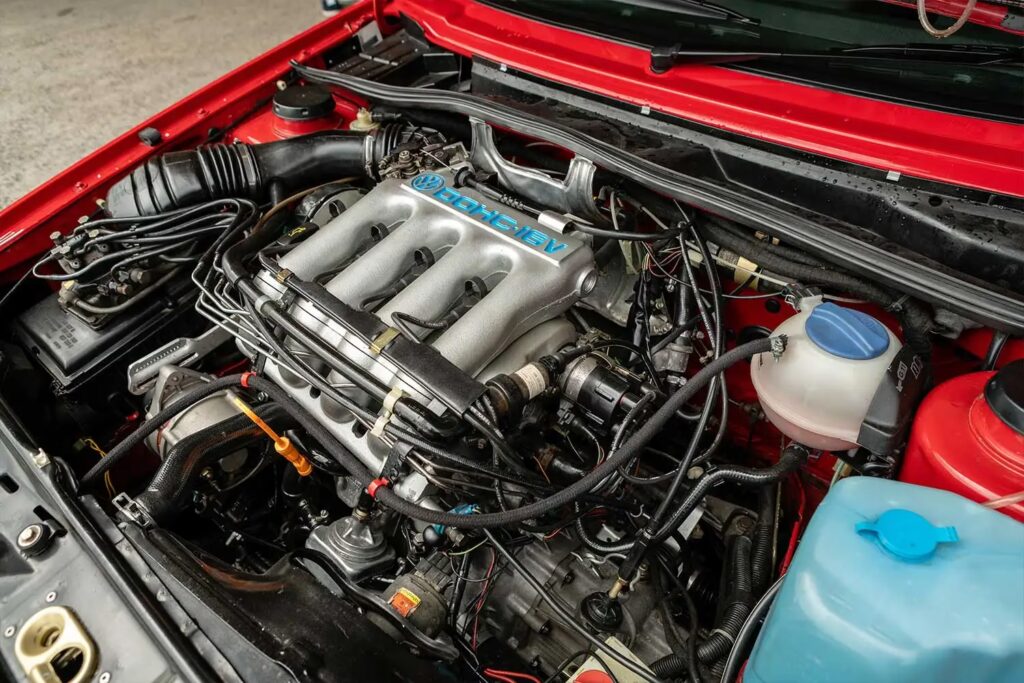

The VW Golf Mk2, particularly in its more performance-oriented variants, often featured the K-Jetronic fuel injection system. This was a pioneering mechanical fuel injection system, renowned for its reliability and performance. Let's break down how this ingenious system operates:
Fuel Supply: The Unseen Workhorse
The K-Jetronic system relies on a continuously operating fuel pump. This pump provides the necessary pressure to deliver fuel throughout the system. Any excess fuel is safely returned to the fuel tank. The fuel pump is activated when the ignition switch is turned to the START position. Crucially, once the starter motor is released, a switch connected to the air plate mechanism prevents the pump from running unless the engine is actually in operation. This clever interlock ensures fuel is only pumped when needed, protecting the system. Integrated into the fuel line leading to the fuel supply valve is a vital filter and a fuel accumulator. The accumulator plays a critical role in maintaining fuel system pressure even after the engine has been switched off. This feature is essential for ensuring good hot restarting, preventing the frustrating scenario of a hot engine failing to fire up. Associated with the accumulator is a pressure regulator, which is an integral part of the fuel metering device. When the engine is turned off, this pressure regulator rapidly reduces the pressure at the injection valves. This action effectively cuts off the fuel flow, preventing the engine from 'dieseling' or 'running on' after the ignition is switched off. The valve closes just below the pressure at which the injector valves open, and this specific pressure is then maintained by the fuel accumulator.
Fuel Distributor: The Conductor of Fuel Flow
The fuel distributor is a key component, typically mounted on the air metering device. Its operation is directly controlled by the vertical movement of a precisely engineered airflow sensor plate. Inside the distributor is a spool valve that moves vertically within a sleeve. This sleeve features multiple vertical slots around its circumference, with the number of slots corresponding to the number of cylinders in the engine. The spool valve itself is subject to hydraulic pressure at its upper end. This pressure is balanced against the pressure exerted by the airflow plate, which is transmitted to the bottom of the spool valve via a plunger. As the spool valve moves up or down in response to the airflow plate, it progressively uncovers a greater or lesser length of the metering slots. This action precisely controls the volume of fuel delivered to each individual injector. Each metering slot is equipped with a differential pressure valve. This valve ensures that the pressure difference across each slot remains constant. Because the pressure drop across the metering slot is unaffected by the length of the slot exposed, the amount of fuel flowing is determined solely by the exposed area of these slots. This mechanical precision is a hallmark of the K-Jetronic system.
Cold Start Valve (The Fifth Injector): Aiding Cold Starts
To ensure smooth starting in colder conditions, the K-Jetronic system incorporates a cold start valve, often referred to as the 'fifth injector'. This valve is mounted within the inlet manifold and is designed to spray an additional charge of fuel into the manifold during cold starting procedures. It's a solenoid-operated valve, controlled by a thermotime switch integrated into the engine's cooling system. The thermotime switch activates the cold start valve for a duration that is dependent on the coolant temperature; the colder the engine, the longer the valve remains open. If the coolant temperature is already high enough for the engine not to require additional fuel for starting, the thermotime switch will not operate.
Warm-Up Regulator (WUR) / Control Pressure Valve (CPV): Optimising Mixture During Warm-Up
During the engine's warm-up phase, a richer fuel mixture is required. This is to compensate for fuel that can condense on the cold walls of the inlet manifold and cylinder walls. Additionally, more fuel is needed to counteract the power loss experienced due to increased friction and oil drag in a cold engine. The warm-up regulator (WUR), also known as the Control Pressure Valve (CPV), is responsible for enriching the mixture during this critical period. The WUR functions as a pressure regulator, lowering the pressure applied to the control plunger of the main fuel regulator during the warm-up phase. This reduced pressure allows the airflow plate to rise higher than it normally would, consequently uncovering a greater length of the metering slots and thus delivering a richer fuel mixture. The WUR is actuated by a bimetallic strip that is heated by an electric element. When the engine is cold, this bimetallic strip presses against the delivery valve spring, reducing the pressure on the diaphragm and enlarging the discharge cross-section. This increase in cross-section leads to a reduction in the pressure supplied to the control plunger, effectively enriching the mixture.
Auxiliary Air Device: Compensating for Cold Engine Load
To further compensate for the power loss experienced by a cold engine due to increased internal friction, the auxiliary air device allows for a larger volume of the fuel/air mixture to be supplied to the engine than would be delivered by the throttle alone. This device bypasses the throttle via a channel that features a variable aperture valve. The aperture is controlled by a pivoted plate, which is influenced by a spring and a bimetallic strip. During cold starting, this channel is open, increasing the volume of air supplied to the engine. As the engine warms up and the bimetallic strip bends, it allows a control spring to pull the plate over the aperture, gradually closing it. By the time the engine reaches its normal operating temperature, the aperture is fully closed.
Cold Acceleration Enrichment: A Boost for Cold Performance
Fitted to later models, the cold acceleration enrichment system provides a brief enrichment of the fuel mixture when the engine is cold (typically below 35°C). This temporary enrichment improves acceleration performance. This system will only operate if specific conditions are met: the thermotime switch, the diaphragm pressure switch, and the throttle valve switch must all be in a 'shut off' state.
Temperature Sensor: Monitoring and Cooling Fan Activation
From March 1986 onwards, a temperature sensor was incorporated into the Mk2's design, typically located between injectors 1 and 2. Its primary function is to monitor the cylinder head temperature. If this temperature exceeds 110°C after the ignition has been switched off, the sensor triggers the cooling fan. A time relay is integrated into this circuit, ensuring the cooling fan's operation is limited to between ten and twelve minutes after the ignition is switched off, preventing unnecessary battery drain.
Common Fuel System Issues and Troubleshooting
Given the age of many VW Golf Mk2s, certain fuel system components can degrade over time. Common issues include: * Fuel Hose Perishing: Rubber fuel hoses can become brittle and crack due to age and exposure to fuel and heat. This is a primary cause of fuel leaks. * Fuel Filter Blockage: A clogged fuel filter can restrict fuel flow, leading to poor performance, hesitation, and even stalling. * Fuel Pump Weakness: Over time, fuel pumps can lose their efficiency, resulting in insufficient fuel pressure. * Injector Clogging: Deposits can build up in fuel injectors, affecting their spray pattern and leading to misfires or rough running. * WUR Malfunction: A faulty Warm-Up Regulator can cause issues with idle speed, mixture during warm-up, and overall drivability. Regular inspection and replacement of fuel hoses, along with timely fuel filter changes, are crucial maintenance steps. If you suspect a fuel system issue, consulting with a specialist familiar with the K-Jetronic system is highly recommended.
Frequently Asked Questions
Q1: How often should I replace my VW Golf Mk2 fuel hoses?A1: While there's no strict mileage interval, it's advisable to inspect fuel hoses regularly, especially if they are original. Many owners opt to replace them as a preventative measure every 5-10 years, or if any signs of cracking or hardening are observed. Q2: What are the signs of a fuel leak on my Mk2 Golf?A2: Obvious signs include the smell of petrol around the vehicle, visible dampness or wetness on fuel lines or hoses, and potentially a noticeable drop in fuel level or performance issues. Q3: Is K-Jetronic a difficult system to maintain?A3: K-Jetronic is a mechanical system, and while it's robust, it requires specific knowledge for diagnosis and repair. Finding parts and experienced mechanics is key. Q4: Can I convert my Mk2 Golf to a more modern fuel injection system?A4: Yes, conversions are possible, but they are complex and expensive. Maintaining the original K-Jetronic system is often preferred by purists. Ensuring your VW Golf Mk2's fuel system is in top condition is vital for its performance, reliability, and safety. With the right parts and a good understanding of the system, you can keep this iconic car running for many more years to come.
