06/07/2003
The Enduring Appeal of the Traditional 4x4: Focusing on the Mitsubishi Shogun
In an automotive landscape increasingly dominated by the 'Sports Utility Vehicle' (SUV) – a term that has blurred the lines between capable off-roaders and elevated estate cars – the traditional, go-anywhere 4x4 is becoming a rarer breed. Many iconic models, once the workhorses of rural life and demanding terrains, have either disappeared or been softened to cater to a more urban-centric market. This shift has left a void for those who still require genuine off-road prowess, durability, and a no-nonsense approach to motoring. For many, the Mitsubishi Shogun, and its close cousin the Mitsubishi Pajero, has stood as a steadfast alternative. This article delves into the transmission options and the inherent mechanical character that makes the Shogun a compelling choice for those who value substance over fleeting fashion.
A Changing Market: The SUV Phenomenon
The evolution of the automotive market over the past decade or so has been dramatic. What were once unequivocally '4x4s' or 'trucks' (to those in rural areas) have largely morphed into SUVs. This transformation has seen manufacturers prioritise on-road comfort, advanced infotainment systems, and a sleeker aesthetic, often at the expense of core off-road capability and ruggedness. Vehicles like the Land Rover Discovery have transitioned from being utilitarian off-roaders to luxurious, feature-laden machines where owners might hesitate to introduce mud to the pristine interiors. Similarly, the venerable Land Rover Defender, a symbol of British off-road heritage, has also undergone a significant transformation, embracing a more premium and less utilitarian identity.
This trend has left a palpable gap for a particular type of vehicle: one that offers genuine 4x4 capability with a low-ratio gearbox, robust construction, and an interior that can withstand the rigours of country life. The user's sentiment echoes this widely felt need: the desire for a vehicle that can handle muddy fields, tow trailers, transport muddy dogs and equipment, and still provide reasonable comfort on longer road journeys, without the associated anxieties of damaging an expensive, overly refined interior. The Shogun has consistently fit this bill, offering a blend of ruggedness and practicality that many modern SUVs lack.
Mitsubishi Shogun: Transmission Philosophy
The Mitsubishi Shogun, particularly in its more traditional iterations, is renowned for its robust and capable drivetrain. At its heart lies a sophisticated yet durable 4x4 system, often featuring Mitsubishi's Super Select 4WD. This system is a key differentiator, offering drivers a significant degree of control over how the vehicle distributes power.
Understanding Super Select 4WD
The Super Select 4WD system typically offers the following modes:
- 2H (2WD High Range): For normal road driving, maximising fuel efficiency by driving only the rear wheels.
- 4H (4WD High Range): Engages all four wheels for improved traction on slippery surfaces like wet roads, gravel, or light off-road conditions. This mode can often be used on-road.
- 4HLC (4WD High Range with Locked Centre Differential): This mode locks the centre differential, ensuring that power is distributed equally between the front and rear axles. This is ideal for more challenging off-road conditions where wheel slip is likely.
- 4LLC (4WD Low Range with Locked Centre Differential): This is the ultimate off-road mode. Engaging the low-range gear set provides significantly increased torque multiplication, allowing the vehicle to crawl over obstacles, tackle steep inclines, and maintain control in extreme conditions.
The inclusion of a centre differential lock is crucial for true off-road capability. Unlike some permanent 4WD systems that use a viscous coupling or open centre differential, the ability to lock the centre differential ensures that if one wheel loses traction, power can still be sent to the wheels that have grip. This is a fundamental feature of traditional, capable 4x4 vehicles.
Manual vs. Automatic Transmissions
The Shogun has historically been offered with both manual and automatic transmission options. Each has its own set of advantages and disadvantages, catering to different driver preferences and driving styles.
| Feature | Manual Transmission | Automatic Transmission |
|---|---|---|
| Driver Engagement | Higher, more direct control over gear selection. | More relaxed driving experience, especially in traffic. |
| Off-Road Control | Precise control for crawling and low-speed manoeuvring. | Can be less intuitive for technical off-roading, though modern automatics are very capable. |
| Towing | Allows the driver to keep revs in the power band more easily. | Can be very effective, especially with torque converter lock-up for efficiency. |
| Complexity | Generally simpler and potentially more robust. | More complex, with hydraulic systems and electronic controls. |
| Fuel Economy | Often slightly better, depending on driving style. | Can be slightly less efficient, though modern automatics minimise this. |
| Maintenance | Typically involves clutch replacement at intervals. | Requires regular transmission fluid changes. |
For the user's specific query regarding a 1995 Pajero (Shogun in some markets) with a 3.0-litre V6 ECI-Multi engine, it's highly likely to be equipped with either a 5-speed manual or a 4-speed automatic transmission. The '3000' on the side would indeed indicate a 3.0-litre engine. While Mitsubishi did offer 3.5-litre V6 engines in some Pajero/Shogun models, the 3.0-litre was a common and capable unit.
Transmission Fluid Maintenance: The Heart of an Automatic
For automatic transmission Shoguns, regular and correct maintenance of the transmission fluid is paramount to longevity and performance. The method described by the user, involving flushing the system via the cooler lines, is a common and effective way to achieve a 100% fluid change, going beyond the typical drain-and-fill which only replaces a portion of the fluid residing in the sump.
Procedure for 100% Fluid Change (General Guide)
The user's provided method is generally sound for many automatic transmissions, including those found in older Pajeros/Shoguns. Here's a breakdown and clarification:
- Locate Cooler Lines: These are typically metal or reinforced rubber hoses running from the transmission to the radiator or a separate transmission cooler. They carry the hot transmission fluid to be cooled. On a 1995 Pajero, these would usually be found towards the front of the vehicle, near the radiator or front bumper area. An image would be helpful, but generally, look for two lines connected to the radiator's transmission cooler section (if integrated) or to a small separate cooler.
- Prepare for Fluid Exchange:
- Get a large container (10-15 litres capacity) to catch the old fluid.
- Disconnect one of the cooler lines at a convenient point, ensuring it's securely connected to a hose that leads into your catch container.
- Insert a funnel securely into the transmission dipstick tube.
- Initiate Fluid Exchange:
- Start the engine. The transmission's internal pump will begin to push fluid out through the disconnected cooler line.
- Simultaneously, begin pouring fresh, correct transmission fluid into the funnel at the dipstick tube. The goal is to add fluid at roughly the same rate that it is being expelled. This prevents the transmission from running dry, which can cause severe damage.
- It is critical to monitor the fluid level in the catch container. When the exiting fluid begins to look clean and matches the colour of the new fluid, the exchange is nearing completion.
- If you need to stop or are running low on fresh fluid to add, immediately turn off the engine to prevent the transmission from pumping air.
- Completing the Exchange:
- Once clean fluid is observed, allow the engine to run for a few more seconds to ensure all dirty fluid is purged.
- Turn off the engine.
- Reconnect the cooler line securely.
- Final Checks and Top-Up:
- Start the engine again.
- Check the transmission fluid level using the dipstick. The engine should be running, and the transmission should be in Park (or Neutral, depending on the manufacturer's recommendation for checking).
- Add fluid as necessary to bring the level within the correct range on the dipstick. Do not overfill.

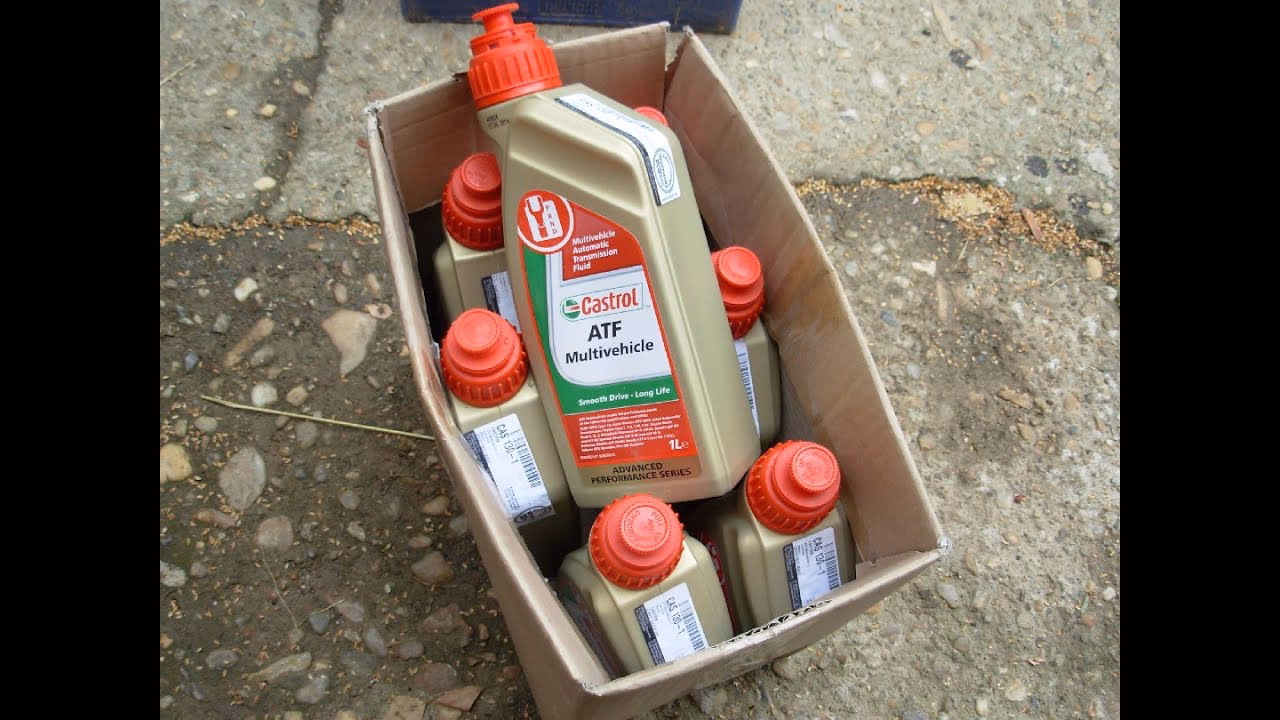

Transmission Fluid Specification
For a 1995 Mitsubishi Pajero, the correct transmission fluid is typically a Dexron II or Dexron III compatible automatic transmission fluid (ATF). Always consult the owner's manual or a reliable parts supplier for the exact specification. The amount of fluid required for a full flush is substantial, often around 8-12 litres, depending on the transmission's capacity and how much is retained in the torque converter.
Addressing Transmission Leaks
Transmission leaks can stem from various sources, including worn seals, damaged gaskets, loose fittings, or cracks in the transmission casing. The mention of using a spanner to crack loose a transmission pan drain plug implies draining the fluid, which is a precursor to fixing leaks rather than a method of stopping them.
To stop a transmission from leaking oil, the following steps are generally taken:
- Identify the Source: Thoroughly clean the transmission and then run the engine to pinpoint exactly where the leak is originating. Common leak points include the output shaft seal, input shaft seal, pan gasket, cooler line fittings, and breather vent.
- Tighten Fasteners: Sometimes, leaks are caused by loose bolts around the transmission pan. Gently tightening these can resolve minor leaks.
- Replace Seals and Gaskets: Worn or damaged seals (like shaft seals) and gaskets (like the pan gasket) are the most common culprits. These will require the transmission or specific components to be removed or accessed to replace them. This is often a job for a qualified mechanic.
- Repair or Replace Casing: In rare cases, a crack in the transmission casing can cause a leak, which may require welding or replacement of the casing.
It's important to address transmission leaks promptly, as a loss of fluid can lead to overheating and significant internal damage, necessitating costly repairs.
The Shogun's Continued Relevance
Despite Mitsubishi ceasing production of the Shogun, its legacy as a reliable 4x4 endures. For those who value its honest engineering, go-anywhere capability, and ability to withstand hard work, it remains an excellent choice in the used market. The user's comparison to other vehicles highlights the Shogun's position as a no-frills, highly capable machine, distinct from the more comfort-oriented and electronically complex SUVs that now dominate the market. Its transmission systems, whether manual or automatic, are designed for durability and performance in demanding conditions, making it a true workhorse for rural life and adventurous pursuits.
Frequently Asked Questions
Q1: What is the best transmission type for off-roading in a Shogun?
A1: While both manual and automatic Shoguns are capable, a manual transmission often offers more direct control for precise crawling and manoeuvring in very technical off-road situations. However, modern automatic transmissions with good low-range gearing are also highly effective.
Q2: How often should I change the transmission fluid in my automatic Shogun?
A2: It's generally recommended to change the automatic transmission fluid and filter every 30,000 to 50,000 miles, or as specified in the owner's manual. For heavy use (towing, off-roading), more frequent changes may be beneficial.
Q3: Can I use a different type of ATF if the specified one is unavailable?
A3: It is strongly advised to use only the transmission fluid specified by Mitsubishi. Using an incompatible fluid can lead to shifting problems, increased wear, and potential transmission failure.
Q4: My Shogun's 4WD system is engaging but feels rough. What could be the issue?
A4: Issues could range from low or old transfer case/differential fluid to worn U-joints or a problem with the centre differential lock mechanism. A professional inspection is recommended.
Q5: Why does my Shogun feel less refined on the motorway compared to a modern SUV?
A5: Traditional 4x4s like the Shogun prioritise robust construction and off-road capability over ultimate on-road refinement. They often have more rugged suspension systems and less sound deadening compared to luxury SUVs designed primarily for tarmac use.
