Understanding Your Alfa Romeo MiTo's Dashboard Warning Lights
The dashboard of any car is a complex array of indicators, each designed to communicate vital information about the vehicle's health and operational status. For owners of the stylish Alfa Romeo MiTo, understanding these illuminated symbols is crucial for maintaining optimal performance and, more importantly, ensuring safety on the road. This guide aims to demystify some of the more common and potentially concerning warning lights you might encounter on your MiTo's dashboard, focusing specifically on the traction control (VDC/ASR) and braking system indicators. Ignoring these signals can lead to costly repairs and, in severe cases, dangerous driving situations.
The VDC and ASR System Warning Lights
Your Alfa Romeo MiTo is equipped with advanced electronic stability and traction control systems, commonly referred to as VDC (Vehicle Dynamic Control) and ASR (Anti-Slip Regulation). These systems work in tandem to enhance grip and stability, particularly in challenging driving conditions like slippery roads or during rapid acceleration and cornering. The dashboard has dedicated warning lights to inform you about the status of these systems.
VDC System Light
When you turn your ignition key to the 'MAR' (or accessory) position, the VDC system warning light, often depicted as a car with wavy lines underneath or simply 'VDC', should illuminate briefly and then extinguish after a few seconds. This is a standard system check, confirming that the VDC control unit is functional. However, if this light:
- Does not go out after starting the engine: This indicates a potential fault within the VDC system. It could be a sensor issue, a problem with the control module, or a related electrical fault.
- Remains lit up while driving: This signifies that the VDC system has detected an issue and may be disabled or functioning sub-optimally. In some MiTo versions, a specific message will accompany the illuminated light on the infotainment display.
- Flashes while driving: This is a normal operational indicator. A flashing VDC light means the system is actively intervening to prevent wheelspin and maintain stability, such as during acceleration on a wet surface or when cornering sharply.
ASR Failure Light
Similar to the VDC light, the ASR system warning light (often represented by the same icon or simply 'ASR') should also illuminate upon ignition and then disappear. The ASR system is primarily focused on preventing wheelspin during acceleration. If the ASR failure light behaves in the same way as described for the VDC light – staying illuminated after starting or remaining lit during driving – it points to a malfunction within the ASR system. As with the VDC, a flashing ASR light indicates the system is actively working to manage traction.
What to Do if VDC/ASR Lights Stay On
If either the VDC or ASR warning light remains illuminated after starting your engine, or if it appears while you are driving and does not flash, it is imperative to contact an Alfa Romeo Authorised Service. Driving with these systems compromised can affect your car's handling and increase the risk of losing control, especially in adverse weather. While the car may still be driveable, it's advisable to do so with caution and seek professional diagnosis promptly. A mechanic will be able to scan the vehicle's onboard computer for fault codes related to these systems, which will pinpoint the exact cause of the malfunction.
The Red Brake System Warning Light
The braking system is arguably the most critical safety feature of any vehicle. Your Alfa Romeo MiTo's dashboard includes a brake system warning light, which can appear in either red or yellow. The colour is significant:
- Yellow Brake System Warning Light: A yellow or amber brake light typically indicates a less critical issue, often related to a malfunction in the braking system's sensors or a low brake fluid level. While not immediately dangerous, it still requires attention.
- Red Brake System Warning Light: A red brake system warning light is a much more serious signal. It indicates significant issues within the braking system that could compromise its effectiveness.
Common Causes for a Red Brake Light
The red brake warning light can illuminate for several reasons:
- Engaged Handbrake: The most common and simplest reason for the red brake light to illuminate is that the handbrake (also known as the parking brake) is still engaged. Ensure it is fully released.
- Low Brake Fluid: A critically low brake fluid level is a major concern. This can happen due to a leak in the brake lines, a faulty master cylinder, or simply worn brake pads that have caused the fluid level in the reservoir to drop. Low fluid directly impacts the hydraulic pressure needed for effective braking.
- Brake System Malfunction: The light can also illuminate due to a more severe mechanical or electrical fault within the braking system itself, such as a problem with the ABS (Anti-lock Braking System) or EBD (Electronic Brakeforce Distribution) components, or issues with the brake pedal sensor.
Immediate Actions for a Red Brake Light
If the red brake system warning light illuminates while you are driving, and you have confirmed the handbrake is released, you must take immediate action:
- Pull Over Safely: Find a safe place to pull over as soon as possible.
- Check Brake Fluid: If you are comfortable and knowledgeable, carefully check the brake fluid level in the reservoir under the bonnet. If it is very low, do not drive the car.
- Seek Professional Help: Regardless of the fluid level, it is highly recommended to contact an Alfa Romeo Authorised Service or a qualified mechanic immediately. Driving with compromised brakes is extremely dangerous. The system needs a thorough inspection to identify and rectify the fault.
Other Potential Warning Lights
While the VDC/ASR and brake lights are critical, your MiTo's dashboard might display other important warnings:
- Engine Warning Light (Check Engine Light): Usually amber, this indicates a potential issue with the engine management system, emissions control, or powertrain.
- Oil Pressure Warning Light: A severe warning, often red, indicating low engine oil pressure. Stop the engine immediately.

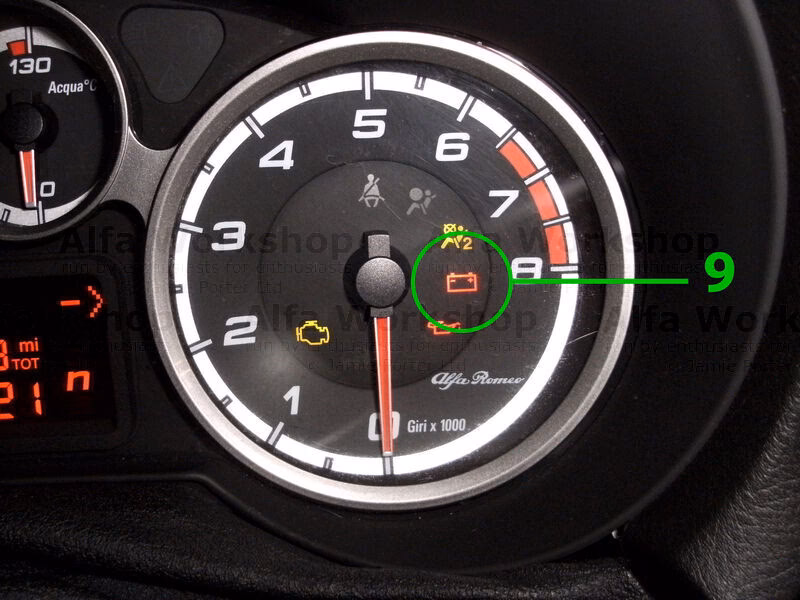

- Battery Warning Light: Indicates a problem with the charging system (alternator or battery).
- Tyre Pressure Monitoring System (TPMS) Light: Alerts you to underinflated tyres.
Preventative Maintenance and Care
Regular servicing and paying attention to your vehicle's warning lights are key to maintaining your Alfa Romeo MiTo in top condition. Ensure your brake fluid is checked during routine maintenance, and that your tyres are properly inflated. Familiarise yourself with the owner's manual, as it provides specific details about the warning lights and their meanings for your particular model. Proactive maintenance can prevent minor issues from escalating into major, expensive repairs and, most importantly, keep you and others safe.
Frequently Asked Questions (FAQ)
- Q: My VDC light is flashing. Is this a problem?
- A: No, a flashing VDC (or ASR) light is normal. It indicates that the system is actively working to maintain traction and stability during driving, such as when accelerating or cornering on slippery surfaces.
- Q: The red brake light came on, but the handbrake is off. What should I do?
- A: If the red brake light stays on and the handbrake is released, it signifies a serious issue. Pull over safely as soon as possible and contact roadside assistance or a qualified mechanic. Do not continue driving.
- Q: Can I drive my MiTo if the VDC or ASR light stays on?
- A: While the car may still be drivable, it's not recommended to drive for extended periods with these lights on. The traction and stability control systems may not be functioning correctly, which can impact your car's handling and safety, especially in adverse conditions. Seek professional diagnosis promptly.
- Q: What is the difference between a red and yellow brake warning light?
- A: A yellow brake light typically indicates a less urgent issue, such as a sensor fault or low brake fluid. A red brake light signifies a more critical problem within the braking system that requires immediate attention due to potential compromise in braking performance.
By understanding these common dashboard indicators, Alfa Romeo MiTo owners can respond appropriately to potential issues, ensuring a safer and more reliable driving experience. Always prioritise safety and consult a professional when in doubt.
