The thickness of your vehicle's brake pads is a critical safety feature. Worn brake pads can significantly reduce braking efficiency, leading to longer stopping distances and potentially dangerous situations. Understanding the recommended thickness and knowing when to replace them is paramount for any responsible driver. This guide will delve into the specifics of hydraulic brake pad thickness, providing you with the knowledge to keep your vehicle safe and performing at its best.
Understanding Brake Pad Function
Brake pads are the friction material that presses against the brake disc (or drum) when you apply the brakes. This friction converts the kinetic energy of your moving vehicle into heat, slowing it down. Over time, this friction material wears away, becoming thinner with each application of the brakes. The effectiveness of your braking system is directly linked to the amount of friction material remaining on the pads.
Minimum Recommended Thickness
The exact minimum thickness for brake pads can vary slightly depending on the vehicle manufacturer and the specific type of braking system. However, a widely accepted industry standard for the minimum thickness of brake pads is 3.2 mm (1/8 inch). This measurement is typically taken at the thinnest point of the friction material, often near the centre of the pad where wear is most pronounced.
It's crucial to understand that this 3.2 mm is the absolute minimum. Many mechanics recommend replacing brake pads when they reach around 4-5 mm to ensure there's still ample stopping power and to avoid potential damage to other braking components like the brake discs.
Commercial Vehicles: A Different Standard
For commercial motor vehicles, which often carry heavier loads and operate under more demanding conditions, the regulations regarding brake pad thickness are generally stricter. Hydraulic or electrically braked commercial vehicles should not be operated with a lining/pad thickness less than 1.6 mm (1/16 inch). This measurement is typically taken at the shoe centre for both disc and drum brakes.
How to Check Your Brake Pad Thickness
Checking your brake pad thickness is a relatively straightforward process, though it often requires removing the road wheels for a clear view. Here's a general guide:
- Safety First: Ensure your vehicle is parked on a level surface with the handbrake engaged and the engine turned off. For added safety, you might want to chock the wheels that will remain on the ground.
- Locate the Brake Calipers: The brake calipers are the components that house the brake pads and surround the brake discs.
- Visual Inspection: Look through the spokes of your road wheels to get a view of the brake pads. You should be able to see the metal backing plate of the pad and the friction material.

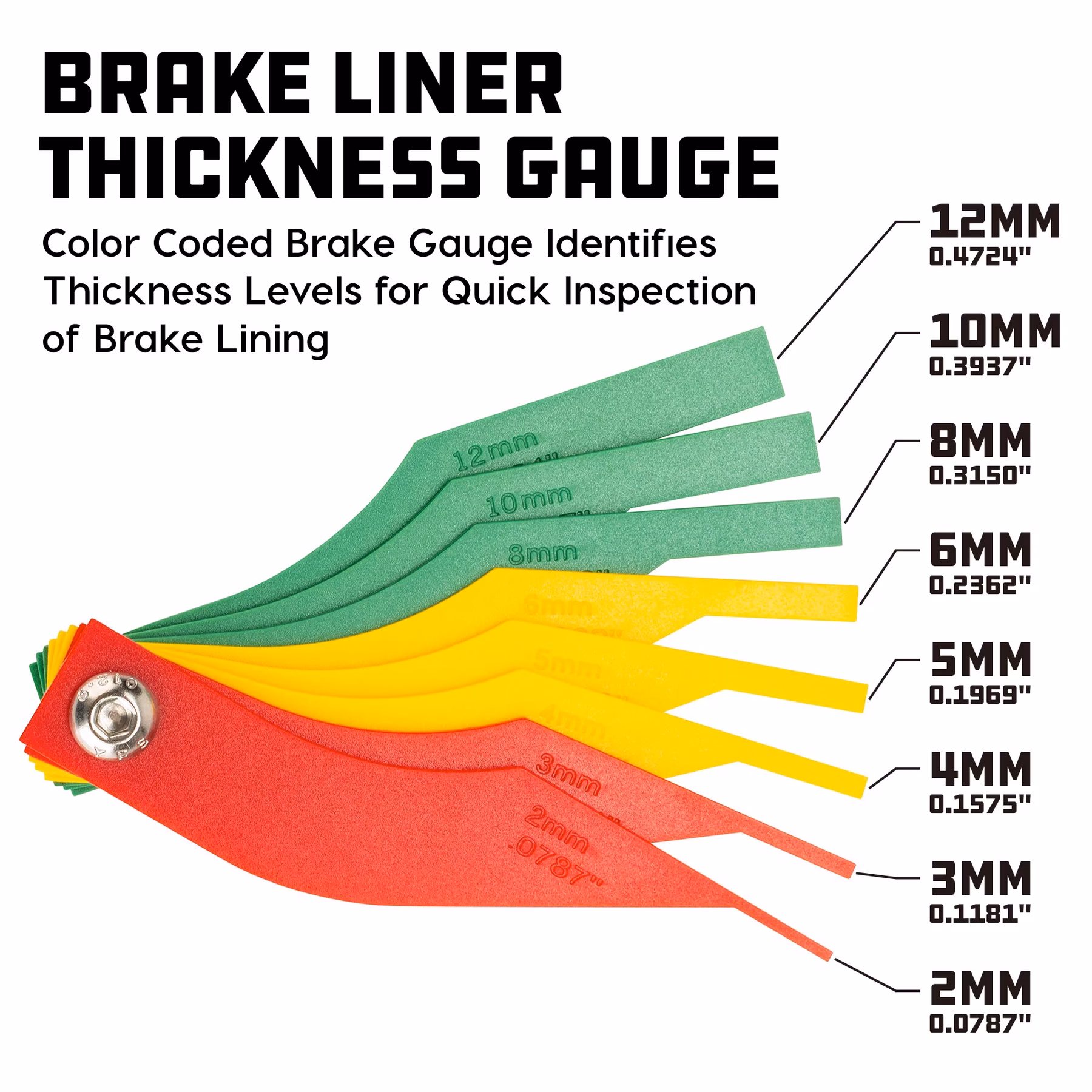

- Measure if Necessary: If you can't get a clear visual or want a precise measurement, you'll need to remove the road wheel. Once the wheel is off, you can use a tread depth gauge or a ruler to measure the thickness of the friction material. Remember to measure at the thinnest point.
Using a Brake Pad Wear Indicator
Many modern brake pads come equipped with a small metal tab known as a brake pad wear indicator. When the brake pad wears down to a certain point, this tab makes contact with the brake disc, producing a high-pitched squealing sound when you apply the brakes. This is a clear auditory warning that your brake pads need immediate attention. If you hear this squealing, it's time to get them checked and likely replaced.
Consequences of Worn Brake Pads
Ignoring worn brake pads can lead to several serious consequences:
- Reduced Braking Performance: The most immediate consequence is a significant reduction in your vehicle's ability to stop. This increases the risk of accidents, especially in emergency situations.
- Damage to Brake Discs: When the friction material wears down completely, the metal backing plate of the brake pad will come into direct contact with the brake disc. This can cause severe damage to the disc, leading to more expensive repairs.
- Overheating: Worn pads have less surface area for friction, which can lead to increased heat buildup during braking. This can cause brake fade, where the braking system becomes less effective.
- Potential for Component Failure: In extreme cases, severely worn brake pads could lead to other brake system failures, compromising your safety.

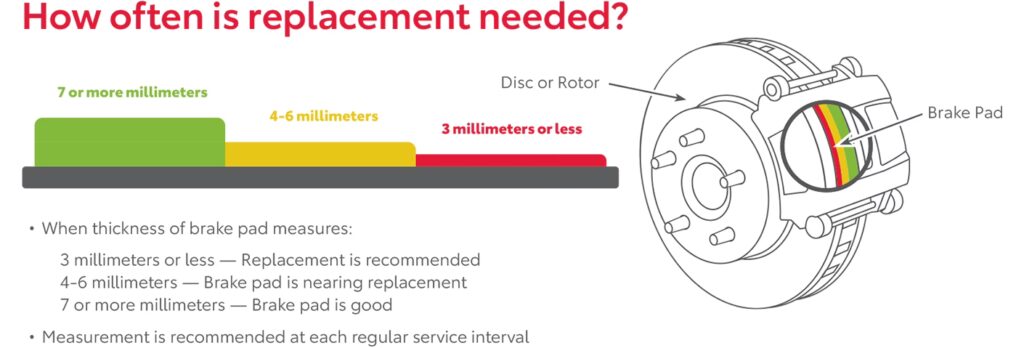

When to Replace Brake Pads
As a general rule of thumb, you should consider replacing your brake pads when they reach approximately 4-5 mm of thickness. However, always refer to your vehicle's owner's manual for the manufacturer's specific recommendations. If you're unsure, it's always best to have your brakes inspected by a qualified mechanic. Regular brake inspections, typically during routine servicing, are highly recommended.
Table: Brake Pad Thickness Comparison
| Vehicle Type | Minimum Recommended Thickness (Disc/Drum) | Warning Signs |
|---|---|---|
| Standard Passenger Vehicles | Approx. 3.2 mm (1/8 inch) - Replace around 4-5 mm | Squealing noise, reduced braking efficiency, dashboard warning light |
| Commercial Motor Vehicles | 1.6 mm (1/16 inch) (at shoe centre) | Similar to passenger vehicles, but potentially more critical due to load capacity. |
Frequently Asked Questions
Q1: How often should I check my brake pads?
It's recommended to check your brake pads at least once a year or every 10,000-15,000 miles, whichever comes first. Many people have them inspected during their regular vehicle servicing.
Q2: What does the squealing sound mean?
The high-pitched squealing sound usually indicates that the brake pad wear indicator is making contact with the brake disc, signalling that the pads are worn and need replacement.
Q3: Can I drive with thin brake pads?
While you might be able to drive, it is highly unsafe. Thin brake pads significantly reduce your vehicle's stopping power, increasing the risk of an accident. It can also lead to more expensive damage to your brake discs.
Q4: How do I know if my brake discs need replacing too?
Brake discs should be inspected for wear, scoring, or warping. If the discs are below the minimum thickness specified by the manufacturer or show signs of significant damage, they should be replaced along with the brake pads.
Conclusion
Maintaining the correct thickness of your hydraulic brake pads is not just a matter of performance; it's a fundamental aspect of vehicle safety. By understanding the minimum thickness requirements and being vigilant for warning signs, you can ensure that your braking system remains effective and reliable. Regular checks and timely replacement of worn brake pads are essential investments in your safety and the longevity of your vehicle's braking components. Don't compromise on safety; keep an eye on your brake pads!
