Understanding 4-Wheel Alignment

Is a 4-Wheel Alignment Necessary for Your Vehicle?

Many car owners are familiar with the concept of wheel alignment, but the specifics, especially regarding a 4-wheel alignment, can sometimes be a bit hazy. While a standard 2-wheel alignment focuses on the front axle, a 4-wheel alignment takes a comprehensive approach, addressing both the front and rear axles of your vehicle. This detailed adjustment is crucial for maintaining optimal tyre life, improving fuel efficiency, and ensuring your car handles predictably and safely. Understanding when and why you might need this more in-depth service can save you money and prevent potential issues down the line. Let's delve into what a 4-wheel alignment entails and when it becomes a necessity for your driving experience.

What is a 4-Wheel Alignment?

A 4-wheel alignment, often referred to as a 'computerised alignment' or 'full alignment,' is a precise adjustment of your vehicle's suspension geometry. Unlike a simpler 2-wheel alignment which only adjusts the front wheels, a 4-wheel alignment measures and adjusts the angles of all four wheels. The primary goal is to ensure that all wheels are pointing in the same direction and are perpendicular to the ground, optimising the vehicle's handling and tyre wear. The key angles adjusted during a 4-wheel alignment include:

• Camber: This is the inward or outward tilt of the top of the tyre when viewed from the front of the vehicle. Too much positive or negative camber can lead to uneven tyre wear.
• Caster: This refers to the angle of the steering axis when viewed from the side. It affects steering stability and the self-centring action of the steering wheel.
• Toe: This is the angle of the tyres relative to each other when viewed from above. 'Toe-in' means the front of the tyres are closer together than the back, while 'toe-out' means the opposite. Incorrect toe settings are a major cause of tyre wear.
• Thrust Angle: This is a critical aspect of a 4-wheel alignment. It measures the direction the rear axle is pointing relative to the vehicle's centre line. If the thrust angle is off, the rear wheels are not tracking parallel to the front wheels, causing the car to 'crab' or pull to one side, even if the steering wheel is straight.

Why is a 4-Wheel Alignment Important?

Maintaining proper wheel alignment is fundamental for several reasons. A 4-wheel alignment offers a more complete solution, addressing potential issues across the entire vehicle's suspension system. Here’s why it’s so important:

• Tyre Longevity: Misaligned wheels, especially when the rear wheels aren't tracking the front correctly (a 'crabbing' effect), can cause significant and rapid tyre wear. Tyres can wear unevenly, leading to feathering, cupping, or a constant scrubbing effect, drastically reducing their lifespan. A 4-wheel alignment ensures tyres wear evenly across their tread.
• Fuel Efficiency: When your wheels are not aligned correctly, they create more rolling resistance. This means your engine has to work harder to move the vehicle, consuming more fuel. Proper alignment reduces this resistance, contributing to better fuel economy.
• Handling and Stability: Misalignment can lead to a vehicle that pulls to one side, wanders, or feels unstable, particularly at higher speeds or during braking. A 4-wheel alignment ensures your car steers straight and true, providing a more confident and controlled driving experience.
• Reduced Driver Fatigue: If your car constantly pulls to one side, you'll find yourself subconsciously (or consciously) fighting the steering wheel to keep it going straight. This can lead to significant driver fatigue on longer journeys.
• Suspension Component Wear: Prolonged misalignment can put undue stress on other suspension components, such as ball joints, tie rod ends, and bushings, potentially leading to premature wear and more costly repairs.

When Should You Consider a 4-Wheel Alignment?

Several indicators suggest that your vehicle might benefit from a 4-wheel alignment. It's not just about addressing obvious problems; proactive checks are also beneficial:

• After Suspension Work: Any work involving the suspension, steering components, or chassis, such as replacing shocks, struts, ball joints, tie rods, or control arms, necessitates a 4-wheel alignment. This ensures that new components are properly set up.
• After an Accident or Impact: Even minor collisions or hitting a significant pothole can knock your wheel alignment out. If you've been involved in an incident, an alignment check is highly recommended.
• Tyre Wear Patterns: As mentioned, uneven tyre wear is a classic symptom of misalignment. If you notice your tyres wearing out faster on one edge or developing unusual patterns, it's time for an alignment.
• Vehicle Pulling or Drifting: If your car consistently pulls to the left or right when you're driving on a straight, level road, or if it feels like it's drifting, misalignment is likely the culprit.
• Vibrations: While vibrations can have many causes, sometimes they are related to misaligned wheels, especially if felt through the steering wheel.
• Steering Wheel Off-Centre: If your steering wheel isn't straight when you're driving in a straight line, it's a clear sign that an alignment is needed.
• Regular Maintenance Schedule: Many manufacturers recommend checking wheel alignment as part of a routine service, typically every 12,000 to 15,000 miles or once a year. Even if you don't notice any symptoms, a periodic check can catch minor issues before they become major problems.

The Importance of Checking the Thrust Line and Rear Suspension

The information provided highlights a key advantage of a 4-wheel alignment: the ability to check the thrust line. The thrust line is an imaginary line running through the centre of the rear axle. In an ideal scenario, this line should be parallel to the vehicle's centre line, meaning the rear wheels are tracking perfectly behind the front wheels. When the thrust line is not true, the car is effectively 'crabbing' – the rear axle is offset, causing the car to travel at an angle to its intended direction, even if the steering wheel is centred. This is a significant contributor to tyre scrubbing and poor handling.

Furthermore, a 4-wheel alignment allows for the adjustment of rear camber and rear toe. While many vehicles have adjustable front suspension, rear suspension adjustments are often more complex and crucial for overall stability and tyre wear. For instance, a stock rear 'toe-in' adjustment is designed to aid stability, but if it's outside of specification, it can lead to excessive wear or handling issues.

The mention of a 'rubber mounted front sub-frame (and rear subframe)' in a 1979 model year vehicle indicates the era of automotive design where such construction was common. These subframes, often isolated by rubber bushings, can shift over time, particularly if the bushings degrade. This shifting can directly impact wheel alignment, making a 4-wheel alignment even more critical for vehicles of this vintage, especially if any suspension work has been done on the subframe or its mounting points.

Common Alignment Angles and Their Effects

Understanding the specific angles adjusted during an alignment can help you better communicate with your mechanic and understand the results:

What to Expect During a 4-Wheel Alignment Service

When you take your vehicle for a 4-wheel alignment, the process typically involves the following steps:

1. Initial Inspection: The technician will visually inspect your tyres for wear patterns and check for any obvious damage to the suspension or steering components.
2. Vehicle Measurement: Your car will be placed on a specialised alignment rack, and sensors (targets) will be attached to each wheel.

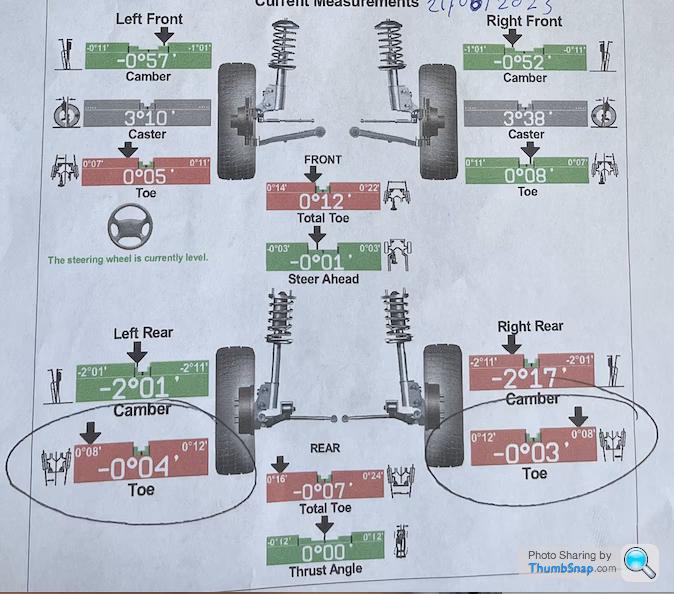

3. Data Acquisition: Using advanced cameras and computer software, the alignment machine measures the current angles of all four wheels, including camber, caster, toe, and thrust angle.
4. Comparison to Specifications: The measured angles are compared to the manufacturer's recommended specifications for your specific vehicle model.
5. Adjustments: If any angles are found to be outside of the acceptable range, the technician will make the necessary adjustments to the suspension and steering components. This often involves loosening and tightening bolts and nuts on various parts of the suspension.
6. Final Measurement: After adjustments, the technician will take final measurements to ensure all angles are within the manufacturer's specifications.
7. Test Drive: In some cases, a brief test drive may be conducted to confirm that the steering wheel is centred and the vehicle tracks straight.

Frequently Asked Questions (FAQs)

Q1: How long does a 4-wheel alignment take?
Typically, a 4-wheel alignment service takes between 45 minutes to 1.5 hours, depending on the complexity of the vehicle's suspension and the extent of the adjustments required.

Q2: How often should I get a 4-wheel alignment?
It's generally recommended to have your alignment checked annually or every 12,000-15,000 miles. However, you should get it checked sooner if you notice any of the symptoms mentioned earlier, or after significant suspension work or impacts.

Q3: Can I do a 4-wheel alignment myself?
While basic toe adjustments might be possible with some DIY knowledge and tools, achieving a precise 4-wheel alignment requires specialised equipment and expertise. For optimal results and to avoid further damage, it's best left to professional mechanics.

Q4: Is a 4-wheel alignment covered by warranty?
This depends on your vehicle's warranty and the reason for the alignment. If the misalignment is due to a manufacturing defect, it might be covered. However, alignments are often considered maintenance and may not be covered if caused by wear and tear, accidents, or hitting potholes.

Q5: What's the difference between a 2-wheel and 4-wheel alignment?
A 2-wheel alignment only addresses the front wheels, while a 4-wheel alignment adjusts both front and rear wheels, including crucial measurements like the thrust angle, which affects how the rear axle tracks with the front.

Conclusion

In summary, a 4-wheel alignment is a comprehensive service that goes beyond just the front wheels to ensure all four wheels are correctly oriented. It's essential for maximising tyre life, improving fuel efficiency, and maintaining predictable and safe handling. By understanding the signs of misalignment and adhering to a regular maintenance schedule, you can keep your vehicle running smoothly and efficiently. If you suspect your car is 'crabbing' or experiencing uneven tyre wear, a 4-wheel alignment is likely the solution you need.
