The MINI R53, a true icon of British motoring, is renowned for its peppy performance and distinctive character. Much of this spirited drive comes courtesy of its factory-fitted supercharger. Unlike many other components in your vehicle, the supercharger in your R53 has its own separate oil reservoir and utilises a completely different fluid from your engine oil. Neglecting this crucial aspect of maintenance can lead to costly repairs and a significant loss of performance. This article will delve into the specifics of the R53's supercharger, its unique lubrication needs, and, most importantly, provide you with a detailed guide on how to change its fluid to ensure it keeps delivering that exhilarating performance for many miles to come.
Understanding the R53's supercharger is the first step towards proper maintenance. From the factory, all R53 MINI Cooper S models were equipped with an Eaton M45 positive displacement supercharger. This device forces more air into the engine, significantly boosting power output. Unlike a turbocharger, which is exhaust-driven, a supercharger is belt-driven directly by the engine, providing instant power delivery with no lag. While robust, this constant mechanical work generates considerable heat and friction, necessitating a dedicated lubrication system. The oil within the supercharger is subjected to extreme temperatures and pressures, and over time, it degrades and loses its lubricating properties. This is why regular fluid changes are not just recommended, but essential for the longevity and health of your supercharger.
Why Supercharger Oil is Unique and Vital
It's a common misconception that the supercharger's oil is somehow linked to the engine's lubrication system, but this is fundamentally incorrect. The supercharger operates independently, and its oil is specifically formulated to withstand the unique conditions within its casing. Standard engine oil is simply not designed for the extreme demands of a supercharger, lacking the necessary viscosity, additive packages, and heat resistance. Using the wrong fluid can lead to catastrophic failure, turning a relatively simple maintenance task into an expensive repair bill.
The supercharger oil lubricates the gears and bearings within the unit, reducing friction and dissipating heat. As this oil ages, it can become contaminated with microscopic metal particles from wear and tear, and its protective properties diminish. This leads to increased friction, more heat, and accelerated wear on the internal components. Symptoms of neglected supercharger oil can range from a noticeable change in the signature supercharger whine – often becoming louder or more abrasive – to a reduction in performance and, in severe cases, complete seizure of the unit. Regular maintenance is your best defence against these issues.
Identifying Your R53's Supercharger Oil and Tools Required
For your R53 Eaton M45 supercharger, the recommended oil is typically a specific type of supercharger fluid, often sold under the ACDelco Supercharger Oil brand (GM Part No. 12345982 or equivalent). It's crucial to use this specific type of fluid, or a high-quality aftermarket equivalent designed specifically for Eaton superchargers. Do not substitute with engine oil, gearbox oil, or power steering fluid under any circumstances.

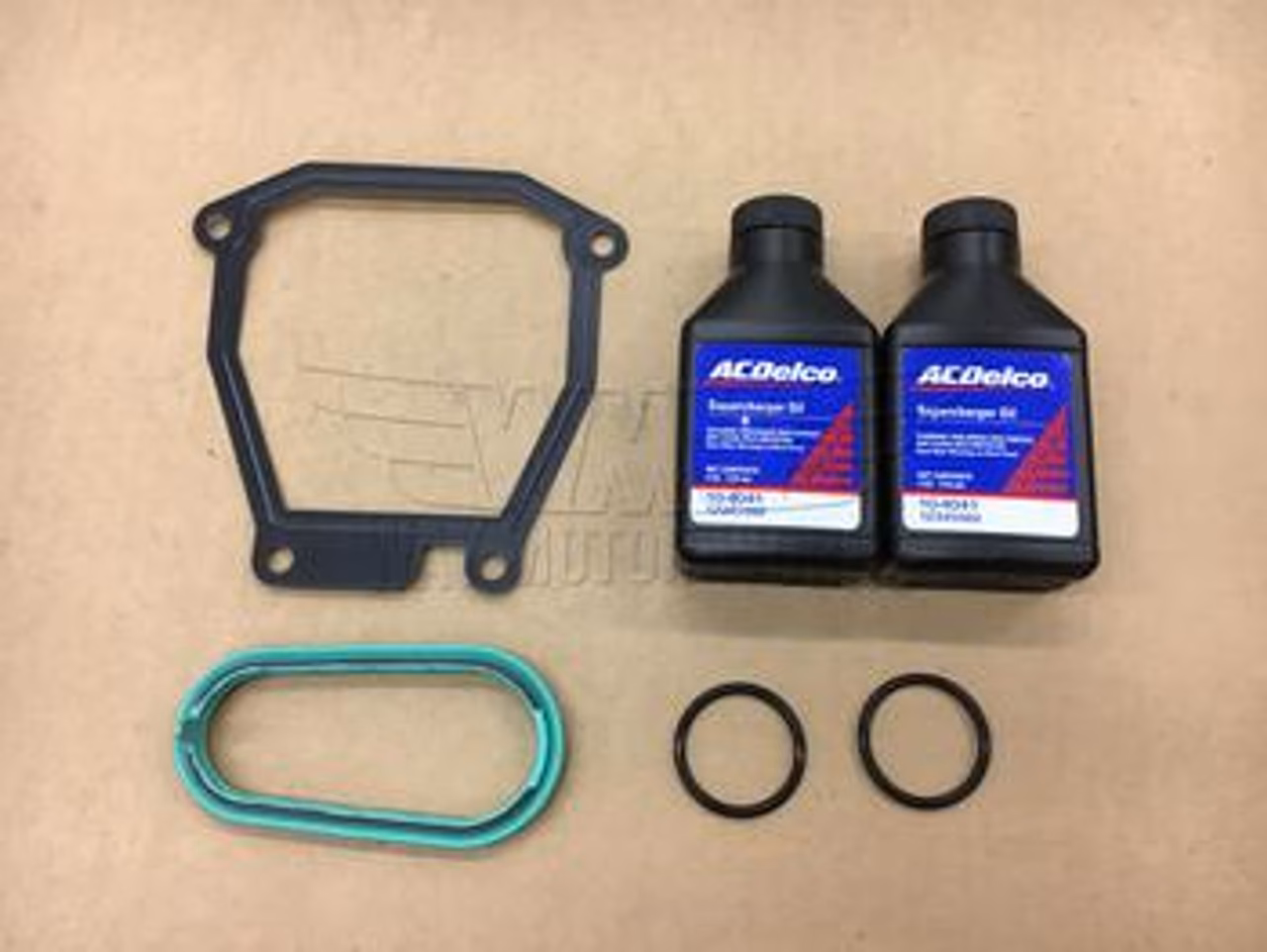

Tools and Materials You'll Need:
- New Supercharger Oil (typically 2 x 120ml bottles or equivalent)
- Floor Jack and Jack Stands (for safe vehicle elevation)
- Wheel Chocks
- Socket Set (various sizes, including a small 1/4" drive for tight spaces)
- Torque Wrench
- Drain Pan
- Fluid Extractor Pump or Large Syringe with Flexible Tubing (essential for refilling)
- Rags and Cleaning Spray
- Gloves and Eye Protection
- Gasket Sealant (e.g., Loctite 518 or equivalent, for the supercharger housing)
- New Water Pump Gasket (if removing water pump for access)
Step-by-Step Guide: R53 Supercharger Oil Change
The R53 supercharger was designed with two oil reservoir plugs – one for draining and one for filling. However, accessing these plugs, particularly the lower drain plug, can be challenging due to the supercharger's position beneath the intake manifold and other components. Many owners opt for a method that involves removing the water pump to gain access. This guide will assume that approach for comprehensive coverage.
Preparation and Safety First:
- Safety First: Park your MINI on a level, hard surface. Engage the handbrake and place wheel chocks behind the rear wheels.
- Lift the Vehicle: Using your floor jack, carefully lift the front of the car and secure it on jack stands. Ensure the car is stable before proceeding.
- Disconnect Battery: For added safety, disconnect the negative terminal of your car's battery.
- Access the Supercharger: This is the most involved part. You'll need to remove the intake manifold, throttle body, and potentially other ancillary components to gain clear access to the supercharger housing. This often means draining some coolant and removing the water pump, as the water pump housing is integral to the supercharger's front end. Be prepared for coolant spillage and have a suitable drain pan ready.
Draining the Old Oil:
- Locate Plugs: Once the supercharger is accessible, you'll see two small plugs on the supercharger housing – one typically near the top (fill plug) and one lower down (drain plug). These are usually small Allen or Torx head plugs.
- Open Drain Plug: Place your drain pan directly underneath the lower plug. Carefully loosen and remove the lower drain plug. The old oil, which may be dark brown or even black and have a strong odour, will start to drain out. Allow it to drain completely. You might need to tilt the supercharger slightly if it's still in the car, or simply wait for gravity to do its work.
- Inspect Old Oil: While draining, observe the colour and consistency of the old oil. Very dark, sludgy oil or oil with metallic sheen indicates significant wear and overdue maintenance.
- Clean Plugs: Once drained, clean both the drain and fill plugs thoroughly. Inspect their threads and sealing surfaces.
Refilling with New Oil:
- Seal Drain Plug: Apply a thin layer of suitable gasket sealant (like Loctite 518, which is anaerobic and fills minor imperfections) to the threads of the drain plug. Reinstall the drain plug and torque it to the manufacturer's specified setting. Do not overtighten, as these are small plugs in an aluminium housing.
- Fill with New Oil: This is where the fluid extractor pump or large syringe comes in handy. Insert the flexible tubing into the upper fill plug opening. Slowly begin to pump the new supercharger oil into the unit. The R53 supercharger typically takes around 110-120ml of oil. It's crucial not to overfill or underfill. Some supercharger oil bottles come pre-measured, making this easier. Fill until the oil just reaches the bottom of the fill plug opening.
- Reinstall Fill Plug: Once filled, clean the fill plug and apply a thin layer of sealant. Reinstall the fill plug and torque it to the specified setting.
Reassembly and Final Checks:
- Reassemble Components: Carefully reattach the water pump (with a new gasket!), intake manifold, throttle body, and all other components that were removed. Ensure all hoses and electrical connectors are properly reconnected.
- Refill Coolant: If you drained coolant, refill the system and bleed any air according to your MINI's service manual.
- Reconnect Battery: Reconnect the negative terminal of your battery.
- Start and Inspect: Start the engine and listen for any unusual noises. Check for any leaks around the supercharger housing or water pump. Allow the engine to reach operating temperature and re-check coolant levels.
- Test Drive: Take your MINI for a gentle test drive, paying attention to the supercharger's whine and overall performance. It should sound smoother and perhaps even quieter than before.
Common Pitfalls and Troubleshooting
While a supercharger oil change is a rewarding DIY task, there are a few common issues to be aware of:
- Stripped Plugs: The fill and drain plugs are small and can easily strip if the wrong tool is used or if overtightened. Always use the correct size Allen or Torx bit and apply appropriate torque.
- Incorrect Oil: As stressed before, using the wrong type of oil is a recipe for disaster. Only use dedicated supercharger oil.
- Incomplete Drain/Fill: Ensure all old oil is drained and the correct amount of new oil is added. Underfilling leads to inadequate lubrication, while overfilling can cause foaming and pressure issues.
- Leaks After Reassembly: Double-check all gaskets and seals, especially around the water pump and intake manifold. Leaks can lead to coolant or vacuum issues.
- Persistent Noises: If the supercharger still makes excessive noise after an oil change, it could indicate pre-existing wear or damage that the oil change alone cannot fix. In such cases, professional diagnosis might be required.
Maintenance Schedule
The service interval for R53 supercharger oil is a topic of some debate among MINI enthusiasts. While some sources suggest it's a 'lifetime' fluid, experience proves otherwise. Given the extreme conditions it operates under, a more realistic interval is every 50,000 to 80,000 miles (approximately 80,000 to 130,000 kilometres) or every 5 to 7 years, whichever comes first. If your R53 is regularly driven hard, or if you've recently acquired a used model with unknown service history, changing the fluid sooner rather than later is highly advisable.
Supercharger Oil vs. Engine Oil: A Quick Comparison
| Feature | Supercharger Oil | Engine Oil |
|---|---|---|
| Purpose | Lubricates supercharger gears and bearings | Lubricates engine components (pistons, crankshaft, camshaft) |
| Composition | Specialised synthetic blend for high-pressure/heat, specific viscosity | Various types (mineral, semi-synthetic, synthetic) with different additive packages |
| Service Interval | Typically 50,000-80,000 miles or 5-7 years | Typically 5,000-10,000 miles or 6-12 months |
| Operating Environment | Extreme heat, high rotational speeds, contained unit | High heat, combustion by-products, open system (sump) |
| Key Additives | Anti-wear, anti-foam, extreme pressure (EP) | Detergents, dispersants, anti-wear, friction modifiers |
Frequently Asked Questions
Q: Can I use regular engine oil in my R53 supercharger?
A: Absolutely not! Using engine oil or any other fluid not specifically designed for superchargers will lead to rapid and catastrophic failure of the unit. The formulations are entirely different.
Q: How much supercharger oil does an R53 typically take?
A: An R53 Eaton M45 supercharger typically requires approximately 110ml to 120ml of supercharger oil. It's best to follow the manufacturer's specific recommendation for the fluid you purchase.
Q: What are the signs of low or bad supercharger oil?
A: Common signs include a louder, more abrasive, or grinding whine from the supercharger, reduced engine performance, or a noticeable change in the supercharger's characteristic sound. If you observe any of these, check the oil immediately.
Q: Is changing the supercharger oil a difficult DIY job?
A: It's considered an intermediate to advanced DIY job. The challenge isn't the oil change itself, but the access required, which often involves removing the intake manifold and water pump. If you're comfortable with basic mechanical tasks and have the right tools, it's certainly achievable.
Q: What if my supercharger makes a strange rattling noise?
A: A rattling noise, especially at idle or low RPMs, can sometimes indicate excessive play in the supercharger's internal components, potentially due to worn bearings from neglected oil. An oil change might help if caught early, but severe rattling often points to a need for rebuild or replacement.
In conclusion, the supercharger is a fundamental part of what makes the R53 MINI Cooper S such an exhilarating car to drive. While often overlooked, its longevity is directly tied to the proper and timely maintenance of its unique lubrication system. By understanding its needs and performing regular oil changes, you can ensure that distinctive supercharger whine continues to delight for many years and many miles. It's a proactive step that will save you money and keep your R53 performing at its best, embodying the spirit of MINI as it was intended.
