Gearbox Oil Change Guide

Changing your gearbox oil might not be the most glamorous aspect of car maintenance, but it's a crucial task that directly impacts the longevity and performance of your vehicle's transmission. Over time, gearbox oil degrades, losing its lubricating properties and becoming contaminated with metal particles. This can lead to increased wear, friction, and ultimately, costly repairs. Fortunately, with the right guidance and a few basic tools, you can tackle this job yourself. This article will walk you through the process of safely and effectively draining and refilling your gearbox with fresh oil, ensuring your transmission stays in top condition.

Understanding Your Gearbox Oil

The gearbox, or transmission, is a complex system of gears, shafts, and bearings that work together to transfer power from the engine to the wheels. The oil within the gearbox serves several vital functions:

• Lubrication: It reduces friction between moving parts, preventing wear and tear.
• Cooling: It dissipates heat generated by friction, preventing overheating.
• Cleaning: It flushes away small metal particles and debris created during normal operation.
• Corrosion Protection: It forms a barrier that protects metal components from rust and corrosion.

The type of oil required will vary depending on your vehicle's make and model. Always consult your vehicle's owner's manual for the specific grade and specification of gearbox oil recommended. Using the wrong type of oil can cause significant damage.

When to Change Your Gearbox Oil

The frequency of gearbox oil changes depends on several factors, including your driving habits, the type of gearbox (manual or automatic), and the manufacturer's recommendations. Generally, it's a good idea to check your owner's manual. However, as a rule of thumb:

• Manual Transmissions: Often recommended every 30,000 to 60,000 miles, or every 2-4 years.
• Automatic Transmissions: Can vary significantly, with some recommending changes every 40,000 to 100,000 miles. Some manufacturers claim 'lifetime' fill, but regular checks and changes are still advisable, especially under heavy use.

Signs that your gearbox oil may need changing include:

• Grinding noises when changing gears.
• Difficulty shifting.
• A burning smell.
• Visible leaks under the vehicle.
• The oil appearing dark, dirty, or having a burnt odour when checked.

Tools and Materials You'll Need

Before you begin, ensure you have all the necessary tools and materials to hand. This will make the process smoother and safer.

Essential Tools:

• Wrench or Socket Set: To remove the drain and fill plugs. The size will vary by vehicle.
• Drain Pan: A suitably sized container to catch the old oil. Ensure it can hold more than the expected volume of oil.
• Funnel: For cleanly pouring the new oil into the gearbox. A long, flexible funnel is often best.
• Gloves: To protect your hands from oil and grime.
• Safety Glasses: To protect your eyes from splashes.
• Rags or Paper Towels: For cleaning up spills and wiping components.
• Jack and Axle Stands: If you need to lift your vehicle for better access. Always use axle stands for safety; never rely solely on a jack.
• Torque Wrench: Recommended for tightening plugs to the correct specification.
• Wire Brush: To clean the drain and fill plugs before reinstallation.

Materials:

• New Gearbox Oil: The correct type and quantity as specified in your owner's manual.
• Thread Sealant or New Sealing Washers: For the drain and fill plugs, if required.

The Step-by-Step Gearbox Oil Removal Process

The core of your question revolves around removing the old gearbox oil. The provided information mentions a plug on the bottom of the transmission casing. This is the standard location for the drain plug on most manual transmissions.

Step 1: Prepare the Vehicle

Park your vehicle on a level surface. If you need to lift the vehicle for access, use a jack to raise the front or rear (depending on the transmission's location) and secure it firmly with axle stands. Ensure the vehicle is stable before proceeding. It's often beneficial to warm up the gearbox oil slightly by running the engine for a few minutes, as warmer oil flows more easily. However, be cautious as the oil and transmission components can get hot.

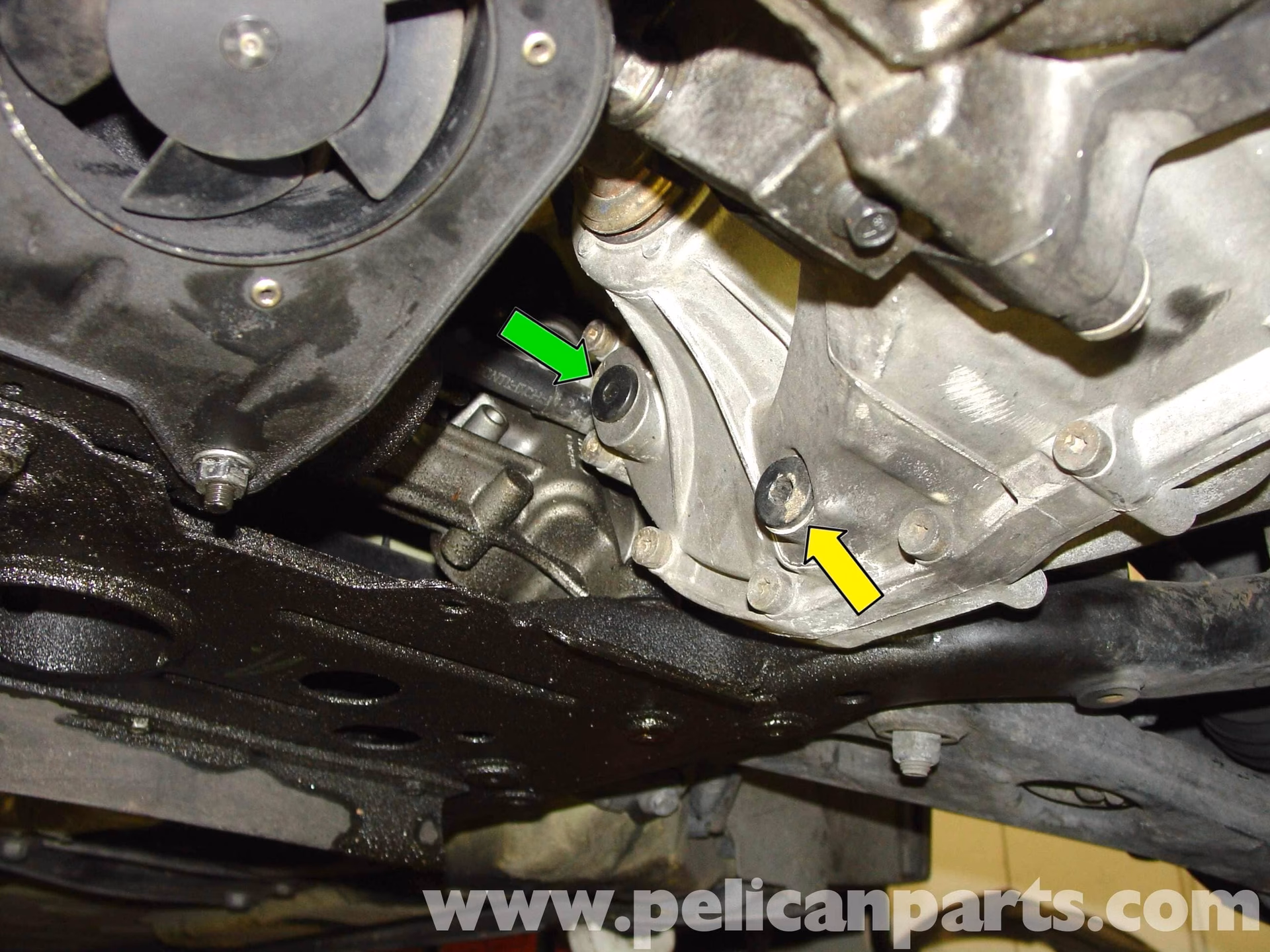

Step 2: Locate the Drain Plug

Get under the vehicle and locate the transmission casing. You'll need to identify two plugs: the drain plug and the fill plug. The drain plug is typically found at the lowest point of the transmission casing to allow gravity to do its work. The fill plug is usually located higher up on the side of the casing. The information provided confirms there is a plug on the bottom of the transmission casing for draining. Before you remove the drain plug, it is absolutely essential to locate and ensure you can loosen the fill plug first. If you drain the oil and then find you cannot remove the fill plug, you'll be left with an empty gearbox and unable to refill it.

Step 3: Drain the Old Oil

Place your drain pan directly underneath the drain plug. Using the appropriate wrench or socket, carefully loosen the drain plug. Once loose, you can usually unscrew it by hand. Be prepared for the oil to start flowing out immediately. Allow the oil to drain completely. This can take several minutes. While the oil is draining, inspect the drain plug. It often has a magnetic tip to catch metal particles. Clean the plug thoroughly with a rag and a wire brush, and check for excessive metal shavings, which could indicate internal wear.

Step 4: Reinstall the Drain Plug

Once the oil has finished draining, clean the area around the drain plug opening on the transmission casing. If your drain plug uses a sealing washer, replace it with a new one. If it has a magnetic tip, ensure it's clean. Screw the drain plug back into the casing by hand to avoid cross-threading, then tighten it securely with your wrench or socket. If you have a torque wrench, tighten it to the manufacturer's specified torque setting. Overtightening can damage the threads, while undertightening can lead to leaks.

Step 5: Refill with New Gearbox Oil

Now, locate the fill plug. This is usually on the side of the transmission casing, often level with the driveshaft or slightly higher. Remove the fill plug. Using a funnel and a pump (if the fill plug is difficult to access, a fluid extractor pump can be very useful), begin filling the gearbox with the new, specified gearbox oil. Continue filling until the oil starts to trickle out of the fill hole. This indicates the gearbox is full. Some vehicles may have a specific fill level, so again, consult your owner's manual. For many manual transmissions, filling until oil just begins to flow out of the fill plug is the correct method.

Step 6: Final Checks

Once the new oil is in, replace the fill plug and tighten it securely. Lower the vehicle if it was raised. Start the engine and let it idle for a few minutes. While the engine is running, try shifting through all the gears (with the clutch pedal pressed if it's a manual). This helps to circulate the new oil throughout the transmission. Turn off the engine, wait a few minutes for the oil to settle, and then check for any leaks around the drain and fill plugs. If there are no leaks and the shifting feels smooth, you've successfully changed your gearbox oil.

Important Considerations and Tips

The information provided also touches upon engine timing and camshafts, which are typically related to engine oil changes or timing belt/chain replacements, not directly to gearbox oil. However, it's worth noting the importance of proper vehicle preparation. The mention of rotating the engine to top dead centre (TDC) for No.1 piston and installing the belt from there is a critical step for timing belt jobs, ensuring the engine's critical components are correctly synchronized. When working on any part of your vehicle, understanding the specific requirements for that component is paramount.

Table: Common Gearbox Oil Viscosities

Here's a look at some common gearbox oil viscosities. Remember to always check your vehicle's manual for the correct specification.

Troubleshooting Common Issues

• Leaking Plugs: Ensure the sealing washer is new or the plug threads are clean and properly tightened. Use thread sealant if recommended.
• Difficulty Filling: A fluid pump or extractor can make this much easier, especially if access to the fill plug is restricted.
• Incorrect Oil Level: Overfilling can cause foaming and seal damage. Underfilling leads to poor lubrication and overheating. Always check the level carefully.
• Metal Shavings on Drain Plug: Small amounts of fine metal dust are normal. Large chunks or excessive shavings indicate potential internal damage and warrant further investigation by a professional.

Frequently Asked Questions (FAQs)

Q1: Can I use engine oil in my gearbox?

A: No, you should never use engine oil in a manual gearbox. Gearbox oil has different lubricating properties and additives designed for the higher pressures and shear forces within a transmission. Automatic transmission fluid (ATF) is also specifically formulated and should only be used in automatic transmissions as specified.

Q2: How do I know if I have a manual or automatic gearbox?

A: Manual gearboxes typically have a clutch pedal and a gear stick that requires manual shifting. Automatic gearboxes often have a selector lever (P, R, N, D, etc.) and no clutch pedal. Your owner's manual will also clearly state the type of transmission your vehicle has.

Q3: What happens if I don't change my gearbox oil?

A: Neglecting gearbox oil changes can lead to increased friction, premature wear of gears and bearings, overheating, difficulty shifting, and eventually, catastrophic transmission failure. This can result in very expensive repairs.

Q4: Is it safe to drain the gearbox oil while the transmission is hot?

A: It's often recommended to drain the oil when it's warm (not scalding hot) as it flows more easily. However, you must exercise extreme caution. Use gloves and allow components to cool sufficiently to avoid severe burns. Ensure you have adequate protection.

Q5: My owner's manual doesn't mention a drain plug, only a fill/level plug. What should I do?

A: Some transmissions, particularly certain automatic transmissions or some sealed manual units, may not have a traditional drain plug. In these cases, the oil is often changed using a fluid extractor pump inserted through the fill hole. Consult your owner's manual or a qualified mechanic for the correct procedure for your specific vehicle.

By following these steps and taking the necessary precautions, you can confidently perform a gearbox oil change, contributing to the overall health and performance of your vehicle. Regular maintenance is key to a long-lasting and reliable transmission.
