Understanding BMW Diagnostic Tools
Modern BMW vehicles are sophisticated machines, packed with complex electronic control units (ECUs) that manage everything from engine performance and transmission shifts to climate control and safety systems. When something isn't quite right, these ECUs store diagnostic trouble codes (DTCs) that pinpoint the issue. To access and interpret these codes, a specialised diagnostic tool is essential. This article will explore how these tools work, focusing on the capabilities of software like BimCOM, and what you can expect from them.
What is a BMW Diagnostic Tool?
A BMW diagnostic tool is a piece of hardware and software designed to communicate with a BMW or Mini vehicle's onboard computer systems. It connects to the car's diagnostic port, typically the OBD-II (On-Board Diagnostics II) socket found in most vehicles manufactured since 1996, or the older BMW 20-pin connector found in pre-2001 models. Once connected, the tool can read data from the various ECUs, display error codes, clear them, and in many cases, perform advanced functions like adaptations and programming.
How Do They Connect?
The connection process is straightforward. The diagnostic tool, which can be a handheld device or a computer interface connected to a laptop, plugs into the vehicle's diagnostic socket. This socket is usually located under the dashboard, often near the steering wheel. For older BMWs, the 20-pin connector might be found under the bonnet (hood) or in the glove compartment. The interface translates the vehicle's internal communication protocols into a format that the diagnostic software can understand and display.
Key Functions of a BMW Diagnostic Tool
Unlike basic code readers that might only display generic engine codes, advanced BMW diagnostic tools offer a comprehensive suite of functions:
1. Reading and Clearing Fault Codes
This is the most fundamental function. The tool can access all stored and pending fault codes within the various ECUs. Each code comes with a description, such as "Rail pressure too low," helping to identify the root cause of a problem. Once a fault has been identified and rectified, the tool can clear these codes, turning off warning lights on the dashboard and resetting the system.
2. Reading Identification Data
Diagnostic tools can retrieve detailed identification information from each ECU. This includes the part number, software and hardware versions, and the manufacturer. This information is invaluable for ensuring you have the correct replacement parts or for understanding the specific configuration of your vehicle's systems.

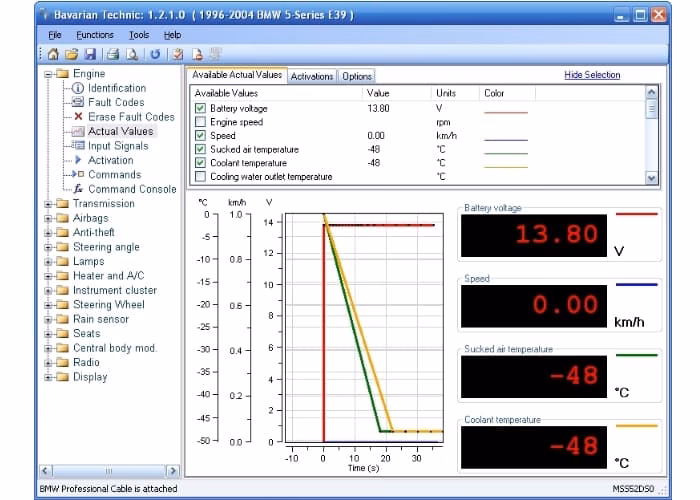

3. Live Data (Measured Values)
One of the most powerful features is the ability to view live data streams from the various sensors in the vehicle. This includes critical parameters like engine speed (RPM), battery voltage, oxygen sensor readings, coolant temperature, throttle position, and much more. This data can be displayed in real-time, as a list, or even graphically, allowing for a deep understanding of how the vehicle's systems are operating. Logging this data to a file enables offline analysis, perfect for diagnosing intermittent faults.
| Parameter | Typical Unit | Description |
|---|---|---|
| Engine RPM | rpm | Revolutions per minute of the engine's crankshaft. |
| Coolant Temperature | °C / °F | Measures the temperature of the engine coolant. |
| Oxygen Sensor (Lambda) | Volts or Lambda | Measures the oxygen content in the exhaust gases, crucial for fuel mixture control. |
| Vehicle Speed | km/h or mph | The current speed of the vehicle. |
| Throttle Position | % | Indicates how far the throttle pedal is pressed. |
4. Actuator Testing
Diagnostic tools can often perform actuator tests. This means they can command specific components to operate, bypassing the normal control signals from the ECU. For instance, you could manually activate the fuel pump, lock or unlock doors, or even turn on cooling fans. This is incredibly useful for testing the functionality of individual components and their associated wiring.
5. Programming and Adaptations
This is where advanced diagnostic tools truly shine and mimic the capabilities of professional dealer equipment. Many vehicle systems, such as the engine control module (ECM), immobiliser, airbags, and body control modules, require specific procedures to be performed after repairs or component replacements. These procedures can include:
- Resetting Service Indicators: After an oil change or other scheduled maintenance.
- Key Programming: Adding or replacing vehicle keys.
- Control Unit Replacement: Coding a new ECU to the vehicle.
- Module Configuration: Adjusting settings for comfort features or specific options.
- Throttle Body Adaptation: Realigning the electronic throttle body.
These functions are critical for ensuring that new or replaced components work correctly with the rest of the vehicle's systems. Incorrect programming can lead to malfunctions or the vehicle not starting at all.
Introducing BimCOM: A Powerful Software Solution
Software like BimCOM is designed to provide a comprehensive diagnostic experience for BMW and Mini enthusiasts and independent garages. It aims to replicate the functionality of professional dealer tools such as BMW ISTA/D (for diagnostics) and ISTA/P (for programming) or the older DIS/GT1 system.
How BimCOM Works
BimCOM typically comes as a software package that runs on a Windows, Linux, or macOS (via emulation) operating system. It requires an interface adapter (often included, like a USB cable) that connects your computer to the car's diagnostic port. The software then uses this connection to communicate with the vehicle's ECUs.
Supported Communication Protocols
BimCOM is equipped to handle various communication protocols used in BMW vehicles, including:
- K-Line: A serial communication protocol used in older vehicles.
- CAN-BUS (Controller Area Network): A high-speed network used in modern vehicles for rapid data exchange between ECUs.
- SAE J1850 (PWM and VPW): Protocols used in some earlier OBD-II implementations.
This broad support ensures compatibility with a wide range of BMW and Mini models.
Ease of Use and Interface
While offering advanced features, BimCOM is designed with a user-friendly interface, often described as similar to VAG-COM (used for Volkswagen Audi Group vehicles) but with added depth for BMW systems. This makes it accessible even for those who aren't intimately familiar with the complex interfaces of official dealer tools.
Hardware Requirements
Compared to some professional dealer tools that require dedicated, expensive hardware, BimCOM has relatively low hardware requirements. A standard laptop or PC with a modest processor (e.g., Intel Celeron/Pentium III 400 MHz or better), sufficient RAM (128MB or more), and some free hard drive space (around 50MB) is typically enough. A USB 1.1 port is the minimum, but USB 2.0 is recommended for faster data transfer.
Which BMW Diagnostic Tool is Right for You?
The choice of diagnostic tool depends on your needs:
- For basic fault code reading and clearing: A simple OBD-II scanner might suffice.
- For enthusiasts wanting to perform deeper diagnostics, view live data, and carry out basic adaptations: Software like BimCOM, paired with a suitable interface, offers a significant step up.
- For professional mechanics and extensive programming/coding: Official dealer tools or high-end aftermarket solutions are generally required, though they come at a considerably higher cost.
Frequently Asked Questions
Q: Can I use a generic OBD-II scanner on my BMW?
A: Yes, a generic OBD-II scanner can read and clear engine-related fault codes (P-codes) on most BMWs manufactured after 1996. However, it will not be able to access BMW-specific modules (like ABS, airbags, transmission) or perform advanced functions like adaptations or programming.
Q: How do I find the OBD-II port on my BMW?
A: The OBD-II port is almost always located under the dashboard on the driver's side, typically near the steering column or the pedals. It's a 16-pin trapezoidal connector.
Q: Is BimCOM difficult to install?
A: BimCOM is generally straightforward to install on compatible operating systems. The process usually involves installing the software and then installing the necessary drivers for the OBD-to-USB interface adapter.
Q: Can BimCOM perform ECU programming?
A: Yes, BimCOM is designed to support various programming and adaptation functions, similar to dealer tools, although the exact extent of programming capabilities can vary with software updates and specific vehicle models.
Q: How much does a BMW diagnostic package cost?
A: The cost can vary significantly. Basic OBD-II scanners can be purchased for under £50. Software like BimCOM, which often includes the necessary interface hardware, might range from £100 to £300 or more, depending on the supplier and included features. Professional dealer-level tools can cost thousands of pounds.
Conclusion
Diagnostic tools are indispensable for maintaining the health and performance of your BMW. Whether you're a DIY enthusiast or a professional mechanic, understanding how these tools work and the functions they provide is key. Software solutions like BimCOM offer a powerful and accessible way to delve deep into your vehicle's systems, diagnose issues accurately, and perform essential maintenance and configuration tasks, keeping your BMW running smoothly for years to come.
