Understanding the Mini 'Death Rattle'
The distinctive 'death rattle' sound emanating from a Mini engine, particularly those equipped with the N14 powerplant, is a topic that strikes fear into the hearts of many owners. While the N14 engine has gained a notorious reputation for this issue, it's crucial to understand that this problem isn't exclusive to this particular engine. All engines, to some degree, are susceptible to timing-related noises as they age. However, the Mini N14's design unfortunately makes it more prone to developing this concerning rattle.

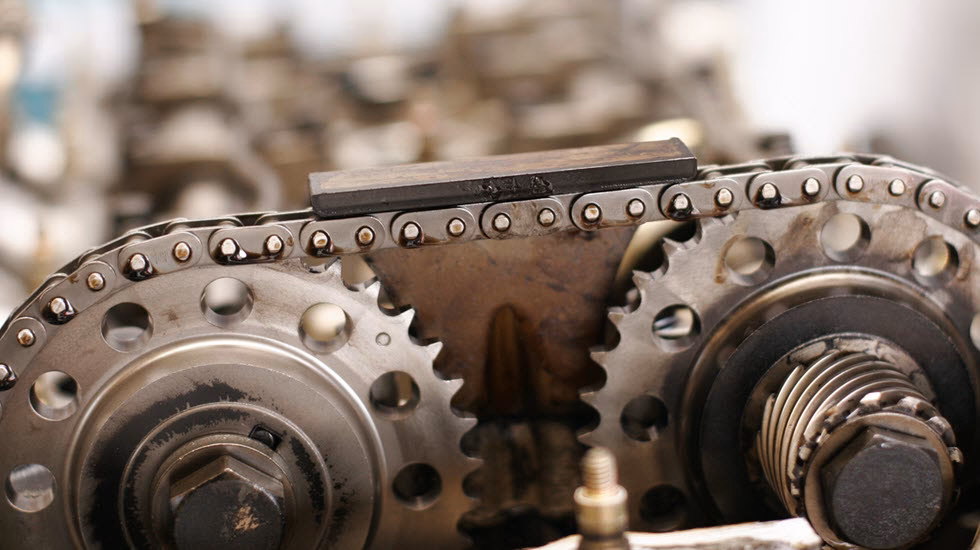

At its core, the 'death rattle' is a symptom of a weakening timing chain tensioner. As this component ages and loses its effectiveness, the timing chain, which synchronises the camshafts and crankshaft, begins to slacken. This slack allows the chain to slap against its guides, creating a rattling or knocking sound. Initially, this noise might only be apparent during a cold start, but if left unaddressed, it can escalate into a permanent, loud rattle that signifies imminent and potentially catastrophic engine damage.

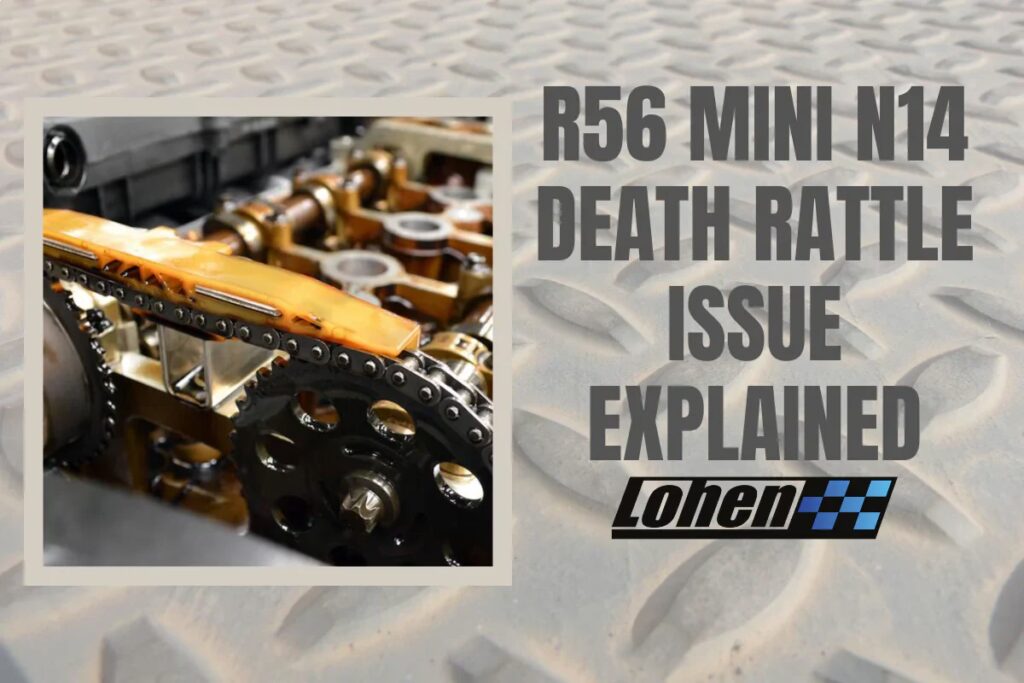

The N14 Engine and Timing Chain Issues
The N14 engine, found in various Mini models, is particularly susceptible due to its timing chain system. The primary culprit is indeed the timing chain tensioner. Over time, this hydraulic or spring-loaded device can degrade, losing its ability to maintain the correct tension on the timing chain. This lack of tension is what allows the chain to move excessively.
Beyond the tensioner itself, the timing chain guides are also critically vulnerable. These plastic or composite guides are designed to keep the chain running smoothly and quietly. When the chain becomes slack, it can grind against these guides, leading to their wear or even complete destruction. The debris from worn guides can then circulate within the engine, potentially causing further damage to other components.
Why is it called the 'Death Rattle'?
The ominous name 'death rattle' is a stark warning of the potential consequences if this issue is ignored. A severely worn timing chain and tensioner, coupled with damaged guides, can lead to the timing chain jumping a tooth on its sprockets. This misalignment can throw off the engine's timing, causing severe running issues, loss of power, and in the worst-case scenario, catastrophic internal engine damage as pistons collide with valves. This is why prompt attention to even a faint rattle is paramount.
Symptoms of a Failing Timing Chain System
Early detection is key to preventing a minor issue from becoming a major repair bill. Be vigilant for the following symptoms:
- Cold Start Rattle: This is often the first and most crucial warning sign. A brief, metallic rattling or knocking sound that disappears once the engine warms up. It indicates the tensioner is struggling to maintain pressure when the oil is cold and thick.
- Persistent Rattle: As the problem worsens, the rattle may become more frequent, louder, and may even persist after the engine has reached operating temperature.
- Loss of Power: Incorrect engine timing due to a stretched or jumped chain can lead to reduced performance and a noticeable lack of power.
- Check Engine Light: Modern engines have sensors that monitor camshaft and crankshaft positions. If the timing is significantly off, the engine control unit (ECU) will detect this and illuminate the 'Check Engine' warning light, often with specific error codes related to camshaft or crankshaft position.
Diagnosing the 'Death Rattle'
Diagnosing the source of the rattle requires a systematic approach. While the timing chain system is the most common culprit, other issues can mimic similar sounds. A qualified mechanic will typically:
- Listen to the Noise: Pinpointing the exact location and nature of the sound is crucial. A stethoscope can be used to isolate the noise to the front of the engine where the timing chain is located.
- Check Oil Levels and Condition: Low or degraded oil can contribute to tensioner issues.
- Inspect the Timing Chain System: This is a more involved process, often requiring the removal of engine covers. A visual inspection can reveal obvious signs of wear on the chain, guides, and tensioner.
- Use Diagnostic Tools: On some Mini models, specific tools exist to measure the timing chain stretch. This can provide a quantifiable measure of wear and help in deciding whether the chain needs replacement.
Repairing the 'Death Rattle'
The repair for the 'death rattle' invariably involves addressing the timing chain system. The exact components replaced will depend on the extent of the wear and damage.
Components Typically Replaced:
- Timing Chain Tensioner: This is the primary component that needs replacement.
- Timing Chain Guides: If the guides show signs of wear, they must be replaced to prevent future issues.
- Timing Chain: In many cases, especially if the chain has stretched significantly or shown signs of wear, it will also be replaced.
- Sprockets/Gears: The sprockets on the crankshaft and camshafts can also wear, so it's often recommended to replace these at the same time for a complete solution.
The Repair Process:
Repairing the timing chain system is a labour-intensive job that requires precision and often specialised tools. The process generally involves:
- Accessing the Timing Chain: This usually means removing various engine components, including covers, pulleys, and potentially the sump.
- Aligning the Engine: The engine's timing must be precisely set to the correct position (Top Dead Centre) before the old components are removed and the new ones installed. This is where cam locking tools and crankshaft holding tools are essential.
- Replacing Components: The worn tensioner, guides, chain, and sprockets are removed and replaced with new parts.
- Reassembly: All removed components are carefully reinstalled, ensuring all bolts are torqued to the manufacturer's specifications.
- Testing: After reassembly, the engine is started and monitored for any unusual noises, and diagnostic codes are checked.
Can I do it myself?
The 'death rattle' repair is considered an advanced DIY job. It requires a good understanding of engine mechanics, access to specialised tools (such as cam locking kits and crankshaft holding tools), and a reliable workshop manual. If you are not confident in your mechanical abilities, it is strongly recommended to entrust this job to a qualified Mini specialist. Incorrect installation can lead to severe engine damage, making a professional repair a more cost-effective option in the long run.
Preventative Maintenance: The Best Defence
While the N14 engine has its known vulnerabilities, a proactive approach to maintenance can significantly reduce the risk of encountering the 'death rattle'.
- Regular Oil Changes: Use the correct grade and quality of engine oil as specified by Mini. Frequent oil changes, adhering to or even exceeding the manufacturer's recommended intervals, are crucial for the longevity of the timing chain tensioner.
- Listen to Your Engine: Pay attention to any new or unusual noises, especially during cold starts. Addressing minor rattles early can prevent them from escalating.
- Address Warning Lights Promptly: Don't ignore the 'Check Engine' light. Get it diagnosed by a professional as soon as possible.
- Consider Upgrades: On some models, aftermarket performance parts are available that offer improved durability for the timing chain system.
Mini N14 vs. N18 Engines
It's worth noting the differences between the N14 and its successor, the N18 engine. While the N18 largely addressed the timing chain weaknesses of the N14, it's not entirely immune. However, the N14 is significantly more prone to the 'death rattle' due to its specific design elements. On the N14, replacing components like the crankshaft sprocket can be more challenging as it's often heat-shrunk onto the crankshaft, making a complete replacement more involved than on some other engines.
The N18 generally uses an improved tensioner design and can be more resilient. However, the fundamental principles of maintenance – regular oil changes and listening to your engine – remain critical for both engine variants.
Frequently Asked Questions
- What exactly is the 'death rattle' in a Mini?
- The 'death rattle' is a colloquial term for the noise produced by a slack timing chain slapping against its guides, typically caused by a worn timing chain tensioner. It's a warning of potential severe engine damage.
- Is the 'death rattle' only on N14 engines?
- No, while the N14 engine is most commonly associated with this issue due to its design, other engines can also develop timing chain rattles. The N14's reputation stems from its higher susceptibility.
- Can I continue driving my Mini if I hear the 'death rattle'?
- It is strongly advised NOT to drive the car if you suspect the 'death rattle'. Continuing to drive can lead to the timing chain jumping, causing catastrophic engine failure.
- How much does it cost to fix the 'death rattle'?
- The cost can vary significantly depending on the extent of the damage and your location. It typically involves replacing the timing chain, tensioner, guides, and possibly sprockets. Expect costs to range from several hundred to over a thousand pounds for parts and labour at a specialist.
- What are the signs that my timing chain is failing?
- The most common sign is a rattling or knocking noise, particularly noticeable during cold starts. Other signs include a loss of engine power and the illumination of the 'Check Engine' light.
In conclusion, the 'death rattle' in a Mini is a serious issue that requires prompt attention. Understanding its causes, recognising the symptoms, and prioritising preventative maintenance are the best ways to protect your Mini's engine and avoid costly repairs. If you hear the rattle, stop driving and seek professional diagnosis immediately.
