Brake Pad Squeal: Causes and Solutions

Why Do My Brake Pads Squeal? A Comprehensive Guide

That high-pitched, irritating squeal emanating from your car’s braking system is a common annoyance for many drivers. While it can be alarming, it’s often a sign that something within your braking system needs attention. Understanding the reasons behind this noise is the first step towards a quieter and safer driving experience. This guide delves into the intricacies of brake pad squeal, exploring its causes and offering practical solutions to silence those bothersome sounds.

The Anatomy of a Brake Pad and Noise Production

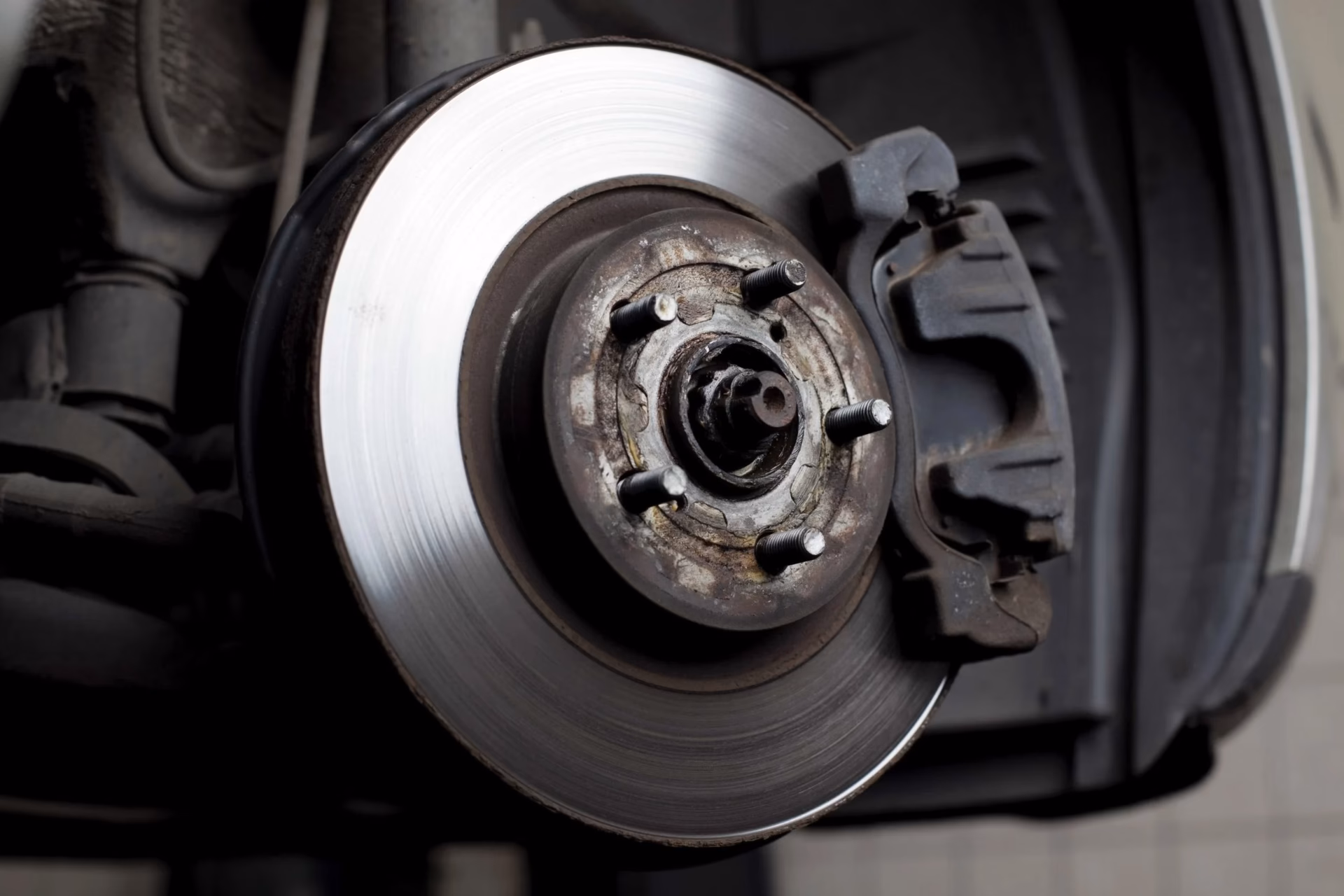

Before we dive into the causes of squeal, let's briefly consider what brake pads are and how they work. Brake pads are a crucial component of your vehicle's braking system. They are friction material bonded to a metal backing plate. When you press the brake pedal, hydraulic pressure forces the brake pads to clamp down on the brake rotors (discs) attached to your wheels. This friction is what slows and stops your car. However, this friction process, while essential for stopping, can also generate vibrations. When these vibrations occur at specific frequencies, they can manifest as audible squealing or grinding noises.

Material Matters: The Impact of Brake Pad Composition

One of the most significant factors influencing brake noise is the material used in the brake pad's friction lining. Brake pads are manufactured using a variety of compounds, each with its own characteristics regarding stopping power, durability, and noise. Let's explore some common types:

• Ceramic Brake Pads: These are known for their quiet operation and excellent stopping power, especially in varied conditions. However, ceramic pads have very hard linings. This inherent hardness can make them more prone to squealing than softer compounds, particularly when they are new or if they become glazed.
• Semi-Metallic Brake Pads: Composed of a mixture of metallic fibers (like steel, copper, and iron) and fillers, these pads offer excellent heat dissipation and strong initial bite. Due to their metallic content, they can be noisier than ceramic or organic pads, and are often associated with a grinding sound, though some squealing can also occur.
• Organic (Non-Asbestos Organic or NAO) Brake Pads: These pads use a blend of synthetic fibers, rubber compounds, and fillers. They are generally softer and quieter than metallic pads, making them a popular choice for many manufacturers aiming to reduce brake noise. Many high-end car manufacturers specifically opt for these to ensure a quieter ride. However, they tend to wear out faster and may not perform as well under extreme braking conditions.
• Low-Metallic NAO Brake Pads: A variation of organic pads, these contain a small percentage of metal to improve their performance and durability while still aiming for quiet operation.

The hardness of the friction material plays a crucial role. Softer linings tend to absorb vibrations better, leading to quieter braking. Conversely, harder linings can transmit vibrations more readily, resulting in squeal. If your current pads are too hard, a simple solution might be to switch to a softer compound to see if the squeal subsipates.

The Importance of Pad Design: Bevels and Slots

Beyond the material itself, the physical design of the brake pad lining can significantly impact noise generation. High-quality brake pads often feature specific design elements intended to minimise vibrations and prevent squeal:

• Beveled Edges: Many premium brake pads have beveled leading and trailing edges on the pad lining. A bevel is essentially a chamfer or an angled cut on the edge of the friction material. This design helps to smooth out the contact between the pad and the rotor, reducing the tendency for vibrations to build up and cause squeal, especially during the initial bedding-in period.
• Slots: Some brake pads also incorporate slots, which are grooves cut into the friction material. These slots help to dissipate heat and dust, which can also contribute to noise.

In contrast, lower-quality brake pads often have sharp, square corners on their lining. Pads with these sharp corners are much more prone to squealing, particularly when they are new and the braking surfaces are still adapting to each other (the bedding-in period). If your current pads have sharp corners, changing to pads with beveled edges can often resolve the squealing issue. Many reputable brake shops and auto parts stores can even bevel the lining edges on your existing pads for a reasonable cost, offering a cost-effective alternative to a full replacement.

The Bedding-In Process: A Crucial Step

A phenomenon known as 'bedding-in' or 'burnishing' is a critical period for new brake pads and rotors. During this process, a thin, even layer of friction material from the pads is transferred onto the rotor surface. This creates an optimal surface for braking and can also help to eliminate initial squeal. If the bedding-in process is not performed correctly or if the pads are not allowed to bed in properly, squealing can persist.

Common causes of improper bedding-in include:

• Insufficient braking applications during the initial miles.
• Harsh braking too early in the bedding process.
• Uneven transfer of pad material to the rotor.

Most manufacturers provide specific bedding-in instructions with their brake pads. It typically involves a series of moderate to firm stops from various speeds, followed by a period of cooling without coming to a complete halt. Always follow the manufacturer’s recommendations for the best results.

Other Contributing Factors to Brake Squeal

While pad material and design are primary culprits, several other factors can contribute to or cause brake squeal:

• Glazed Rotors or Pads: Over time, the friction surfaces of both brake pads and rotors can become 'glazed.' This is a smooth, hardened surface that reduces friction efficiency and can lead to squealing. Glazing often occurs due to overheating or improper bedding-in.
• Worn Brake Pads: As brake pads wear down, their thickness decreases, and the metal backing plate can eventually come into contact with the rotor. Most pads have a small metal tab called a 'wear indicator' that will scrape against the rotor when the pads are low, producing a distinct high-pitched squeal to alert you. This is a critical safety warning that requires immediate attention.
• Debris or Contamination: Small particles of dirt, road salt, or other debris can become lodged between the brake pad and the rotor, causing noise. If your car has been sitting for a while, especially in damp conditions, you might notice a brief squeal when you first apply the brakes as any surface rust or moisture is cleared away.
• Improper Installation: If brake pads are not installed correctly, or if the necessary anti-squeal shims or hardware are not used or are damaged, squealing can occur. Shims are thin pieces of metal or composite material that fit between the brake pad and the caliper piston to dampen vibrations.
• Corrosion: Rust and corrosion on the brake caliper or mounting hardware can also lead to uneven pressure on the pads, causing them to vibrate and squeal.
• Warped Rotors: While less common for causing squeal (more often associated with pulsation or shuddering), severely warped rotors can sometimes contribute to irregular pad contact and noise.

Troubleshooting and Solutions for Squealing Brakes

When faced with squealing brakes, a systematic approach to troubleshooting is best:

1. Identify the Noise: When does the squeal occur? Is it constant, only when braking, or only when releasing the brakes? Does it happen at low speeds, high speeds, or both? This information can help pinpoint the cause.
2. Inspect the Brake Pads: Check the thickness of the friction material. If they are worn down to the wear indicators or close to it, replacement is necessary. Also, look for signs of glazing (a shiny, smooth surface) on the pads and rotors.
3. Check for Debris: Visually inspect the brake assembly for any obvious debris lodged between the pad and rotor.
4. Consider Pad Material and Design: If your current pads are known to be noisy or have sharp edges, consider replacing them with higher-quality pads featuring beveled edges and a softer compound.
5. Ensure Proper Bedding-In: If you've recently replaced your brake pads, ensure the bedding-in process was followed correctly. If not, you may need to repeat it.
6. Replace or Resurface Rotors: If rotors are glazed, heavily worn, or warped, they may need to be replaced or resurfaced by a professional.
7. Install New Hardware: When replacing brake pads, it's often recommended to also replace the brake hardware, including anti-squeal shims and caliper hardware, to ensure optimal performance and quiet operation.
8. Clean Brake Components: Sometimes, a thorough cleaning of the brake caliper and mounting points can help resolve squealing caused by corrosion or sticking components.

Frequently Asked Questions (FAQs)

Q1: Is brake squeal always a sign of a dangerous problem?
Not always. While some squealing, particularly from wear indicators, signals an urgent need for replacement, other types of squeal might be due to material composition or minor issues that don't immediately compromise safety. However, it's always best to have brakes inspected if they start making unusual noises.

Q2: Can I just ignore brake squeal?
While some minor squeals might not be critical, ignoring persistent or loud squealing can lead to more significant issues, such as rotor damage or reduced braking effectiveness. It's advisable to address the cause promptly.

Q3: How long does it take for new brake pads to stop squealing?
New brake pads typically require a bedding-in period of 100-300 miles (160-480 km). During this time, some initial squeal can be normal as the pad material transfers to the rotor. The noise should diminish as the surfaces properly bed in.

Q4: What's the difference between squealing and grinding?
Squealing is usually a high-pitched noise caused by high-frequency vibrations. Grinding, on the other hand, is a harsher, lower-pitched sound that often indicates metal-on-metal contact, such as the backing plate of a worn brake pad grinding against the rotor. Grinding is a more serious indication that requires immediate attention.

Conclusion: Achieving Silent Braking

Brake pad squeal can stem from a variety of sources, from the inherent properties of the friction material to specific design features and the overall condition of your braking system. By understanding these causes and implementing the correct troubleshooting steps and solutions, you can effectively address and eliminate those annoying squeaks, ensuring your vehicle not only stops reliably but also does so with a welcome silence.
