Classic Fuel Injection Explained

The allure of classic cars often extends beyond their timeless aesthetics; for many enthusiasts, the raw, mechanical feel of an older vehicle is paramount. However, for those looking to enhance performance, improve reliability, or simply make their beloved classic more user-friendly, upgrading from carburettors to a fuel injection system is a popular and effective route. But what exactly constitutes a "classic fuel injection system" in today's market, and how do modern advancements cater to these vintage machines? This article delves into the world of classic fuel injection, exploring its principles and highlighting the capabilities of cutting-edge systems like the MaxxECU MINI.

The Evolution from Carburettors to Fuel Injection

For decades, carburettors were the standard for delivering fuel to an engine's cylinders. They operate on a relatively simple principle, using the Venturi effect to draw fuel into the airflow. While effective, carburettors can be susceptible to environmental changes (like altitude or temperature), require frequent tuning, and often struggle to provide the precise fuel delivery needed for optimal performance and emissions control.

Fuel injection, on the other hand, uses electronically controlled injectors to spray fuel directly into the intake manifold or cylinder. This offers far greater precision, leading to better fuel economy, increased power, improved throttle response, and easier starting in a wider range of conditions. For classic cars, the transition to fuel injection represents a significant leap in drivability and performance, transforming them into more modern and reliable machines without necessarily sacrificing their inherent character.

What is a "Classic" Fuel Injection System Today?

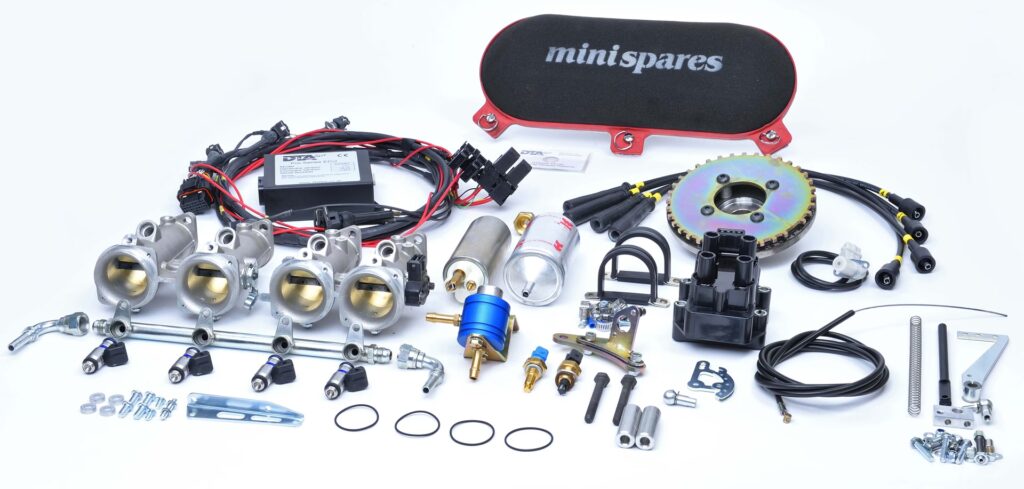

When we refer to a "classic fuel injection system" in the context of modern upgrades, we're generally talking about aftermarket systems designed to be retrofitted into vehicles that originally came with carburettors. These systems aim to replicate the benefits of factory-fitted fuel injection but are tailored for older chassis and engine designs. Key components typically include:

• ECU (Engine Control Unit): The brain of the system, managing fuel and ignition timing based on sensor inputs.
• Fuel Pump: A high-pressure pump to deliver fuel from the tank to the injectors.
• Fuel Injectors: Precisely calibrated nozzles that spray fuel into the engine.
• Fuel Rail: Distributes fuel to the injectors.
• Sensors: Various sensors (e.g., throttle position, manifold absolute pressure, coolant temperature, intake air temperature) provide data to the ECU.
• Wiring Harness: Connects all the components.

The term "classic" in this context also implies a system that is relatively straightforward to install and tune on older vehicles, often with provisions for using existing distributors or simpler trigger setups, avoiding the need for complex modifications to the engine's core components.

Introducing the MaxxECU MINI for Classic Applications

The MaxxECU range of engine management systems is at the forefront of modern aftermarket engine control, and the MaxxECU MINI is an excellent example of how these advanced technologies can be applied to classic vehicles. While not exclusively a "classic" system, its versatility and features make it an ideal choice for enthusiasts looking to modernise their vintage cars. The MINI ECU, typically supplied with a flying lead harness, provides an advanced, entry-level engine control solution for engines up to 8 cylinders.

Key Features of the MaxxECU MINI

The MaxxECU MINI boasts a comprehensive feature set designed for both ease of use and powerful control:

Target Engines and Triggering

A significant advantage of the MaxxECU MINI for classic car owners is its flexibility in triggering. It can often be triggered directly from the vehicle's existing distributor, eliminating the need for more complex modifications like installing a timing wheel. However, if more precise control is desired, adding a timing wheel allows for fully sequential operation on up to 4 cylinders (using a digital input as HOME) or operation in wasted spark mode for up to 8 cylinders.

MaxxECU MINI Inputs and Outputs Explained

The input and output capabilities of the MaxxECU MINI are crucial for its adaptability:

Inputs:

• IAT (Intake Air Temperature): Crucial for adjusting fuel delivery based on air density.
• CLT (Coolant Temperature): Informs the ECU about engine temperature, affecting cold-start enrichment and overall running.
• TPS (Throttle Position Sensor): Provides information on driver throttle input.
• 1 Trigger Input (VR/HALL): Accepts signals from various ignition sources, with automatic level detection for ease of use.
• 2 Digital Inputs: Versatile inputs for sensors like speed sensors or simple switches.
• 2 Extra 0-5V Inputs: Ideal for monitoring additional parameters like fuel or oil pressure with appropriate sensors.
• Built-in MAP Sensor: Measures manifold pressure, essential for naturally aspirated and forced induction tuning.

Outputs:

• 4 Injector Outputs: Drive the fuel injectors with high impedance compatibility.
• 4 Ignition Outputs: Provide a 5V signal to drive ignition modules, CDI units, or coils directly.
• 4 Extra Outputs (GPO): These are highly versatile and can control almost anything, including fuel pumps, idle control valves, boost solenoids, nitrous systems, shift lights, cooling fans, and warning lights. Specific outputs like GPO 1-3 and GPO 8 are rated for 2A.

Technical Specifications for Performance

The underlying technology ensures the MaxxECU MINI can keep up with demanding engine requirements:

• CAN Bus: Allows for expansion with additional modules and communication with OEM vehicle CAN or OBDII interfaces.
• USB Communication: For direct tuning and data logging with the MTune software.
• Memory: 8MB of internal memory for logging up to 1000Hz.
• Voltage: Operates on 8-22V, common in automotive applications.
• Processor: ARM Cortex-M3 120MHz, providing ample processing power.
• Resolution: High resolution for ignition (0.1 degrees) and injectors (0.001 ms) ensures precise control.
• Calculation Speed: Updates fuel and ignition calculations 2000 times per second, ensuring real-time adjustments.
• PC Communication: Boasts the fastest PC communication on the market for efficient tuning.
• Dimensions and Weight: Compact at 85x120x43mm (excluding connectors) and weighing just 245g (ECU only), making it easy to package.

Important Considerations for Installation and Calibration

When undertaking a fuel injection conversion on a classic vehicle, particularly with a system like the MaxxECU, there are several crucial points to keep in mind:

Electrical System Compatibility

IMPORTANT INFORMATION: These kits are designed for vehicles with a Negative Earth electrical system. If your classic vehicle uses an older Positive Earth system, it must be converted to Negative Earth before fitting the fuel injection system. Many older vehicles have already undergone this conversion, but if yours hasn't, it's often a relatively simple process.

Initial Start Files and Calibration

Full vehicle kits are typically supplied with an initial "start file." This is a base calibration intended solely to get the engine running. It is absolutely crucial to understand that this is not a final tune. The ECU files must be tailored and calibrated specifically to your engine and vehicle setup to ensure optimal performance, driveability, and to prevent potential engine damage. This calibration process requires time, expertise, and potentially access to a rolling road (dynamometer).

The Calibration Responsibility

By ordering a conversion kit, you acknowledge that further ECU calibration work is required. The final results and performance of the system are outside the supplier's control once the calibration process begins. Consequently, returns or claims arising from an unsuccessful calibration process cannot be accepted. This highlights the importance of either possessing the necessary tuning skills or engaging a professional tuner.

Custom Builds and Returns

Our Classic Fuel Injection Kits are custom-built to order based on customer specifications. As such, they are exempt from automatic return rights under Consumer Contract regulations. This underscores the need for careful planning and ensuring the chosen system precisely meets your needs before purchase.

Benefits of Modern Fuel Injection on Classic Cars

Upgrading to a modern fuel injection system like the MaxxECU MINI offers numerous advantages for classic car owners:

• Improved Starting: Easier starting in all weather conditions.
• Enhanced Reliability: Fewer mechanical parts to fail compared to carburettors.
• Better Fuel Economy: Precise fuel delivery optimises consumption.
• Increased Power and Torque: More efficient combustion leads to greater output.
• Smoother Running: Consistent fuel mixture eliminates flat spots and hesitation.
• Adaptability: Easily handles engine modifications and different operating environments.
• Modern Features: Access to advanced control like boost and traction control.
• Easier Diagnostics: The ECU can often store fault codes, simplifying troubleshooting.

Frequently Asked Questions

Q1: Can I use my original distributor with the MaxxECU MINI?
Yes, the MaxxECU MINI is designed to work with existing distributors, simplifying the initial installation on many classic vehicles.

Q2: Do I need to convert my car to negative earth?
Yes, the MaxxECU MINI and associated kits are designed for Negative Earth systems. If your vehicle is Positive Earth, a conversion is necessary.

Q3: Is the supplied "start file" enough for daily driving?
No, the start file is only for initial engine starting. Proper tuning and calibration are essential for driveability, performance, and engine longevity.

Q4: What if I'm not comfortable with tuning?
It is highly recommended to seek the services of a professional engine tuner who has experience with aftermarket ECUs like MaxxECU to ensure your vehicle is calibrated correctly and safely.

Q5: Can I run higher boost pressures with this system?
Yes, the MaxxECU MINI has a built-in MAP sensor capable of reading up to 3 bar (43.5 psi) of boost, and its advanced control features are well-suited for managing forced induction setups.

Q6: What kind of injectors does the MaxxECU MINI support?
The system supports high impedance injectors, which are common in modern fuel injection systems and offer good atomisation.

Q7: Can I control electric cooling fans with this ECU?
Absolutely. The four extra GPO outputs can be programmed to control electric cooling fans based on engine temperature or other parameters.

Conclusion

The transition to fuel injection is a significant upgrade for any classic car, offering a substantial improvement in performance, reliability, and user experience. Systems like the MaxxECU MINI demonstrate that advanced engine management technology is accessible and adaptable for vintage vehicles. While the installation and calibration require careful attention and often professional expertise, the rewards of a well-tuned, fuel-injected classic are undeniable. By understanding the components, features, and crucially, the calibration requirements, enthusiasts can embark on a journey to modernise their cherished vehicles, ensuring they can be enjoyed for many years to come.
