Mikuni Throttles: Precision & Performance Unleashed

In the intricate world of automotive and motorcycle engineering, the throttle system plays a pivotal role in dictating an engine's output and overall responsiveness. For decades, Mikuni has stood as a titan in this domain, renowned for manufacturing precision components that push the boundaries of performance. Whether it's the classic carburettor or the modern electronic throttle body, Mikuni's commitment to innovation ensures that drivers and riders experience peak performance from the moment they twist the throttle or depress the pedal.

This article delves into the specific technologies Mikuni employs in its throttle systems, exploring how features like smoothbore design, flatslide mechanisms, roller bearings, and accelerator pumps work in harmony to deliver an exhilarating driving or riding experience. We’ll also touch upon Mikuni’s broader contributions to engine components, including their involvement with cutting-edge variable valve technology, and provide a comprehensive understanding of modern throttle bodies.

The Heart of Performance: Mikuni's Advanced Throttle Technology

Mikuni's reputation for exceptional performance is deeply rooted in its innovative throttle designs, particularly evident in their carburettor range. They meticulously engineer components to ensure optimal airflow and fuel delivery, resulting in crisp throttle response and maximum power output across the entire RPM range.

Smoothbore Design: Unrestricted Airflow

One of the cornerstone features of high-performance Mikuni carburettors is the smoothbore design. Unlike traditional carburettors that might have internal steps or restrictions, a smoothbore design ensures a perfectly cylindrical and unobstructed path for air to flow through the carburettor body. This seamless passage minimises turbulence and maximises the velocity of the incoming air, which is crucial for efficient fuel atomisation and optimal volumetric efficiency.

The benefits of a smoothbore are significant: it allows the engine to breathe more freely, reducing any resistance to airflow. This translates directly into improved horsepower and torque, especially at higher engine speeds where airflow becomes a limiting factor. The smoother the bore, the less energy is wasted overcoming aerodynamic drag, allowing more energy to be converted into actual engine power.

Flatslide Throttle: Precision and Responsiveness

Complementing the smoothbore design is Mikuni's choice of a flatslide throttle. In contrast to older round slide carburettors, a flatslide throttle uses a flat, D-shaped slide that moves vertically within the carburettor body. When the throttle is opened, this flat slide retracts directly upwards, creating a large, unobstructed opening for air and fuel to pass through.

The advantages of a flatslide design are manifold:

• Improved Throttle Response: The direct vertical movement of the slide provides a more immediate and precise response to throttle inputs, eliminating the slight lag often associated with round slide designs.
• Enhanced Airflow: At wide open throttle (WOT), the flatslide presents minimal obstruction to the incoming air, further contributing to the smoothbore's efficiency.
• Better Fuel Atomisation: The design can lead to more consistent air velocity across the entire opening, which helps in better atomising the fuel as it mixes with the air.

This combination of smoothbore and flatslide technology is critical in achieving the 'peak performance from idle to Wide Open Throttle' that Mikuni systems are celebrated for.

Roller Bearings: Smooth Operation and Durability

To ensure the smooth and precise operation of the flatslide mechanism, Mikuni incorporates roller bearings into its design. These small, yet incredibly effective, components significantly reduce the friction encountered as the slide moves within the carburettor body. Without roller bearings, the sliding action would be metal-on-metal, leading to increased wear, potential sticking, and a less consistent throttle feel.

The benefits of using roller bearings include:

• Reduced Friction: This makes the throttle action incredibly light and responsive, requiring less effort from the rider or driver.
• Enhanced Durability: Less friction means less wear and tear on the moving parts, extending the lifespan of the carburettor.
• Consistent Performance: The smooth operation ensures that the throttle response remains consistent throughout the life of the component, even after extensive use.

This attention to detail in mechanical design exemplifies Mikuni's pursuit of both performance and longevity.

Accelerator Pump Technology: Eliminating the Lag

One of the most crucial features for achieving crisp, immediate throttle response is the accelerator pump. When a rider or driver rapidly opens the throttle, there's a momentary increase in airflow that can cause the air-fuel mixture to lean out (become too much air, not enough fuel). This lean condition can lead to a hesitation, or 'bog', in engine performance. Mikuni's accelerator pump is designed specifically to counteract this.

How it works: As the throttle is opened quickly, the accelerator pump is mechanically actuated to inject a small, precise 'squirt' of extra fuel directly into the carburettor's venturi. This momentary enrichment of the air-fuel mixture compensates for the sudden increase in airflow, ensuring a smooth and powerful transition from idle to acceleration without any hesitation. This technology is vital for both track performance and everyday usability, making the engine feel more connected and responsive to rider input.

Beyond the Carburettor: Mikuni's Broader Engine Component Manufacturing

While Mikuni is globally recognised for its carburettors and throttle bodies, their expertise extends into various other critical engine components. As a prominent supplier to original equipment manufacturers (OEMs) and the aftermarket, Mikuni contributes to the sophisticated engineering that drives modern vehicles.

Variable Valve Actuators: Precision Timing for Optimal Performance

One example of Mikuni's involvement in advanced engine technology is their role in components like the variable valve actuator. The provided information highlights that the "variable valve actuator is a critical component of the entire variable valve system that allows real-time adjustments to valve opening and closing, maintaining accurate control of valve motion."

This refers to Variable Valve Timing (VVT) systems, which are standard in many modern engines. VVT allows an engine's computer (ECU) to continuously adjust the timing of the intake and exhaust valves based on engine speed, load, and other parameters. By optimising valve overlap and lift, VVT systems can:

• Improve Fuel Economy: By reducing pumping losses at lower RPMs.
• Increase Horsepower and Torque: By optimising combustion at higher RPMs.
• Reduce Emissions: By ensuring more complete combustion and sometimes even eliminating the need for an exhaust gas recirculation (EGR) system.

Mikuni's involvement in manufacturing such precision components underscores their capability in high-tech engine parts, beyond just fuel delivery, ensuring accurate and reliable control of complex engine functions.

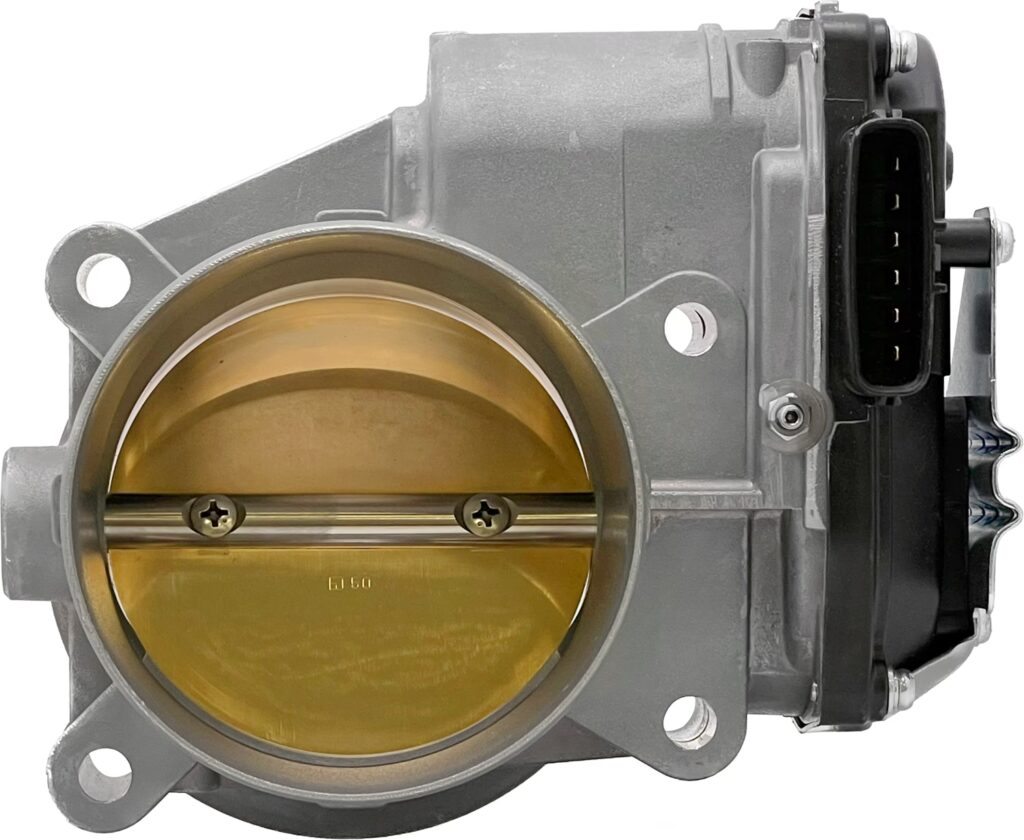

Understanding the Throttle Body in Modern Engines

In contemporary vehicles, electronic fuel injection has largely replaced carburettors, and with it, the traditional carburettor has evolved into the throttle body. Mikuni is also a key player in this modern landscape, producing sophisticated throttle bodies that are central to engine management.

Electronically Controlled Throttle Valve (ETV)

Modern Mikuni throttle bodies often feature an Electronically Controlled Throttle Valve (ETV). Unlike mechanical throttle cables that directly connect the accelerator pedal to the throttle plate, an ETV system uses electronic signals. When the driver depresses the accelerator pedal, a sensor converts this input into an electrical signal, which is then sent to the engine's ECU (Engine Control Unit).

The ECU processes this signal, along with data from numerous other sensors (engine speed, load, temperature, etc.), and then sends a command to an electric motor within the throttle body. This motor precisely controls the opening angle of the throttle valve (or butterfly valve). This electronic control offers several significant advantages:

• Precision Control: The ECU can open the throttle valve with far greater accuracy than a mechanical cable, allowing for finer control over engine output and idling.
• Integration with Other Systems: ETV allows seamless integration with features like cruise control, traction control, stability control, and even advanced driver-assistance systems. The ECU can momentarily adjust throttle opening to assist these systems without direct driver input.
• Optimised Idling Control: The ETV can precisely manage the amount of air entering the engine at idle, ensuring a stable and efficient idle speed, often replacing separate idle air control valves.
• Improved Fuel Economy and Emissions: By precisely controlling airflow, the ECU can maintain optimal air-fuel ratios for better combustion efficiency and reduced emissions.

Versatility and Integrated Functions

Mikuni's throttle bodies are designed to be highly versatile, supporting a wide range of cylinder numbers and layouts, from small motorcycles to large, multi-cylinder vehicles. This adaptability is crucial for OEMs who require consistent performance across different engine configurations.

Furthermore, Mikuni throttle bodies can integrate various functions directly into the unit according to the specific application:

• Sub-Throttle Valves: In some performance applications, a second, electronically controlled sub-throttle valve can be used to further refine airflow and engine response, particularly for ride-by-wire systems.
• Idling Control Devices: As mentioned, the ETV often takes over the role of managing idle speed, but dedicated idle control mechanisms can also be integrated for specific engine designs.
• Combined Sensors: Modern throttle bodies often incorporate multiple sensors (e.g., throttle position sensor, manifold absolute pressure sensor) into a single, compact unit, simplifying engine wiring and improving reliability.

This comprehensive approach ensures that Mikuni throttle bodies are not just air valves, but intelligent components central to modern engine management systems.

The Mikuni Advantage: Precision, Performance, and Reliability

Whether it's their classic carburettors with smoothbore and flatslide technology or their cutting-edge electronic throttle bodies, Mikuni’s core philosophy revolves around delivering precision, durability, and optimised power delivery. Their engineering ensures that every component contributes to a superior driving or riding experience, characterised by immediate response, consistent power, and unwavering reliability.

Maintaining Your Mikuni Throttle System

To ensure your Mikuni throttle system continues to deliver peak performance, regular maintenance is key. For carburettor-equipped vehicles, periodic cleaning of the carburettor body, jets, and float bowl is essential to prevent fuel deposits from affecting performance. Inspect the throttle cables for fraying or sticking and lubricate them regularly for smooth operation. For vehicles with electronic throttle bodies, while less hands-on maintenance is typically required, ensuring the air filter is clean and addressing any diagnostic trouble codes promptly will help maintain optimal performance.

Comparative Look: Mikuni's Approach vs. Other Throttle Systems

Frequently Asked Questions (FAQs)

Q1: Can I upgrade my old carburettor to a Mikuni flatslide?

Yes, many enthusiasts upgrade older round slide carburettors to Mikuni flatslide models. This often requires careful selection of the correct model, jetting adjustments, and potentially manifold adapters to ensure proper fitment and optimal performance for your specific engine. It's a popular modification for improving throttle response and power output.

Q2: What is the main benefit of an accelerator pump in a carburettor?

The main benefit of an accelerator pump is to prevent a momentary lean condition, or 'bog', when the throttle is rapidly opened. By injecting an extra squirt of fuel, it ensures a smooth, immediate, and powerful transition from partial throttle to wide open throttle, making the engine feel much more responsive and eliminating hesitation.

Q3: How does an Electronically Controlled Throttle Valve (ETV) improve engine performance compared to a mechanical cable?

An ETV offers superior precision in controlling the throttle opening, allowing the ECU to fine-tune airflow based on numerous engine parameters in real-time. This leads to better fuel economy, lower emissions, and more precise power delivery. It also enables seamless integration with advanced vehicle control systems like traction control, cruise control, and stability control, enhancing overall safety and driving comfort.

Q4: Why is a smoothbore carburettor design important for performance?

A smoothbore design is crucial for performance because it creates an unobstructed and laminar (smooth) airflow path through the carburettor. This minimises turbulence and maximises air velocity, which is essential for efficient fuel atomisation and for allowing the engine to draw in the maximum possible amount of air. The result is improved volumetric efficiency, leading to higher horsepower and torque, especially at higher RPMs.

Conclusion

Mikuni's enduring legacy in the automotive and motorcycle world is a testament to its unwavering commitment to engineering excellence. From the meticulously crafted smoothbore flatslide carburettors with their friction-reducing roller bearings and hesitation-eliminating accelerator pumps, to sophisticated electronically controlled throttle bodies and vital engine components like variable valve actuators, Mikuni consistently delivers solutions that enhance performance and reliability. Their dedication to precision ensures that whether you're chasing lap times or simply enjoying a spirited drive, your engine is poised to deliver its absolute best, responding crisply and powerfully to every command.
