Micrometer Essentials for Bearing Clearance

Embarking on an engine build is a journey many hot rodders dream of. The allure of raw horsepower and the satisfaction of saying "I built that" are powerful motivators. While the knowledge base is crucial, the right tools are the backbone of any successful engine assembly. Beyond the standard wrenches and sockets, the world of engine building demands specialized equipment. This article aims to guide you through some of the essential tools, with a particular focus on accurately measuring bearing clearances, a critical step often overlooked or approached with less-than-ideal methods. We'll use the classic small-block Chevy as our benchmark, but the principles apply broadly across many engine families.

The Foundation: Engine Stands and Torque Wrenches

Before diving into intricate measurements, a solid foundation is necessary. An engine stand is non-negotiable for any serious engine builder. While some may opt for bench assembly to avoid block distortion, for most, a sturdy engine stand is a must. Look for one with a minimum 1,000-pound rating and a stable, splayed-leg design to prevent tipping. Fancy gear-driven hubs are a luxury, but a reliable stand is a necessity.

Equally important is a reliable torque wrench. For many, a classic click-type torque wrench is the first significant investment. These have become increasingly affordable. However, for later engines with smaller, metric fasteners, an inch-pound torque wrench might be required. For this, consider a beam-style torque wrench; they are generally less expensive, accurate, and require less frequent recalibration than clicker types. A good habit for maintaining clicker wrench calibration is to always return it to its lowest setting after use, as leaving the spring under tension can degrade its accuracy over time.

Precision Measurement: The Heart of Bearing Clearance

This is where many DIY engine builders falter. Online forums often champion the use of Plastigage, a wax-like material inserted between the bearing and crankshaft. While simple, its accuracy and repeatability are questionable. Furthermore, Plastigage has a finite shelf life; exposure to heat or sunlight can make it brittle, affecting its compression consistency. For truly accurate and reliable measurements, precision tools are paramount.

Micrometers: Your Go-To for Clearance

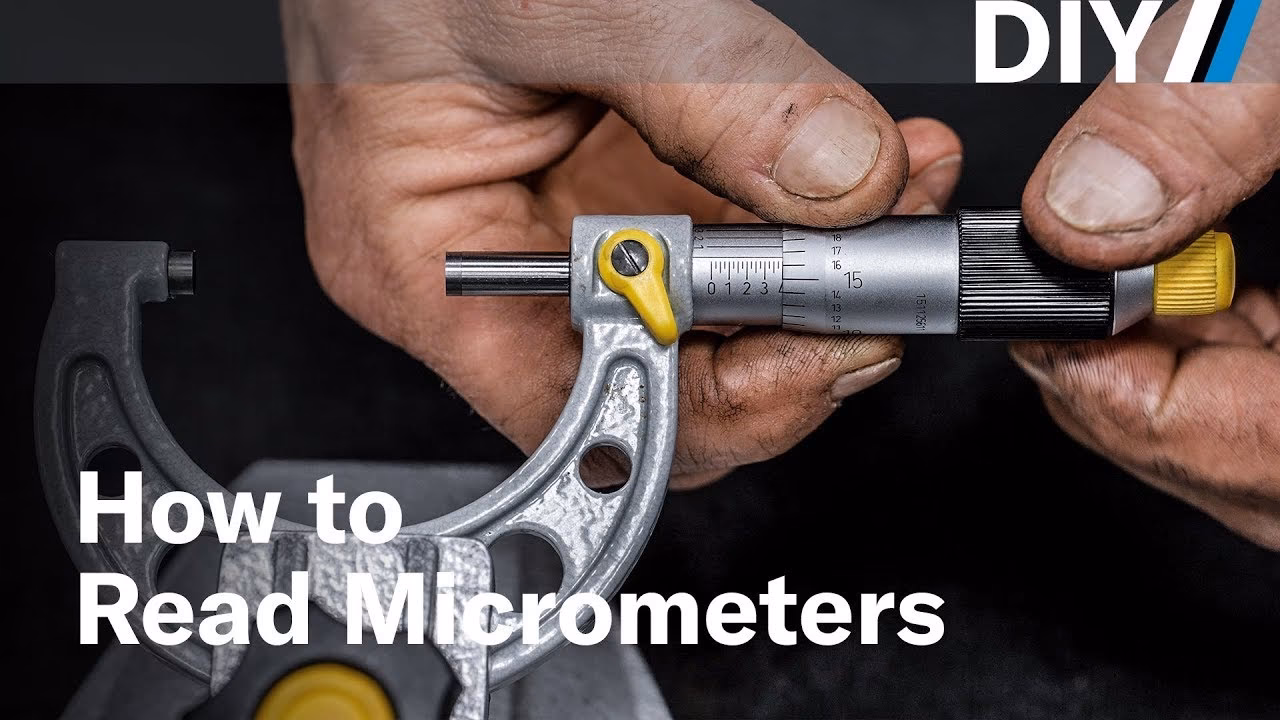

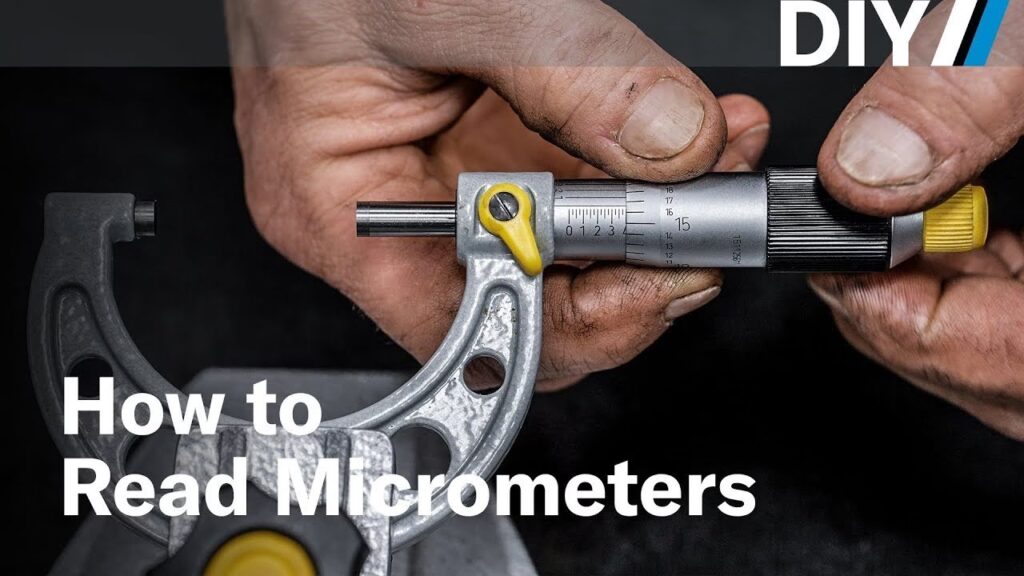

The question often arises: what size micrometer should I use for bearing clearance? The answer lies in the components you're measuring. For crankshaft main and rod journals, you'll typically be dealing with diameters that fall within the range of common outside micrometers. A good starting point for the entry-level builder is a 2-3 inch micrometer. However, having a 0-1 inch and a 1-2 inch micrometer will also prove invaluable for measuring smaller components like bearing shells or other critical dimensions within the engine. The key is to look for a micrometer with an accuracy of 0.0001 inch. Precision is paramount here; even a small deviation can lead to premature bearing failure.

Dial Bore Gauges: Measuring the Mating Surfaces

Complementing your micrometer is a quality dial bore gauge. This tool is essential for measuring the inside diameter of the bearing bores in the engine block and connecting rods. By measuring both the journal diameter (with a micrometer) and the bore diameter (with a bore gauge), you can accurately calculate the bearing clearance. Like micrometers, bore gauges come in various sizes. A set that covers 0 to 6 inches will be versatile enough for most automotive applications.

Dial Indicators: Versatility in Measurement

A dial indicator with a magnetic base is another indispensable tool. Its applications are vast in engine building: measuring crankshaft endplay, degreeing camshafts, checking valve lift, and determining deck height. Its ability to measure small movements precisely makes it a versatile instrument for various critical checks.

Calculating Bearing Clearance

Once you have your measurements, calculating bearing clearance is straightforward. The formula is:

Bearing Clearance = (Bore Diameter) - (Journal Diameter)

For example, if your connecting rod bore measures 2.1260 inches and your crankshaft journal diameter is 2.1000 inches, your calculated clearance would be 0.0260 inches.

Why Accuracy Matters: The Cost of Shortcuts

Taking shortcuts with bearing clearance measurements is a false economy. Incorrect clearances can lead to insufficient oil film, causing accelerated wear, overheating, and ultimately, catastrophic engine failure. The cost of precision tools or having measurements performed by a machine shop is a minuscule fraction of the expense of rebuilding an engine due to bearing failure.

Other Essential Engine Building Tools

Beyond the core measurement tools, several other items will significantly ease your engine building process:

Piston Ring Compressors

These are vital for installing pistons into the cylinders. You have two main types: tapered ring compressors, which are easy to use but bore-specific, and adjustable band-style compressors, which are more versatile but require a bit more finesse. For multiple engine builds, an adjustable compressor is often more economical than buying several fixed-size ones.

Connecting Rod Vise

While a standard bench vise with aluminum inserts can work, a dedicated connecting rod vise is highly recommended. It provides a secure, non-damaging way to hold connecting rod caps during assembly, preventing distortion or damage to the precision surfaces.

Camshaft Installation Tools

While a threaded rod can be used in a pinch, dedicated camshaft installation handles are inexpensive and make the job considerably easier and safer, preventing damage to the camshaft during installation.

Crankshaft Turning Tools

These tools allow you to rotate the crankshaft smoothly in both directions, essential for various assembly and measurement procedures. Some even incorporate a degree wheel mount for added convenience.

Engine Pre-Lubrication Tools

Before the first start, it's crucial to prime the oil system. Specialized tools, sometimes fabricated from old distributor bodies, or aftermarket oil pump primers, ensure oil reaches all critical components before the engine fires, preventing dry starts.

Deck Height Measurement Tools

A deck bridge, used in conjunction with a dial indicator, allows for quick and accurate measurement of the piston's position relative to the engine block's deck surface. This is vital for calculating compression ratios and piston-to-valve clearance.

Tool List Summary

To help you get started, here are some recommended tools:

Basic, Budget-Friendly List:

• Engine stand (e.g., Summit Racing SUM-918011)
• Number stamp set (e.g., Summit Racing SUM-900011)
• Engine cleaning brushes (e.g., Milodon MIL-34005)
• Torque wrench (e.g., Summit Racing SUM-907067)
• Feeler gauges (e.g., Summit Racing SUM-900212)
• Gasket scraper (e.g., Summit Racing SUM-900037)
• Non-adjustable piston ring compressor (e.g., Summit Racing SME-904030)
• Adjustable band ring compressor (e.g., Performance Tool WMR-W89410)
• Magnetic base & dial indicator kit (e.g., Summit Racing SUM-900016-1)
• Oil pump primer (e.g., Summit Racing SUM-901011)
• Harmonic balancer tool (e.g., Summit Racing SUM-G1023-1)
• Camshaft installation handle (e.g., Summit Racing SUM-900134)
• Dial calipers, 6” (e.g., Chicago Brand CBI-50004N)
• Rod bolt sleeves (e.g., Clevite CLE-2800B-1)
• Crank turning socket (e.g., Summit Racing SUM-G1063)
• Torque angle gauge (e.g., Performance Tool WMR-M-205)
• Camshaft degree wheel (e.g., Summit Racing SUM-G1057-16)

Recommended Advanced List:

• All items from the basic list, plus:
• Outside micrometer set 0 to 6" (e.g., Powerhouse Products POW-152006)
• Dial bore gauge set, 0 to 6" (e.g., Summit Racing SUM-900041-01)
• Deck height bridge (e.g., Summit Racing SUM-900061-S)
• Rod bolt stretch gauge (e.g., Summit Racing SUM-900015 or ARP ARP-100-9942)
• Universal manual piston ring filer (e.g., Summit Racing SUM-906795)
• 3 jaw puller (e.g., Cal-Van Tools CAV-952)
• Connecting rod vise (e.g., Summit Racing SUM-906790)
• Piston ring install tool (e.g., Performance Tool WMR-W80575)
• Cylinder head CC burette kit (e.g., Summit Racing SUM-980180 or Proform PRO-66831)
• Adjustable pushrod checker (e.g., Trick Flow TFS-9501)
• Thread chaser for SBC (e.g., ARP ARP-911-0004)

Frequently Asked Questions

Q: What is the acceptable range for bearing clearance?
A: Acceptable bearing clearance varies significantly by engine type and application. Always consult your engine's service manual for specific specifications. A typical range for main bearings might be 0.0015 to 0.0030 inches, and for rod bearings, 0.0010 to 0.0025 inches, but these are general guidelines.

Q: Can I use a digital caliper for bearing clearance?
A: While digital calipers are useful for general measurements, they typically lack the precision required for critical bearing clearance checks. Micrometers and dial bore gauges are the industry standard for this task.

Q: How often do micrometers need calibration?
A: Micrometers are precision instruments and should be checked for calibration periodically, especially if dropped or subjected to rough handling. Many tool suppliers offer calibration services.

Building your own engine is an incredibly rewarding experience. Equipping yourself with the right tools, particularly for critical measurements like bearing clearance, is the first step towards a successful and reliable powerplant. The investment in quality measuring instruments like micrometers and dial bore gauges is an investment in the longevity and performance of your hard work.
