MOT Type 1 Granite is a vital component in modern infrastructure, particularly in the construction and maintenance of our road networks. Its specific properties make it ideal for sub-base layers, providing a stable and durable foundation for everything from minor country lanes to major motorways. But where does this essential aggregate come from, and who are the key players in its supply chain? This article delves into the world of MOT Type 1 Granite, exploring its composition, applications, and the companies that bring it to your project.
What is MOT Type 1 Granite?
MOT Type 1 Granite, also known as granular sub-base (GSB), is a specific type of aggregate approved by the Department for Transport (DfT) for use in road construction. The 'MOT' designation signifies its compliance with the stringent standards set by the Ministry of Transport, ensuring it is suitable for the demanding conditions of public highways.
The material is typically a crushed aggregate with a maximum particle size of 40mm, with a carefully graded mixture of smaller particles. This grading is crucial; it allows the material to be compacted effectively, creating a dense and stable layer that can withstand heavy loads and resist deformation. The composition usually includes a mix of stone dust, chippings, and larger fragments, all derived from hard, durable rock. While often referred to as 'granite', the term can also encompass other suitable igneous or metamorphic rocks that meet the MOT specifications for strength, durability, and particle shape.
Key Properties and Benefits
The suitability of MOT Type 1 Granite for its intended purpose lies in its inherent physical characteristics:
- Grading: The precisely controlled mixture of particle sizes ensures excellent compaction. When laid and vibrated, the particles interlock, forming a solid mass with minimal void spaces.
- Strength and Durability: Derived from hard, igneous rock, MOT Type 1 Granite possesses high resistance to crushing, abrasion, and impact. This makes it ideal for bearing significant traffic loads over extended periods.
- Permeability: While compacted to be dense, MOT Type 1 has sufficient permeability to allow for adequate drainage, preventing water build-up within the sub-base, which could otherwise lead to frost heave and structural damage.
- Non-Frost Susceptible: A critical characteristic for road construction in climates with freezing temperatures. This means the material does not expand significantly when water within it freezes, thus preventing damage to the road structure.
The Role of MOT Type 1 in Road Construction
MOT Type 1 Granite serves as the primary sub-base layer in road construction. Its placement is a critical early stage in building a new road or repairing an existing one. The process typically involves:
- Site Preparation: The existing ground is cleared and prepared, often requiring excavation to remove unsuitable material.
- Laying the Sub-base: MOT Type 1 Granite is delivered to the site and spread in layers, usually no more than 150mm thick per layer.
- Compaction: Each layer is thoroughly compacted using heavy vibratory rollers. This process densifies the material, achieving the required load-bearing capacity and stability.
- Subsequent Layers: Once the MOT Type 1 layer is fully compacted and meets the required specifications, it forms the foundation for subsequent layers, such as the capping layer, sub-base, base course, and finally, the wearing course (tarmac or asphalt).
The correct installation and compaction of MOT Type 1 are paramount. A poorly laid or inadequately compacted sub-base can lead to premature road failure, including cracking, rutting, and potholes. Therefore, adherence to MOT specifications is non-negotiable for responsible road builders.
Who Makes MOT Type 1 Granite?
The production of MOT Type 1 Granite involves quarrying suitable rock and then crushing and screening it to achieve the precise grading required by the Department for Transport. Several large quarrying and aggregate supply companies operate across the UK, extracting and processing a wide range of stone for construction purposes.

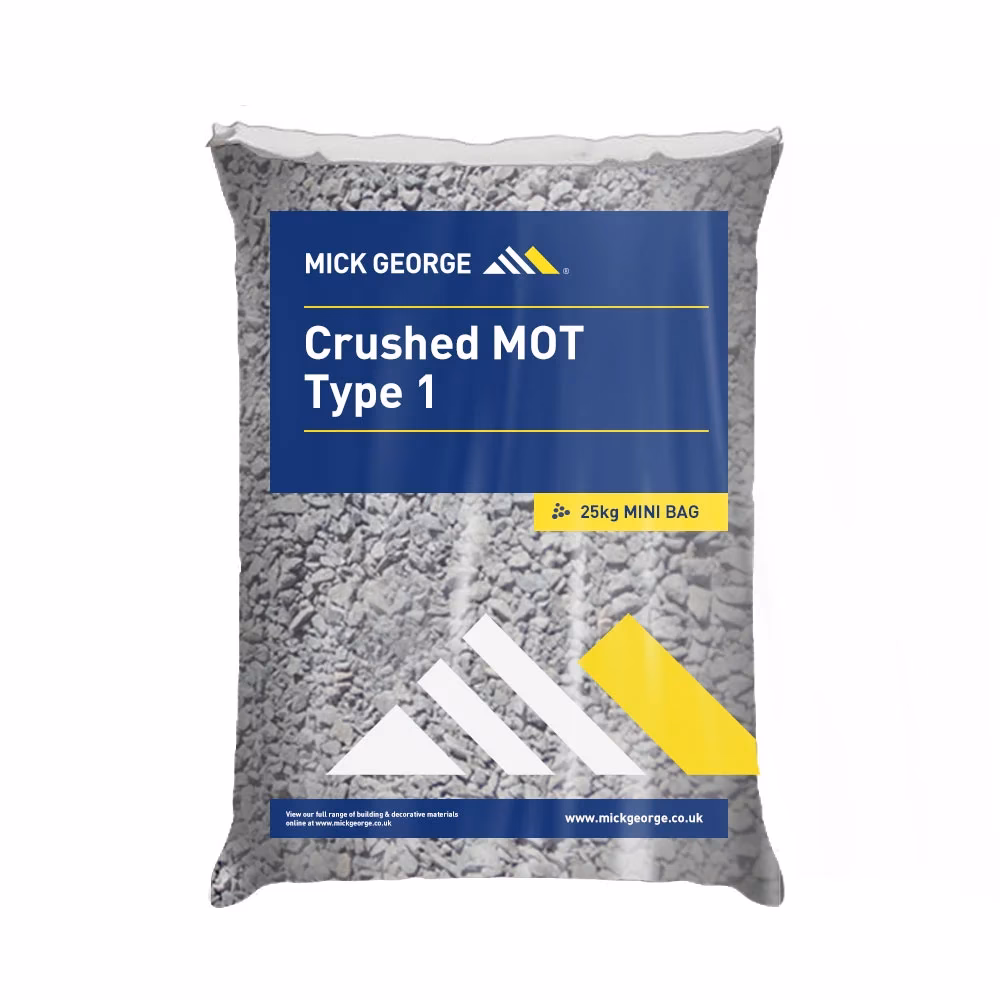

While the initial source of the material is quarries, the supply and distribution are handled by specialist aggregate suppliers. These companies may or may not operate their own quarries. For instance, The Mick George Group is a prominent producer and supplier of aggregates, including MOT Type 1 Granite. They source their materials from various quarries, ensuring they meet the stringent MOT standards.
It is important to note that MOT Type 1 Granite is not quarried by The Mick George Group, as stated in the provided information. This implies they source their Type 1 material from quarries that produce the specific granite or other suitable rock that meets the required specifications. They then process, grade, and supply this material to construction projects.
Other major aggregate suppliers and quarry operators in the UK also produce and distribute MOT Type 1. These can include large multinational corporations as well as more regionally focused businesses. The key differentiator is their ability to consistently produce a product that meets the strict grading and quality requirements of the MOT approval.
Sourcing and Quality Control
Reputable suppliers will have robust quality control measures in place. This often involves:
- Geological Surveys: Identifying suitable rock deposits in their quarries.
- Crushing and Screening: Employing advanced machinery to crush the quarried rock and then screen it through different mesh sizes to achieve the correct particle size distribution.
- Laboratory Testing: Regularly testing samples of the finished product to verify its grading, particle shape, cleanliness, and resistance to crushing (Aggregate Impact Value - AIV).
- Certification: Ensuring that the material supplied is accompanied by the necessary documentation to prove it meets MOT specifications.
When specifying or ordering MOT Type 1, it is crucial to engage with suppliers who can demonstrate a commitment to quality and compliance. This ensures the integrity and longevity of the road infrastructure being built.
Comparison of Aggregate Suppliers
When selecting a supplier for MOT Type 1 Granite, several factors come into play. While the product itself must meet specific standards, the service and logistical capabilities of the supplier can vary significantly.
| Supplier Characteristic | Importance for MOT Type 1 | Considerations |
|---|---|---|
| Product Quality & Compliance | Crucial: Must meet all MOT Type 1 specifications. | Check for test certificates, source verification. |
| Availability & Stock Levels | High: Projects often have tight schedules. | Ensure consistent supply, especially for large projects. |
| Delivery Logistics | Very High: Timely delivery to site is essential. | Fleet size, delivery network, communication. |
| Pricing | Important: Cost-effectiveness is key. | Compare quotes, consider delivery costs. |
| Technical Support | Beneficial: Advice on application and quantities. | Expertise in aggregate use. |
Companies like The Mick George Group aim to provide a comprehensive service, combining quality product with reliable delivery. Understanding these different aspects helps in making an informed choice for your construction needs.
Frequently Asked Questions
What is the maximum particle size for MOT Type 1?
The maximum particle size for MOT Type 1 aggregate is 40mm.
Is all Type 1 aggregate granite?
No, while often referred to as 'granite', MOT Type 1 can be made from other suitable, hard, and durable rocks that meet the Department for Transport's specifications for grading and performance. The key is the material's composition and its ability to be compacted effectively.
Why is grading important for MOT Type 1?
The precise grading ensures that when the material is compacted, the different particle sizes interlock efficiently, creating a dense, stable, and load-bearing layer with minimal voids. This is essential for the structural integrity of the road.
What does 'non-frost susceptible' mean?
It means the material does not absorb significant amounts of water and does not expand or contract excessively when subjected to freezing and thawing cycles. This prevents damage to the road structure caused by frost heave.
Can I use any crushed stone for a sub-base?
No. Only aggregate that has been tested and certified to meet the Department for Transport's specifications for MOT Type 1 (or other relevant approved sub-base types) should be used for highway construction. Using unapproved materials can lead to structural failure and safety issues.
How is MOT Type 1 compacted?
It is compacted using heavy, vibrating rollers. The vibration helps to settle the particles closely together, achieving maximum density and stability.
Conclusion
MOT Type 1 Granite is a fundamental material in building durable and safe road networks across the United Kingdom. Its precise grading, strength, and performance characteristics, governed by strict Department for Transport standards, ensure that our roads can withstand the rigours of modern traffic. While the raw material originates from quarries, specialist suppliers like The Mick George Group play a crucial role in sourcing, processing, and delivering this essential aggregate to construction sites nationwide. Understanding the properties and proper application of MOT Type 1 is key to successful infrastructure projects, guaranteeing longevity and reliability for years to come.
