DIY Mazda Miata Wheel Alignment

Many car enthusiasts relish the satisfaction that comes from working on their own vehicles. This pursuit offers not only a sense of control and empowerment but also potential cost savings. To this end, many have developed bespoke tools and methods to tackle tasks like wheel alignment in their own garages. This article will detail a comprehensive method for performing a precision alignment on a Mazda Miata, a vehicle renowned for its sophisticated suspension system. We'll cover the essential tools, the step-by-step process, and the inherent limitations of a DIY approach.

Why is Wheel Alignment Crucial?

A misaligned vehicle can lead to a host of undesirable outcomes, including the premature wear of your tyres and compromised handling characteristics. Getting the alignment settings correct is paramount for both the longevity of your tyres and the overall driving experience. Unfortunately, many car owners have had less than satisfactory experiences with professional alignment services. The modern workshop often prioritises speed and ease of use for its technicians, which can sometimes come at the expense of accuracy. Finding a reputable establishment that is willing to work with you to achieve specific alignment figures can be a challenge. Questions often arise: are the adjustment bolts being re-torqued correctly? Is the steering wheel left straight after the procedure? Based on anecdotal evidence, the answer is frequently no.

Understanding Miata Suspension

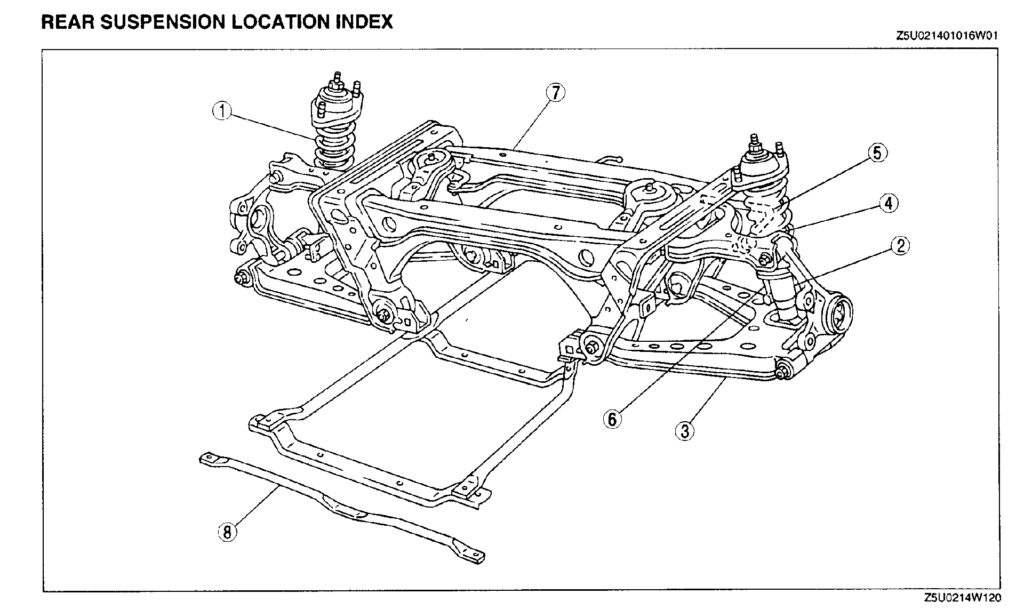

The Mazda Miata boasts a highly advanced suspension system for a road-going vehicle. It features double wishbone or 'A' arm suspension on each corner, coupled with coil-over shock absorbers. The rear wheels offer adjustability for both camber and toe, while the front wheels allow for adjustments to caster, camber, and toe. This multitude of adjustable parameters means that achieving a precise alignment, especially when working from home, requires meticulous attention to detail.

The Three Pillars of Alignment: Camber, Caster, and Toe

A standard wheel alignment focuses on three key geometric parameters:

• Camber: This is the vertical angle of the wheel relative to the road surface when viewed from the front. A negative camber means the top of the wheel is tilted inwards, while positive camber means it's tilted outwards.
• Caster: This refers to the angle of the steering axis when viewed from the side. It influences steering stability and returnability.
• Toe: This is the angle of the wheels relative to each other when viewed from above. 'Toe-in' means the front edges of the wheels are closer together than the rear edges, while 'toe-out' means the opposite.

For a deeper understanding of these concepts, consulting resources from alignment equipment manufacturers like Hunter, or conducting a thorough Google search for SAE journal articles on the subject, is highly recommended.

DIY Alignment Tools: Crafting Precision

Measuring camber angles accurately requires a specialised gauge. While many are available commercially, a truly precise measurement can be achieved by fabricating your own. Leveraging a desktop CNC mill can be an excellent way to create a highly accurate camber gauge. One such design utilises a micrometer mechanism to tilt a shelf supporting a machinist's spirit level. An inverted 'T' with adjustable feet, ensuring equal distance from the 'T' frame, contacts the wheel rim at three points. By adjusting the micrometer until the spirit level indicates the shelf is perfectly level, the micrometer reading directly corresponds to the camber angle. A well-designed gauge can achieve an angle resolution of one-thousandth of a degree, with practical accuracy in the realm of one-hundredth of a degree, suitable for rims from 12 to 19 inches.

Essential Components for a Home Alignment:

Beyond the camber gauge, a successful DIY alignment requires:

• Wooden spacers of varying thicknesses (e.g., 1/2", 1/4", 1/8")
• A length of clear tubing (e.g., Tygon) for levelling
• A small plumb-bob
• Strong string or fishing line
• Accurate metal rulers
• Sturdy jack stands for string support

Levelling the Vehicle: The Foundation of Accuracy

A critical, yet often overlooked, aspect of home alignment is ensuring the vehicle is perfectly level. Garage floors are notoriously uneven, and even slight slopes can render camber measurements meaningless. To overcome this, a water level can be employed. Fill a length of clear tubing with water and place one end against a reference point (like the bottom edge of a dust cap on a wheel). Then, take the other end of the tube to the other wheels. By strategically placing the pre-cut wooden spacers under each wheel, you can adjust the height until the water level is consistent across all four wheels. Remember to jounce the suspension after placing spacers if you've jacked the car to allow the suspension to settle before taking measurements. For front wheel adjustments requiring steering, ensure the front wheels can turn freely without binding. Using slippery spacers, like two layers of 1/8" hardboard, under the front wheels can facilitate this.

Establishing the Thrust Line

The key to ensuring a car tracks straight is aligning each wheel to the vehicle's thrust line. This line is effectively the centreline of the car. It’s crucial to establish this line not by referencing the car’s bodywork, which has inherent manufacturing tolerances, but by measuring between the suspension pivot points. Mark these points and scribe a centreline that can be referenced when the car is on its wheels. The marks used for this can be quite small but should be clearly visible.

Using String for Reference:

Once the thrust line is marked, a taut string can be run along this line, extending from the front to the rear of the car. This string serves as your primary reference. To make this reference usable for wheel measurements, a second set of strings is required. These should be attached to jack stands or similar supports, positioned parallel to the car's sides and at hub height. Using a plumb-bob and ruler, measure the distance from the central thrust line string to these outer strings at both the front and rear of the car. Adjust the position of the jack stands until these distances are equal, ensuring the outer strings are perfectly parallel to the thrust line. Position these outer strings approximately nine inches away from the wheel centres to allow for steering adjustments without interference.

The Adjustment Process: Eccentrics and Turnbuckles

The Miata’s suspension geometry is adjusted using eccentric bolts located on the lower 'A' arm mounts. These eccentrics allow for the fine-tuning of camber, caster, and toe. The locking nuts on these eccentrics can be extremely tight, sometimes requiring significant force to loosen, especially with the car on the ground. It's advisable to loosen them slightly before levelling the car, but not entirely, to prevent unwanted movement.

Target Alignment Figures (A Recommended Compromise):

While specific preferences may vary, the following figures offer a good balance between performance and tyre wear:

Rear Wheel Adjustments:

Begin with the rear wheels, as they are generally simpler to adjust. The two eccentrics on each rear corner control both camber and toe. Moving both eccentrics in the same direction affects camber, while moving them in opposite directions affects toe. This is a meticulous process, and having a helper can be beneficial, though not essential. Measure camber with your gauge and toe by carefully measuring the distance from the wheel rim to the reference string at both the front and rear of the rim. Aim for accuracy within a 64th of an inch. Once the desired settings are achieved, tighten the eccentric locking nuts, using a wrench to hold the bolt steady to prevent the eccentric from moving during tightening.

Front Wheel Adjustments:

The front adjustments are more involved. The eccentrics primarily influence camber and caster, with a smaller degree of toe influence. The steering rack tie rods, often referred to as turnbuckles, are used to adjust the front wheel toe. The front eccentric typically adjusts camber, while the rear eccentric on the front subframe is primarily responsible for caster.

Caster is calculated using the following formula:

Caster (degrees) = (180 / π) * [(Camber1 - Camber2) / (TurnAngle1 - TurnAngle2)]

Where Camber1 and Camber2 are measured at specific steering angles (TurnAngle1 and TurnAngle2). Ensure the turn angles are equal and opposite. Measuring camber at significant wheel turn angles (e.g., nearly a full revolution) simplifies the calculation and improves accuracy. This involves measuring the distance from the rim's leading edge to the string, then the trailing edge, and using trigonometry to determine the camber angle. Repeating this process and adjusting the eccentrics until the desired caster is achieved is key. If you're comfortable, both front wheels can be adjusted simultaneously, using a left steering wheel turn to measure both left and right wheel cambers, thus halving the number of wheel turns required.

Final Toe Adjustment:

With camber and caster set, focus on front toe. For straight-line stability and to ensure the steering wheel is centred, the toe on each front wheel must be precisely matched when the wheels are pointing straight ahead. Centre the steering wheel and measure the distance from the rim to the reference string at both the front and back. Adjust the relevant tie rod turnbuckle until the desired toe setting is achieved for that wheel. Repeat for the other side, then tighten the locknuts on the tie rods.

Final Checks and Tightening

Before the final tightening, review your measurements and ensure you are satisfied with the alignment figures. Now is the time to make any minor adjustments. Once confirmed, it's time for the final tightening of all eccentric nuts. Tighten them as much as possible with the car on the ground, then lift the vehicle and torque them to the manufacturer's specification (typically 55-70 ft-lbs). Be aware that access to the front eccentric nuts on the front wheels can be restricted by the steering rack linkage, making torque wrench application difficult. Tighten these as much as you can manually.

The Reward: A Superior Driving Experience

After a successful DIY alignment, the difference in your Miata's handling will be palpable. Expect a more stable, predictable, and responsive drive. The satisfaction of achieving this yourself, with precision tools and careful methodology, is immense.

Time Investment and Tips:

Be prepared: a thorough DIY alignment is a time-consuming process. Expect to dedicate a significant portion of your day, possibly 6 hours or more for the first attempt, especially if working meticulously with a helper. With practice, this can be reduced to around 3 hours. Find a well-lit, spacious area to work. Don't hesitate to take breaks if frustration sets in. Patience and accuracy are your greatest allies.

Important Note: While this guide provides a detailed method, it's essential to understand the limitations of DIY alignment. For ultimate precision, professional equipment and expertise remain invaluable. However, for the dedicated enthusiast, this approach offers a rewarding and effective way to achieve a significantly improved wheel alignment on your Mazda Miata.
