Mi16 Engine: Battling Oil Starvation & Rebuild Woes

Embarking on an engine rebuild, especially with a classic like the Mi16, is a journey fraught with both satisfaction and potential pitfalls. Having meticulously brought the cylinder head back to life and carefully reassembled the bottom end with a fresh cam, one might assume the final assembly would be a straightforward affair. Yet, as any seasoned mechanic knows, classic engines often hold their own unique challenges and inherited 'bodges' waiting to be undone. This deep dive into the Mi16's assembly process will not only guide you through the intricacies but also shed light on a particularly notorious issue: the risk of oil starvation, a critical concern for these high-revving powerplants.

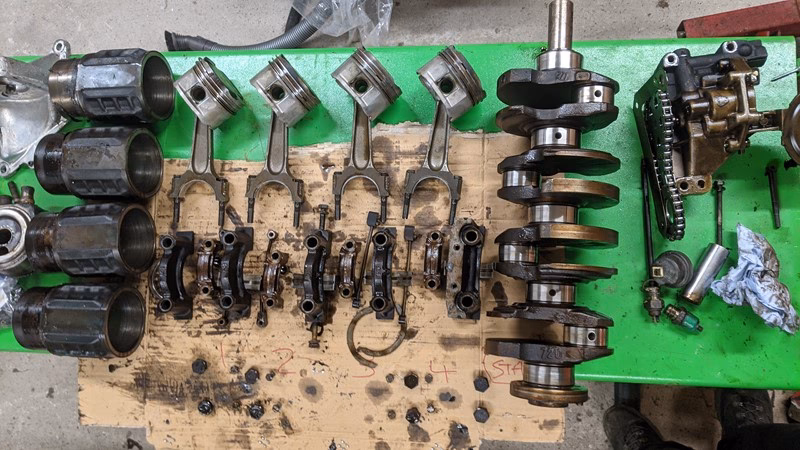

The Foundation: Scrutinising the Bottom End

Before the head can even contemplate rejoining its partner, a thorough inspection of the engine's bottom end is paramount. For many, the concept of 'floating liners' can be a source of anxiety, a stark contrast to the solid blocks of engines like the XUD. The critical aspect here is achieving the precise liner protrusion of the cylinder liners. Too much, and you risk a compromised seal to the head; too little, and the seal to the block becomes problematic. The tolerances involved are incredibly tight, often mere tenths of a millimetre, leaving very little room for error. While the initial protrusion was satisfactory before the seals were fitted, a 'comfort check' is always advisable. Ensuring the block remains perfectly straight and that no unforeseen issues have arisen provides peace of mind before proceeding with the head assembly. This meticulous attention to detail at this stage can save countless hours of rectification later.

The Mi16's Achilles' Heel: Understanding Oil Starvation

The specter of oil starvation has long haunted discussions among Mi16 enthusiasts, and for good reason. The design of the oil pump pickup, situated at one side of the sump, renders these engines particularly susceptible to this catastrophic failure. Under aggressive cornering or high G-forces, oil can slosh away from the pickup, leaving the pump with nothing to draw, leading to a critical loss of lubrication. The consequences are often dire: crankshaft bearings are deprived of oil, overheat, and inevitably spin, causing irreparable damage to the engine's vital components. This isn't merely theoretical; it's a grim reality witnessed firsthand, particularly in track applications where sustained high-performance driving is common.

Mitigating the Risk: Common Solutions and Crucial Insights

The aftermarket and enthusiast communities have devised various 'solutions' to combat Mi16 oil starvation, ranging from the simple act of overfilling the engine with oil – a practice that comes with its own set of risks, such as increased windage losses and potential seal issues – to more comprehensive modifications like full wet sumping, a system designed to ensure a constant supply of oil to the pump. Other popular upgrades include fitting an uprated oil pump pressure spring, which can help maintain pressure under challenging conditions, and installing a baffled sump or windage tray. A baffled sump uses internal walls to prevent oil from sloshing away from the pickup, while a windage tray helps to separate oil flung from the crankshaft, encouraging it to return to the sump quickly.

While these modifications offer significant improvements, especially for track use, it's worth noting that for typical road use, many Mi16 owners experience no issues. This often boils down to fundamental good practice: maintaining impeccably clean oil galleries, adhering to a strict regimen of regular oil changes, and, perhaps most crucially, allowing the engine oil to reach optimal operating temperature before pushing the engine hard. These simple, yet often overlooked, habits contribute significantly to the engine's longevity and reliability.

The Overlooked Guardian: The Cylinder Head Oil Filter

Amidst the discussions of sumps and pumps, one often-forgotten component plays a surprisingly critical role in preventing oil-related issues: the tiny, obscure oil filter located within the cylinder head. These filters, regrettably, have long been discontinued by both Citroën and Peugeot, making their maintenance a challenge. Removing them in a usable condition is notoriously difficult, meaning cleaning them in situ is often the only viable option. This diminutive filter serves a vital purpose: it protects the intricate oil galleries within the head from becoming blocked by debris. Should this filter become clogged, it restricts the flow of oil into the head, and consequently, impedes the efficient return of oil to the sump. The result? A build-up of oil in the head, leading to reduced oil levels in the sump, which exacerbates the risk of oil starvation, even if you have an uprated pump, baffled sump, or windage tray. A clean cylinder head oil filter is therefore paramount, acting as a final line of defence for the engine's top end lubrication and overall oil circulation.

Uniting Head and Block: The Assembly Journey

The moment arrives when the meticulously prepared cylinder head can finally be reunited with the engine's bottom end. A critical preparatory step involves setting both the cylinder head cams and the crankshaft to their respective timing positions. This ensures the relative positions of the pistons and valves are known and safe before the components are bolted down, a preventative measure against inadvertently bending a valve when the timing belt is eventually installed. A mistake here can quickly undo hours of painstaking work.

Gasket Selection and Head Bolt Challenges

For engines where the cylinder head has undergone skimming – a common refurbishment process to ensure a perfectly flat mating surface – a thicker head gasket is often required to compensate for the material removed. The Citroën manual indicates that a refurbished cylinder head should bear an 'R' stamp, signalling to future mechanics that it has been skimmed. However, it's crucial to understand that there's a limit to how much material can be removed before the pistons risk making contact with the valves, or worse, the head itself becomes compromised. Even without an 'R' stamp, careful measurement with a vernier caliper can reveal if a head has been skimmed to its limit, necessitating an over-thickness repair gasket to maintain optimal clearances and ensure smooth operation.

Securing the cylinder head to the engine block is achieved via the head bolts, a task that often proves to be a physical test of endurance. While the initial torqueing and slacking of the bolts are relatively straightforward, achieving the final 270 degrees of rotation can be back-breaking work, frequently requiring the combined effort of two individuals. Despite the arduous nature, ensuring the bolt holes (throughs) in the block are meticulously cleaned beforehand allows the bolts to wind in without undue bother. A common and critical mistake to avoid, which has plagued many before, is forgetting to place a spacer in all the head bolt holes. Neglecting these seemingly small components can lead to catastrophic cracking of the block, an irreversible and costly error.

The Heartbeat of Cooling: Water Pump Wisdom

While aftermarket water pumps for the XU9J4 engine are readily available from numerous major brands, it is vital to exercise caution. Not all water pumps are created equal, and the differences in design and manufacturing quality can significantly impact engine cooling performance. Inferior aftermarket pumps, in particular, can lead to a low coolant flow rate at lower RPMs, resulting in undesirable climbing temperatures at idle. If the coolant is not being efficiently circulated throughout the engine and radiator, even ample airflow through the radiator will be insufficient to maintain optimal operating temperatures.

Genuine vs. Aftermarket: A Critical Comparison

The distinction between a genuine water pump (such as the original Valeo unit, part number 1201.61) and a pattern part aftermarket copy is often stark, particularly concerning the impeller design. A genuine pump typically features eight well-designed blades that facilitate unrestricted coolant flow. In contrast, many aftermarket copies exhibit significant restrictions, often having only four small holes (around 6mm in diameter) through which the coolant must pass. This fundamental design flaw severely impedes flow, making the aftermarket option a false economy. For critical engine cooling, sourcing a genuine pump, though challenging to find, is highly recommended. Specialised suppliers like Spoox Motorsport often stock these elusive but essential components.

Timing is Everything: The Cambelt Conundrum

With the head and block securely joined, the next critical step is the installation of the new cambelt. This process, while seemingly straightforward when following the precise steps, can often reveal yet more lingering 'bodges' from previous work. A prime example is the idler pulley bolts. Rather than the genuine, correctly designed bolts, one might encounter crude, hack-sawed down versions with insufficient washers. Such improvised bolts not only compromise structural integrity but can also lead to the tensioner slowly shifting over time, throwing out the engine's timing and significantly reducing horsepower. Investing in new, genuine bolts, even for seemingly minor components, is a worthwhile expense to ensure long-term reliability and performance.

Setting the cambelt tension accurately is paramount for the Mi16 engine. Unlike less sensitive diesel engines, the Mi16 demands precision. Utilising a SEEM gauge for this task is highly recommended. The target tension for this engine is typically 21.0. While achieving this exact figure can be challenging, getting as close as possible, for instance, 21.2, is often acceptable. The true test of correct tension and timing comes after turning the engine over twice manually: if the timing pins slide into place with no resistance, you've likely hit the mark. This moment of confirmation is incredibly satisfying for any engine builder.

The Cambelt Cover Conundrum

The final touch for the engine assembly is fitting the cambelt cover, essential for protecting the belt from debris and potential damage from flying bodywork. However, even this seemingly simple step can present unexpected challenges. Misaligned or damaged standoffs, the pins that hold the plastic cover in place, are a common frustration. If an standoff is bent or out of square, the cover simply won't fit. Attempting to straighten a bent standoff can be risky; in some cases, the thread may snap, necessitating drilling and the use of an extractor. While this can mean temporarily removing the newly installed cambelt, resolving such issues at this stage is far preferable to dealing with them once the engine is fully installed in the car. For now, fitting the cover with perhaps just the lower pin secured can provide adequate protection until a replacement standoff is sourced.

What's Next in the Engine Assembly Process?

For the time being, the core engine assembly is complete. While the temptation exists to immediately install components like the inlet and exhaust manifolds, it's often more practical to leave them off. This keeps the engine less bulky and easier to store and manoeuvre on an engine stand. The next phase of the project shifts focus to the car body itself, which presents its own set of significant challenges. Before the Mi16 can be returned to its rightful place in the engine bay, several crucial tasks await attention: replacing worn steering rack rubbers, renewing all suspension rubbers, addressing a potentially collapsed near-side suspension turret, and installing new fuel lines. These essential engine bay jobs are undeniably simpler to tackle with the engine out of the way, allowing for unrestricted access and ease of labour. Once the car body is prepared, the engine can be fitted with its oil cooler, filled with fresh oil, and periodically turned over to ensure all components remain well-lubricated in anticipation of its ultimate reinstallation.

Frequently Asked Questions (FAQs)

What causes oil starvation in Mi16 engines?

Oil starvation in Mi16 engines is primarily caused by the design of the oil pump pickup, which is located at one side of the sump. During hard cornering or under high G-forces, especially in track use, the oil can slosh away from the pickup, momentarily starving the pump of lubrication. This leads to critical components like crankshaft bearings running dry, causing overheating and ultimately spinning the bearings, resulting in severe engine damage.

How can I prevent oil starvation in my Mi16?

Prevention methods range from simple practices to mechanical upgrades. Simple steps include regularly changing your oil, keeping oil galleries clean, and allowing the engine oil to warm up properly before aggressive driving. Mechanical upgrades can include installing a baffled sump or windage tray to control oil movement, fitting an uprated oil pump pressure spring, and critically, ensuring the cylinder head oil filter is clean and unblocked, as a clogged filter can restrict oil return to the sump.

Why is the cylinder head oil filter so important?

The small oil filter located within the cylinder head is crucial because it protects the delicate oil galleries in the head from blockages. If this filter becomes restricted, it impedes the flow of oil into the head and, more importantly, restricts its return to the sump. This can lead to a build-up of oil in the cylinder head and a critically low oil level in the sump, directly contributing to oil starvation, even if other preventative measures are in place.

Are aftermarket water pumps suitable for the Mi16?

While readily available, many aftermarket water pumps for the Mi16 (XU9J4) engine are not ideal. They often feature restrictive impeller designs (e.g., fewer, smaller holes or blades) compared to genuine pumps. This can lead to a significantly reduced coolant flow rate, particularly at low RPMs, causing the engine temperature to climb at idle and increasing the risk of overheating. It is highly recommended to source a genuine water pump for optimal cooling performance and engine longevity.

What challenges might I face during an Mi16 engine rebuild?

Mi16 engine rebuilds can present several challenges. These include ensuring precise cylinder liner protrusion, the physical difficulty of torqueing the head bolts (especially the final 270-degree rotation), selecting the correct head gasket thickness for skimmed heads, identifying and rectifying previous 'bodges' (like cut-down idler pulley bolts), accurately setting cambelt tension with a SEEM gauge, and even dealing with seemingly minor issues like snapped cambelt cover standoffs. Thorough preparation, adherence to manuals, and attention to detail are key.
