MGF Trophy 160 SE Head Gasket Replacement Guide

The MGF and its successor, the MG TF, are beloved British sports cars known for their engaging handling and spirited performance. However, a common Achilles' heel for many owners has been the head gasket on the K-series engine, particularly the VVC (Variable Valve Control) variants found in models like the Trophy 160 SE and the TF 160. While often a source of frustration, understanding the replacement process can demystify the task and empower owners to tackle it, or at least appreciate the work involved when commissioning a professional.

This article aims to provide a comprehensive overview of the head gasket replacement procedure, drawing insights from real-world experience, specifically from a guide compiled during a replacement on an MGF Trophy 160 SE. The procedures outlined are broadly applicable to all MGF VVC engines and, crucially, to the TF 160 models, given their shared engine architecture. A key aspect covered here is the installation of the stiffer Land Rover (LR) oil rail, an upgrade widely recommended for enhanced engine longevity. It's important to note, however, that while this guide covers the core replacement, it does not delve into the intricacies of cylinder head re-working or skimming. Such procedures often require specialist equipment and knowledge, but supplementary guides are readily available for those wishing to undertake that aspect.

Understanding the K-Series Head Gasket Predicament

The Rover K-series engine, while innovative and lightweight for its time, gained a reputation for head gasket failures. This wasn't necessarily due to a flaw in the gasket itself, but rather a combination of factors including the engine's 'wet liner' design, the original elastomer gasket's characteristics, and potentially inadequate cooling system maintenance. Overheating is a primary culprit, leading to gasket degradation and eventual failure, often manifesting as coolant loss, oil contamination, or white smoke from the exhaust.

Early K-series engines utilised an elastomer-bead gasket, which was susceptible to degradation over time, especially with thermal cycles. Modern replacement gaskets, particularly the multi-layered steel (MLS) type, offer significant improvements in durability and sealing. Understanding the symptoms of a failing head gasket – such as unexplained coolant loss, a milky substance on the oil filler cap (often called 'mayonnaise'), overheating, or poor engine performance – is the first step towards addressing the issue before more significant damage occurs.

Is This Guide for Your MG?

Absolutely. If you own an MGF Trophy 160 SE, an MGF with a VVC engine, or an MG TF 160, the fundamental steps for head gasket replacement detailed here will be highly relevant. The core K-series VVC engine design remains consistent across these models, meaning the disassembly, replacement, and reassembly processes share many commonalities. The inclusion of the stiffer LR oil rail installation is a specific enhancement that many K-series enthusiasts choose to incorporate for improved bottom-end rigidity and to mitigate potential liner movement, making this guide particularly useful for those considering a long-term fix.

It is paramount to reiterate that while this guide provides a thorough understanding of the replacement process, it deliberately omits detailed instructions on cylinder head re-working, such as skimming or valve seat refurbishment. These are specialised tasks that, if required, should either be outsourced to a reputable engine machine shop or undertaken with specific expertise and tools beyond the scope of a standard head gasket replacement. Always assess the condition of your cylinder head once removed; if it shows signs of warping or significant corrosion, professional attention is strongly advised.

Essential Tools and Materials for the Job

Before embarking on this significant undertaking, gather all necessary tools and replacement parts. Being well-prepared will save valuable time and reduce frustration.

• Socket Set and Spanners: Comprehensive set including various sizes, extensions, and universal joints.
• Torque Wrenches: At least one capable of covering the range for head bolts and smaller fasteners.
• Drain Pans: For coolant and oil.
• Pliers: Standard, circlip, and hose clamp pliers.
• Screwdrivers: Various sizes and types.
• Gasket Scrapers/Blade: For cleaning old gasket material.
• Wire Brush: For cleaning mating surfaces (use carefully).
• Feeler Gauges: For checking valve clearances (if adjusting).
• Camshaft Locking Tool: Essential for setting timing correctly.
• Flywheel Locking Tool (optional but recommended): Aids in setting timing.

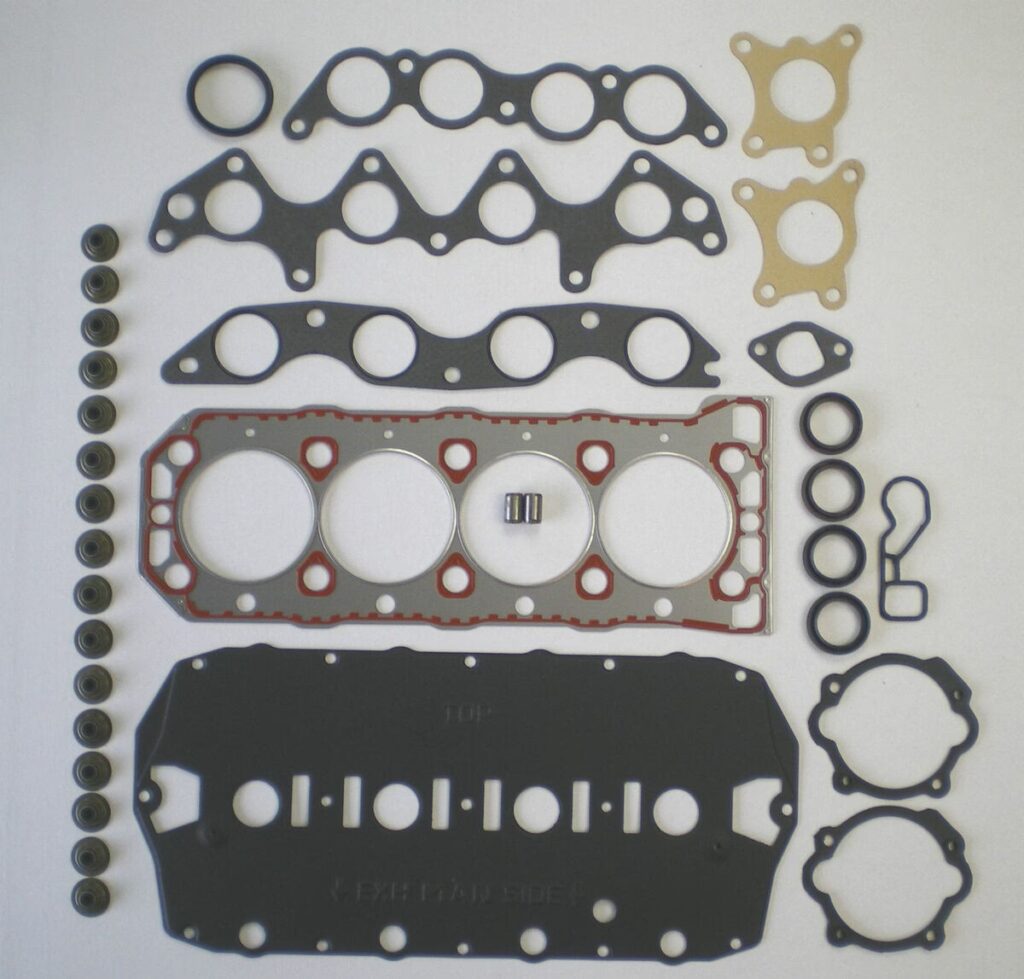

• New Head Gasket Kit: Opt for a good quality MLS (Multi-Layer Steel) gasket kit, often including new head bolts.
• Stiffer LR Oil Rail: Crucial upgrade component.
• New Head Bolts: Always replace head bolts as they are stretch bolts.
• New Cam Cover Gasket.
• New Exhaust Manifold Gasket.
• New Inlet Manifold Gasket.
• Fresh Engine Oil and Filter.
• Correct Specification Coolant.
• Sealant (e.g., RTV silicone) for specific areas.
• Cleaning Solvents: Brake cleaner, degreaser.
• Plenty of Rags and Workshop Towels.

The Process: From Preparation to First Start

Successfully replacing a head gasket is a methodical process. Rushing can lead to errors and further problems. Patience and attention to detail are paramount.

1. Preparation and Disassembly

Begin by disconnecting the battery. Drain the coolant and engine oil into suitable containers. Label all electrical connectors and vacuum hoses as you disconnect them – this will make reassembly significantly easier. Remove components obstructing access to the cylinder head, such as the air filter assembly, throttle body, inlet manifold, exhaust manifold (or at least disconnect it from the downpipe), and the cam cover. Carefully remove the spark plugs and ensure the engine is at Top Dead Centre (TDC) on cylinder 1 before proceeding with cam belt removal. This is a critical step for correct timing.

2. Removing the Camshafts and Cylinder Head

Once the cam belt is off and the camshafts are locked in position (using a dedicated tool), carefully unbolt the cam carrier, following the manufacturer's specified loosening sequence. Lift the cam carrier away, then remove the camshafts. Now, you can access the head bolts. These must be loosened in a specific, reverse torque sequence to prevent warping the cylinder head. Once all bolts are loose, carefully lift the cylinder head from the engine block. Be prepared for it to be heavier than expected.

3. Inspection, Cleaning, and the LR Oil Rail

With the head removed, thoroughly inspect both the cylinder head and the engine block mating surfaces. They must be perfectly clean and flat. Use a plastic or brass scraper to remove all traces of the old gasket material. Avoid using abrasive tools that could damage the surfaces. Check the cylinder liners for any signs of movement or damage. This is also the ideal time to install the stiffer LR oil rail. This upgraded rail replaces the original, weaker item and provides improved clamping force on the bottom of the cylinder liners, significantly reducing the likelihood of liner movement which can contribute to head gasket failure. Fit the new oil rail according to instructions, ensuring correct torque settings for its bolts.

4. Fitting the New Head Gasket and Reassembly

Place the new MLS head gasket onto the engine block, ensuring it is correctly oriented. The MLS gasket is designed to be fitted dry. Carefully lower the cylinder head back onto the block, aligning it precisely with the dowel pins. Install the new head bolts finger-tight, then follow the manufacturer's precise torque sequence and stages. This often involves multiple stages of torque and then specific angle turns (e.g., 20Nm + 180 degrees). Adhering strictly to these instructions is paramount for a proper seal. Reinstall the camshafts and cam carrier, ensuring the cam timing is set correctly using the locking tools. Reattach the cam belt, tension it correctly, and rotate the engine by hand a few times to verify timing marks align. Reinstall the cam cover with a new gasket.

5. Final Reassembly and Refilling

Reattach the inlet and exhaust manifolds with new gaskets. Reconnect all electrical connectors, vacuum hoses, and fuel lines. Reinstall the spark plugs. Refill the engine with the correct grade of engine oil and a new oil filter. Crucially, refill the cooling system with the specified coolant mixture. The K-series engine is notoriously difficult to bleed of air, so take your time. Use the bleed screws on the radiator and heater matrix (if applicable) and the top hose, running the engine with the heater on full hot until no more air bubbles emerge and the temperature stabilises.

6. First Start and Post-Replacement Checks

Once everything is reassembled and fluids are topped up, start the engine. Listen for any unusual noises and check for leaks immediately. Monitor the temperature gauge closely. Allow the engine to reach operating temperature, ensuring the cooling fan kicks in. Continue to monitor coolant levels over the next few drives, topping up as necessary, as trapped air can still work its way out of the system. A short test drive, carefully monitoring all gauges, is recommended.

Comparative Table: Head Gasket Types for K-Series

Frequently Asked Questions (FAQs)

Q: How often does the head gasket need replacing on an MGF/TF?

A: There's no set mileage or time frame. It's often a one-time event if replaced correctly with an MLS gasket and the cooling system is maintained. Early failures were more common on original elastomer gaskets.

Q: Can I do this myself, or should I take it to a garage?

A: A head gasket replacement is a significant mechanical undertaking requiring a good level of mechanical aptitude, specific tools (like torque wrenches and timing tools), and patience. If you're unsure or lack experience, it's advisable to seek professional assistance. This guide is for informational purposes and to aid those with some prior experience.

Q: What are the tell-tale signs of a failing head gasket?

A: Common signs include: unexplained coolant loss, engine overheating, 'mayonnaise' (milky residue) on the oil filler cap or dipstick, white smoke from the exhaust (especially on start-up), rough running, or loss of engine power.

Q: What is the stiffer LR oil rail and why is it important?

A: The LR oil rail is an upgraded, more robust oil rail from Land Rover K-series applications (e.g., Freelander). It provides a stronger clamping force to the bottom of the wet liners in the K-series engine, helping to prevent liner movement, which can contribute to head gasket failure and coolant ingress into the sump. It's a highly recommended preventative upgrade during a head gasket replacement.

Q: Is head skimming always necessary when replacing the head gasket?

A: Not always, but it is highly recommended, especially if the engine has experienced significant overheating. This guide does not cover head re-working, but a professional machine shop can check the head for flatness and skim it if necessary, ensuring a perfectly flat mating surface for the new gasket. Failing to do so on a warped head will likely lead to another gasket failure.

Q: What should I do if I find cylinder head damage upon removal?

A: If you find cracks, severe pitting, or significant corrosion on the cylinder head, it may require specialist repair or even replacement. Consult with an engine reconditioning specialist. Do not attempt to refit a damaged cylinder head.

Replacing the head gasket on your MGF Trophy 160 SE or similar K-series VVC engine is a challenging but rewarding task. By following a methodical approach, utilising the correct tools and parts (especially an MLS gasket and the LR oil rail), and paying close attention to detail, you can significantly extend the life and reliability of your beloved MG. Remember, proper cooling system maintenance after the repair is just as important as the repair itself to prevent future issues.

If you want to read more articles similar to MGF Trophy 160 SE Head Gasket Replacement Guide, you can visit the Repair category.
