MGB Gearbox Oil Change: Your DIY Guide

As a fellow MGB Roadster enthusiast, I understand the unique joy and occasional head-scratching moments that come with owning these magnificent classic cars. Keeping them running smoothly often involves a bit of DIY, and one task that frequently prompts questions, particularly for newcomers, is the gearbox oil change. You're not alone if you've pondered how to pour oil horizontally into a side-mounted filler plug! This guide aims to clear up the confusion, offering practical advice gleaned from years of tinkering with my own MGB, ensuring your beloved B's transmission remains in top fettle.

Why Gearbox Oil is Crucial for Your MGB

The gearbox in your MGB is a marvel of mechanical engineering, designed to transfer power from the engine to the wheels efficiently. Within its robust casing, gears mesh, shafts spin, and bearings support loads, all under immense pressure and friction. Gearbox oil, therefore, isn't just any lubricant; it's the lifeblood that:

• Reduces friction and wear between moving parts.
• Dissipates heat generated by friction.
• Cleans the internal components by suspending contaminants.
• Protects against corrosion.
• Dampens noise and shock within the transmission.

Neglecting your gearbox oil can lead to accelerated wear, difficult gear changes, increased noise, and ultimately, costly repairs. For a classic like the MGB, where parts can be scarce or expensive, proactive maintenance is key to longevity.

When to Change Your MGB Gearbox Oil

Most manufacturers, including those for classic cars, recommend a gearbox oil change at specific intervals. For the MGB, the general consensus among enthusiasts and workshop manuals is to replace the gearbox oil every 24,000 miles or every two years, whichever comes first. However, if your MGB sees infrequent use, or if it's been stored for an extended period, it's wise to consider an earlier change. Fresh oil ensures optimal protection, especially after periods of inactivity where moisture can accumulate.

Choosing the Right Oil for Your MGB Gearbox

This is perhaps the most critical decision when undertaking a gearbox oil change on your MGB. Unlike modern vehicles, classic MGB gearboxes have specific requirements, largely due to the materials used in their construction, particularly the yellow metals (bronze and brass) found in components like the overdrive unit and synchromesh rings. Using the wrong oil can cause irreversible damage.

Historically, MGBs were designed to run on a multi-grade engine oil, specifically a good quality 20W-50 mineral oil. This recommendation stems from the fact that the gearbox and the engine oil sump are connected via a common oil supply on certain early models, although for later models (like your 1980 MGB LE), the gearbox is a separate, sealed unit. Even so, the design principles and material compatibility generally favour a 20W-50 mineral engine oil or a dedicated classic car gearbox oil.

Why avoid modern gear oils?

Modern gear oils, particularly those rated GL-5 (API GL-5), contain Extreme Pressure (EP) additives, often sulphurous compounds, designed to protect gears under very high loads. While excellent for modern transmissions with hardened steel components, these additives can be highly corrosive to the brass and bronze components found in your MGB's synchromesh rings and overdrive unit. This phenomenon, known as yellow metal corrosion, can lead to premature wear of these vital parts, resulting in difficult gear selection and ultimately, gearbox failure.

Therefore, stick to the following recommendations:

• High-quality 20W-50 mineral engine oil: This is the most commonly recommended and safest option for most MGB gearboxes, especially those with overdrive. It provides excellent lubrication without harming the internal components.
• EP90 gear oil (GL-4 specification): Some MGB owners, particularly those without overdrive, opt for a GL-4 rated EP90 gear oil. The key here is the GL-4 rating, which indicates a lower concentration of corrosive EP additives safe for yellow metals. Never use GL-5.
• Specialised classic car gearbox oils: Several reputable oil manufacturers produce specific gearbox oils tailored for classic cars. These are formulated to protect older materials while providing modern lubrication benefits. Always check their specifications for compatibility with yellow metals.

For your 1980 MGB LE, a good quality 20W-50 mineral engine oil is generally the safest and most recommended choice, especially if it has an overdrive unit.

Here's a quick comparison of suitable oil types:

Tools and Materials You'll Need

Before you begin, gather everything. This will save you time and frustration:

• New gearbox oil (approx. 3.5 litres for non-overdrive, 4.0 litres for overdrive)
• Drain pan (large enough to hold the old oil)
• Socket or spanner set (typically 19mm or 3/4 inch for drain/filler plugs)
• Funnel with a long, flexible hose or tube (essential for refilling)
• Fluid pump or large syringe (highly recommended for refilling)
• Jack and axle stands (for safety and access)
• Wheel chocks
• New crush washers or sealing rings for the drain and filler plugs
• Rags or old towels
• Gloves (disposable or reusable)
• Brake cleaner or degreaser (for cleaning up spills)

The Gearbox Oil Change Process: Step-by-Step

1. Preparation and Safety First

Safety is paramount. Ensure your MGB is on a level, solid surface. Drive the car for a few minutes to warm up the gearbox oil; warm oil drains more easily and completely. Once warm, turn off the engine, engage the handbrake, and chock the rear wheels. Jack up the front of the car and securely support it on axle stands. Never rely solely on a jack. Ensure you have ample working space underneath.

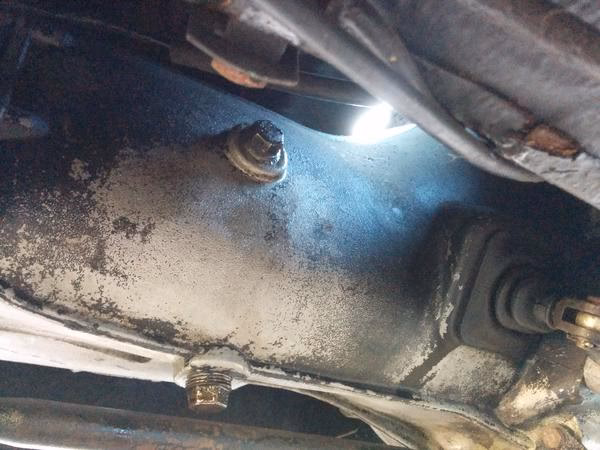

2. Locating the Drain and Filler Plugs

For your 1980 MGB LE, as you've correctly identified, the drain plug is typically at the very bottom of the gearbox casing. The combined filler/level plug is located directly above it, on the side of the gearbox. Access is indeed from underneath the vehicle, often requiring you to reach up past the exhaust or propshaft.

3. Draining the Old Oil

Place your drain pan directly beneath the drain plug. Using the correct size socket or spanner, carefully loosen and remove the drain plug. Be prepared for the oil to come out quickly and, if warm, it will be hot. Allow sufficient time for all the old oil to drain out, which can take 15-30 minutes. While it's draining, inspect the old oil for any metallic particles, which could indicate internal wear. Once drained, clean the drain plug and fit a new crush washer or sealing ring. Reinstall the drain plug and tighten it securely, but do not overtighten – you don't want to strip the threads.

4. The Refilling Challenge: Pouring Horizontally

This is the part that often stumps MGB owners, including yourself! The filler plug is indeed on the side, making traditional pouring impossible. Here are the most effective methods:

Method 1: The Fluid Pump/Syringe (Highly Recommended)

This is by far the easiest and cleanest method. Purchase a hand-operated fluid transfer pump or a large oil syringe from an automotive parts store. These devices typically have a long, flexible hose. Simply:

1. Insert one end of the pump's hose into your bottle of new gearbox oil.
2. Insert the other end of the hose into the gearbox filler hole.
3. Pump the oil into the gearbox. This method gives you excellent control and minimises spills.

Method 2: Funnel with Long, Flexible Tube

If a pump isn't available, you can rig up a gravity-fed system:

1. Attach a long, clear, flexible tube (e.g., 1/2 inch or 12mm internal diameter, several feet long) securely to the spout of a funnel.
2. Position the funnel in the engine bay or above the gearbox, high enough to allow gravity to assist.
3. Feed the other end of the tube into the gearbox filler hole.
4. Carefully pour the new oil into the funnel. You might need to hold the tube in place to prevent it from slipping out of the filler hole. This method can be slower and messier if not done carefully.

Method 3: Tilting the Car (Less Recommended)

While theoretically possible, jacking up one side of the car to create an angle for pouring is generally discouraged. It makes it very difficult to ascertain when the gearbox is correctly filled (as it should be level for an accurate reading) and can be less stable than supporting the car evenly on axle stands. Stick to methods 1 or 2 for accuracy and safety.

5. Filling to the Correct Level

Regardless of the refilling method, you're looking for the oil to reach the bottom edge of the filler hole. Yes, as you suspected, you simply fill it until it begins to overflow from the filler opening. There is no dipstick for the MGB gearbox. Once a steady stream of oil starts to trickle out, the gearbox is full. Allow it to trickle for a moment to ensure it's truly at the correct fluid levels.

6. Finishing Up

Once filled, clean the filler plug and fit a new crush washer or sealing ring. Reinstall the filler plug and tighten it securely. Clean up any spilled oil from the gearbox casing and surrounding areas using brake cleaner or degreaser. Lower the car off the axle stands and remove the chocks.

7. Post-Change Check

Start the engine and let it run for a few minutes. Check underneath the car for any signs of leaks around the drain and filler plugs. Take the MGB for a short drive, paying attention to gear changes and any unusual noises. If everything feels normal and there are no leaks, you've successfully completed your gearbox oil change!

Other Fluids to Check/Replace

Since you're already getting your hands dirty, it's an excellent opportunity to check or replace other vital fluids:

• Brake Fluid: This should be replaced every two years. Brake fluid is hygroscopic, meaning it absorbs moisture from the air, which can lead to corrosion in the brake system and a spongy pedal.
• Clutch Fluid: On later MGBs (including your 1980 model), the clutch master cylinder shares its reservoir with the brake master cylinder. So, if you're changing brake fluid, you're also refreshing the clutch fluid.
• Rear Axle (Differential) Oil: Often overlooked, the differential oil also provides lubrication for the rear axle gears. It typically uses an EP90 GL-4 or GL-5 gear oil (check your Haynes manual for specific recommendations, as the differential can often tolerate GL-5 without issue due to different material composition than the gearbox). This should generally be changed every 24,000 miles or two years.
• Coolant: The engine cooling system fluid should be flushed and replaced every 2-3 years to ensure proper engine temperature regulation and corrosion protection.

Regular checks and adherence to a proper maintenance schedule will keep your MGB running reliably and prevent minor issues from becoming major headaches.

Common Questions About MGB Gearbox Oil Changes

Here are some frequently asked questions:

Q1: How much gearbox oil does my MGB need?

A1: Approximately 3.5 litres (3.7 US quarts) for non-overdrive gearboxes and 4.0 litres (4.2 US quarts) for overdrive gearboxes. Always have a bit extra on hand, just in case.

Q2: Can I use synthetic oil in my MGB gearbox?

A2: Generally, it's best to stick with mineral oils for classic MGB gearboxes. While synthetics offer superior performance in modern transmissions, their additive packages can be detrimental to the yellow metals in older gearboxes. If you are considering a synthetic, ensure it is specifically formulated for classic cars and explicitly states compatibility with yellow metals and non-corrosive properties.

Q3: What if I accidentally put the wrong oil (e.g., GL-5) in my MGB gearbox?

A3: If you suspect you've used the wrong oil, especially a GL-5 rated product, drain it immediately. Do not drive the car. Flush the gearbox with a small amount of the correct oil (e.g., 20W-50 mineral oil) by filling and draining quickly, then refill with the correct volume of the proper oil. The damage from GL-5 can occur relatively quickly, so prompt action is crucial.

Q4: My MGB has an overdrive. Does this change anything for the oil change?

A4: If your MGB has an overdrive unit, it shares the same oil supply as the main gearbox. Therefore, the same oil recommendations apply. It's even more critical to use yellow-metal-safe oil (like 20W-50 mineral) to protect the delicate components of the overdrive unit.

Q5: My gear changes feel stiff after an oil change. What could be wrong?

A5: Stiff gear changes could be due to several reasons: insufficient oil level (double-check by refilling until overflow), incorrect oil type (ensure it's suitable for MGBs), or air in the clutch hydraulic system. If the problem persists after verifying oil level and type, consider bleeding the clutch or inspecting the clutch master/slave cylinders.

Conclusion

Changing the gearbox oil on your MGB is a rewarding DIY task that directly contributes to the longevity and smooth operation of your classic. While the horizontal filler plug might initially seem daunting, with the right tools and techniques – particularly a fluid pump or a well-placed funnel and tube – it's a straightforward procedure. By choosing the correct oil and adhering to regular maintenance, you'll ensure many more miles of enjoyable motoring in your beloved MGB. Happy spanner-wielding!
