MF35/MF50 Engine Rebuild Kit: A Deep Dive

For owners of the venerable Massey Ferguson MF35 and MF50 tractors, maintaining these classic machines is not just a hobby; it's a commitment to preserving agricultural history. When the heart of your tractor – the engine – begins to show signs of wear, a comprehensive rebuild is often the most cost-effective and rewarding solution. But what exactly does a high-quality engine rebuild kit for these specific models include? Understanding the components is crucial for appreciating the value and ensuring a successful restoration of your tractor's performance.

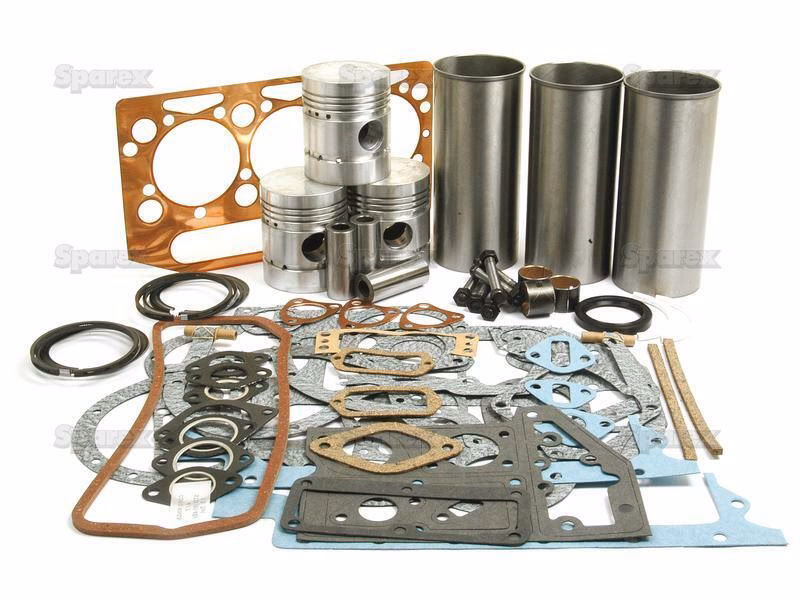

A top-tier engine rebuild kit for the MF35 and MF50, such as the one referenced (Item #: 183924, Ref: EKMC6), is designed to provide virtually everything needed to bring a tired engine back to life. It’s more than just a collection of parts; it's a carefully curated package aimed at restoring the engine's original specifications and ensuring years of continued reliability.

Understanding the Core Components

Let's break down the essential components typically found in such a comprehensive kit, detailing their function and importance in the engine's operation:

Pistons, Wrist Pin Bushings, and Piston Rings

At the very heart of the combustion process are the pistons. These components move up and down within the engine's cylinders, converting the pressure from burning fuel into mechanical energy. A new set of pistons ensures proper compression and combustion efficiency, which is fundamental for power output.

• Pistons: These are the workhorses, transferring force from expanding gases to the crankshaft via the connecting rods. New pistons mean a fresh, unworn surface, critical for sealing against the cylinder walls.
• Wrist Pin Bushings: The wrist pin (or gudgeon pin) connects the piston to the connecting rod. The bushings ensure a smooth, low-friction pivot point, allowing the piston to articulate correctly as it moves. Worn bushings can lead to knocking noises and excessive play, compromising engine stability and longevity.
• Piston Rings: These are arguably some of the most critical components for engine efficiency. Typically, there are three types of rings per piston: compression rings (to seal the combustion chamber and prevent gas leakage) and oil control rings (to scrape excess oil from the cylinder walls, preventing it from entering the combustion chamber). New piston rings restore vital compression, reduce oil consumption, and ensure maximum power delivery. Without proper ring seal, an engine will lack power, burn excessive oil, and emit excessive smoke.

Cylinder Liners

Cylinder liners, also known as sleeves, form the inner walls of the engine's cylinders. Over time, the constant friction from the piston rings causes wear on these surfaces, leading to a loss of compression and increased oil consumption. Including new liners in a rebuild kit is a significant advantage, as it provides a perfectly smooth, unworn bore for the new pistons and rings to operate within. This is crucial for achieving optimal compression and extending the life of the rebuilt engine. It effectively brings the cylinders back to 'new' dimensions, eliminating the need for costly and time-consuming re-boring operations.

Connecting Rod Bearings and Main Bearings

Bearings are vital for reducing friction between moving parts and supporting rotating components. They are designed to wear out over time, protecting more expensive engine components like the crankshaft and connecting rods.

• Connecting Rod Bearings (Con Rod Bearings): These support the big end of the connecting rod where it connects to the crankshaft. They are subjected to immense forces during engine operation. New con rod bearings ensure smooth rotation, proper oil film thickness, and prevent metal-on-metal contact that could lead to catastrophic engine failure.
• Main Bearings: These support the crankshaft itself within the engine block. They bear the primary load of the rotating crankshaft and are crucial for maintaining the crankshaft's alignment and reducing friction. Replacing main bearings is a cornerstone of any thorough engine rebuild, ensuring the crankshaft spins freely and quietly.

Thrust Washers

Thrust washers are small, crescent-shaped bearings that control the crankshaft's end play (axial movement). Without proper thrust washers, the crankshaft can move too much side-to-side, leading to premature wear on main bearings and other engine components, and potentially causing severe damage. New thrust washers ensure the crankshaft remains precisely positioned within the engine block.

Gasket Sets and Seals

Sealing the engine is paramount to its operation, preventing the leakage of oil, coolant, and combustion gases. A comprehensive kit includes all necessary sealing components:

• Top Gasket Set: This typically includes the critical head gasket (sealing the cylinder head to the engine block), valve cover gasket, manifold gaskets, and other seals required for the upper part of the engine. The head gasket is particularly important for maintaining compression and separating oil and coolant passages.
• Bottom Gasket Set: This includes gaskets for the lower parts of the engine, such as the oil pan gasket, timing cover gasket, and various O-rings and seals to prevent oil leaks from the crankcase.
• Front and Rear Seals: These are the crankshaft seals, preventing oil from leaking out where the crankshaft exits the engine block at the front (often behind the timing cover or vibration damper) and the rear (typically behind the flywheel). Replacing these during a rebuild is critical, as they are common points of oil leakage on older engines.

Con Rod Lock Nuts (where fitted)

These specialized nuts secure the connecting rod caps to the connecting rods. Given the extreme forces and vibrations they endure, using new lock nuts (where applicable to the specific engine design) is a crucial safety and reliability measure. They ensure the connecting rods remain securely fastened to the crankshaft, preventing catastrophic engine damage.

The Game Changer: A NEW CRANKSHAFT

Perhaps the most significant inclusion in this particular kit, and what truly elevates it from a standard overhaul kit, is the provision of a NEW CRANKSHAFT. The crankshaft is the backbone of the engine, converting the reciprocating motion of the pistons into rotational motion. On older engines, crankshafts can suffer from wear on their bearing journals, cracks, or even bending over decades of use. Traditionally, worn crankshafts are reground to a smaller size, requiring undersized bearings. However, a new crankshaft eliminates any concerns about previous wear, micro-cracks, or alignment issues. It means your engine will have a perfectly balanced and dimensionally accurate foundation, allowing all new bearings to fit perfectly to standard sizes. This ensures maximum bearing life, reduced friction, and optimal engine precision and smoothness from day one. It removes a major variable and potential point of failure from the rebuild process, offering unparalleled peace of mind and contributing significantly to the engine's overall new-like performance and durability.

Why Choose a Comprehensive Kit?

Opting for a complete engine rebuild kit offers numerous advantages over sourcing individual parts:

• Guaranteed Compatibility: All components are designed to work together seamlessly for the specified MF35/MF50 models.
• Cost-Effectiveness: Often, buying a kit is significantly cheaper than purchasing each component separately.
• Time-Saving: No need to hunt for individual parts, ensuring you have everything you need to complete the job efficiently.
• Restored Performance: New components bring the engine back to factory specifications, restoring lost power, improving fuel efficiency, and reducing oil consumption.
• Longevity: By replacing all wear items, including a new crankshaft, the engine's lifespan is significantly extended, providing many more years of reliable service.

The components supplied in this kit are meticulously chosen to address common wear points and ensure a thorough restoration. The inclusion of a new crankshaft is a standout feature, indicating a commitment to providing a truly 'as new' engine foundation rather than just an overhaul of existing worn parts.

Component Summary Table

Frequently Asked Questions (FAQs)

Why is a new crankshaft included in this kit, when some kits only offer bearings?

A new crankshaft is a premium inclusion. While many kits provide only bearings (assuming the original crankshaft can be re-ground), a new crankshaft eliminates any doubt about the integrity, balance, or previous wear of the most critical rotating component. It ensures standard bearing sizes can be used and provides the strongest foundation for a long-lasting rebuild, often making the engine feel truly 'new' again.

Is this kit suitable for both the MF35 and MF50?

Yes, the description explicitly states it is for models MF35 and MF50. However, always double-check your specific engine serial numbers or specifications against the kit's compatibility details to ensure a perfect match, as there can be variations even within models over production years.

How important are new gaskets and seals?

Extremely important. Even with perfect internal components, an engine will perform poorly and suffer damage if it cannot maintain its seals. Leaks of oil, coolant, or combustion gases can lead to loss of pressure, overheating, and ultimately engine failure. Replacing all gaskets and seals is fundamental to a successful and leak-free rebuild.

Can I install this kit myself?

An engine rebuild is a complex mechanical task that requires specialized tools, significant technical knowledge, and a clean working environment. While a skilled DIY mechanic might attempt it, for optimal results and to avoid costly mistakes, it is often recommended to have the kit installed by an experienced tractor mechanic or engine rebuilder. The precision involved in setting clearances and timing is critical.

How long can I expect a rebuilt engine to last?

When a comprehensive kit like this one, including a new crankshaft, is professionally installed with proper care and attention to detail, and subsequently maintained correctly (regular oil changes, proper cooling, etc.), an MF35 or MF50 engine can provide many more decades of reliable service, often performing as well as or even better than it did when new.

Conclusion

Investing in a comprehensive engine rebuild kit for your Massey Ferguson MF35 or MF50 is a commitment to the longevity and performance of your classic tractor. By providing new pistons, rings, liners, all essential bearings, a full complement of gaskets and seals, and crucially, a brand-new crankshaft, this type of kit offers everything required to transform a worn-out engine into a powerhouse once more. It's an investment that pays dividends in reliable operation, enhanced power, and the continued enjoyment of these iconic agricultural machines.
