Measuring Brake Rotor Surface

Ensuring your vehicle's braking system is in optimal condition is paramount for safety and performance. A critical component of this system, the brake rotor, is subjected to significant stress and wear during operation. Over time, the braking surface of a rotor can develop irregularities that compromise braking efficiency and can even lead to safety issues. This guide will walk you through the process of accurately measuring the braking surface of your brake rotors, focusing on a key indicator of rotor health: lateral runout.

Why Measure Brake Rotor Braking Surface?

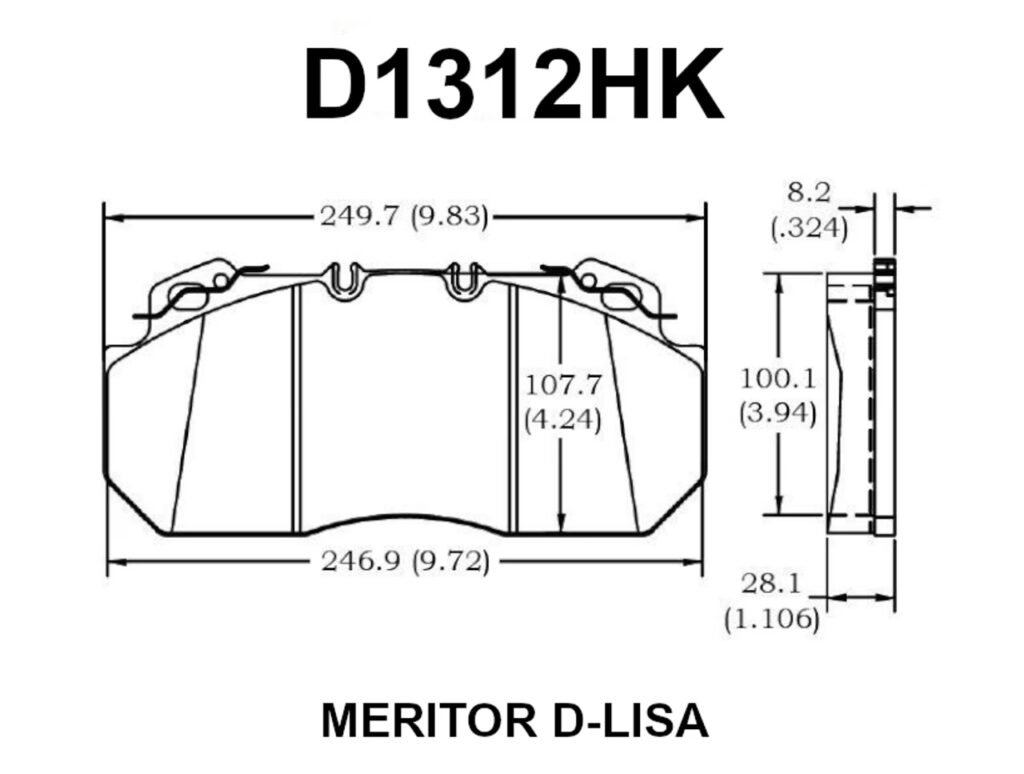

The braking surface is where the brake pads make contact to slow down or stop your vehicle. Any imperfections on this surface, such as warping, uneven wear, or scoring, can lead to several problems:

• Brake Judder/Vibration: Unevenness in the rotor surface causes the brake pads to grab and release intermittently, resulting in a pulsating sensation felt through the brake pedal and steering wheel.
• Reduced Braking Performance: A warped or damaged rotor reduces the contact area between the pad and the rotor, leading to longer stopping distances.
• Premature Wear of Components: Judder and uneven wear can accelerate the wear rate of brake pads, calipers, and even suspension components.
• Increased Heat Generation: Imperfect surfaces can lead to uneven friction, generating more heat, which can lead to brake fade.

Understanding Lateral Runout

Lateral runout, often simply referred to as 'runout,' is the measurement of how much a rotor's braking surface deviates from a perfectly flat plane as it rotates. Essentially, it's a measure of how 'wobbly' the rotor is. This deviation is typically measured in thousandths of an inch or millimetres. The critical point for measurement is the braking surface itself, the part that the brake pads clamp onto.

Tools You'll Need

To accurately measure the lateral runout of a brake rotor, you'll require a few specific tools:

• Dial Indicator: This is the primary tool for precise measurement of small deviations. It features a movable stylus that magnifies any movement, displaying it on a graduated dial.
• Magnetic Base or Clamp: A sturdy base is needed to securely mount the dial indicator to a stationary part of the vehicle, such as the suspension or a caliper bracket.
• Feeler Gauges (Optional but Recommended): Useful for checking rotor thickness variation, though not directly for runout.
• Torque Wrench: Essential for correctly re-installing wheel hubs and other components after inspection.
• Basic Hand Tools: Wrenches, sockets, and screwdrivers to remove wheels and potentially brake calipers.

Step-by-Step Guide to Measuring Rotor Runout

Follow these steps to accurately measure the lateral runout of your brake rotor:

Step 1: Prepare the Vehicle

Begin by safely jacking up the vehicle and removing the wheel from the hub you intend to inspect. If you are measuring runout on a rotor that is still installed, you may need to remove the brake caliper to allow the rotor to spin freely. Ensure the vehicle is securely supported on jack stands.

Step 2: Mount the Dial Indicator

Attach the magnetic base of the dial indicator to a solid, non-moving part of the suspension system or the steering knuckle. Position the base so that the dial indicator's stylus can be placed on the rotor braking surface. The stylus should be positioned roughly in the middle of the braking surface's width, perpendicular to the surface.

Step 3: Set the Dial Indicator

Carefully bring the dial indicator's stylus into contact with the rotor braking surface. Gently rotate the rotor by hand until the stylus is resting on the surface. Set the dial indicator to zero. Ensure the stylus is making consistent contact without excessive pressure.

Step 4: Measure the Runout

Slowly and smoothly rotate the rotor through one complete revolution (360 degrees). Observe the dial indicator. The needle will move as the rotor's surface deviates from the perfectly flat plane. Note the highest reading (maximum value) and the lowest reading (minimum value) on the dial.

Step 5: Calculate the Runout

The lateral runout is the difference between the highest and lowest readings observed on the dial indicator. For example, if the dial reads a maximum of +0.003 inches and a minimum of -0.002 inches, the total runout is 0.003 - (-0.002) = 0.005 inches.

Step 6: Check Multiple Points (Optional but Recommended)

While the centre of the braking surface is the standard measurement point, you can also check runout at the outer and inner edges of the braking surface to get a more comprehensive understanding of the rotor's condition. However, always refer to your vehicle's service manual for the precise location recommended for measurement.

Step 7: Consider Hub Face Runout

It's important to distinguish rotor runout from hub face runout. The hub face is the surface where the wheel mounts. If the hub face itself is not perfectly flat, it can induce runout in the rotor even if the rotor is true. To check hub face runout, mount the dial indicator to the suspension and place the stylus on the hub face, rotating the hub (if possible, or the steering knuckle). Excessive hub face runout can also cause brake judder.

Acceptable Tolerances

Most vehicle manufacturers specify a maximum allowable lateral runout for brake rotors. A common specification, as you mentioned, is 0.02 inches (0.5 mm). However, this can vary significantly between different makes and models. Always consult your vehicle's specific service manual for the exact tolerance. Exceeding this limit generally means the rotor is warped and should be replaced. Some advanced mechanics might attempt to 'true' a rotor (machining it to remove minor warping), but this is often a temporary fix, and replacement is usually the recommended solution for significant runout.

Table: Common Rotor Issues and Symptoms

Frequently Asked Questions (FAQs)

Q1: Can I measure rotor runout without a dial indicator?

While you can visually inspect for obvious warping or feel for severe judder, precise measurement of runout requires a dial indicator. Anything less is essentially a guess and not a reliable diagnostic method.

Q2: Does the hub bearing end play affect the runout measurement?

Yes, excessive play in the hub bearings can give a false reading of rotor runout. Before measuring rotor runout, it's crucial to ensure that the wheel bearings are properly adjusted and have minimal end play. The measurement should be taken from the rotor braking surface itself, with the bearing play excluded.

Q3: What causes brake rotors to warp?

Warping is typically caused by excessive heat. This can occur due to aggressive braking, prolonged braking on downhill slopes, or improperly torqued lug nuts which can distort the rotor when it heats up and cools down. Even frequent hard stops can cause thermal stress that leads to minor warping over time.

Q4: Is it always necessary to replace rotors if they have runout?

If the runout is within the manufacturer's tolerance, and the rotor's thickness is still sufficient, it might not need replacement. However, if the runout exceeds the specified limit, replacement is generally recommended for safety and optimal performance. Machining (resurfacing) is an option for minor runout, but the rotor must still meet minimum thickness specifications after machining.

Q5: Where exactly on the braking surface should I measure?

The most common and recommended spot to measure lateral runout is approximately in the middle of the braking surface's width. This provides a good average reading of the rotor's flatness. Always consult your vehicle's service manual for the precise recommended measurement location.

Conclusion

Regularly checking your brake rotors for issues like lateral runout is a vital part of vehicle maintenance. By understanding how to measure this critical parameter using the right tools and techniques, you can identify potential problems early, ensuring your braking system remains safe, efficient, and reliable. Don't compromise on your safety; keep your brake rotors in top condition!
