722.6 Transmission Fluid Capacity

When it comes to maintaining your Mercedes-Benz, particularly those equipped with the ubiquitous 722.6 automatic transmission, understanding the correct fluid capacity is paramount. This sophisticated gearbox, also known as the NAG1 (New Automatic Gearbox 5-speed), is found in a vast array of Mercedes models, from sedans to SUVs. Ensuring it has the right amount of the correct fluid is crucial for smooth operation, efficient performance, and ultimately, the longevity of the transmission itself. This guide will delve into the specifics of how much oil your 722.6 transmission requires, addressing common scenarios and providing essential information for owners, such as those with a 2007 Mercedes E-Class W211 E220CDI (engine code 646.821, 125kW).

Understanding Transmission Fluid Levels

It's a common misconception that a transmission always requires the same amount of fluid. In reality, the quantity needed depends heavily on whether you are performing a simple fluid change or a complete overhaul where the torque converter is also drained. This distinction is vital for accurate refilling.

722.6 Transmission Fluid Capacity: The Breakdown

The Mercedes-Benz 722.6 transmission has two primary fluid capacity figures to consider:

• Dry Fill Capacity: This refers to the total amount of transmission fluid required when the transmission is completely empty, such as after a major rebuild or when the torque converter has been drained. For the 722.6 transmission, this is approximately 8 litres (or 8.5 US quarts).

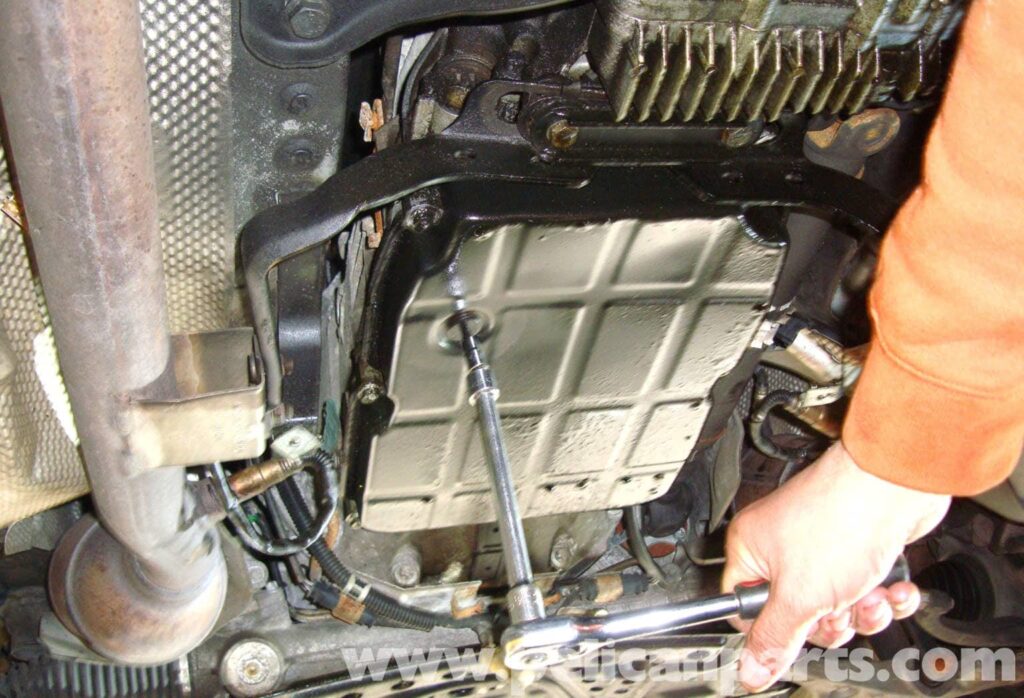

• Service Fill (Fluid Change) Capacity: This is the amount of fluid typically needed when you are simply draining the old fluid from the transmission pan and refilling. In this scenario, the torque converter, which holds a significant amount of fluid, is not emptied. Therefore, the service fill capacity is considerably less. For a standard fluid change on a 722.6 transmission, you will typically need around 4.5 litres (or 4.75 US quarts).

It's important to note that these figures are approximate. The exact amount can vary slightly depending on the specific model and any variations in the torque converter design. Always refer to your vehicle's owner's manual or a reputable workshop manual for the most precise specifications for your particular car.

Why the Difference? The Torque Converter's Role

The torque converter is a fluid coupling that connects the engine to the transmission. It's essentially a doughnut-shaped component filled with transmission fluid. When you perform a standard fluid change, you are only draining the fluid from the transmission pan and possibly the filter. The fluid remaining within the torque converter and the internal cooler lines is left untouched. This is why a service fill requires significantly less fluid than a dry fill. For instance, a 2007 Mercedes E-Class W211 E220CDI owner performing a routine service would typically be looking at the 4.5-litre figure.

The Correct Transmission Fluid: A Crucial Consideration

Beyond capacity, using the correct type of transmission fluid is non-negotiable for the health of your 722.6 gearbox. Mercedes-Benz specifies particular fluids for this transmission to ensure proper lubrication, cooling, and clutch engagement. The most commonly recommended fluid for the 722.6 transmission is the Mercedes-Benz MB 236.10 specification. Some later revisions or specific models might also utilise fluids meeting MB 236.12 or MB 236.14 specifications. Always verify the exact specification required for your vehicle model and year. Using an incorrect fluid can lead to shifting problems, premature wear, and potentially catastrophic transmission failure.

How to Check Your Transmission Fluid Level

Unlike engine oil, many modern automatic transmissions, including the 722.6, do not have a traditional dipstick. Checking the fluid level is typically done via a level plug on the side of the transmission casing. This procedure requires the engine to be running and the transmission fluid to be at a specific temperature (usually around 80°C or 176°F). The process generally involves the following steps:

1. Warm up the transmission fluid by driving the vehicle for a sufficient period.
2. Safely lift the vehicle on a level surface.
3. Locate the transmission fluid level plug (often a specific bolt on the transmission casing).
4. With the engine running and the transmission in Park (P), carefully remove the level plug.
5. If the fluid is at the correct level, a small amount will dribble out.
6. If no fluid comes out, the transmission is low and requires additional fluid. Add fluid slowly through the fill plug (usually located at the top of the transmission) until it starts to dribble from the level plug.
7. If excessive fluid comes out, the transmission is overfilled. Allow the excess to drain until it reaches the correct level.
8. Once the correct level is achieved, re-install the level plug and tighten it to the specified torque.

Important Safety Note: Transmission fluid can be hot during this process. Wear appropriate safety gear, including gloves and eye protection. Ensure the vehicle is securely supported on jack stands.

Common Issues and Fluid Capacity

Understanding fluid capacity is also important when diagnosing common transmission issues. For instance, a transmission that is low on fluid might exhibit slipping gears, delayed engagement, or rough shifting. Conversely, an overfilled transmission can cause excessive foaming, leading to poor lubrication and potential damage. For a W211 E220CDI with the 646.821 engine, if you're experiencing shifting anomalies, checking the fluid level and condition is one of the first diagnostic steps.

Fluid Change Intervals

Mercedes-Benz historically had "lifetime" fluid specifications for some transmissions, but modern maintenance practices and owner experience suggest that regular fluid changes are beneficial. A good rule of thumb for the 722.6 transmission is to change the fluid and filter every 60,000 to 80,000 miles (approximately 100,000 to 130,000 kilometres), or more frequently if the vehicle is subjected to heavy use, such as towing or frequent stop-and-go driving. For a 2007 E220CDI, adhering to a regular fluid maintenance schedule is a wise investment.

Table: 722.6 Transmission Fluid Capacities

Frequently Asked Questions (FAQs)

Q1: How much oil does my 2007 Mercedes W211 E220CDI transmission take?

A: For a standard fluid change on your 2007 W211 E220CDI (722.6 transmission), you will typically need around 4.5 litres of the correct transmission fluid. If the torque converter is also drained during a more extensive service, it could require up to 8 litres.

Q2: What type of transmission fluid should I use for a 722.6 transmission?

A: You should use a fluid that meets Mercedes-Benz specification MB 236.10, or potentially MB 236.12 or MB 236.14 depending on the exact model year and revision. Always confirm the precise specification in your owner's manual.

Q3: Can I use a generic automatic transmission fluid?

A: It is strongly advised against using generic ATF. The 722.6 transmission is very sensitive to fluid type, and using an incorrect fluid can cause significant damage and performance issues. Stick to fluids that explicitly meet the required Mercedes-Benz specifications.

Q4: How often should I change the transmission fluid in my 722.6?

A: While Mercedes-Benz may have indicated longer intervals in the past, a regular fluid and filter change every 60,000 to 80,000 miles (100,000 to 130,000 km) is recommended for optimal transmission health, especially under typical driving conditions.

Q5: My transmission is slipping. Could it be low on fluid?

A: Yes, low transmission fluid is a common cause of slipping gears, delayed engagement, and rough shifting. Checking the fluid level and condition is a crucial first step in diagnosing such issues.

Conclusion

Maintaining the correct fluid level and using the appropriate fluid are fundamental aspects of keeping your Mercedes 722.6 automatic transmission in peak condition. Whether you own a 2007 W211 E220CDI or another model equipped with this robust gearbox, understanding the difference between dry fill and service fill capacities, and adhering to recommended fluid types and change intervals, will contribute significantly to its longevity and your driving pleasure. Always consult your vehicle's specific documentation for the most accurate information.
