Throttle Plate Adjustment Guide

Greetings, fellow motoring enthusiasts! If your vehicle is feeling a bit sluggish, not quite hitting its stride, or perhaps exhibiting an uneven idle, the humble throttle plate might be the culprit. Understanding and correctly adjusting this crucial component can make a world of difference to your car's performance and efficiency. Let's dive into the intricacies of ensuring your throttle plate is set up for success.

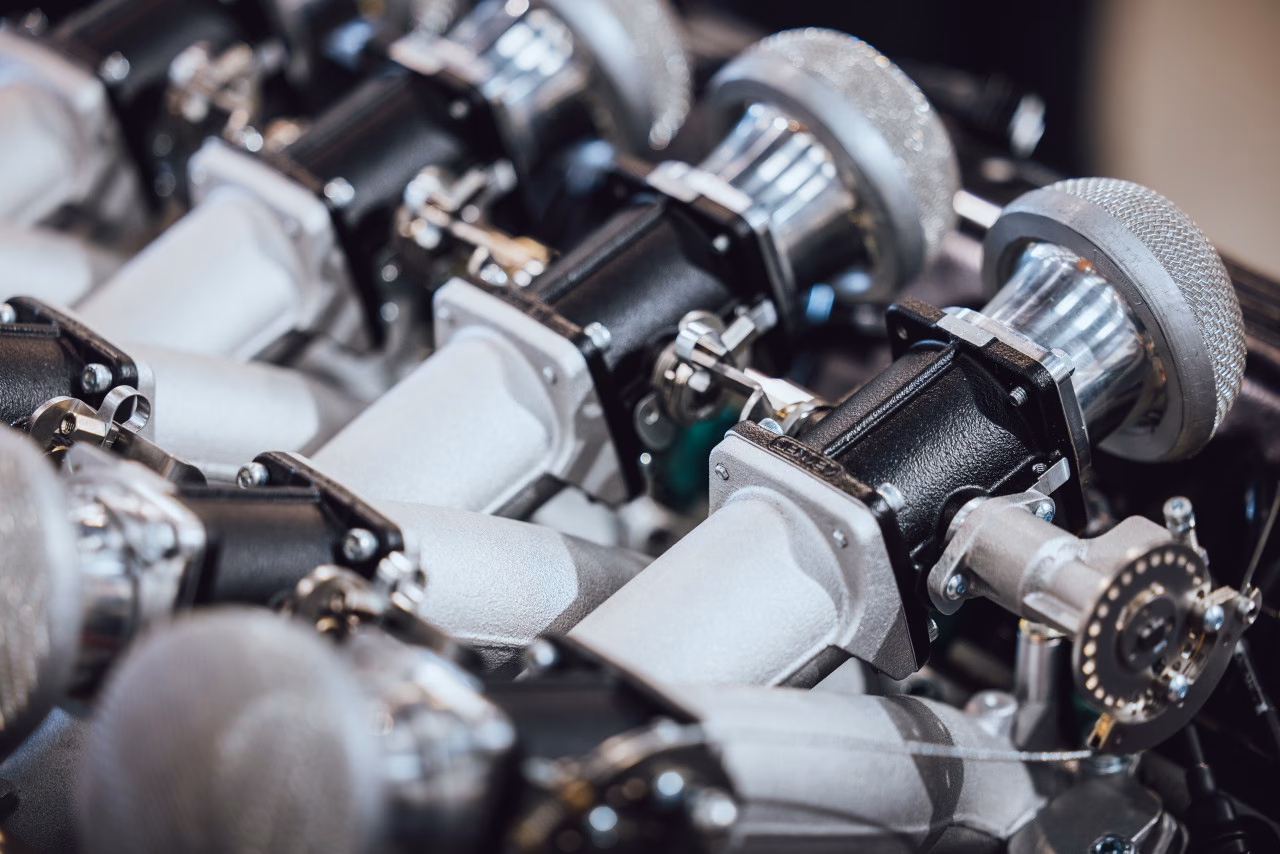

What Exactly is a Throttle Plate?

At its core, the throttle plate, also known as the throttle butterfly, is a valve that controls the amount of air entering the engine's intake manifold. It's connected to your accelerator pedal via a linkage or electronic system. When you press the pedal, the throttle plate opens, allowing more air into the engine. This air mixes with fuel, and the resulting mixture is ignited by the spark plugs, generating power. The precise control over this airflow is fundamental to how your engine responds to your inputs.

Why is Proper Adjustment So Important?

A correctly adjusted throttle plate ensures several key aspects of your engine's operation:

• Idle Stability: At idle, the throttle plate should be almost completely closed, allowing just enough air to maintain a smooth, steady engine speed. If it's too open, your idle will be too high; if it's too closed (or stuck), the engine might stall.
• Throttle Response: When you press the accelerator, the plate needs to open smoothly and proportionally to your pedal input. This translates to predictable and responsive acceleration.
• Fuel Efficiency: By accurately controlling airflow, the throttle plate helps the engine management system deliver the correct amount of fuel, optimising consumption.
• Emissions Control: Proper air-fuel mixture, dictated in part by the throttle plate's position, is vital for keeping emissions within legal limits.

Common Signs of a Misadjusted Throttle Plate

Keep an eye out for these tell-tale signs that your throttle plate might need attention:

• Rough or unstable idle, or stalling at idle.
• Hesitation or stumbling when accelerating.
• A lack of power or sluggish performance.
• Unusual noises from the intake system.
• Check Engine Light illumination (though this can indicate many issues).

How to Adjust Your Throttle Plate: A Step-by-Step Approach

Adjusting the throttle plate typically involves ensuring it's fully closed when the accelerator pedal is at rest, and fully open when the pedal is depressed. While the exact procedure can vary slightly between makes and models, the fundamental principles remain the same. Here’s a general guide, often applicable to older mechanical injection systems as described in the provided user experience:

Preparation is Key

Before you begin, ensure you have the necessary tools. For many vehicles, you'll need basic wrenches, likely including a 10mm spanner, and potentially screwdrivers. It's also wise to have a clean rag to wipe away any dirt or grime.

Step 1: Disconnect Linkages

The first step, as highlighted by experienced users, is to disconnect the connecting rods. This usually involves detaching the rods that link the accelerator pedal assembly, the throttle body, and potentially the injection pump (especially in older diesel or mechanical injection systems). This allows you to move the throttle plate and its associated mechanisms independently without interference.

Step 2: Position the Injection Pump Arm (If Applicable)

For systems with mechanical injection pumps, ensuring the pump’s arm is in its 'fully closed' or 'idle' position is critical. This sets the baseline for fuel delivery at idle. The user's experience suggests that the arm needs to be on the fully closed position at idle, and that the often-cited 233mm measurement might be a myth or specific to a particular setup.

Step 3: Adjust the Throttle Plate for Full Closure

This is the core of the adjustment. Locate the stop screw or adjustment nut (often a 10mm nut/screw) on the throttle body that limits the throttle plate's closure. The goal is to adjust this screw so that the throttle plate is completely closed when the accelerator pedal is released. You want the plate to just rest against the stop, without being forced open. The plate should be snug but not binding. If the plate is slightly ajar, you'll have an elevated idle speed and potentially poor fuel control.

Important Consideration: In some modern electronic throttle bodies (ETBs), this adjustment might be electronically controlled and not manually adjustable. Always consult your vehicle's specific service manual if you are unsure.

Step 4: Reconnect and Adjust Linkages

Once the throttle plate is correctly set for closure, reconnect the rods you disconnected in Step 1. Ensure they are properly seated and secured. Adjust the length or position of these rods so that they maintain this 'rest' or 'closed' position for both the throttle plate and the injection pump arm.

Step 5: Pedal Position Adjustment

With the linkages connected, the final step in this manual adjustment process is to set the pedal position. This involves adjusting the linkage or the pedal stop itself so that when the accelerator pedal is fully depressed, the throttle plate opens completely, and the injection pump arm (if applicable) also reaches its maximum open position. This ensures you get full throttle when you demand it.

Step 6: Fine-Tuning the Idle Speed

After the physical adjustments, start the engine. It should now idle at a much more stable speed. You may need to fine-tune the idle speed using the idle air screw (if your vehicle has one) or by making very minor adjustments to the throttle stop screw if the idle is still too high or too low. The goal is a smooth, consistent idle without the engine labouring or revving excessively.

Troubleshooting Common Issues

Issue: Engine stalls after adjustment.
Solution: The throttle plate is likely too closed, restricting essential idle air. Slightly open the stop screw to allow a touch more air.

Issue: Idle speed is too high.
Solution: The throttle plate is not closing fully. Tighten the stop screw slightly until the idle speed drops to the correct range.

Issue: Poor throttle response or hesitation.
Solution: Check all linkages for proper connection and tension. Ensure the throttle plate opens fully when the pedal is floored and closes completely when released. Pedal position adjustment might be needed.

Mechanical vs. Electronic Throttle Bodies

It's crucial to differentiate between older mechanical throttle bodies and modern electronic throttle bodies (ETBs).

The procedure described by the user is clearly for a mechanical throttle system. If your vehicle has an ETB, attempting these manual adjustments could lead to incorrect operation or even damage. Always refer to your vehicle's specific service manual.

Frequently Asked Questions

Q1: Do I need to disconnect the battery before adjusting the throttle plate?
A1: It's good practice to disconnect the negative battery terminal, especially if you're working near electrical components, to prevent short circuits. For purely mechanical adjustments on older systems, it might not be strictly necessary but is always a safe precaution.

Q2: How do I know if my car has an electronic throttle body?
A2: If your car was manufactured after the early 2000s, it's highly likely to have an ETB. You'll typically not see a physical cable running from the pedal to the throttle body. Often, models with cruise control integrated via the ECU also use ETBs.

Q3: What is the 'idle relearn procedure' for ETBs?
A3: This is a process where the ECU learns the fully closed position of the throttle plate. It's often initiated by turning the ignition on (without starting the engine) for a set period, or through specific diagnostic tool commands. Consult your manual for the correct procedure for your vehicle.

Q4: Can a dirty throttle plate affect performance?
A4: Absolutely. Carbon and oil deposits can build up on the throttle plate and in the bore, restricting airflow even when the plate is supposed to be open, or causing it to stick. Cleaning the throttle body is often part of ensuring correct operation.

Conclusion

Mastering the throttle plate adjustment, particularly on older mechanical systems, can restore responsiveness and smoothness to your engine. By ensuring the plate is correctly seated at rest and opens fully with pedal application, you contribute significantly to optimal engine performance and efficiency. Remember to always consult your vehicle's specific service manual for the most accurate procedures, especially when dealing with modern electronic throttle control systems. Happy motoring!
