Mercedes ML Rear Brake & EPB Service Guide

Undertaking brake maintenance on your Mercedes-Benz is a rewarding task, saving you money and giving you a deeper understanding of your vehicle. However, it's crucial to approach the job with the correct knowledge, especially when dealing with modern systems like the Electronic Parking Brake (EPB). This guide is designed to clarify the process, addressing common queries and providing a detailed walkthrough for both fluid replacement and rear brake component servicing on your ML, particularly focusing on the distinctions between older and newer models.

Before you begin, safety is paramount. Always ensure your vehicle is on a level, stable surface, properly supported by jack stands, and never rely solely on a jack. Wear appropriate personal protective equipment, including gloves and eye protection. Brake fluid is corrosive and can damage paintwork, so handle it with care.

Understanding Your Mercedes ML's Parking Brake System

One of the most frequent points of confusion arises from the parking brake system, which differs significantly between various ML generations. Knowing which system your vehicle employs is critical for a successful brake job.

Mechanical Parking Brake (e.g., W163 Chassis: 1998-2005 ML320, ML430, ML350, ML500)

Older M-Class models, typically the W163 chassis, feature a foot-operated parking brake that activates small brake shoes located inside the 'hat' section of the rear brake rotor. When servicing these models, it is absolutely essential to release the parking brake before attempting to remove the rear rotors. Failure to do so will prevent the rotor from coming off and can damage the parking brake shoes or associated hardware.

Electronic Parking Brake (EPB) (e.g., W166 Chassis: 2015 ML350)

Newer Mercedes ML models, such as your 2015 ML350 (W166 chassis), are equipped with an Electronic Parking Brake. This system uses an electric motor to actuate the rear brake caliper, engaging the parking brake. Unlike the mechanical system, the EPB must be put into 'service mode' or 'retracted' using a diagnostic scan tool before you can compress the caliper piston or remove the brake pads. Attempting to force the piston back without retracting the EPB electronically can cause irreparable damage to the caliper and its internal motor, leading to costly repairs.

Tools and Materials You'll Need

Having all your tools and parts ready before you start will save you a lot of time and frustration. For this job, you'll require:

• Jack and Jack Stands (e.g., Torin jack stands)
• Wheel Chocks
• Lug Nut Wrench / Breaker Bar
• Torque Wrench
• Socket Set (various sizes, including for caliper bolts and lug nuts)
• Caliper Press Tool (specific tool for EPB calipers may be needed, or a standard one if EPB is retracted)
• Wire Brush
• Brake Cleaner
• Brake Grease (high-temperature, anti-seize)
• Brake Fluid (DOT 4, as specified by Mercedes-Benz)
• Motive Products European Power Brake Bleeder
• Catch Pan for old brake fluid
• Clean Rags/Shop Towels
• New Brake Pads (ceramic recommended for less dust and noise)
• New Brake Rotors (if needed)
• New Brake Wear Sensors (if applicable and worn)
• Diagnostic Scan Tool with EPB Service Mode Capability (CRUCIAL for 2015 ML350)

The Sequence: Brake Fluid Flush vs. Pad Replacement

Frank's question regarding the sequence of brake fluid replacement and pad replacement is excellent. For your 2015 ML350 with an EPB, the general recommendation is as follows:

1. Retract EPB first: Use your diagnostic scan tool to put the rear EPB calipers into service/retraction mode. This is paramount before any physical work on the calipers.
2. Perform Brake Pad and Rotor Replacement: Once the EPB is retracted, proceed with removing the old pads and rotors and installing the new ones. This involves opening the brake system.
3. Perform Brake Fluid Flush: With the new components installed and the system closed up, you can now proceed with the brake fluid flush. This ensures that any air introduced during the pad/rotor replacement is purged, and the new fluid circulates through the entire system, including the newly installed components.

While you could technically begin the fluid flush before the physical brake work, doing the pads/rotors first and then flushing helps ensure any air from opening the system is pushed out by the fresh fluid. The Motive Products Power Brake Bleeder is an excellent tool for this, as it maintains pressure, making it a one-person job.

Step-by-Step: Rear Brake Service for Mercedes ML (W166 EPB Specifics)

This section focuses on the 2015 ML350 (W166) with an Electronic Parking Brake. Please refer to the next section for W163 mechanical parking brake procedures.

1. Prepare the Vehicle

• Loosen the lug nuts on the rear wheels while the vehicle is still on the ground. Do not remove them yet.
• Jack up the rear of the vehicle safely. Place jack stands securely under the designated jacking points.
• Remove the loosened lug nuts and carefully take off the wheel. Store it safely to prevent damage.
• If you've been driving, be aware that brake components can be extremely hot. Allow them to cool down.

2. Retract the Electronic Parking Brake (EPB)

• Connect your diagnostic scan tool to the vehicle's OBD-II port (usually located under the dashboard).
• Navigate through the scanner's menu to find the 'Electronic Parking Brake' or 'Brake Service Mode' function.
• Follow the on-screen prompts to retract the EPB calipers. You will likely hear the motors activate as the pistons retract. This step is critical.
• Once retracted, ensure the tool confirms the EPB is in service mode.

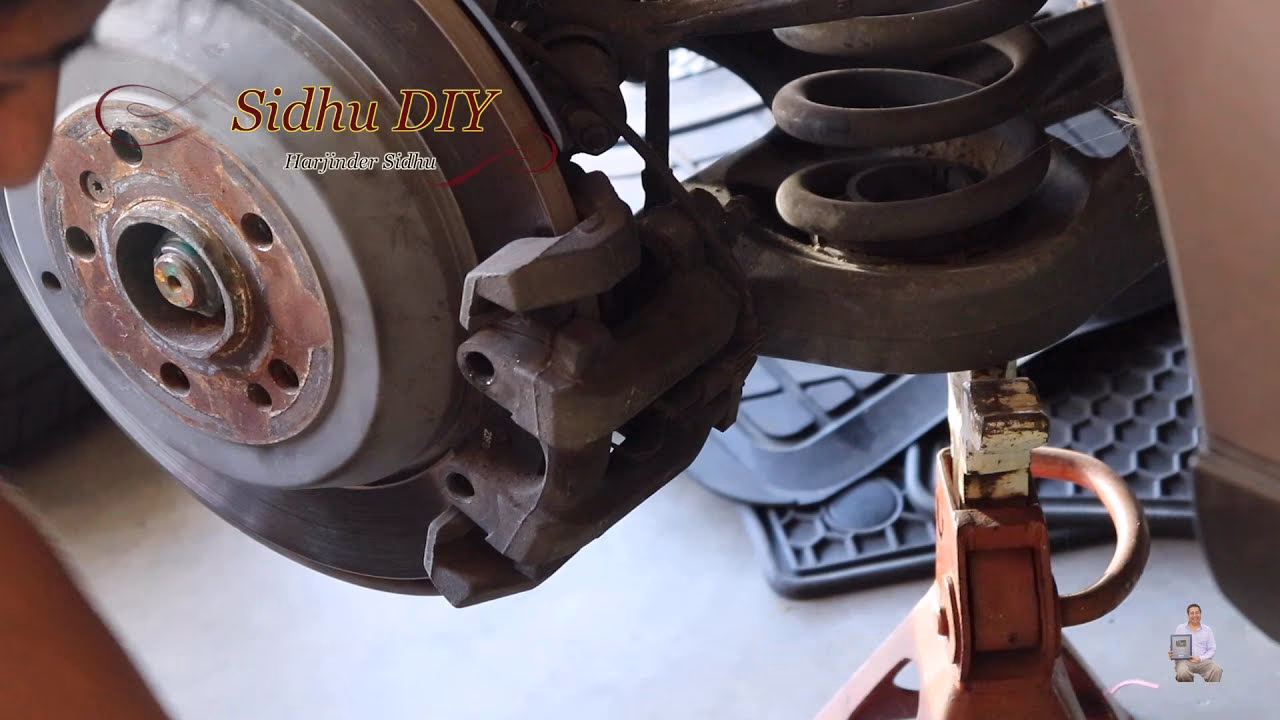

3. Remove Old Brake Components

• Open the brake fluid reservoir cap under the bonnet. This helps prevent a vacuum from forming when pushing pistons back.
• Locate the two bolts on the rear of the brake caliper that secure it to the caliper bracket. Remove these bolts.
• Carefully slide the caliper off the rotor. Do not let it hang by the hydraulic brake hose, as this can damage the hose. Use a wire or bungee cord to support the caliper, securing it to the suspension component.
• Remove the old brake pads from the caliper bracket. Note their orientation.
• If replacing the rotor: Locate the small retaining bolt on the rotor face (often a Torx or Allen head). Remove this bolt.
• With the EPB retracted, the rotor should now slide off the hub. If it's stuck, a few gentle taps with a rubber mallet around the hat can help, but avoid excessive force.
• Inspect the dust shield behind the rotor. If it's bent, gently bend it back into position to avoid scratching noises later.

4. Install New Brake Components

• Clean the wheel hub surface where the new rotor will sit. Use a wire brush to remove any rust or debris. A thin coat of anti-seize grease can be applied here for easier removal next time.
• Carefully slide the new rotor onto the hub, aligning the retaining bolt hole. Install the retaining bolt and tighten it to approximately 23 Nm (refer to your vehicle's specific service manual for exact torque).

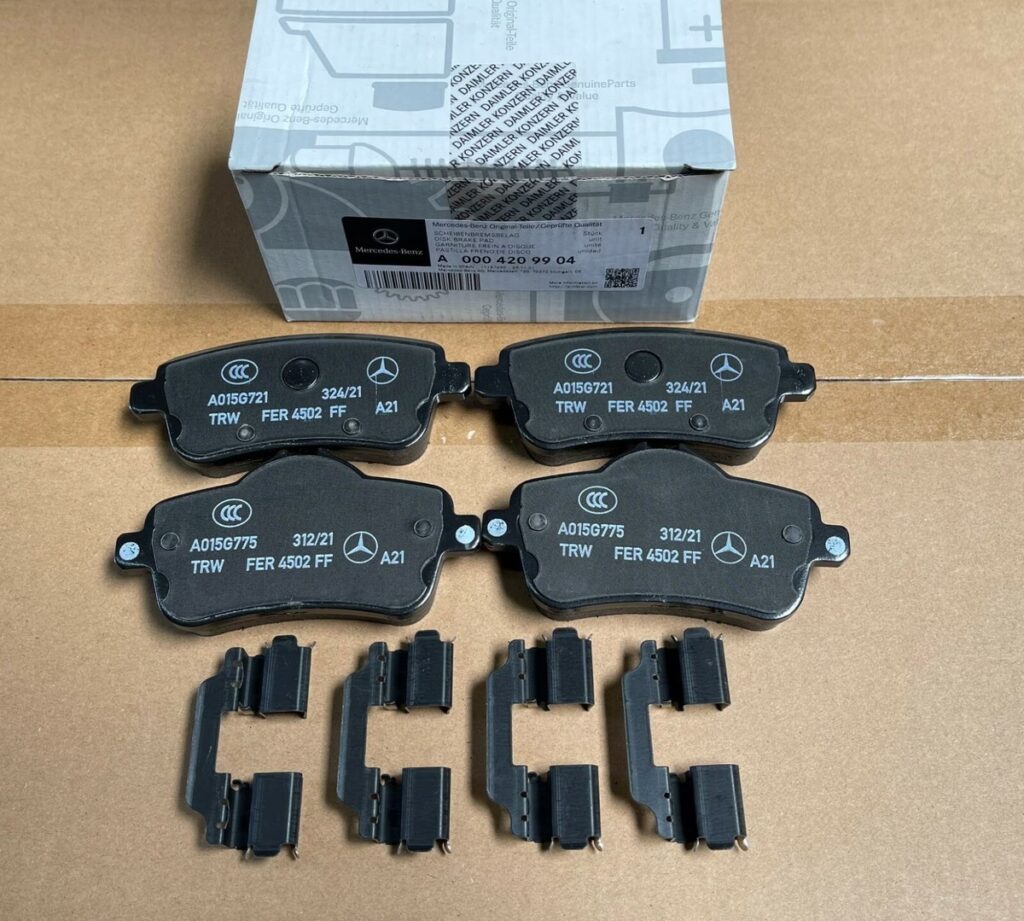

• Prepare the new brake pads. If your old pads had a wear sensor, ensure your new pads come with a new sensor or purchase one separately. Install the new brake wear sensor into the designated slot on the new pad.
• Clean the caliper bracket where the brake pads slide. Apply a thin layer of brake grease to these sliding points and the back of the brake pads (but not the friction material).
• Using your caliper press tool, further retract the caliper piston if necessary to create enough space for the new, thicker pads. Be gentle and ensure the piston retracts squarely.
• Install the inner brake pad (the one with the piston) and then the outer brake pad into the caliper bracket.
• Carefully slide the caliper back over the new pads and rotor, aligning it with the mounting holes.
• Install the two caliper mounting bolts and tighten them to approximately 23 Nm (again, consult your manual for precise torque specifications).

5. Final Steps and Brake Fluid Flush

• Once the caliper is securely reinstalled, use your diagnostic scan tool to exit the EPB service mode. This will reactivate the EPB.
• Reinstall the wheel, hand-tighten the lug nuts, and lower the vehicle until the tyre just touches the ground.
• Torque the lug nuts to the manufacturer's specification (typically around 130-150 Nm for ML models), following a star pattern.
• Lower the vehicle completely and remove the jack stands.

Brake Fluid Flush (Using Motive Products Bleeder)

Now, it's time for the brake fluid flush.

1. Remove as much old brake fluid from the reservoir as possible using a syringe or turkey baster, being careful not to spill.
2. Fill the reservoir with new, fresh DOT 4 brake fluid.
3. Fill your Motive Products European Power Brake Bleeder with the remaining new brake fluid.
4. Connect the bleeder to the brake fluid reservoir. Pump up the bleeder to the recommended pressure (usually around 10-15 PSI).
5. Starting with the wheel furthest from the master cylinder (typically the rear passenger side), open the bleed nipple. Place a clear hose over the nipple, leading into a clear container.
6. Allow the fluid to flow until it runs clear and free of air bubbles. Close the bleed nipple.
7. Repeat this process for the other rear wheel, then the front passenger wheel, and finally the front driver's wheel (following the traditional bleeding sequence: furthest to closest).
8. Monitor the fluid level in the Motive bleeder and the reservoir, refilling as necessary to prevent air from entering the system.
9. Once all calipers are bled, release the pressure from the Motive bleeder and disconnect it.
10. Replace the brake fluid reservoir cap.

6. Post-Service Procedures

• Before driving, get into the vehicle and pump the brake pedal several times until it feels firm. This reseats the new pads against the rotors and takes up any slack from the retracted pistons.
• Start the engine and pump the pedal again. The pedal should remain firm. If it feels spongy, there might be air in the system, and you'll need to re-bleed.
• Carefully take the vehicle for a short, slow test drive in a safe area. Perform several gentle stops to bed in the new pads and rotors. Avoid harsh braking for the first 100-200 miles.

Step-by-Step: Rear Brake Service for Mercedes ML (W163 Mechanical Parking Brake)

This section is for older ML models (1998-2005) with a mechanical parking brake.

1. Prepare the Vehicle

• Follow the preparation steps from the W166 section (loosening lug nuts, jacking up, securing with stands, removing wheel).
• Crucially, ensure the mechanical parking brake is fully released.

2. Remove Old Brake Components

• Remove the brake fluid reservoir cap.
• Remove the two bolts on the rear of the brake caliper. Carefully slide the caliper off and secure it so it doesn't hang by the hose.
• Remove the old brake pads.
• Locate the small retaining bolt on the rotor face and remove it.
• Since the parking brake is released, the rotor should now slide off the hub. If it's stuck, gentle persuasion with a rubber mallet around the hat can help.
• Inspect and adjust the dust shield as necessary.

3. Install New Brake Components

• Clean the wheel hub surface. Apply a thin coat of anti-seize grease.
• Slide the new rotor onto the hub, align the retaining bolt hole, and install the bolt, tightening to 23 Nm.
• Prepare new brake pads and install the new wear sensor if applicable.
• Clean the caliper bracket sliding surfaces and apply brake grease.
• Use a caliper press tool to compress the piston fully into the caliper body.
• Install the new pads into the caliper bracket.
• Slide the caliper back over the new pads and rotor. Install the two caliper mounting bolts and tighten to 23 Nm.

4. Final Steps and Brake Fluid Flush

• Reinstall the wheel, hand-tighten lug nuts, and lower the vehicle until the tyre touches the ground.
• Torque the lug nuts to specification (e.g., 130-150 Nm) in a star pattern.
• Lower the vehicle completely.
• Proceed with the brake fluid flush using your Motive Products bleeder as described in the W166 section.
• Replace the brake fluid reservoir cap.

5. Post-Service Procedures

• Follow the same post-service procedures as for the W166 model (pump pedal, test drive, gentle bedding).

Brake Pad Comparison: Ceramic vs. Semi-Metallic

As mentioned, switching to ceramic brake pads is often a wise choice for your Mercedes ML. Here's a quick comparison:

Ceramic pads offer superior performance in terms of reduced noise, less dust, and often better longevity for both pads and rotors, making them an excellent upgrade without a significant cost increase.

Frequently Asked Questions (FAQs)

Q: Can I replace just the brake pads without changing the rotors?

A: While technically possible, it's highly recommended to replace rotors along with pads, especially if the rotors show signs of wear (grooves, warping, minimum thickness reached). New pads need a perfectly flat surface to bed in properly for optimal performance and longevity. For under £100 for new rotors and ceramic pads, it's a worthwhile investment.

Q: What type of brake fluid should I use for my Mercedes ML?

A: Always use DOT 4 brake fluid for your Mercedes-Benz. Check your owner's manual or the cap on the brake fluid reservoir for the exact specification. Using the incorrect fluid can severely damage your brake system.

Q: My EPB won't retract with the scan tool. What should I do?

A: First, ensure your scan tool is compatible with your specific Mercedes model and has the correct software version. Check the vehicle's battery voltage; low voltage can sometimes prevent electronic systems from functioning correctly. If the issue persists, consult a professional, as there might be a fault within the EPB system itself.

Q: How often should I flush my brake fluid?

A: Mercedes-Benz typically recommends flushing brake fluid every two years. Brake fluid is hygroscopic, meaning it absorbs moisture over time, which lowers its boiling point and can lead to corrosion within the brake lines and components.

Q: Do I need to bleed all four brakes after changing fluid?

A: Yes, if you are performing a full brake fluid flush, you should bleed all four calipers to ensure all old fluid is replaced with new. Follow the recommended bleeding sequence (furthest to closest from the master cylinder).

Q: What does it mean if my brake pedal feels spongy after replacing pads?

A: A spongy pedal usually indicates air in the brake lines. This requires re-bleeding the brake system until all air is removed and the pedal feels firm again. Ensure all bleed nipples are tightened correctly.

By following these detailed steps and understanding the nuances of your specific Mercedes ML's braking system, you can confidently perform rear brake maintenance, ensuring your vehicle remains safe and performs optimally on the road. Remember, attention to detail and adherence to safety protocols are key to a successful DIY brake job.
