Hydraulic Suspension: Repair or Convert?

For many Mercedes-Benz owners, the advanced hydraulic suspension system – whether it's the Self-Levelling Suspension (SLS) found in earlier wagons or the sophisticated Active Body Control (ABC) system in models like the SL500, W215 CL500, and W220 – is a marvel of engineering. When functioning correctly, these systems deliver an unparalleled smooth ride, exceptional handling, and the practical benefit of maintaining vehicle height even under heavy loads. Yet, their complexity often leads to high maintenance costs and the perplexing question: is it better to repair this intricate system or replace it entirely with a simpler, conventional setup?

While the allure of a cheaper, less complex alternative like standard springs and shock absorbers might seem appealing, especially when faced with hefty repair bills, the decision isn't as straightforward as it appears. This article delves into the nuances of Mercedes hydraulic suspension, exploring its workings, common pitfalls, repair options, and the true implications of a coilover conversion.

Understanding Mercedes Hydraulic Suspension Systems

Mercedes-Benz has employed various hydraulic suspension technologies to achieve its signature ride quality. Two prominent examples are the Self-Levelling Suspension (SLS) and the Active Body Control (ABC) system. Both rely on hydraulic fluid and pressure to dynamically adjust vehicle height and damping.

How SLS and ABC Systems Operate

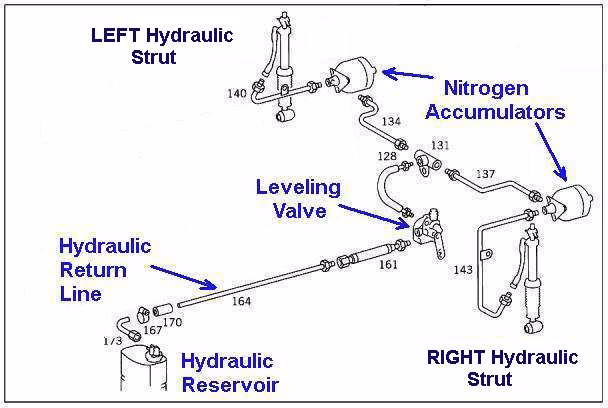

At their core, these systems utilise an engine-driven pump to generate high hydraulic pressure, typically between 180 and 200 bar. This fluid is then directed through a network of pipes, valve blocks, and into hydraulic struts or cylinders at each wheel. Sensors continuously monitor various parameters such as ride height, acceleration, and strut extension, feeding this data to a control module. This module, in turn, adjusts the fluid flow and pressure to achieve the desired vehicle dynamics and level.

A critical component in both systems is the accumulator. These spheres, often filled with nitrogen gas separated by a rubber diaphragm, store fluid under pressure. They serve multiple vital functions:

• Energy Storage: They store pressurised fluid, ready to be released quickly when the system demands high flow, supplementing the pump.
• Shock Absorption: Similar to a spring, the compressible nitrogen gas absorbs impact shocks from the road, cushioning the ride. When the car hits a bump, fluid is allowed into the accumulator, bending the diaphragm towards the gas-filled side.
• Pulsation Dampening: They smooth out pressure pulses created by the pump, ensuring consistent system pressure.
• Leakage Compensation: Accumulators can maintain constant pressure even with minor fluid loss from internal seals, reducing pump cycling.

The nitrogen gas inside is crucial because hydraulic fluid is virtually incompressible. Over time, the diaphragms within these accumulators can rupture, allowing the gas to escape. When this happens, the accumulator becomes full of fluid, losing its shock-absorbing capability, leading to a harsh, "buckboard" ride.

The Allure of Hydraulic Systems – And Their Pitfalls

When working correctly, hydraulic suspension systems offer significant advantages:

• Superior Ride Comfort: They actively adapt to road conditions, providing an exceptionally smooth and controlled ride.
• Self-Levelling: Especially beneficial for estate cars (wagons), these systems maintain optimal ride height regardless of load, preventing rear-end sagging and ensuring stable handling.
• Enhanced Handling: Active Body Control, in particular, minimises body roll, squat, and dive, leading to a flatter, more confident cornering experience.

However, this sophistication comes at a price. The complexity means more components that can fail, leading to costly repairs. Neglect only exacerbates these issues, turning minor problems into major expenses.

Common Warning Signs of Hydraulic Suspension Problems

Recognising the early symptoms of hydraulic suspension issues can save you significant money and prevent further damage. Keep an eye out for these warning signs:

• A Bouncy or Harsh Ride: If your car feels like a "buckboard" or bounces excessively over bumps, it often indicates failing accumulators or struts. You might experience drastic shifting (rolling) when cornering or nose-diving during braking.
• Unusual Noises: Rattles, knocks, whines, or hums from the suspension area can signify worn parts, low hydraulic fluid, or disintegrating rubber components like O-rings and seals.
• Car Sagging While Parked: If one corner, the front, or the rear of your vehicle sits noticeably lower than the others after being parked for a few hours or overnight, it's a classic sign of a leaking strut, valve block issue, or accumulator failure.
• Dashboard Warnings: Lights such as "AIRMATIC - STOP TOO LOW," "ABC Warning," "Drive Carefully," or "Visit Workshop" are clear indicators. "STOP" suggests an immediate, serious issue, while "Drive Carefully" might point to a minor problem like a loose electrical connection or a leaking accumulator.
• Unresponsive Height Adjustment: Features like ABC Sport or self-levelling, which should adjust the vehicle's height, may not function correctly or at all.
• Affected Handling: Since steering and suspension are complementary, issues with your hydraulic suspension can lead to loose, less responsive steering.
• Uneven Tyre Wear: While many factors cause this, a faulty suspension that isn't maintaining proper alignment or ride height can contribute.
• Hydraulic Fluid Leaking: Any visible fluid leak from pipes, struts, or the pump is a serious concern. Leaks lead to pressure loss, an overworked pump, and can quickly escalate to catastrophic system failure.

Causes of Hydraulic System Failure

Several factors contribute to the eventual failure of these complex systems:

• Inherent Complexity: The sheer number of interconnected components – sensors, control modules, pumps, valve blocks, struts, accumulators – means more potential points of failure. A single faulty part can cascade into damage throughout the system.
• Wear and Tear: Despite relying on fluid transfer, many moving parts within the pump and struts experience friction and wear over time. Accumulator diaphragms have a limited lifespan, typically 10-12 years.
• Fragile Components: The lines transporting hydraulic fluid are often made of flexible plastic and rubber, making them susceptible to cuts, rips from road debris, or degradation over time. Even a small leak can significantly worsen performance.
• Contamination: Dirt and dust can accumulate in valve blocks, causing sticking, or get into struts, breaking down seals. Dirty hydraulic fluid can cause abrasion, leading to excessive wear on pump bearings and eventual pump failure. If you observe blackened hydraulic fluid, it's a strong indication of internal component wear, likely ruptured accumulator diaphragms, or degraded seals, releasing debris into the system. Leaving the car standing for prolonged periods without servicing can also lead to fluid contamination.

Repairing Your Hydraulic Suspension

For many, repairing the existing hydraulic system is the preferred route, especially if they value the original performance and capabilities of their Mercedes.

Diagnosis and Initial Steps

Before throwing money at expensive components, it's crucial to accurately diagnose the problem. Many rear-end sagging issues, for example, are not caused by worn struts or a malfunctioning levelling valve, but by worn-out rubber suspension parts. Start by determining the unloaded ride height and replacing those old rubber components first.

Common Repairs and Costs

• Accumulator Replacement: This is a common and often necessary repair. There can be up to five accumulators on some models (like the 6.9), with prices ranging from £150 to £175 each. This can be a significant upfront cost but is vital for restoring ride quality.
• Pump Refurbishment/Replacement: The engine-driven pump can leak internally or externally. If not run dry, some pumps can be removed, opened, and resealed. However, if badly scored internally, they cannot be repaired, and a new pump can cost over £900.
• Valve Block Refurbishment: Valve blocks, front and rear, can develop internal leaks or sticking solenoids, causing height drops. Refurbishing these involves replacing seals and addressing stuck components, which can be a time-consuming but effective repair.
• Hose Replacement: Hydraulic hoses can degrade and weep fluid. While new hoses might be hard to source for older models, some can be fabricated using specific high-pressure hydraulic hose materials.

Professional repairs, especially at dealerships using OEM parts, can be very costly. Replacing just one electronic strut on a Mercedes SL500 can average over £1,800. An entire system overhaul can quickly run into several thousand pounds. However, for a capable DIY enthusiast, significant savings are possible, though the complexity demands a thorough understanding of the system.

Crucial Warnings

Do not drive your car with the engine-driven pump disconnected or removed. Also, do not continue driving if the system has drained of hydraulic fluid. Lack of fluid can cause accelerated wear and possible seizure of the pump, and permanent damage to hydraulic struts and levelling valves. If you spring a leak in the SLS/ABC system, stop driving immediately and have your car towed to prevent further catastrophic damage.

The Alternative: Coilover Conversion

When faced with the daunting cost of hydraulic suspension repairs, some owners consider converting their vehicle to a traditional coilover suspension system. This involves removing the entire hydraulic setup and replacing it with standard springs and shock absorbers.

Why Consider a Conversion?

The primary driver for conversion is often cost. A complete coilover conversion kit for an SL500, for example, can cost roughly the same as replacing just one OEM hydraulic strut. The appeal lies in a simpler, less maintenance-intensive system.

The Downsides and Implications

While seemingly a cheap alternative, most who have tried this conversion, especially for vehicles designed for heavy loads like estate cars (wagons), have not been happy with the outcome over the long haul. Here’s why:

• Loss of Original Functionality: The car loses its self-levelling capability, active damping, and the ability to handle heavy loads without sagging.
• Compromised Ride Quality: If you install heavy-duty standard springs and shocks, you will likely experience a harsh ride when the car is empty. Conversely, if the springs are too soft, the vehicle will bottom out when heavily loaded, especially aft of the rear axle. This significantly compromises the very reason many people own an estate car – to haul large or heavy loads.
• Not a True "Upgrade": For many, it's a downgrade in ride comfort and capability, especially compared to a properly functioning hydraulic system.

For models like the 300TD wagon, which was engineered to carry significant weight with its SLS system, converting to standard springs fundamentally alters its intended purpose and performance. For vehicles like the SL500, where ABC repair costs can be astronomical, a coilover conversion might be a more financially pragmatic choice, though it still sacrifices the active body control features that define the original ride.

Comparative Analysis: Hydraulic vs. Coilover Suspension

Here's a quick comparison to help you weigh your options:

Frequently Asked Questions (FAQs)

Can I really replace hydraulic suspension with coil springs?

Yes, it is physically possible to remove the hydraulic suspension system and replace it with conventional coil springs and standard shock absorbers. Conversion kits are available for various models, offering a simpler, non-hydraulic alternative.

Is it cheaper to convert than repair my hydraulic suspension?

The upfront cost of a full coilover conversion kit can be significantly less than a complete overhaul of a complex hydraulic system, especially if multiple major components (pump, valve blocks, all struts, accumulators) need replacing. For some models, a conversion kit might cost roughly the same as replacing just one OEM hydraulic strut. However, consider the long-term implications for ride quality and vehicle capability.

What are the biggest compromises of a conversion?

The primary compromises are the loss of self-levelling, active damping, and the superior ride comfort that hydraulic systems provide. For vehicles designed to carry heavy loads, like estate cars, a conversion can lead to a harsh ride when empty and sagging or bottoming out when loaded, fundamentally altering the vehicle's intended utility.

How often should I service my hydraulic suspension?

Routine maintenance, including checking fluid levels, filters, and inspecting for leaks, is crucial. While specific intervals vary by model and system (SLS vs. ABC), addressing any warning signs promptly is key. Fluid flushes and filter changes are recommended periodically to prevent contamination and extend component life.

What does black hydraulic fluid mean?

Blackened hydraulic fluid is a strong indicator of contamination and internal component wear. It often signifies that rubber diaphragms within accumulators have ruptured, or that seals and other internal parts are degrading, releasing particles into the fluid. This severely compromises the system's performance and can lead to accelerated wear of the pump and other components. It's a sign that immediate attention is required.

How long do accumulators last?

Hydraulic accumulators typically have a lifespan of approximately 10 to 12 years. After this period, the internal rubber diaphragms are prone to rupturing, causing the nitrogen gas to escape and the accumulator to lose its dampening function. Replacing them proactively can prevent a harsh ride and excessive strain on other system components.

Can I drive my car with a hydraulic leak?

No, it is strongly advised not to. Driving with a hydraulic leak or with the system drained of fluid can cause permanent and severe damage to expensive components like the pump, struts, and valve blocks, leading to much higher repair costs. If you notice a leak, stop driving and arrange for your vehicle to be towed to a workshop.

Ultimately, the decision to repair or convert your Mercedes hydraulic suspension depends on your priorities: do you prioritise the original, sophisticated performance and load-carrying capability, or are you seeking a simpler, potentially cheaper solution at the expense of those features? For models like the 300TD wagon, designed for utility, maintaining the SLS is often the more sensible long-term choice. For others, like some SL500 owners facing exorbitant ABC repair bills, a conversion might be the only financially viable path to keep the car on the road. Whichever route you choose, understanding the implications is paramount.
