Mercedes-Benz Brake Replacement Guide

Ensuring the optimal performance and safety of your Mercedes-Benz hinges significantly on the condition of its braking system. The brake pads and discs are critical components that wear down over time, necessitating timely replacement to maintain the vehicle's renowned stopping power and your peace of mind on the road. Understanding when and how to address these vital maintenance tasks isn't just about preserving your luxury investment; it's about safeguarding every journey. This comprehensive guide will walk you through everything you need to know, from identifying the tell-tale signs of wear to the meticulous steps involved in a successful brake overhaul.

When is it Time for New Brakes?

Knowing the right time to replace your Mercedes-Benz brake pads and discs is crucial for both safety and performance. While there isn't a single, rigid answer, a combination of mileage, visual inspection, and warning signs will guide you.

Brake Pad Lifespan and Thickness

Generally, brake pads on a Mercedes-Benz can last anywhere from 25,000 to 70,000 miles, depending heavily on your driving style and conditions. Aggressive driving with frequent hard braking will naturally reduce their lifespan. A key indicator for replacement is the thickness of the friction material. Pads should be replaced when their friction material is down to 3–4 mm thick. Rear brake pads, in particular, often require replacement around the 25,000-mile mark. It’s imperative to replace them once they reach a 2mm friction threshold to prevent metal-on-metal contact.

Brake Disc Condition and Specifications

Brake discs, also known as rotors, typically last longer than pads, but they are also subject to wear and damage. They should be replaced if they fall below the manufacturer's specified minimum thickness, often marked as "MIN TH" on the disc itself. Beyond thickness, look for deep grooves, visible warping, or discolouration such as a blue or dark gold hue, which indicates severe overheating. These conditions compromise braking effectiveness and can lead to dangerous situations.

Regular Inspection Schedule

To stay ahead of potential issues, it's highly recommended to inspect your Mercedes-Benz brakes every 10,000 miles. This routine check allows you to monitor wear patterns and address problems before they become critical. Additionally, Mercedes-Benz's Service A (after 1 year or 10,000 miles) and Service B (after 2 years or 20,000 miles) include detailed brake component inspections, with Service B also incorporating a brake fluid exchange, which is recommended every two years.

Warning Signs Your Mercedes-Benz Brakes Need Attention

Your Mercedes-Benz is engineered to provide clear indicators when its braking system requires attention. Paying heed to these signs can prevent more serious issues and ensure your safety.

• Squealing Noise: A high-pitched squeal often indicates that the brake pad wear indicator is making contact with the rotor. This is typically the first audible sign that your pads are approaching their limit.
• Grinding Sound: A harsh grinding noise is a serious warning. This signals metal-on-metal contact, meaning your brake pads are completely worn down, and the backing plate is now rubbing directly against the disc. Continued driving in this state will rapidly damage your discs.
• Vibrating Brake Pedal: A pulsating or vibrating brake pedal, especially when braking, commonly points to warped or unevenly worn rotors. This can significantly reduce braking efficiency and comfort.
• Longer Stopping Distances: If you notice that your vehicle takes longer to come to a complete stop, it could be a sign of worn pads, low brake fluid levels, or air in the brake lines. This reduction in performance is a critical safety concern.
• Dashboard Warning Lights: Your Mercedes-Benz dashboard may illuminate a "Check Brake Pad Wear" message or a general brake warning light. This could indicate low brake fluid, critically worn pads, or a malfunction within the ABS or traction control system.

Physical Brake Inspection Steps

Beyond the warning signs, a hands-on physical inspection provides a definitive assessment of your brake components. Here’s how to conduct a thorough check:

Initial Visual Check

With a good flashlight, examine the outer and inner surfaces of the brake discs through the wheel spokes. Look for visible grooves, scoring, or any unusual discolouration. If the rotors appear blue or dark gold, they've likely overheated and require immediate attention.

Detailed Examination (Wheels Off)

For a more comprehensive assessment, you'll need to remove the wheels. This allows you to inspect:

• Rotor Surface: Check for deep grooves, uneven wear patterns, and the overall smoothness of the disc surface.
• Brake Fluid Leaks: Look around the calipers and brake lines for any signs of fluid leakage.
• Caliper Condition: Inspect the brake calipers for rust, damage, or sticky pistons. Ensure they move freely.

Brake Pad Assessment and Measurement

With the wheels off, you can closely inspect the brake pads. If the friction material is almost worn down to the metal backing plate, it's time for a replacement. For precise measurement, use a micrometer or a dedicated brake pad gauge. Replace pads if the friction material is less than 1/4 inch thick.

Measuring Brake Disc Wear

To accurately assess disc wear, use a digital caliper. Take readings at 8–10 evenly spaced points across the friction surface of the rotor. Compare these measurements to the "MIN TH" (minimum thickness) specification stamped on the disc. If any measurement falls below this specification, the disc must be replaced.

Brake Component Replacement Thresholds:

Getting Ready for Replacement: Tools and Safety

Before embarking on a Mercedes-Benz brake replacement, gathering the correct tools and prioritising safety are paramount. This preparation ensures a smooth and secure process.

Essential Tools and Equipment

• Socket set with extensions
• Torque wrench (crucial for proper tightening)
• Wire brush for cleaning surfaces
• Brake cleaner spray
• Brake caliper compressor (e.g., Lisle 29100 Quad Piston Brake Caliper Compressor)
• Brake bleeding kit (e.g., Motive Products 0100KT Brake Bleeder Essentials Kit)
• Brake pad gauge for wear measurement
• Brake spring pliers (if applicable for your model)
• Hydraulic jack and jack stands

Safety Gear

Never compromise on safety when working under a vehicle:

• Safety glasses to protect your eyes from debris and fluids.
• Gloves to protect your hands from grease, dirt, and chemicals.
• Steel-toed boots for foot protection.
• Wheel chocks to prevent the vehicle from rolling.

Recommended Components

Always opt for high-quality brake components. For a Mercedes-Benz, this often means choosing Genuine Mercedes-Benz parts or reputable OEM (Original Equipment Manufacturer) equivalents.

Lifting Your Vehicle Safely

Properly lifting and securing your Mercedes-Benz is critical to prevent accidents:

1. Preparation: Park your vehicle on a flat, level surface. Engage the parking brake and place wheel chocks on the wheels opposite to where you'll be working. Loosen, but do not fully remove, the lug nuts on the wheels you intend to remove.
2. Lifting Process: Position your hydraulic jack under the designated lifting points (refer to your Mercedes-Benz owner's manual for precise locations). Slowly lift the vehicle to the desired height.
3. Securing the Vehicle: Once lifted, carefully position sturdy jack stands under the vehicle's frame rails at the designated support points. For added protection, you can insert a wood block between the jack stand and the frame rail. Slowly lower the vehicle onto the jack stands, ensuring it is stable and secure before proceeding. Never work under a vehicle supported only by a jack.

Understanding Brake Locations on a Mercedes-Benz

While the overall brake system functions similarly across models, there are key differences between the front and rear brake setups that impact replacement procedures.

Front Brakes

Located behind the front wheels, the front brakes on a Mercedes-Benz are typically larger and more robust than the rear brakes. This is because they bear the majority of the braking force during deceleration, often handling 70% or more of the stopping load. Consequently, front brake pads and discs tend to wear out faster and require more frequent replacement compared to their rear counterparts.

Rear Brakes

Situated behind the rear wheels, the rear brakes contribute significantly to overall stopping power and vehicle stability. They often incorporate both the service brake mechanism and components for the parking brake. When working on the rear brakes, it's essential to pay extra attention to the parking brake components, which can vary in design (e.g., drum-in-hat style) and require specific procedures for disassembly and reassembly.

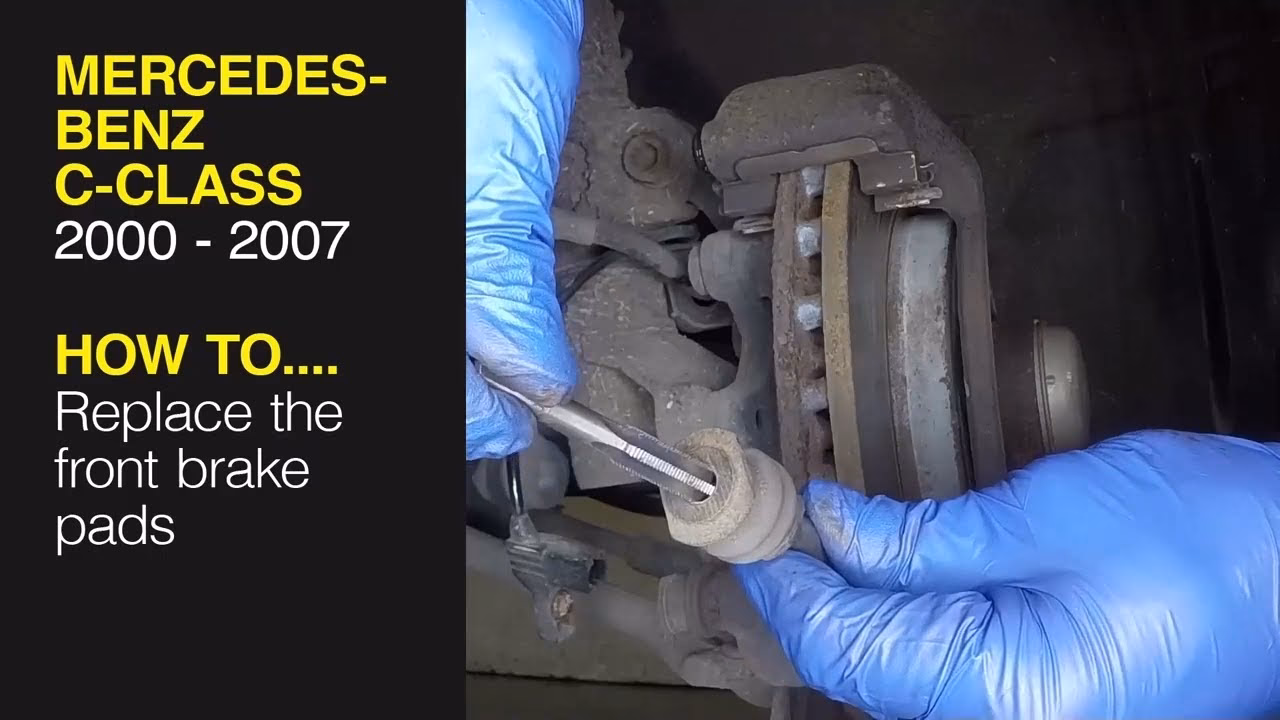

The Replacement Process: Step-by-Step

Once you're prepared with tools and safety measures, you can begin the meticulous process of replacing your Mercedes-Benz brake pads and discs.

Removing Old Parts

Care and precision are key when disassembling the brake system:

1. Disconnect Sensor: Carefully unplug the pad wear sensor (if equipped) to avoid damaging its delicate wiring during the process.
2. Caliper Fasteners: Remove the two H7 bolts that secure the brake caliper. Use a screwdriver or appropriate tool to support the caliper to prevent strain on the brake lines. Never let the caliper hang by its brake hose. Rest it securely on an axle stand or a sturdy block.
3. Pads Removal: Use needle-nose pliers to remove the retention clip (if present) and take off any dust covers. Remove the inner brake pad (often held by spring metal clips), followed by the outer pad.
4. Disc Fasteners: Remove the H5 bolt that secures the disc to the hub. Then, remove the two 18mm bolts holding the disc frame (caliper bracket).
5. Disc Removal: The disc may be seized to the hub due to corrosion. Apply a penetrating spray to the hub-disc connection. Rotate the disc and strike its back firmly with a hammer in several spots to break the corrosion seal. Once loose, carefully slide the old disc off the hub.

Caliper Maintenance

While the caliper is off, it's the ideal time to perform essential maintenance to ensure smooth operation of your new brakes:

As Weber Automotive, Inc. notes, "Servicing your brake calipers includes cleaning and lubricating the slide pins. We clean the pins to remove any grease or debris and inspect for rust. We then apply a heat-resistant lubricant on the pin and slide it back in, which must slide smoothly."

Installing New Parts

Precision and cleanliness are vital for proper installation:

1. Clean Hub: Thoroughly clean the hub surface using a wire brush and brake cleaner to remove any rust or debris. This ensures the new disc sits perfectly flat. Apply a thin layer of anti-seize compound to the hub face to prevent future corrosion.
2. Install New Disc: Slide the new brake disc onto the hub. Secure it with the H5 bolt (if applicable) and re-attach the caliper frame (disc frame) with its two 18mm bolts, torquing them to manufacturer specifications.
3. Compress Piston: Use a C-clamp or a dedicated brake caliper compressor to gently push the caliper piston back into its bore. This creates space for the thicker new pads.
4. Install New Pads: Apply a thin layer of copper grease or a high-temperature brake lubricant to the metal contact points on the back of the pads (where they touch the caliper brackets and piston), but never on the friction material. Install the new inner and outer pads.
5. Reassemble Caliper: Reconnect the pad wear sensor if your vehicle has one. Reinstall the caliper onto the caliper frame, securing it with the two H7 bolts. Torque all bolts to the manufacturer’s specified values.
6. Final Cleaning: Clean the entire assembly with brake cleaner to remove any grease or fingerprints from the new disc and caliper.

Final Steps and Care

Your brake replacement isn't complete until the system is properly bled and the new components are broken in.

Brake System Bleeding

Bleeding your brakes is essential to remove any air that may have entered the system during the replacement process. Air in the lines can lead to a spongy brake pedal and reduced stopping power. Pelican Parts advises, "The best strategy to follow when bleeding your brakes is to repeat the procedure several times in order to make sure that you have removed all the trapped air from the system."

The general sequence for bleeding is to start with the caliper furthest from the master cylinder and work your way closer:

1. Fill Master Cylinder: Ensure the master cylinder reservoir is full of fresh, DOT-approved brake fluid. Keep an eye on the level throughout the bleeding process to prevent it from dropping too low and introducing more air.
2. Bleed Sequence: Begin with the right rear caliper, then move to the left rear, followed by the right front, and finally the left front.
3. Bleeding Process: With a helper in the driver's seat, attach a clear hose to the bleeder valve on the caliper and place the other end in a container of fresh brake fluid. Have your helper pump the brake pedal several times and then hold it down firmly. While the pedal is held, use a flared nut wrench to open the bleeder valve. You will see fluid and potentially air bubbles exit. Close the valve before your helper releases the pedal. Repeat this process until no more air bubbles are visible in the fluid exiting the hose.
4. Repeat if Necessary: After bleeding all four calipers, let the vehicle sit for about 10 minutes. If the pedal still feels spongy, repeat the entire bleeding process.

Break-in Instructions (Bedding-in)

The break-in or "bedding-in" process is crucial for new pads and discs. It allows the friction material from the pads to transfer evenly onto the discs, creating an optimal braking surface and preventing premature wear or noise. Different brands may have slightly varied guidelines, but the principle is similar:

During the break-in period, avoid the following:

• Heavy or sudden braking within the first 100-200 miles.
• Dragging the brakes (lightly pressing the pedal for extended periods).
• Coming to complete stops during the initial bedding-in cycles (unless absolutely necessary for safety).
• Using the parking brake until the brake system has completely cooled down after the bedding-in process.

System Check and Reset

After the break-in period, perform a final system check. Inspect the brake fluid level again and top it up if necessary. If any brake warning lights persist, use a diagnostic tool to reset them. Finally, take your Mercedes-Benz for a test drive at low speeds to confirm smooth deceleration and even braking pressure across all wheels.

Summary: Maintaining Your Mercedes-Benz Brakes

Adhering to a regular brake maintenance routine is paramount for the longevity, safety, and performance of your Mercedes-Benz. It’s an investment in your vehicle’s capabilities and your driving confidence.

Maintenance Schedule Reminders

• Inspect rear brake pads every 10,000 miles, as they may wear differently than front pads.
• Replace brake pads once they reach a 2mm friction threshold, or when warning signs appear.
• Replace brake fluid every two years, as recommended by Mercedes-Benz, to prevent deposits and debris from reducing brake efficiency.

Parts Selection and Cost Considerations

Choosing the right brake components is as important as the maintenance itself. While genuine Mercedes-Benz parts offer guaranteed fit and performance, high-quality OEM and premium aftermarket options can provide excellent value.

Proactive Brake Care Tips

Extend the life of your brake system and reduce the frequency of replacements by adopting these driving habits and care tips:

• Drive smoothly: Avoid sudden accelerations and harsh, last-minute stops whenever possible. Gradual braking reduces wear.
• Regular checks: Beyond scheduled services, periodically check your brake fluid level and visually inspect brake lines, hoses, and calipers for any signs of damage or leaks.
• Address issues promptly: Any unusual noises, vibrations, or changes in brake pedal feel should be investigated immediately by a qualified technician.

Frequently Asked Questions (FAQs)

Q1: How often should I inspect my Mercedes-Benz brakes?

It is recommended to have your Mercedes-Benz brakes inspected every 10,000 miles or during your routine Service A and Service B appointments. Regular visual checks can also be performed by the owner.

Q2: Can I replace just the brake pads, or do I always need to replace the discs too?

While it's possible to replace just the pads if the discs are still within their minimum thickness specification and show no signs of warping or deep grooves, it is generally recommended to replace pads and discs together for optimal performance and even wear. New pads require a perfectly flat surface for proper bedding-in, which worn or grooved discs cannot provide.

Q3: What type of brake fluid should I use for my Mercedes-Benz?

Your Mercedes-Benz requires DOT 4 brake fluid. Always refer to your vehicle's owner's manual for the precise specification and ensure you use fresh fluid from a sealed container, as brake fluid is hygroscopic (absorbs moisture).

Q4: Why are my new Mercedes-Benz brakes squealing after replacement?

New brakes can sometimes squeal due to the bedding-in process, where the pads and discs are adapting to each other. Ensure you follow the manufacturer's recommended break-in procedure. If the squealing persists after the break-in period, it could indicate improper installation, a cheap pad material, or an issue with caliper lubrication. It's best to have them re-inspected.

Q5: Is it safe to perform a brake replacement on my Mercedes-Benz myself?

While it is possible for an experienced DIY mechanic with the right tools and knowledge to perform a brake replacement, it is a critical safety component. If you are not confident in your abilities or do not have the specialised tools (like a torque wrench and caliper compressor), it is highly recommended to have the work performed by a qualified Mercedes-Benz technician. Incorrect installation can lead to brake failure.
