Mastering Your Mercedes 9G-TRONIC ATF Change

Maintaining the sophisticated engineering of your Mercedes-Benz is paramount for its longevity and optimal performance. The 9G-TRONIC automatic transmission, also known as the New Automatic Gearbox Generation Three (NAG3), is a marvel of modern automotive technology, found in a wide array of Mercedes-Benz models from the E-Class to the S-Class, and even some Aston Martin vehicles. This advanced 9-speed unit delivers smooth shifts and impressive efficiency, but like any precision component, it requires diligent care. One of the most crucial aspects of its maintenance is the regular replacement of its automatic transmission fluid (ATF). This comprehensive guide will walk you through the precise steps to perform an ATF change on your Mercedes-Benz 9G-TRONIC (725.0) transmission, ensuring you maintain its renowned reliability and performance.

Understanding the Mercedes-Benz 9G-TRONIC (725.0)

First introduced on the E 350 BlueTEC in 2013 and subsequently expanding across the Mercedes-Benz range, the 9G-TRONIC transmission (internal designation 725.0) represents a significant leap in automatic gearbox technology. It is characterised by its intricate design, featuring four planetary gear sets and six clutches, which enable its nine forward gears. This allows for a wider gear ratio spread, contributing to both fuel efficiency and dynamic driving characteristics. A notable feature is its torque converter, engineered to transmit engine power with minimal loss, and further enhanced by a fly-force pendulum damper specifically installed to reduce vibrations, ensuring a refined driving experience. Understanding the complexity and precision of this unit underscores the importance of using the correct procedures and fluids during maintenance.

When to Change Your 9G-TRONIC Transmission Fluid

Mercedes-Benz, as the manufacturer, provides clear guidelines for the maintenance of their transmissions. For the 9G-TRONIC (725.0) automatic transmission, the recommended fluid change interval is every six years or 60,000 miles, whichever comes first. Adhering to this schedule is absolutely critical. Over time, transmission fluid degrades due to heat and wear, losing its lubricating and cooling properties. Old, contaminated fluid can lead to increased friction, premature wear of internal components, rough shifting, and ultimately, costly transmission failure. Regular fluid changes ensure the transmission operates smoothly, efficiently, and reliably for many years to come.

What You Will Need for the Job

Before embarking on this maintenance task, gather all the necessary parts and tools. Using the correct items is non-negotiable for a successful and safe fluid change. Do not attempt this procedure with generic parts or fluids not specifically approved by Mercedes-Benz.

Essential Parts:

• Mercedes-Benz Recommended Fluid: Approximately 10 litres of genuine Mercedes-Benz ATF. The fluid must meet specification sheet 236.16 or 236.17. Look for MB PN: A001 989 92 03 or approved alternatives like Shell ATF D97. See the detailed table below for more options.
• Oil Fill Adapter: Mercedes-Benz specific adapter, PN: W725 589 00 90 00. This is crucial for correctly refilling the transmission.
• New Automatic Transmission Oil Pan: It is highly recommended to replace the entire pan as it typically includes a new integrated filter, gasket, and drain plug. This ensures optimal filtration and a leak-free seal.

Required Tools:

• Professional Diagnostic Scanner: A scanner capable of accessing Mercedes-Benz specific transmission control units (VGS) and performing fluid level checks. Devices like the YOUCANIC Full System Scanner are ideal as they offer complete access to vehicle systems, live data, and bi-directional controls.
• Drain Plug Socket: Specific socket, PN: 724 589 01 09 00, designed for the unique drain plug on the 9G-TRONIC.
• Metric Socket Set: For various bolts and fasteners.
• Protective Glasses: Essential for eye safety.
• Gloves: To protect your hands from hot fluid and chemicals.
• Oil Pan: A large capacity pan to collect the drained transmission fluid.
• Torque Wrench: Absolutely critical for tightening bolts to the specified torque values, preventing leaks or damage.
• Jack and Jack Stands: To safely raise and support the vehicle. Ensure the vehicle is level.
• Lint-Free Cloth: For cleaning surfaces and preventing contamination.

Approved Mercedes-Benz 9G-TRONIC Transmission Fluids

Using the correct fluid is paramount for the longevity and performance of your 9G-TRONIC transmission. Always refer to Mercedes-Benz specification sheet 236.17 for approved fluids. Do not use fluids that do not explicitly state compliance with this standard.

Step-by-Step Procedure for Your 9G-TRONIC ATF Change

Follow these detailed steps carefully to ensure a successful and complete transmission fluid change on your Mercedes-Benz 9G-TRONIC (725.0) gearbox.

1. Prepare the Vehicle:

• Park your vehicle on a level surface and ensure the engine and transmission have had ample time to cool down. Working with hot fluid can be dangerous.
• Safely raise the vehicle at all four corners using a reliable jack and secure it firmly with jack stands. It is imperative that the vehicle is perfectly level to ensure an accurate fluid level check later.

2. Access the Transmission Pan:

• Locate and remove the rearmost and centre underbody panels, often referred to as splash shields. These are typically secured by several 8mm screws. Keep track of all fasteners.
• Remove the protective heat shield plate situated at the front right side of the transmission oil pan. This will expose the pan fully.

3. Drain the Transmission Fluid:

• Position a sufficiently large oil pan directly underneath the transmission's fluid drain hole.
• Using the specific drain plug adapter, carefully remove the quick-release plug. This is 'position 1' and will allow only a small amount of fluid to initially drain. Be ready for the fluid.
• Insert the specialised socket wrench (PN: 725 589 00 09 00) into the oil drain plug hole. Rotate the centre of the plug to 'position 4'. This will open the main drain, allowing the majority of the fluid from the oil pan to drain out.
• Allow the transmission fluid to drain thoroughly. To ensure maximum drainage, use a 3/8" or 1/2" socket extension to push the internal drain pipe up. This action will dislodge the pipe, allowing any remaining fluid in the pan to escape.
• (Optional but Recommended) If your vehicle allows, you can also drain fluid from the torque converter. Locate the plastic cap directly below the torque converter, remove it, and then remove the bolt to drain the converter's fluid. This ensures a more complete fluid replacement.
• Crucially, measure the exact volume of all the fluid that has been drained from the vehicle. This measurement will be vital for refilling.

4. Remove the Old Transmission Pan:

• With the fluid drained, carefully remove all ten transmission oil pan bolts. Be extremely cautious as residual oil may still be present in the pan, which could spill.
• For 4MATIC models, you may find it necessary to support the transmission and then remove the transmission mount to gain sufficient clearance to safely drop the transmission fluid pan. This is a common requirement due to component interference.

5. Install the New Transmission Pan:

• Before placing the new oil pan onto the transmission, thoroughly inspect the position of the internal overflow pipe within the new pan. Ensure it is fully pushed in and, critically, set to 'position 1'. This is the highest position, which will allow the pan to be filled with new fluid without premature overflow.
• Carefully position the new oil pan, with its integrated filter and gasket, onto the transmission.
• Install all ten pan bolts. Begin by hand-tightening them in a criss-cross pattern, starting from the corners.

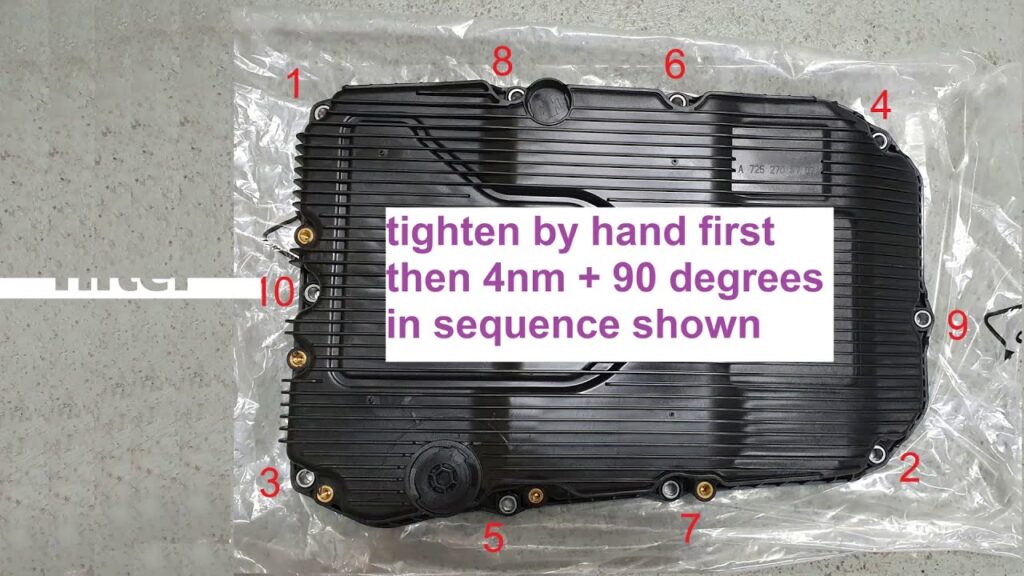

• Using your Torque Wrench, torque each bolt to 4 Nm. Following this, tighten each bolt an additional ninety degrees. Adhering to these specific torque values is vital to prevent leaks and ensure a proper seal.

6. Refill the Transmission Fluid:

• Ensure the overflow pipe inside the pan is still securely in 'position 1'.
• Connect the specific oil fill adapter to the transmission fill port.
• Add the exact amount of new transmission fluid that you measured during the draining process (from step 3), plus an additional 0.5 litres (or 0.5 quart). This slight overfill accounts for fluid that may remain in the cooler lines or torque converter.
• Once the fluid is added, remove the fill adapter and securely install the cap.

7. Check and Adjust Fluid Level with Diagnostic Scanner:

This is a critical step that cannot be skipped. The 9G-TRONIC transmission fluid level must be checked and adjusted electronically using a professional diagnostic scanner.

• Connect your Diagnostic Scanner to the OBD-II port, typically located under the dashboard on the driver's side.
• Power on the scanner and select the correct Mercedes-Benz model.
• Navigate through the scanner's menu: Go to 'Control Units', then select 'Transmission (VGS)' under 'Drivetrain'.
• Within the automatic transmission menu, scroll down to 'Actuations' and select it.
• Next, select 'Check Fluid Level' and press 'Next' or 'Enter'.
• Follow the specific on-screen instructions provided by the scanner to accurately read the transmission fluid level. This usually involves starting the engine, cycling through gears, and waiting for the fluid to reach a specific temperature range. The scanner will indicate if the fluid level is correct, too low, or too high.
• Adjust the fluid level as necessary. If too low, add small increments of fluid via the fill adapter. If too high, a small amount may need to be drained. Repeat the check until the scanner confirms the correct level.

8. Clear Fault Codes (If Applicable):

After replacing the transmission fluid, it's possible for certain fault codes to appear in the transmission control unit. If this occurs, use your Professional Diagnostic Scanner to read and clear these codes. This powerful device allows you to perform comprehensive diagnostics, clear fault memory, and ensure all systems are operating correctly.

Torque Specifications

Accurate torque is vital for proper sealing and preventing damage.

Technical Data of the 9G-TRONIC (725.0)

For those interested in the specifics of this advanced transmission, here are some key technical details:

Common Vehicle Applications of the 9G-TRONIC (725.0)

The 9G-TRONIC has been widely adopted across the Mercedes-Benz lineup and even by other manufacturers. Here are some of the primary applications:

Frequently Asked Questions (FAQs)

How do you check the transmission fluid level on the Mercedes-Benz 9G 725.0?

Unlike older transmissions with a dipstick, the oil level on the Mercedes-Benz 9G-TRONIC (725.0) transmission is checked exclusively using the overflow method, similar to the 7G-Tronic (722.9) unit. This procedure requires a professional diagnostic scanner to monitor the transmission fluid temperature and guide you through the precise steps for accurate level verification. The process involves filling until fluid begins to overflow at a specific temperature range, ensuring the correct volume is present.

Do I need to remove the transmission mount to remove the transmission pan?

On many Mercedes-Benz 4MATIC models equipped with the 9G-TRONIC (725.0) transmission, it is indeed necessary to support the transmission and temporarily remove the transmission mount before you can safely remove the transmission pan. This is due to clearance issues with the subframe or other components. Specific models where this often applies include:

• Transmission 725.0 in model 205, 253 with engine 274 with code M005 (4MATIC)
• Transmission 725.0 in model 205, 253 with engine 276.8 with code M005 (4MATIC)
• Transmission 725.0 in model 205, 253 with engine 651 with code M005 (4MATIC)
• Transmission 725.0 in model 253 with engine 642 with code M005 (4MATIC)

Always consult your specific vehicle's service manual or a professional if unsure.

Can you perform a transmission fluid flush on the Mercedes-Benz 9G transmission?

Yes, flushing the transmission fluid on the Mercedes-Benz 9G-TRONIC (725.0) is possible and can be a more comprehensive way to replace nearly all the old fluid, including that in the torque converter and cooler lines. While this guide focuses on the pan drop and refill method, which replaces a significant portion of the fluid, a full flush typically requires specialised equipment and is often performed by a professional workshop. If considering a flush, ensure the workshop uses Mercedes-Benz approved procedures and fluids.

Conclusion

Performing a transmission fluid change on your Mercedes-Benz 9G-TRONIC (725.0) is a critical maintenance task that, while detailed, is entirely achievable for the diligent DIY enthusiast. By carefully following the procedures outlined in this guide, using the correct parts and fluids, and employing a professional Diagnostic Scanner for the final fluid level check, you can ensure your sophisticated Mercedes-Benz transmission continues to operate flawlessly. Investing this time and effort will not only extend the life of your gearbox but also maintain the smooth, responsive driving experience you expect from your Mercedes-Benz. Drive safely and enjoy the journey!
