Few things are as frustrating for a Mercedes owner as a gearbox that refuses to cooperate. Whether your automatic transmission isn't shifting through gears smoothly, or your shifter is stubbornly stuck in park, these issues can quickly turn a luxurious drive into a headache. You're not alone; many Mercedes drivers encounter these problems, and while they can be concerning, understanding the underlying causes is the first step towards a solution. This comprehensive guide will delve into the common culprits behind Mercedes gear shifting woes, offering insights into their operation and practical troubleshooting tips to get you back on the road.
A well-functioning automatic gearbox is the heart of a seamless driving experience, allowing your Mercedes to glide effortlessly through different speeds without manual intervention. At its core, this complex system relies on a precise interplay of mechanical and electronic components. Key players include the torque converter, which acts as a fluid coupling to transfer engine power; planetary gear sets, which provide the various gear ratios; and the valve body, a sophisticated hydraulic control unit that directs transmission fluid flow. The entire operation is orchestrated by the transmission's control module (often part of or linked to the Engine Control Unit or ECU), which gathers data from numerous sensors – monitoring engine speed, throttle position, and vehicle speed – to ensure the correct gear is engaged at the optimal moment. When any part of this intricate dance falters, gear shifting problems inevitably arise.
Common Causes for Mercedes Automatic Gearbox Not Changing Gear
When your Mercedes automatic gearbox isn't changing gears as it should, the problem can often be traced back to one of several common issues. Understanding these can significantly aid in diagnosing the fault.
1. Bad Brake Switch
The brake switch is a small but vital component located near your brake pedal. Its primary function is to signal the vehicle's computer when the brake pedal is depressed. This signal is crucial for various systems, including the gear selector's interlock mechanism. If the brake switch is faulty, the transmission control unit might not receive the necessary signal, preventing you from shifting out of park or affecting subsequent gear changes. Essentially, the car believes your foot isn't on the brake, a critical safety measure that prevents accidental shifting.
2. Failing Valve Body
As mentioned, the valve body is the hydraulic brain of your automatic transmission. It contains a network of passages, valves, and solenoids that precisely regulate the flow and pressure of transmission fluid to engage different gears. Over time, these intricate passages can become clogged with debris, or the solenoids within the valve body can fail. When the valve body malfunctions, it can no longer direct fluid correctly, leading to delayed, harsh, or completely absent gear shifts. This is a significant issue that directly impacts the transmission's ability to operate smoothly.
3. Dirty or Low Automatic Transmission Fluid (ATF)
Transmission fluid is the lifeblood of your automatic gearbox, serving multiple critical functions: it lubricates moving parts, cools the transmission, and acts as the hydraulic medium that enables gear changes. When the ATF level is too low, there simply isn't enough fluid pressure to operate the system effectively, leading to slipping gears, delayed shifts, or no shifts at all. Equally problematic is dirty or contaminated ATF. Over time, fluid can degrade, losing its lubricating properties, or accumulate metallic particles and sludge from normal wear and tear. Dirty ATF (which often appears dark brown or even black, rather than its healthy light red/pink colour) can clog passages, cause excessive friction, and lead to premature wear of internal components. Regularly checking and maintaining your ATF is paramount for transmission longevity.
4. Electrical Issues
Modern Mercedes transmissions are heavily reliant on electrical signals and sensors. A wide array of electrical issues can disrupt gear shifting. This includes simple problems like a broken or damaged electrical connector, which can interrupt vital communication between components. More complex issues might involve a leak in the wire harness, a faulty conductor plate (a circuit board inside the transmission that houses sensors and solenoids), or malfunctioning solenoids themselves. Even a weak or faulty battery can cause problems, as insufficient voltage can lead to erratic behaviour from the transmission control module and related sensors, preventing proper gear engagement.
5. Malfunctioning Gear Selector
The gear selector, or shifter, is the component you physically interact with to choose your driving mode (Park, Reverse, Neutral, Drive). While it might seem like a simple lever, it often contains internal sensors and electrical contacts that communicate your desired selection to the transmission control unit. If these internal components wear out or become damaged, the gear selector may fail to send the correct signal, or any signal at all, preventing the transmission from engaging the desired gear.
6. Leaking Conductor Plate

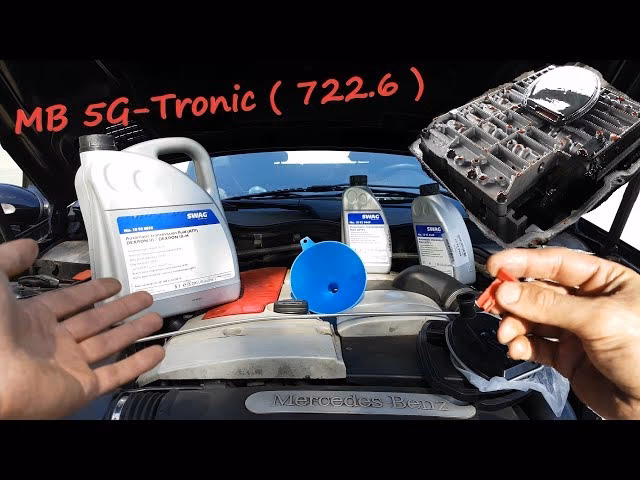

The conductor plate is an integral part of many Mercedes automatic transmissions, specifically common in older 722.6 and newer 722.9 7G-Tronic gearboxes. It's essentially a circuit board located within the transmission valve body, housing various speed sensors and shift solenoids. If the conductor plate develops a leak, often due to fluid ingress or internal cracking, it can disrupt the electrical signals and readings from the sensors. This can lead to incorrect data being sent to the transmission control unit, resulting in erratic shifting, limp mode activation, or a complete failure to shift.
Why Your Mercedes Shifter Might Be Stuck in Park
A separate, yet equally frustrating, issue is when your Mercedes shifter refuses to move out of park. This is often related to the vehicle's safety interlock systems, which are designed to prevent the car from being accidentally shifted into gear.
- Defective Brake Light Switch: Similar to its role in general gear shifting, a faulty brake light switch is a prime suspect when the shifter is stuck in park. The interlock system requires a signal from this switch, confirming the brake pedal is depressed, before it will release the shifter.
- Low Voltage or Dead Battery: The shift interlock solenoid, which mechanically locks the shifter in park, requires electrical power to disengage. If your car's battery voltage is too low or completely dead, there won't be enough power to activate this solenoid, leaving the shifter locked.
- Spilled Liquid on Shifter Assembly: Accidental spills of drinks or other liquids onto the centre console and shifter assembly can seep into the electronic components, causing corrosion or short circuits. This damage can directly affect the shift interlock mechanism or the gear selector's ability to function.
- Faulty Shift Interlock Solenoid: This dedicated solenoid is responsible for physically locking and unlocking the shifter. If it fails internally, either electrically or mechanically, it will remain in its locked position, preventing the shifter from moving.
- Engine Control Unit (ECU) or Transmission Control Unit (TCU) Issues: These are the 'brains' of your vehicle's engine and transmission management. If either unit malfunctions, it can send incorrect signals (or no signals) to the shift interlock system, leading to the shifter remaining stuck.
- Broken Transmission Shift Cable or Bent/Loose Shift Rod: In some Mercedes models, a mechanical cable or rod connects the shifter lever to the transmission itself. If this linkage breaks, bends, or becomes loose, the physical input from the shifter won't reach the transmission, rendering it unable to change gears or release from park.
- Problems with Shifter Linkage Actuator: This component works in conjunction with the shift cable/rod to translate your shifter's movement into actual gear changes within the transmission. Damage to this actuator can prevent the necessary mechanical action for shifting.
Mercedes Gear Shift Not Working: Troubleshooting Guide
Facing a non-shifting Mercedes can be daunting, but a systematic approach to troubleshooting can often pinpoint the problem or at least provide a temporary solution. Here's a step-by-step guide:
1. Reset Out of Limp Mode
If your Mercedes is stuck in a single gear (often second gear) and won't shift, limiting your speed to around 30 mph, it's likely operating in 'limp mode'. This is a protective measure activated by the transmission control unit when it detects a significant fault, designed to prevent further damage. While a reset may temporarily resolve the issue, the underlying problem still needs professional attention.
To attempt a reset:
- Turn off your Mercedes and remove the key from the ignition.
- Wait 20-30 seconds without pressing any buttons or the accelerator pedal.
- Restart your car, put it in drive, and check if it's out of limp mode.
Remember, this is a temporary fix. If your car frequently enters limp mode, it's a clear signal that professional diagnosis is required.
2. Manually Release Shifter Stuck in Park
If you're stranded with a shifter stuck in park, especially in an emergency, you can often manually override the lock. This is a temporary measure and doesn't fix the root cause.
- Engage Emergency Brakes: Ensure your car is stationary and secure.
- Turn On Ignition: Insert the key and turn it to Position I or II. Starting the car is optional but can be helpful.
- Press the Brake Pedal: Keep the brake pedal firmly pressed throughout the process to prevent unintended movement.
- Locate the Shifter Lock/Override: This is typically a small plastic cap near the base of the gear shifter lever on the centre console.
- Remove the Plastic Cover: Carefully pry up the cover using a flat-head screwdriver or similar small tool.
- Press the Manual Release Switch: You'll see a small button or switch underneath. Use a screwdriver, pen, or similar object to push and hold this switch.
- Release the Shifter: While holding the override switch, you should now be able to move the shifter out of park.
It's crucial to understand that this method bypasses the safety mechanism. The underlying problem must be identified and repaired to ensure safe and reliable operation.
3. Check the Battery
A weak or dead battery can cause a surprising number of electrical gremlins, including a shifter stuck in park or erratic gear changes. Before delving into more complex diagnostics, ensure your battery is fully charged and in good health. A simple voltage check can confirm this. If the battery is old or consistently low, replacing it might resolve the issue. Mercedes vehicles are particularly sensitive to correct voltage.
4. Replace the Brake Switch
Given its commonality as a cause for a stuck shifter, inspecting and potentially replacing the brake switch is a logical next step. This component is usually inexpensive and relatively straightforward to replace for a competent DIY enthusiast. A quick test involves checking if your brake lights illuminate when the pedal is pressed; if they don't, it's a strong indicator of a faulty switch.
5. Replace the Gear Selector
If diagnostics point to the gear selector itself as the culprit, replacement may be necessary. This can be a more involved process, often requiring removal of parts of the centre console and careful electrical connections. Due to the complexity and the need for proper calibration, seeking professional assistance for this repair is highly recommended.
6. Examine the Gear Shifter Assembly
The entire gear shifter assembly can suffer from wear and tear. Common issues include internal broken plastic components or damage from spilled liquids. If the gear indicator on your instrument cluster isn't displaying the correct gear (P, R, N, D), it often points to a problem within the shifter module or its connection to the vehicle's electronics. A thorough visual inspection for physical damage or signs of liquid ingress is crucial here. In some cases, the entire assembly may need replacement.
7. Evaluate the Ignition Switch
The ignition switch plays a role in releasing the shifter, particularly ensuring it's in the correct position (e.g., Position I or II) before the shifter can be moved. If the ignition switch itself is faulty, or if the cable connecting it to the shifter interlock system is damaged, it can prevent the shifter from disengaging from park. Testing the ignition switch's functionality and checking for continuity in its wiring is important.
Comparative Overview: Symptoms, Causes, and Solutions
| Symptom | Likely Cause(s) | Potential Fixes |
|---|---|---|
| Car stuck in 2nd gear; limited speed (Limp Mode) | Sensor fault, ECU/TCU issue, internal transmission problem | Reset limp mode (temporary); professional diagnostic scan; repair/replace faulty component |
| Shifter won't move from Park | Faulty brake switch, low/dead battery, failed shift interlock solenoid, spilled liquid, ignition switch issue | Check/replace battery; replace brake switch; manual override; inspect shifter assembly |
| Delayed or harsh gear changes | Low/dirty ATF, failing valve body, faulty solenoids, conductor plate issue | Check/flush/replace ATF; professional diagnosis of valve body/solenoids/conductor plate |
| Slipping gears or loss of power during shifts | Low/dirty ATF, worn clutch packs, torque converter issue | Check/replace ATF; professional transmission rebuild/replacement |
| No gear engagement at all (e.g., stuck in Neutral) | Major transmission mechanical failure, severe electrical fault (TCU/ECU, conductor plate) | Professional diagnostic scan; likely major transmission repair or replacement |
| Gear indicator not showing correct position | Faulty gear selector module, electrical connection issues | Inspect/replace gear selector module; check electrical wiring |
Frequently Asked Questions (FAQs)
Q: Can I drive my Mercedes in limp mode?
A: While you can technically drive your Mercedes in limp mode, it's strongly advised to do so only for short distances to get to a safe location or a garage. Limp mode is a protective measure, and continuing to drive extensively in this state can cause further, more severe damage to the transmission or other components. The car's performance will be significantly limited.
Q: How often should I check my automatic transmission fluid (ATF)?
A: Mercedes-Benz generally recommends specific service intervals for ATF checks and changes, which can vary by model and year. However, as a good practice, checking your ATF level and condition (colour, smell) every 10,000 to 20,000 miles, or at least once a year, is advisable. Refer to your owner's manual for the precise schedule and fluid type for your specific Mercedes model.
Q: Is it expensive to fix a Mercedes gearbox that isn't shifting?
A: The cost of repair can vary dramatically depending on the root cause. A faulty brake switch might cost very little to replace, while a failing valve body, conductor plate, or a complete transmission rebuild/replacement can be significantly more expensive. Early diagnosis and addressing minor issues can often prevent more costly repairs down the line.
Q: What are the early signs of a failing transmission?
A: Beyond complete failure to shift, early warning signs include delayed engagement (a noticeable pause before the car moves after selecting a gear), harsh or clunky shifts, slipping gears (engine revs increase but speed doesn't), strange noises (whining, clunking, humming), a burning smell (often from burnt ATF), and dashboard warning lights related to the transmission.
Q: Can a software update fix my Mercedes transmission issues?
A: In some cases, yes. Modern Mercedes transmissions are controlled by sophisticated software within the Transmission Control Unit (TCU). Sometimes, glitches or unoptimised programming can lead to shifting issues. A diagnostic scan at a Mercedes specialist might reveal that a software update or re-adaptation of the TCU is available and could resolve the problem without needing mechanical repairs.
Bottom Line
Experiencing gear shifting problems with your Mercedes can be a source of significant concern, but by understanding the common causes and following a systematic troubleshooting approach, you can often identify the issue. From a simple faulty brake switch to more complex electrical or hydraulic failures within the transmission, each problem has its specific indicators and remedies. While some basic checks and temporary fixes can be performed at home, the sophisticated nature of Mercedes-Benz automatic transmissions often necessitates professional diagnosis and repair.
Ultimately, the best defence against such issues is consistent and diligent preventative maintenance. Regularly checking your transmission fluid for proper levels and condition, adhering to manufacturer-recommended service schedules, and promptly addressing any dashboard warning lights or unusual driving sensations are crucial steps. By staying proactive with your vehicle's upkeep, you can significantly minimise the likelihood of encountering frustrating gear shifting problems, ensuring your Mercedes continues to deliver the smooth, reliable driving experience it was designed for.
