Unravelling Mechatronic Engine Mechanics

In the ever-evolving landscape of automotive engineering, the quest for greater efficiency, smoother performance, and enhanced driving dynamics has led to remarkable innovations. Among these, the integration of mechatronic systems within the engine and transmission stands out as a true game-changer. No longer are gear changes simply a mechanical affair; they are now orchestrations of intricate electronic signals and powerful hydraulic forces, all working in concert to deliver an almost telepathic response to the driver's demands. Understanding how these sophisticated systems operate reveals a fascinating synergy between traditional mechanics and advanced digital control.

At its core, a mechatronic engine, or more accurately, a transmission system controlled by a mechatronic unit, represents a pinnacle of interdisciplinary engineering. The term 'mechatronics' itself is a portmanteau of 'mechanics' and 'electronics', underscoring the fusion of these two fields, often complemented by computing and control engineering. In the context of an automatic gearbox, the mechatronic unit is the sophisticated brain and brawn that translates the driver's intentions and the engine's needs into precise, real-time gear selections. It's the silent maestro behind the seamless acceleration and refined cruising experienced in many of today's vehicles.

The Engine Control Unit (ECU): The Maestro's Command Centre

The journey of a gear change initiated by a mechatronic unit begins not within the unit itself, but with the Engine Control Unit (ECU). The ECU acts as the central nervous system of the vehicle, constantly monitoring a vast array of parameters from numerous sensors spread throughout the car. These sensors collect vital data points such as:

• Engine Speed (RPM): Crucial for determining optimal shift points.
• Vehicle Speed: Provides context for acceleration and deceleration.
• Throttle Position: Indicates driver demand – whether gentle cruising or spirited acceleration.
• Brake Pedal Input: Signals deceleration and potential need for downshifting.
• Steering Angle: Can influence gear selection, especially in performance driving or cornering.
• Load on Engine: Measured by various sensors, indicating how hard the engine is working.
• Transmission Input/Output Speeds: Essential for smooth clutch engagement and disengagement.
• Temperature Readings: Of engine, transmission fluid, and ambient air.

Based on this continuous stream of data, the ECU performs complex calculations, determining the most appropriate gear for the current driving conditions and the driver's intent. It then sends precise electronic signals – digital commands – to the mechatronic unit, instructing it on the desired gear change.

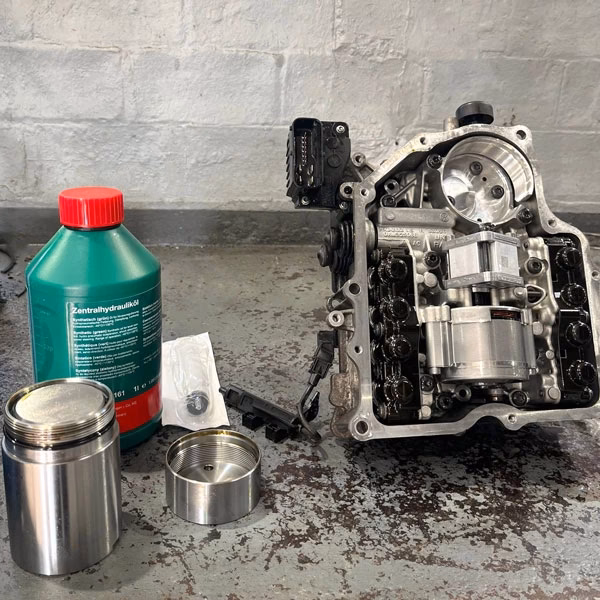

The Mechatronic Unit: Translating Signals into Action

Upon receiving these electronic commands from the ECU, the mechatronic unit springs into action. This compact, highly integrated assembly typically resides within the transmission housing itself, often immersed in the transmission fluid. Its primary function is to interpret the ECU's digital signals and convert them into precise mechanical actions, specifically the engagement and disengagement of gears.

The core components within a mechatronic unit that facilitate this sophisticated translation include:

• Its Own Electronic Control Unit: This is distinct from the main engine ECU. It's a dedicated microprocessor within the mechatronic unit that processes the incoming signals, manages internal sensors (like pressure and temperature within the transmission), and controls the hydraulic actuators.
• Solenoid Valves: These are electro-hydraulic actuators. When the mechatronic ECU sends an electrical signal to a specific solenoid, it opens or closes, directing the flow of hydraulic fluid. There can be numerous solenoids, each controlling a specific function, such as clutch pressure, gear fork movement, or lubrication.
• Hydraulic Pump: This unit, often driven by the transmission's input shaft, generates the necessary hydraulic pressure by circulating transmission fluid. This high-pressure fluid is the 'power' behind the gear changes.
• Valve Body: A complex maze of channels and passages through which the hydraulic fluid flows, precisely directed by the solenoid valves to various parts of the transmission.
• Actuators: These are the pistons or plungers that are moved by the hydraulic pressure to physically engage or disengage clutches and shift forks, thereby selecting the appropriate gear within the gearbox.

The process is incredibly precise. The mechatronic unit doesn't just open a valve; it modulates the hydraulic pressure with extreme accuracy, allowing for perfectly smooth clutch engagement and disengagement, minimising shudder or harshness during shifts. This level of control is paramount for both driving comfort and the longevity of the transmission components.

The Magic of Anticipation: Preparing for the Next Move

One of the most remarkable features of modern mechatronic systems, particularly those found in Dual Clutch Transmissions (DCTs), is their ability to anticipate and prepare the next likely gear. This is where the 'eye-watering speeds' of gear changes come from. How do they achieve this?

The mechatronic unit, in conjunction with the main ECU, employs sophisticated algorithms that analyse driving patterns and conditions. For example:

• If you are accelerating hard in third gear, the system will likely pre-select fourth gear on the second clutch (in a DCT setup). When the shift is commanded, it's merely a rapid swap between engaged clutches, rather than a full disengagement, selection, and re-engagement process.
• If you lift off the throttle quickly, indicating deceleration or a turn, the system might prepare a lower gear, anticipating the need for engine braking or quicker acceleration out of a corner.
• It considers vehicle speed, engine RPM, throttle input, and even road gradient sensors to predict the most probable next gear.

This pre-selection means that when a gear change is actually required, the next gear is already 'waiting in the wings', making the shift almost instantaneous and incredibly seamless. This predictive capability contributes significantly to both performance and fuel efficiency, as the engine can consistently operate within its optimal power band.

Benefits of Mechatronic Transmissions

The integration of mechatronic units has brought about a paradigm shift in automotive performance and efficiency:

• Slick Gear Changes: The precision of hydraulic control combined with electronic anticipation results in shifts that are incredibly smooth and often imperceptible to the driver.
• Enhanced Performance: The ability to shift gears at lightning speeds, especially in performance-oriented vehicles, allows for continuous power delivery and faster acceleration times. There's minimal interruption in torque.
• Improved Fuel Efficiency: By precisely selecting the optimal gear for any given condition, the engine can operate at its most efficient RPM, leading to significant fuel savings compared to older automatic transmissions.
• Greater Driver Comfort: The absence of shift shock and the smooth power delivery reduce fatigue and enhance the overall driving experience.
• Adaptability: Modern mechatronic systems often offer different driving modes (e.g., Eco, Comfort, Sport), allowing the transmission to adapt its shifting characteristics to suit the driver's preference or specific driving conditions.

Challenges and Maintenance

While mechatronic units offer unparalleled performance, their complexity also introduces certain considerations. They are intricate systems with numerous electronic components, delicate solenoids, and fine hydraulic passages. Therefore, they can be costly to repair if faults develop. Common issues might include:

• Solenoid Failure: Electrical faults or blockages can prevent proper hydraulic control.
• Sensor Malfunctions: Incorrect readings can lead to erratic shifting.
• Internal Control Unit Failure: The electronic brain of the mechatronic unit can fail.
• Fluid Contamination: Old or contaminated transmission fluid can clog passages and damage sensitive components.

This highlights the critical importance of regular and correct transmission fluid changes, often with specific types of fluid recommended by the manufacturer. The fluid not only lubricates but also acts as the hydraulic medium, and its quality directly impacts the unit's performance and longevity.

Mechatronic vs. Other Transmissions: A Comparison

To truly appreciate the advancements of mechatronic systems, it's helpful to compare them with other common transmission types:

Frequently Asked Questions (FAQs)

Is a mechatronic unit the same as a Dual Clutch Transmission (DCT)?

Not exactly, but they are closely related. A DCT is a type of automatic transmission that uses two separate clutches for odd and even gears. A mechatronic unit is the *control system* that manages these clutches and gear changes within a DCT. So, most modern DCTs utilise a mechatronic unit as their operational brain and muscle.

Can a mechatronic unit be repaired, or does it always need replacement?

It depends on the specific fault. Some issues, like faulty solenoids or sensors, can be replaced individually. However, due to the integrated nature and complexity, often if the internal control unit or major hydraulic pathways are damaged, a full mechatronic unit replacement is the more common and often more reliable solution, albeit costly.

How long do mechatronic units typically last?

With proper maintenance, especially regular transmission fluid changes using the correct fluid type, a mechatronic unit can last the lifetime of the vehicle. However, like any complex electronic and mechanical component, failures can occur, sometimes due to manufacturing defects or extreme operating conditions. Lifespan can vary significantly between manufacturers and models.

What are the signs of a failing mechatronic unit?

Common symptoms include:
- Harsh or jerky gear changes.
- Delayed engagement of gears (e.g., a lag when shifting from P to D).
- Transmission slipping out of gear.
- Warning lights on the dashboard (e.g., 'Check Engine' or specific transmission warnings).
- Unusual noises from the transmission.
- Complete loss of drive.

Why is transmission fluid so important for mechatronic units?

Transmission fluid in a mechatronic system serves multiple critical roles: it lubricates components, cools the transmission, and acts as the hydraulic medium that powers the gear changes. If the fluid is old, contaminated, or low, it can lead to overheating, poor lubrication, and most critically, inadequate or improper hydraulic pressure, causing erratic shifts and ultimately damaging the delicate components of the mechatronic unit and the transmission itself.

In conclusion, the mechatronic unit represents a remarkable leap forward in automotive technology. By seamlessly blending electronics with hydraulics, it has transformed the way vehicles shift gears, delivering unprecedented levels of speed, precision, and efficiency. While complex, its benefits in terms of driving dynamics and fuel economy are undeniable, cementing its place as a cornerstone of modern vehicle performance. As automotive technology continues to advance, we can expect these sophisticated systems to become even more refined, further blurring the lines between man and machine on the open road.
