Mountain Bike Brake Pads: Your Stopping Power Guide

When you're tearing down a challenging trail on your mountain bike, the ability to stop quickly and confidently isn't just a luxury; it's an absolute necessity. The unsung heroes of this critical function are your brake pads. These small but mighty components are all that stand between you and an uncontrolled descent, gripping your wheels or rotors to bring you to a smooth, controlled halt. But with a myriad of options available, understanding which brake pads your mountain bike uses, and more importantly, which ones it *should* use, can be a bit of a labyrinth. Let's demystify the world of mountain bike brake pads, ensuring you have the knowledge to make informed choices for optimal performance and safety on every ride.

Understanding Your Mountain Bike's Braking System

Before diving into the specifics of brake pads, it's vital to identify the type of braking system your mountain bike employs. Broadly speaking, mountain bikes primarily use two types: rim brakes or disc brakes. Each system demands a specific type of pad, and interchanging them is simply not an option.

Rim Brake Pads for Mountain Bikes

While disc brakes have become the dominant force in modern mountain biking, many entry-level or older models still rely on rim brakes, most commonly V-brakes or cantilever systems. These systems work by having pads clamp directly onto the rim of your wheel.

For mountain bikes equipped with rim brakes, the key differentiator is often the size of the pad. Unlike road bikes, which typically use shorter pads for a more aerodynamic profile, mountain bikes generally employ long pads. This increased surface area is not just for show; it provides greater stopping power and improved modulation, which is crucial when navigating varied terrain and unpredictable conditions. The longer pad distributes braking force over a larger area, helping to reduce wear on both the pad and the rim, and offering more consistent performance.

When selecting rim brake pads, ensure they are compatible with your specific brake calliper. Whether you have a cantilever or V-brake system, the fitting mechanism for the pad will differ. Compounds for rim brake pads typically range from standard rubber to dual-compound options, which aim to offer a balance of wet-weather performance and dry grip. Good quality rim pads will have channels or sipes designed to shed water and mud, maintaining performance even in mucky conditions.

The World of Disc Brake Pads for Mountain Bikes

Disc brakes are the current standard for most mountain bikes, offering superior stopping power, consistency in all weather conditions, and better modulation than their rim brake counterparts. However, with disc brakes comes a whole new level of pad specificity, primarily concerning the pad's compound.

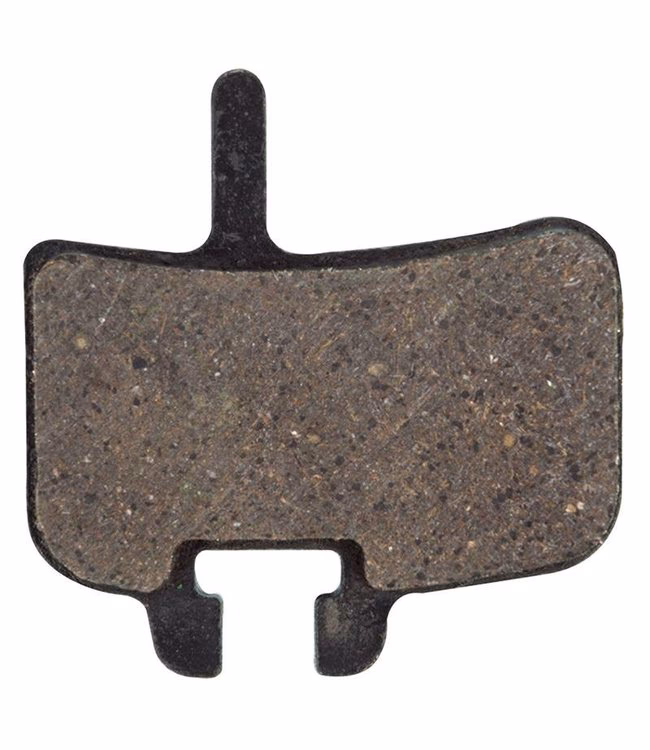

Disc brake pads consist of a friction material bonded to a backing plate. The friction material is what dictates the pad's performance characteristics, and there are three main types you'll encounter:

1. Organic (Resin) Pads

Often referred to as resin pads, organic pads are made from a blend of fibres, resins, and other organic materials. They are typically softer than metallic pads and offer a distinct set of advantages and disadvantages:

• Pros: Excellent initial bite, meaning they provide strong stopping power right from the start of the lever pull. They are generally quieter than metallic pads, producing less squeal, and are kinder to rotors, causing less wear. They also offer good modulation, allowing for fine control over braking force.
• Cons: Organic pads tend to wear down faster, especially in wet or muddy conditions, as the softer material can be abraded more easily. They are also less resistant to heat build-up, which can lead to brake fade on long, steep descents. Their performance can diminish significantly in adverse weather.
• Best Use: Ideal for cross-country (XC) riding, light trail use, or riders who prioritise quiet operation and a strong initial bite in dry conditions.

2. Metallic (Sintered) Pads

Also known as sintered pads, metallic pads are crafted from metallic particles fused together under high heat and pressure. They are much harder and more durable than organic pads, designed for demanding conditions:

• Pros: Exceptional durability and longevity, making them a cost-effective choice in the long run. They perform exceptionally well in wet, muddy, and gritty conditions, maintaining consistent stopping power where organic pads might struggle. They also have superior heat resistance, reducing the likelihood of brake fade on extended descents.
• Cons: Metallic pads typically have a less aggressive initial bite, requiring more lever force for the same stopping power compared to organic pads. They are notorious for being noisier, especially in damp conditions, often producing a distinctive squeal. They also cause more wear on rotors due to their harder composition.
• Best Use: The go-to choice for downhill, enduro, and aggressive trail riding, as well as for riders who frequently ride in wet or adverse weather conditions.

3. Semi-Metallic Pads

As the name suggests, semi-metallic pads aim to strike a balance between the characteristics of organic and metallic pads. They incorporate a blend of metallic particles with organic materials, attempting to offer the best of both worlds:

• Pros: Offer a good compromise between initial bite and durability. They generally perform better in varying weather conditions than organic pads and are less prone to noise than full metallic pads. They also provide decent heat resistance.
• Cons: While they aim for balance, they rarely excel in any single area. They might not have the ultimate stopping power of metallic pads in extreme conditions nor the quietness of organic pads.
• Best Use: A versatile option for general trail riding, commuting, or riders looking for a good all-around performance without committing fully to the characteristics of organic or metallic pads.

Backing Plate Materials

While the friction material is paramount, the backing plate material also plays a role. Common materials include:

• Steel: The most common and economical option. Offers good durability.
• Aluminium: Lighter than steel and provides better heat dissipation, but more expensive.
• Titanium: The lightest and best for heat dissipation, but also the most expensive. Often found on high-end pads.

Choosing the Right Pad for Your Ride

Selecting the ideal brake pad isn't a one-size-fits-all scenario. It depends heavily on your riding style, the terrain you frequent, and the typical weather conditions you encounter. Consider these factors:

• Riding Style: Aggressive downhill or enduro riders will benefit from the durability and heat resistance of metallic pads. Cross-country or casual trail riders might prefer the initial bite and quietness of organic pads.
• Terrain: If you often ride in muddy, wet, or gritty conditions, metallic pads will offer more consistent performance. Dry, dusty trails might allow organic pads to shine.
• Weather: For all-weather riding, particularly in the UK's often damp climate, metallic or semi-metallic pads provide greater reliability.
• Noise Tolerance: If brake squeal is a major pet peeve, organic pads are generally the quieter choice, though proper bedding-in and clean rotors can mitigate noise with any pad type.
• Budget: Organic pads are often cheaper upfront, but metallic pads can be more cost-effective in the long run due to their increased lifespan.

Comparative Table: Disc Brake Pad Compounds

Here's a quick comparison to help you weigh your options:

Installation and Bedding-In Your New Pads

Once you've selected your fresh brake pads, proper installation and bedding-in are crucial for optimal performance and safety. While the exact steps vary slightly between brake manufacturers, the general process for disc brake pads involves:

1. Remove the Wheel: For easier access to the calliper.
2. Remove the Old Pads: This usually involves removing a retaining pin or bolt, then carefully prying the old pads out.
3. Clean the Calliper: Use a clean cloth and isopropyl alcohol to clean any residue, but avoid getting oil or grease on the calliper or rotor.
4. Reset the Pistons: Gently push the brake pistons back into the calliper body. A plastic tyre lever or specific piston press tool can be used. Be careful not to damage the pistons.
5. Install New Pads: Insert the new pads, ensuring the friction material faces inwards towards the rotor. Reinstall the retaining pin or bolt.
6. Reinstall Wheel: Make sure it's properly seated in the dropouts.
7. Check Alignment: Spin the wheel and check for any rubbing. Adjust the calliper if necessary.

For rim brake pads, the process is similar: remove the old pads by unscrewing the retaining bolt, clean the rim, install the new pads, and ensure they are aligned correctly with the rim's braking surface, typically with a slight toe-in. This means the front of the pad touches the rim slightly before the rear, which helps prevent squeal.

The Importance of Bedding-In

Regardless of whether you're using rim or disc brakes, bedding-in new pads is a non-negotiable step. This process transfers a thin, even layer of pad material onto the braking surface (rim or rotor), which is essential for consistent, powerful, and quiet braking. Skipping this step can lead to poor performance, excessive noise, and premature wear.

For disc brakes, the bedding-in process typically involves a series of moderate and then harder stops. Find a safe, flat area where you can accelerate to a moderate speed (around 15-20 mph) and then brake firmly but not to a complete stop, letting the brakes drag for a few seconds. Repeat this around 10-20 times, gradually increasing the braking force. Avoid locking up the wheels during this process. You should feel the braking power increase as the pads bed in. Once complete, allow the brakes to cool down.

When to Replace Your Brake Pads

Knowing when to replace your brake pads is as important as choosing the right ones. Riding on worn-out pads compromises safety and can lead to damage to your rims or rotors.

• Rim Brake Pads: Most rim brake pads have wear indicator lines or grooves. Once these are no longer visible, it's time for a replacement. Also, check for hardened or glazed surfaces, or if the pad material is crumbling.
• Disc Brake Pads: The general rule of thumb is to replace disc brake pads when the friction material is less than 0.5mm thick. Many pads also have small wear indicators. If you notice a significant drop in braking power, increased lever pull, or a grinding noise (which could indicate the backing plate is contacting the rotor), inspect your pads immediately.

Regularly inspecting your brake pads is a simple but vital part of bike maintenance. A quick visual check before each ride can help you spot potential issues before they become serious.

Frequently Asked Questions (FAQs)

Q: Can I mix and match different brands of brake pads and rotors?

A: While technically possible, it's generally recommended to stick to pads and rotors from the same manufacturer or at least ensure compatibility. Different brands may use varying material compositions that could affect performance, wear, and noise. Always check the manufacturer's recommendations.

Q: Why are my disc brakes squealing so much?

A: Brake squeal can be caused by several factors: improper bedding-in, contaminated pads or rotors (e.g., oil, grease), worn-out pads, misaligned callipers, or the choice of pad compound (metallic pads are prone to more noise). Try re-bedding them, cleaning rotors and pads with isopropyl alcohol, or checking alignment. If it persists, consider changing pad compound.

Q: How do I know if my brake pads are contaminated?

A: Contaminated pads often exhibit reduced stopping power, inconsistent braking, and excessive squealing or grinding noises that don't go away after bedding-in. If you suspect contamination, the best course of action is often to replace the pads and thoroughly clean the rotors.

Q: Is it okay to use road bike brake pads on my mountain bike (rim brakes)?

A: No, it's not recommended. Road bike rim brake pads are typically shorter and designed for different leverage ratios and braking forces. Mountain bikes require long pads for better stopping power, modulation, and durability on challenging terrain. Always use pads specifically designed for mountain bike rim brakes.

Q: How long do mountain bike brake pads typically last?

A: The lifespan varies greatly depending on the pad compound, riding style, terrain, weather conditions, and rider weight. Organic pads might last a few hundred miles, while metallic pads can last well over a thousand. Aggressive riding in wet, muddy conditions will significantly reduce lifespan for all pad types.

Q: Do I need special tools to change brake pads?

A: For disc brake pads, you'll typically need a small Allen key or Torx wrench for the retaining pin, and possibly a piston press tool (or a plastic tyre lever) to push the pistons back. For rim brake pads, a standard Allen key or spanner is usually sufficient. A clean rag and isopropyl alcohol are always handy.

Conclusion

Choosing the right brake pads for your mountain bike is a fundamental aspect of bike maintenance that directly impacts your safety, control, and overall riding experience. Whether you're running rim brakes and relying on those crucial long pads, or navigating the nuanced world of disc brake compounds, understanding the characteristics of organic, metallic, and semi-metallic options empowers you to make the best decision for your specific needs. Remember to always match the pad to your braking system, ensure proper installation, and never underestimate the importance of bedding-in your new pads. Regular inspection and timely replacement will keep your stopping power sharp, allowing you to confidently tackle any trail the UK has to offer.
