Wheel Bearing Adjustment: A Comprehensive Guide

Understanding Wheel Bearing Adjustment

Maintaining the proper adjustment of wheel bearings is a critical aspect of truck maintenance, directly impacting safety, performance, and the longevity of your vehicle's components. For Class 6, 7, and 8 trucks, this procedure is particularly vital, especially when dealing with steer, drive, and trailer axle assemblies that utilise conventional double nut or single nut systems. The primary objective of a correct wheel bearing adjustment is to achieve a verifiable wheel bearing end play within a precise range: 0.001 inches to 0.005 inches (or 0.025 mm to 0.127 mm). This seemingly small tolerance is crucial for ensuring that the wheel rotates smoothly without excessive play or binding, which can lead to premature wear, reduced fuel efficiency, and potentially catastrophic failures on the road.

This guide will delve into the intricacies of the wheel bearing adjustment procedure, explaining what verifiable wheel bearing end play means, why it's important, and how to achieve it. We will cover the steps involved, the tools you'll need, and common pitfalls to avoid. Whether you're a seasoned mechanic or a fleet owner aiming to keep your trucks in peak condition, understanding this procedure is paramount.

What is Verifiable Wheel Bearing End Play?

Verifiable wheel bearing end play refers to the slight, controlled amount of axial (in-and-out) movement that is intentionally left in a wheel bearing assembly after it has been properly adjusted. It's not about having a loose bearing; rather, it's a carefully measured gap that allows for thermal expansion and contraction of the components due to temperature changes during operation. Without this small amount of play, the bearing could bind up when it heats up, leading to excessive friction and rapid wear. Conversely, too much end play means the bearing is not properly seated, leading to wobbling, vibration, and potential damage to the spindle, hub, and bearing races.

The target range of 0.001" to 0.005" is considered optimal for heavy-duty trucks. This range ensures that the bearing is snug enough to prevent excessive movement but loose enough to accommodate thermal expansion. Achieving this precise tolerance is what makes the adjustment "verifiable." It implies that the adjustment has been measured and confirmed using appropriate tools, rather than being estimated.

Why is Proper Wheel Bearing Adjustment Crucial?

The consequences of improperly adjusted wheel bearings can be severe:

• Safety: Excessive play can lead to erratic steering, braking issues, and in extreme cases, the wheel could detach from the axle.
• Component Wear: Too much play causes premature wear on the bearings, races, spindle, and hub. Too little play can cause the bearings to overheat and fail prematurely.
• Fuel Efficiency: Overly tight bearings create significant drag, increasing fuel consumption.
• Tyre Wear: Improperly seated wheels can lead to uneven tyre wear.
• Noise and Vibration: Loose or binding bearings often manifest as humming, grinding, or knocking noises, along with noticeable vibrations.

The Wheel Bearing Adjustment Procedure: Step-by-Step

The exact procedure can vary slightly depending on the specific axle and bearing system (e.g., single nut vs. double nut), but the fundamental principles remain the same. We will outline a general procedure applicable to many Class 6, 7, and 8 trucks.

Tools and Equipment Required:

• Torque wrench (calibrated)
• Feeler gauges or dial indicator with magnetic base
• Pry bar or suitable lever
• Socket set appropriate for axle nuts
• Wheel chocks
• Safety glasses and gloves
• Appropriate lubricant (e.g., grease)

Procedure for Double Nut Systems:

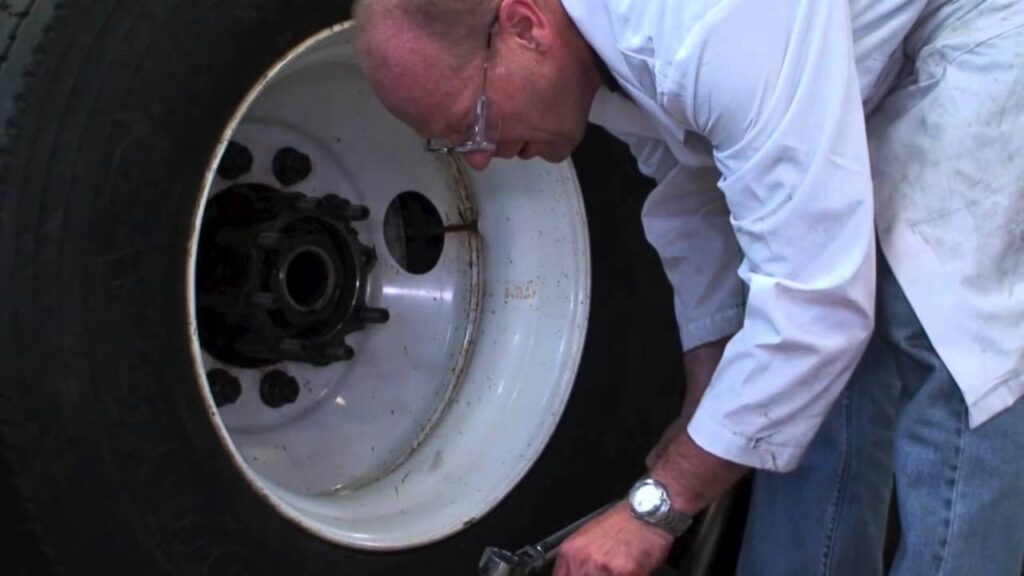

1. Preparation: Ensure the vehicle is safely supported on jack stands, with the wheels to be adjusted free to rotate. Engage the parking brake and place wheel chocks securely. Clean the hub and spindle area thoroughly to remove any dirt or debris that could interfere with the adjustment or contaminate the bearings.
2. Initial Torque: Using the appropriate socket and a calibrated torque wrench, tighten the inner adjusting nut (the one closest to the spindle shoulder) to a high initial torque. A common specification for this initial tightening is around 200-300 ft-lbs (271-407 Nm). This ensures that the bearings are properly seated against the spindle shoulder and the inner races are firmly seated.
3. Back Off: Now, back off the adjusting nut until it is loose.
4. Bearing Seating: Re-tighten the adjusting nut to a specific, lower torque. This torque specification is critical and will vary by manufacturer, but a common range is 50-75 ft-lbs (68-102 Nm). This step seats the bearings without overtightening.
5. Measure End Play: This is where verifiable measurement comes in. There are two primary methods:
   • With a Dial Indicator: Mount a dial indicator securely to the spindle or brake drum, with its probe resting against the end of the hub or axle shaft. Gently grasp the tyre or hub assembly and move it in and out (axially). Observe the reading on the dial indicator. The total movement should be between 0.001" and 0.005".
   • With a Pry Bar and Feeler Gauge: Place a pry bar under the tyre, applying slight upward pressure to take up any slack. Insert a feeler gauge between the outer bearing cone and the spindle shoulder. The goal is to find the thickest feeler gauge that can be inserted without feeling resistance, which represents the end play. This method is less precise than a dial indicator but can be used if the latter is unavailable.
6. Adjust as Needed:
   • If End Play is Too Much: Tighten the adjusting nut slightly (usually in small increments, e.g., 1/8th of a turn) and re-measure. Repeat until the desired end play is achieved.
   • If End Play is Too Little (or Binding): If the bearing feels tight or the end play is outside the acceptable range, you may need to back off the adjusting nut. In some procedures, you might need to loosen it completely and restart the process to ensure proper seating.
7. Install the Outer Lock Nut: Once the correct end play is achieved, install the outer lock nut. For double nut systems, this nut is designed to hold the adjusting nut in place. Tighten the lock nut against the adjusting nut to a specified torque (again, consult your manual). This torque is usually lower than the initial seating torque, perhaps around 30-50 ft-lbs (41-68 Nm). Ensure the adjusting nut does not rotate while tightening the lock nut.
8. Final Verification: After installing the lock nut, re-check the end play to ensure it has not changed during the lock nut tightening.
9. Lubrication: Before reinstalling the hub cap or dust cover, ensure the bearings are adequately lubricated with the manufacturer-specified grease.
10. Repeat for Other Wheels: Repeat the entire procedure for all other wheels requiring adjustment.

Procedure for Single Nut Systems (e.g., Spin-On Hubs):

Single nut systems, often found in more modern heavy-duty applications, simplify the adjustment process. The principle of achieving the correct end play remains the same, but the mechanism is different.

1. Preparation: Similar to the double nut system, ensure the vehicle is safely supported and the wheel is free to rotate. Cleanliness is paramount.
2. Initial Tightening: Tighten the single castle nut to a high initial torque (consult manufacturer specifications, often similar to the initial torque in double nut systems).
3. Back Off: Back the nut off to the specified position. This might involve backing it off a certain number of flats (e.g., one flat or one full turn) or until a specific hole in the spindle aligns with a slot in the nut.
4. Install Locking Device: Insert the appropriate locking pin or clip through the spindle and the nut to secure it in place.
5. Measure End Play: Use a dial indicator or the pry bar/feeler gauge method as described above to verify the end play is within the 0.001" to 0.005" range.
6. Adjust as Needed: If the end play is incorrect, you will typically need to loosen or tighten the single nut slightly (often by rotating the nut to the next available slot or adjusting the backing-off amount) and reinstall the locking device. This might require trying a few positions to achieve the correct end play.
7. Lubrication: Lubricate the bearings as per manufacturer recommendations.
8. Reassembly: Reinstall the hub cap or dust cover.

Common Mistakes and How to Avoid Them

Even with a clear procedure, mistakes can happen. Being aware of these common errors can help ensure a successful adjustment:

• Using Uncalibrated Torque Wrenches: An inaccurate torque wrench can lead to overtightening or undertightening, both of which are detrimental. Ensure your torque wrenches are regularly calibrated.
• Ignoring Manufacturer Specifications: Torque values and back-off procedures are specific to each axle manufacturer. Always refer to the official service manual for your truck's axle.
• Contamination: Introducing dirt or grit into the bearings during the adjustment process can cause immediate damage. Keep everything clean.
• Improper Seating: Not torquing the inner nut sufficiently initially can result in bearings that are not properly seated, leading to inaccurate end play measurements and premature failure.
• Over-reliance on Feel: While experience helps, relying solely on "feel" for adjustment is risky. Always use a dial indicator or feeler gauge for verifiable measurements.
• Forgetting the Lock Nut/Device: The lock nut or pin is essential for maintaining the adjustment. Ensure it is correctly installed and secured.
• Incorrect Lubrication: Using the wrong type of lubricant or an insufficient amount can compromise bearing life.

Table: Double Nut vs. Single Nut Adjustment Overview

Frequently Asked Questions (FAQs)

Q1: How often should wheel bearings be checked and adjusted?
It's recommended to check wheel bearing adjustment as part of routine preventative maintenance, typically during brake inspections or at prescribed mileage intervals (e.g., every 10,000-20,000 miles), or if any symptoms like noise or vibration are noticed.

Q2: Can I adjust wheel bearings with the wheel on the ground?
No, the wheel must be lifted off the ground and free to rotate to accurately measure end play and perform the adjustment. Always use jack stands for safety.

Q3: What happens if I overtighten the wheel bearings?
Overtightening will cause the bearings to bind, leading to rapid overheating, premature wear, and eventual failure of the bearings, races, and potentially the spindle. It also increases drag and reduces fuel economy.

Q4: What happens if I undertighten the wheel bearings?
Undertightening results in excessive end play. This causes the wheel to wobble, leading to vibration, uneven tyre wear, and damage to the bearings, races, and spindle due to impact and improper load distribution.

Q5: Do I need to replace the bearings if I have to adjust them?
Not necessarily. Adjustment is a routine maintenance procedure. However, if you find excessive play that cannot be corrected by adjustment, or if the bearings show signs of wear (noise, roughness, discoloration), then replacement is required.

Conclusion

The correct adjustment of wheel bearings is a fundamental, yet often overlooked, aspect of heavy-duty truck maintenance. By understanding the concept of verifiable wheel bearing end play and meticulously following the proper procedures, you can significantly enhance the safety, reliability, and efficiency of your fleet. Always prioritise using calibrated tools, adhering to manufacturer specifications, and maintaining a clean working environment. Regular checks and timely adjustments will prevent costly repairs and ensure your trucks remain on the road, performing optimally.
