Mazda CX-9 Oil Change: Your Comprehensive Guide

Performing a regular oil and filter change is arguably the most crucial routine maintenance task for your Mazda CX-9, ensuring its longevity and optimal performance. Whether you own a first-generation model (2008-2015) with the robust 3.7L V6 engine or a second-generation (2016-2021) featuring the efficient Skyactiv-G 2.5L turbocharged engine, understanding the correct procedure and compatible components is paramount. This comprehensive guide, crafted with a UK audience in mind, will walk you through everything you need to know to confidently change your Mazda CX-9's engine oil and filter right from your driveway or garage.

Understanding Your Mazda CX-9's Engine and Oil Requirements

The Mazda CX-9 has seen significant changes across its generations, particularly concerning its powertrain. Knowing which engine powers your SUV is the first step in selecting the correct oil and filter, and understanding the proper maintenance procedure.

First Generation: 2008-2015 Mazda CX-9 (MZI V6 / Duratec 37 3.7L Engine)

These earlier models are equipped with a potent 3.7-litre V6 engine, shared with other Ford and Mazda vehicles. This engine requires a specific type of engine oil and filter to maintain its performance and reliability.

• Recommended Oil Type: SAE 5W-20
• Oil Capacity (with filter change): Approximately 5.5 US quarts (equivalent to 5.2 litres or 4.6 Imperial quarts)

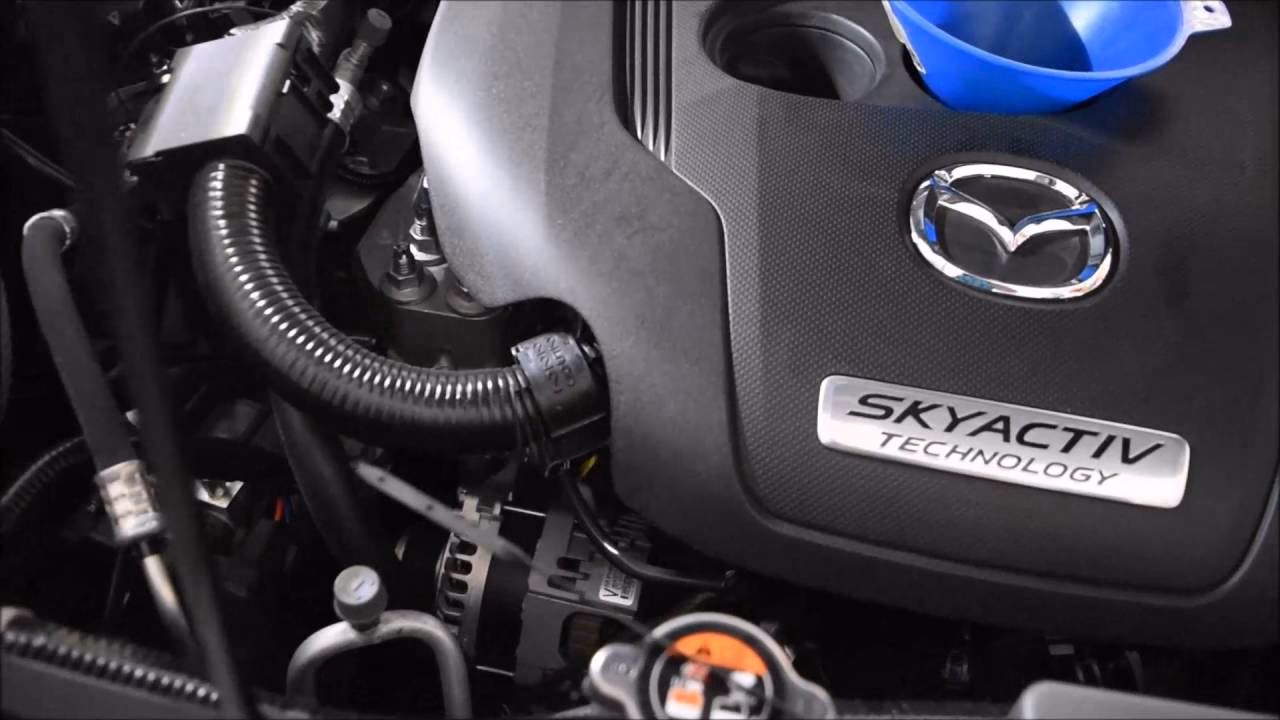

Second Generation: 2016-2021 Mazda CX-9 (Skyactiv-G Turbo 2.5L I4 Engine)

The later generation CX-9s feature Mazda's Skyactiv-G turbocharged 2.5-litre inline four-cylinder engine, which prioritises efficiency and responsiveness. This engine has different oil and filter requirements compared to its predecessor.

• Recommended Oil Type: SAE 5W-30 (always check your owner's manual for confirmation, especially for specific climates)
• Oil Capacity (with filter change): Approximately 5.1 US quarts (equivalent to 4.8 litres)

Compatible Oil Filters for Your Mazda CX-9

Selecting the correct oil filter is just as vital as choosing the right oil. A quality filter ensures that contaminants are effectively removed from your engine oil, protecting critical engine components from wear and tear. Here's a breakdown of compatible oil filters for both generations, including their common part numbers:

While several brands offer compatible filters, it's always advisable to choose a reputable brand to ensure proper filtration and fitment. The Motorcraft FL400S filter, for instance, has received excellent reviews for the first-generation CX-9.

Essential Tools and Materials for an Oil Change

Before you begin, gather all the necessary tools and parts. Being prepared will make the process smoother and safer.

Common Items for Both Generations:

• New engine oil (specific to your model)
• New oil filter (specific to your model)
• Used oil catch container (at least 5-quart capacity)
• Automotive funnel
• Floor jack and two jack stands (or vehicle ramps)
• Clean rag or paper towels
• Wheel chocks (for safety)

Specific Tools for 2008-2015 CX-9 (3.7L V6):

• 15mm socket or spanner
• Ratchet wrench (for socket)
• Oil filter wrench (e.g., Lisle 63600 – optional, but highly recommended for stubborn filters)

Specific Tools for 2016-2021 CX-9 (2.5L Turbo):

• 8mm socket with 1/4" drive ratchet
• Flat head screwdriver (or pop rivet removal tool)
• 17mm socket with 3/8" drive ratchet
• Oil filter pliers or oil filter wrench (e.g., Lisle 63600)
• New crush washer for drain plug (Mazda part no. 9956-41-400, also known as 9956-41-400-PT)

Step-by-Step Oil and Filter Change Guide

Safety is paramount when working under your vehicle. Always use jack stands or ramps, and ensure the vehicle is stable before proceeding. Never rely solely on a floor jack.

General Preparatory Steps (Applicable to All Models):

1. Warm Up the Engine: Run your engine for a few minutes until it reaches operating temperature. This helps thin the old oil, allowing it to drain more quickly and suspend contaminants more effectively, leading to a more thorough drain.

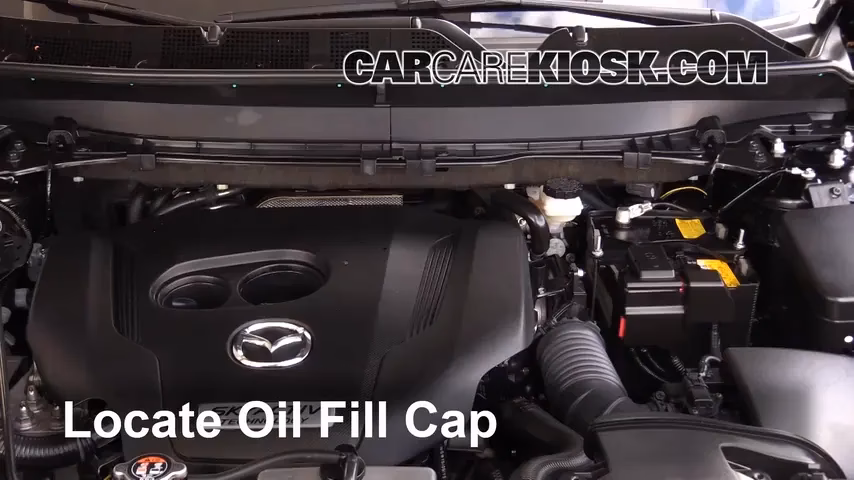

2. Switch Off and Access: Turn off the engine. Open the bonnet and locate the engine oil filler cap. For the 3.7L V6, it's on the front left; for the 2.5L Turbo, it's typically on top. Remove the cap by turning it anti-clockwise. For the 2.5L Turbo, also partially lift the dipstick an inch or two to prevent a vacuum during draining. Set the cap aside in a safe place.
3. Secure the Vehicle: Engage the handbrake. Place wheel chocks behind the rear tyres to prevent any movement.
4. Raise the Vehicle: Using a floor jack, carefully raise the front (or passenger side for 3.7L V6) of your CX-9. Once at a suitable height, securely support the vehicle with two jack stands. Ensure the vehicle is stable before proceeding underneath.

Oil and Filter Change for 2008-2015 Mazda CX-9 (3.7L V6):

This procedure is specific to the first-generation models.

5. Locate Drain Plug and Filter: Slide beneath the passenger side of the engine. Locate the grey oil pan and the silver oil drain bolt. The top of the oil drain bolt points towards the rear of the vehicle and is often next to an exhaust pipe. The oil filter is typically on the opposite side of the oil pan, closer to the front of the vehicle.
6. Drain Old Oil: Position your used oil catch container directly below the oil drain bolt. Carefully remove the drain bolt using a 15mm socket and ratchet wrench, turning anti-clockwise. Be extremely cautious as the oil may be hot enough to cause burns, and it contains carcinogens. Allow the old oil to drain completely for at least a few minutes until the flow significantly slows to a drip.
7. Replace Drain Bolt: Once drained, clean the drain hole area. Re-insert the oil drain bolt by hand, turning clockwise to avoid cross-threading. Tighten it using your 15mm socket to just past hand-tight, approximately 15-20 ft-lbs. Do not overtighten.
8. Remove Old Oil Filter: Move the used oil catch container forward, directly under the oil filter. Spin off the old oil filter by turning it anti-clockwise. If it's stubborn, use an oil filter wrench like the Lisle 63600. Allow the remaining oil to drain from the filter receptacle for a few minutes.
9. Prepare and Install New Oil Filter: Dip your clean pinky finger into some new SAE 5W-20 oil and lubricate the rubber O-ring on the top of the new oil filter. This crucial step helps create a better seal, prevents leaks, and makes future removal easier. Ensure the old O-ring gasket isn't still stuck to the engine block. Twist on the new oil filter by hand, turning clockwise, until it's snug. Then, tighten it an additional 1/2 to 3/4 turn past hand-tight. Never use an oil filter wrench to tighten a new filter, as this can damage it and lead to leaks.
10. Final Checks Under Vehicle: Double-check that both the oil drain bolt and the new oil filter are securely tightened.

Oil and Filter Change for 2016-2021 Mazda CX-9 (2.5L Turbo):

This procedure applies to the second-generation models with the Skyactiv-G engine.

5. Access the Oil Pan: Slide under the front of the vehicle. Locate the plastic under-engine cover, often referred to as a "skid plate." You'll need to remove the oil service access cover on this plate. This typically involves removing two black metal screws (using an 8mm socket and 1/4" drive ratchet, anti-clockwise) and two black plastic pop rivets. For the rivets, use a flat head screwdriver to pry out the centre pin, then the base, or use a dedicated pop rivet removal tool. Set all fasteners and the access panel aside safely.
6. Locate Drain Plug and Filter: With the access panel removed, you'll see the black metal oil pan, the black metal oil drain bolt, and the OEM oil filter.
7. Drain Old Oil: Position your used oil catch basin directly below the oil drain bolt. Loosen the oil drain bolt by turning it anti-clockwise with a 17mm socket and a 3/8" drive ratchet. Once loose, spin out the drain bolt the last few turns by hand to prevent it from falling into the catch basin. Inspect the crush washer (gasket) on the drain bolt; if it's compressed or damaged, replace it with a new one (Mazda part no. 9956-41-400). Allow the old oil to drain thoroughly for several minutes until it slows to an occasional drip. Again, be wary of hot oil.
8. Replace Drain Bolt: Clean the oil drain hole and ensure no remnants of the old washer are stuck to the pan. Spin in the drain plug by hand, turning clockwise, to ensure it doesn't cross-thread. Tighten the drain bolt with the 17mm socket and ratchet until it is snug. The service manual torque specification is typically 23 to 30 lb-ft if you have a reliable torque wrench.
9. Remove Old Oil Filter: Move the catch basin under the oil filter, which is usually located just behind the oil pan. Twist off the old oil filter by turning it anti-clockwise. If it's overly tight, the Lisle 63600 oil filter wrench is highly effective. Allow the oil to drain from the filter and the filter receptacle for a few minutes.
10. Prepare and Install New Oil Filter: Dip your finger into some new SAE 5W-30 oil and lubricate the rubber O-ring gasket on the new oil filter. Confirm that the gasket from the old filter is not still attached to the engine block. Twist on the new oil filter clockwise until it is snug, which typically means 1/3 to 1/2 turn past finger-tight. Avoid over-tightening to prevent damaging the O-ring gasket and causing a leak.
11. Final Checks Under Vehicle & Reassembly: Double-check that both the drain bolt and the new oil filter are securely tightened. Then, slide the oil service access cover back into place. Ensure the pins in the centre of the two pop rivets are in the raised (unlocked) position, push the rivets into their holes, and then pop in the buttons to lock them. Replace the two screws, turning them clockwise with the 8mm socket until snug.

Final Steps (Applicable to All Models):

11. Lower the Vehicle: Carefully lower your Mazda CX-9 from the jack stands using your floor jack.
12. Add New Oil: Insert your automotive funnel into the oil filler hole. Pour in the specified amount of new engine oil.
    • For 3.7L V6: Start with 5 US quarts of SAE 5W-20.
    • For 2.5L Turbo: Start with approximately 4.5 to 4.75 US quarts of SAE 5W-30. (It's always better to underfill slightly and top up, rather than overfill).
13. Check Oil Level: Remove the funnel and replace the oil filler cap, twisting it clockwise until secure. Push the dipstick fully back into its tube. Start the engine and let it run for a few minutes to circulate the new oil. While running, briefly check for any leaks around the new filter or drain plug. Shut off the engine and let it sit for at least 5-10 minutes to allow the oil to settle.
14. Top Off Oil: Pull out the dipstick, wipe it clean with a rag, re-insert it fully, and then pull it out again to check the oil level. Slowly add the remaining oil (if needed) in small increments, repeatedly checking the dipstick, until the oil level reaches just below the 'MAX' line. Do not overfill.
15. Final Securement: Once the oil level is correct, ensure the oil filler cap is securely tightened and the dipstick is fully inserted.
16. Dispose of Old Oil: Properly dispose of your used engine oil at an authorised recycling centre. Never pour it down drains or onto the ground.

Oil Change Intervals and Monitoring

Understanding when to change your oil is crucial for engine health. Modern Mazda CX-9 models often feature sophisticated monitoring systems, but general guidelines are also important.

For 2016-2021 Mazda CX-9 (2.5L Turbo):

The recommended service interval for changing the motor oil and filter is every 7,500 miles (12,000 km) or at least once a year, whichever comes first. Many owners will rely on the "flexible maintenance interval" indicated by the oil life meter on the "maintenance monitor" system, changing the oil when the "wrench" indicator light illuminates on the gauge cluster.

Considerations for Severe Driving Conditions:

If your vehicle is operated primarily under any of the following conditions, more frequent oil and filter changes are recommended:

• Driving in consistently dusty conditions.
• Extended periods of idling or low-speed operation.
• Driving for long periods in cold temperatures or regularly at short distances only.
• Driving in extremely hot conditions.
• Frequent driving in mountainous terrain.
• Vehicle use as a police car, taxi, or driving school car.

Under these severe conditions, it's advised to replace the engine oil every 2,500 km (approx. 1,550 miles) or 3 months, and the oil filter every 5,000 km (approx. 3,100 miles) or 6 months.

Important Note: Regardless of whether the "wrench" indicator light is on, you must reset the engine oil data in your vehicle's system whenever you replace the engine oil and filter.

Frequently Asked Questions (FAQs)

Q1: Why is it important to warm up the engine before draining the oil?

Warming the engine makes the oil less viscous, allowing it to flow out more quickly and carry suspended contaminants more effectively, leading to a more thorough drain.

Q2: Can I use a different oil viscosity than recommended?

It is strongly advised to stick to the manufacturer's recommended oil viscosity (e.g., SAE 5W-20 or 5W-30). Using an incorrect viscosity can affect engine lubrication, fuel efficiency, and potentially lead to engine damage. Always consult your owner's manual.

Q3: What happens if I overfill the engine oil?

Overfilling the engine oil can lead to several problems, including sluggish performance, increased oil pressure causing damage to seals and gaskets (potentially leading to leaks), and aeration of the oil by the crankshaft, which reduces its lubricating properties. It's always better to underfill slightly and top up gradually.

Q4: Do I really need to lubricate the new oil filter's O-ring?

Yes, lubricating the rubber O-ring with a thin film of new oil is a simple but critical step. It helps the filter create a proper seal, prevents oil leaks, and makes the filter much easier to remove during your next oil change.

Q5: How do I dispose of the used engine oil?

Used engine oil is a hazardous waste and must be disposed of responsibly. Most local recycling centres, automotive parts stores, or garages will accept used oil for recycling free of charge. Never pour it down drains or onto the ground.

Q6: What is a crush washer, and why might I need to replace it?

A crush washer (or gasket) is a soft metal or fibre ring that sits between the oil drain plug and the oil pan. It's designed to deform or "crush" when the drain plug is tightened, creating a tight, leak-proof seal. Over time, or with repeated use, it loses its ability to seal effectively, making replacement necessary to prevent oil leaks from the drain plug.

Conclusion

Changing the oil and filter on your Mazda CX-9 is a rewarding and cost-effective maintenance task that any competent DIY enthusiast can accomplish. By following these detailed instructions, using the correct parts and tools, and adhering to recommended service intervals, you'll ensure your Mazda CX-9 continues to provide reliable and efficient performance for many miles to come. Remember, regular maintenance is the key to vehicle longevity and trouble-free motoring. Always prioritise safety and consult your vehicle's owner's manual for the most accurate and up-to-date specifications.
