DIY Brake Pad & Rotor Change: Mazda CX-9

Maintaining your Mazda CX-9's braking system is paramount for safety, ensuring your vehicle stops reliably and efficiently. Over time, brake pads wear down and rotors can become grooved or warped, compromising performance. Fortunately, replacing the front brake pads and rotors on your first-generation Mazda CX-9 (applicable to models from 2007 to 2017) is a manageable DIY task for the keen home mechanic. This comprehensive guide will walk you through each step, helping you restore your SUV's stopping power and providing invaluable insights into proper brake maintenance.

Understanding Your Braking System

Before diving into the replacement process, it's beneficial to understand the components involved. The braking system in your Mazda CX-9 relies on a hydraulic system to convert pedal pressure into friction at the wheels. When you press the brake pedal, fluid pressure forces the caliper to clamp the brake pads against the spinning rotor. This friction slows the wheel down. Regular inspection of these components is crucial to identify wear and tear before it becomes a safety hazard.

Essential Tools and Parts Required

Having the right tools and parts readily available will make this job much smoother and safer. Ensure you have the following before you begin:

• New front brake pads (specific for Mazda CX-9 2007-2017)
• New front brake rotors (specific for Mazda CX-9 2007-2017)
• Vehicle jack (floor jack recommended)
• Jack stands (two for the front, absolutely essential for safety)
• Wheel chocks
• Lug wrench or 19mm socket and breaker bar
• Ratchet wrench (various sizes)
• Sockets: 17mm (for caliper and bracket bolts), possibly others for retaining screws
• Torque wrench (essential for correct bolt tension)
• C-clamp or brake pad compression tool
• Flathead screwdriver
• Phillips head screwdriver
• Wire brush (for cleaning hub)
• Brake cleaner spray
• Brake caliper grease/lubricant
• Wire or strong rope (to suspend caliper)
• Penetrating oil (e.g., WD-40)
• Hammer or mallet (rubber or ball-peen)
• Clean rags or shop towels
• Safety glasses and gloves

Safety First: Preparing Your Vehicle

Safety is paramount when working under any vehicle. Always take these precautions:

1. Engage the Parking Brake: Ensure the parking brake is fully engaged and the gear shifter is in 'Park' (for automatic transmissions) or 'First Gear' (for manual).
2. Chock Rear Wheels: Place wheel chocks behind the rear wheels to prevent any unintended movement of the vehicle.
3. Access Brake Fluid Reservoir: Open the bonnet and locate the brake fluid reservoir. Carefully remove its cap. This step is crucial as it prevents a vacuum from forming when you later press the caliper piston back, allowing fluid to return to the reservoir. It also prevents fluid from overflowing when you compress the pistons.

Lifting and Securing the Vehicle

Properly lifting and supporting your CX-9 is critical to your safety.

1. Loosen Lug Nuts: Before lifting the vehicle, use your lug wrench or 19mm socket and breaker bar to slightly loosen the lug nuts on the front wheel you're working on. Turn them approximately one full turn counter-clockwise. Do not remove them completely yet. This initial loosening is easier when the wheel is on the ground and cannot spin.
2. Raise Vehicle: Position your floor jack under a strong, designated jacking point on the front frame of your Mazda CX-9. Slowly raise the vehicle until the tyre is clear of the ground.
3. Support with Jack Stands: Once the vehicle is raised, immediately place sturdy jack stands under the designated support points on the chassis, typically near the suspension arms. Lower the vehicle slowly onto the jack stands, ensuring it is stable and secure. Never rely solely on the jack to support the vehicle. As an additional safety measure, you may slide the removed wheel under the vehicle's frame as an emergency backup.
4. Remove Wheel: With the vehicle securely on jack stands, you can now fully remove the lug nuts and take off the wheel. Store it safely out of the way.

Disassembly: Removing the Old Components

Now that the wheel is off, you can access the braking components.

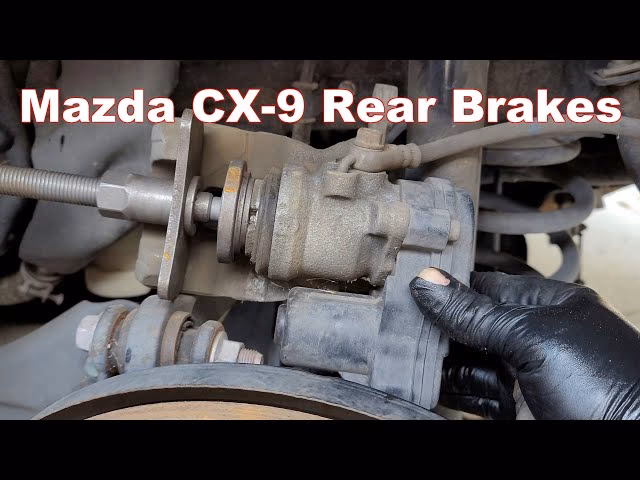

Compressing the Caliper Piston

Before removing the caliper, it's often easier to partially compress the piston. This creates space for the caliper to be removed over the old, worn pads, and prepares it for the thicker new pads later. Use a large flathead screwdriver or a pry bar to gently pry between the old brake pad and the rotor, pushing the piston back slightly. If you have a dedicated C-clamp or brake pad compression tool, you can skip this initial gentle push and use it after caliper removal.

Removing Caliper Bolts

Locate the two guide pin bolts on the back of the front brake caliper. These are typically 17mm bolts. Using your 17mm socket and ratchet wrench, loosen both the upper and lower caliper guide pin bolts. Once loosened, you may need to pull them out slightly to allow the caliper to swing freely or be lifted off. These bolts allow the caliper to slide smoothly on its pins.

Removing Brake Pads

With the guide pin bolts loosened or removed, you should be able to carefully lift the brake caliper off the pads and rotor assembly. The old brake pads will now be loose and can be pulled out from the caliper bracket. Pay close attention to the orientation of the old pads, especially if your vehicle uses wear sensors. Note where the sensor is located and how the wires are routed, as your new pads will need to be installed similarly.

Securing the Brake Caliper

This step is absolutely critical. Never let the brake caliper hang freely by its hydraulic hose. Doing so can stretch, damage, or even rupture the brake hose, leading to a dangerous brake fluid leak and potential brake failure. Use a strong wire, a bungee cord, or a piece of rope to securely tie the caliper to the suspension strut or another sturdy part of the vehicle's chassis. Ensure it is well-supported and no tension is placed on the brake line.

Removing the Brake Pad Bracket

The caliper itself is attached to a larger bracket, which is bolted to the vehicle's steering knuckle. Before you can remove the rotor, you must remove this brake pad/caliper bracket. It is typically held in place by two larger bolts, often 17mm. These bolts are usually quite tight, so you may need a breaker bar for leverage. Remove both of these bolts.

Removing the Old Rotor

The old rotor can sometimes be stubborn. First, locate and remove any small Phillips head screws that might be holding the rotor to the hub. These can often be seized and require a good, firm screwdriver or an impact driver. Once any retaining screws are out, try wiggling the rotor back and forth. If it doesn't come loose, you may need to apply some penetrating oil around the hub centre and let it soak for 10-15 minutes. A few firm, sharp taps with a hammer on the face of the rotor (avoiding the stud areas) can help break it free from rust and corrosion. Rotate the rotor and tap in different spots to work it loose. Be patient, as this can sometimes be the most challenging part of the job.

Installation: Fitting the New Parts

With the old components removed, it's time for the clean installation of your new brake pads and rotors.

Cleaning the Hub

Before installing the new rotor, it is vital to thoroughly clean the wheel hub mounting surface. Use a wire brush to remove any rust, dirt, or debris from the hub. A clean, flat surface ensures the new rotor sits perfectly flush, preventing future brake pulsation or vibration. Any debris here can cause the rotor to sit unevenly, leading to issues.

Installing the New Rotor

Carefully unbox your new rotor. Avoid touching the braking surface with your bare hands, as oils can cause hot spots and noise. It's a good idea to wipe down the new rotor with brake cleaner to remove any protective oils from manufacturing. Compare the new rotor to the old one to ensure they are the same size and type. If you have purchased slotted or drilled rotors, ensure they are oriented correctly for the direction of wheel rotation (there are usually arrows indicating this). Slide the new rotor onto the wheel studs, ensuring it sits flush against the clean hub. Reinstall any rotor retaining screws if applicable, tightening them firmly.

Installing the Brake Pad Bracket

Reattach the brake pad bracket to the steering knuckle. Insert the two large mounting bolts and tighten them securely. These are critical safety bolts. If you are using a torque wrench, torque these bolts to approximately 70 ft-lbs (foot-pounds). Proper torque prevents loosening and ensures the caliper operates correctly.

Preparing the Caliper and Pads

Before installing the new pads, take a moment to clean the caliper. Use a dry towel or rag to wipe away any dirt or old brake dust from the caliper body and pistons. A specialised brake cleaner spray can be used for more stubborn grime. Next, you must compress the caliper pistons fully to accommodate the thicker new brake pads. Use a C-clamp or a dedicated brake pad compression tool for this. Place an old brake pad or a flat piece of wood against the piston face to protect it, and slowly compress the piston(s) back into the caliper body until they are flush with the rubber dust boot. Ensure the pistons go in straight. If you find resistance, re-check that the brake fluid reservoir cap is off.

Once the pistons are fully retracted, install the new brake pads into the caliper bracket. Ensure they sit tightly and are correctly oriented. Lubricate the metal contact points of the pads (where they slide in the bracket) with a small amount of brake caliper grease. Also, apply a thin layer of brake caliper grease to the caliper guide pins (the bolts you removed earlier) to ensure smooth caliper movement.

After fitting the new brake pads, you might experience some light braking noise or squealing initially. To help prevent this, you can apply a thin layer of anti-squeal compound, such as CRC Disc Brake Quiet, to the back of the brake pads where they contact the caliper pistons. Allow it to set for a few minutes before final assembly.

Installing the Caliper

Carefully unhook the brake caliper from its temporary support. Guide the caliper over the new brake pads and onto the caliper bracket. Align the caliper with the guide pin holes and insert the lubricated guide pin bolts. Tighten both the upper and lower caliper bolts using your 17mm socket and ratchet wrench. These bolts should be firm, but check your vehicle's specific torque specifications if possible (typically around 25-30 ft-lbs for guide pins). Do not overtighten, as this can damage the guide pins or boots.

Final Steps and Post-Installation Checks

You're almost done! A few crucial steps remain to ensure your new brakes are ready for the road.

1. Refit the Wheel: Place the front wheel back onto the studs. Hand-tighten the lug nuts in a criss-cross pattern until they are snug.
2. Lower the Vehicle: Use your jack to slightly raise the vehicle, removing the jack stands. Lower the vehicle until the tyre just makes contact with the ground, putting some weight on the wheel but allowing it to rotate slightly.
3. Torque Lug Nuts: With some weight on the wheel, fully tighten the lug nuts using your lug wrench or torque wrench. Again, tighten them in a criss-cross or star pattern to ensure even pressure and prevent the wheel from warping. Consult your Mazda CX-9's owner's manual for the specific lug nut torque specification (typically around 80-100 ft-lbs).
4. Full Lowering: Once the lug nuts are torqued, fully lower the vehicle to the ground and remove the jack.
5. Restore Brake Pressure: Get into the driver's seat. Before starting the engine, pump the brake pedal slowly and firmly several times. You will feel the pedal go to the floor easily at first, then gradually firm up as the caliper pistons extend and make contact with the new pads and rotors. Continue pumping until the pedal feels firm and consistent.
6. Check Brake Fluid Level: After pumping the brakes, re-check the brake fluid reservoir. The level should have returned to normal or slightly lower than before the job. Top up with the correct DOT-rated brake fluid if necessary (check your owner's manual for the specific type). Replace the reservoir cap.

Brake Bedding-In Procedure

This is a vital step often overlooked. New brake pads and rotors need to be "bedded in" to ensure optimal performance and longevity. This process transfers a thin, even layer of pad material onto the rotor surface, which improves braking efficiency and reduces noise and vibration. Follow these general steps for bedding in:

1. Drive your Mazda CX-9 in a safe area with minimal traffic.
2. Accelerate to about 35-40 mph (approx. 55-65 km/h) and then apply moderate braking pressure (not hard emergency braking) to slow down to about 5-10 mph (approx. 8-16 km/h). Do not come to a complete stop.
3. Repeat this 8-10 times, allowing a few seconds between each stop for the brakes to cool slightly. You might notice a slight smell from the brakes, which is normal.
4. After the series of stops, drive for several minutes at a moderate speed without heavy braking to allow the brakes to cool down completely.
5. Avoid harsh braking or sudden stops for the first 100-200 miles (approx. 160-320 km) to allow the pads and rotors to fully seat.

Common Issues and Troubleshooting

• Squealing/Grinding Noise: New pads can sometimes squeal initially, which often resolves after bedding in. Ensure anti-squeal compound was used. Grinding usually indicates metal-on-metal contact, which shouldn't happen with new pads and rotors unless something is installed incorrectly or a component is faulty.
• Spongy Brake Pedal: If the pedal feels soft or goes to the floor after pumping, it could indicate air in the brake lines. This requires bleeding the brake system, which is a more advanced procedure. Ensure the caliper pistons were fully compressed and the fluid reservoir cap was off during the job.
• Vibration/Pulsation: This usually points to an uneven rotor surface or an issue with the rotor not sitting flush on the hub. Ensure the hub was thoroughly cleaned before rotor installation. Incorrect lug nut torque can also cause this.

When to Consider Brake Replacement

Beyond the typical service intervals, there are clear signs that your Mazda CX-9's brakes need attention:

• Squealing or Chirping: Many brake pads have a built-in metal wear indicator that makes a high-pitched squealing sound when the pads are low.
• Grinding Noise: A harsh grinding sound usually means your brake pads are completely worn down, and the metal backing plate is grinding against the rotor. This causes significant damage and requires immediate attention.
• Vibration or Pulsation: If you feel a pulsation through the brake pedal or steering wheel when braking, it often indicates warped brake rotors.
• Extended Stopping Distances: If your vehicle takes longer to stop than usual, your brakes may be worn.
• Visual Inspection: Regularly inspect your brake pads through the wheel spokes. If the pad material is less than 3mm thick, it's time for replacement. Rotors should be smooth; deep grooves or scoring indicate wear.

Frequently Asked Questions (FAQs)

Q1: How long does a brake pad and rotor change typically take on a Mazda CX-9?

For a first-timer, expect to spend 2-4 hours per side, perhaps longer if you encounter seized bolts or stubborn rotors. An experienced mechanic might complete it in 1-2 hours per side.

Q2: Do I need to replace both brake pads and rotors at the same time?

It is highly recommended to replace both pads and rotors together. New pads require a perfectly flat, smooth surface to bed in correctly. Installing new pads on old, worn, or warped rotors will significantly reduce the lifespan and performance of the new pads and can lead to noise and vibration issues.

Q3: Can I just replace the brake pads and not the rotors?

While technically possible if your rotors are in excellent condition (no significant wear, grooves, or warping), it is generally not advised for optimal performance and safety. Rotors also wear, and combining new pads with worn rotors can lead to poor braking performance, noise, and premature wear of the new pads.

Q4: What's the difference between ceramic and semi-metallic brake pads?

Semi-metallic pads are commonly found on many vehicles, offering good braking performance and heat dissipation. They can be noisier and produce more brake dust. Ceramic pads are quieter, produce less dust, and offer excellent performance, especially in varying temperatures. They are often a good upgrade for reduced noise and cleaner wheels, but can sometimes be more expensive.

Q5: Is it safe to drive with worn brake pads?

No, driving with worn brake pads is extremely dangerous. It significantly increases your stopping distance, puts undue stress on other braking components, and can lead to complete brake failure. Replace them as soon as wear is detected.

Q6: Do I need to bleed the brakes after replacing pads and rotors?

Typically, no. If you strictly follow the procedure of compressing the pistons and don't open any brake lines, you won't introduce air into the system. However, if the pedal feels spongy after pumping it, or if you accidentally opened a brake line, then bleeding the brakes would be necessary.

By following these detailed instructions, you can confidently replace the front brake pads and rotors on your Mazda CX-9, ensuring it remains a safe and reliable vehicle for many miles to come. Remember, attention to detail and adherence to safety procedures are key to a successful DIY brake job.
