Disengage Electric Parking Brake

The advent of the Electric Parking Brake (EPB) has brought a sleek, modern feel to vehicle interiors, eliminating the traditional handbrake lever. While offering convenience and advanced safety features, the EPB system requires a specific procedure to be followed when performing maintenance, particularly on the rear brakes. Attempting to force the rear brake pistons without properly disengaging the EPB can lead to significant and costly damage. This guide will walk you through the process of safely putting your vehicle into maintenance mode, allowing you to service your rear brakes without issue.

Why is EPB Maintenance Mode Necessary?

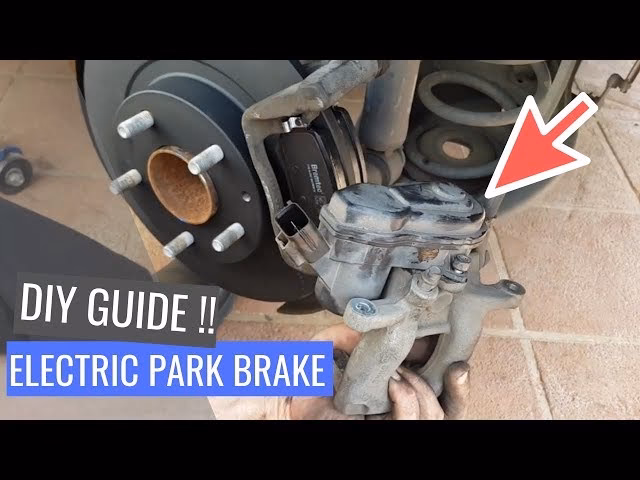

Unlike conventional brake systems where you can simply push the caliper pistons back into their housings, the EPB system uses an electric motor integrated into the rear brake calipers. This motor actuates the parking brake mechanism. When the EPB is engaged, this motor applies force to the brake pads, effectively clamping the discs. If you try to compress the pistons with the EPB engaged, you are directly fighting against this motor and the mechanical linkage it controls. This can:

• Damage the EPB motor: Overstressing the motor can cause it to burn out or seize.
• Damage the caliper: The internal components of the caliper can be compromised.
• Strip threads: The threads on the piston or the screw mechanism can be stripped.
• Cause warning lights: The system may detect an anomaly and trigger warning lights on the dashboard, potentially requiring dealer intervention to reset.

Entering maintenance mode essentially retracts the EPB piston to a safe position, allowing you to work on the rear brakes as you would on the front brakes, where pistons are typically pushed back directly.

Understanding the EPB Indicator

Before we begin, it's important to recognise the EPB indicator on your dashboard. When the EPB is engaged, you will typically see a symbol that resembles a steering wheel with an exclamation mark inside a circle, or simply an '!' symbol, often coloured red or amber. This light will illuminate when the parking brake is active. When the EPB is disengaged, this light should turn off.

Procedure to Enter EPB Maintenance Mode

The following steps are crucial for safely preparing your vehicle for rear brake maintenance. It's important to follow them precisely. This procedure assumes a common method used by many manufacturers, but always consult your vehicle's owner's manual for specific instructions, as variations can exist.

Step 1: Prepare the Vehicle

Ensure your vehicle is parked on a level surface and the engine is turned OFF. You do not need to have your foot on the brake pedal for this initial step.

Step 2: Activate Ignition

Press the vehicle's start/stop button twice without depressing the brake pedal. This action turns the ignition ON, powering up the vehicle's electrical systems and dashboard, but it will not start the engine. You should see various warning lights illuminate on the dashboard, including the EPB indicator if it was previously engaged.

Visual Cue: With the engine OFF and ignition ON, the EPB indicator light (e.g., the steering wheel with '!' symbol) will likely be illuminated, indicating the parking brake is engaged.

Step 3: Disengage EPB (Initial)

Now, depress the brake pedal. With the brake pedal held down, activate the EPB release switch (usually a button or lever on the centre console). You should hear the EPB motor disengage, and the EPB indicator light on the dashboard should turn OFF. This confirms the parking brake is currently released, but the vehicle is not yet in maintenance mode.

Step 4: Initiate Maintenance Mode

This is the critical sequence to put the EPB into its service position:

1. Fully depress and hold the accelerator pedal. Ensure it is pressed all the way to the floor.
2. Push and hold the EPB switch in the engaged position. You need to maintain pressure to activate the brake.
3. While holding both the accelerator and the engaged EPB switch, press the start/stop button three times. This rapid triple-press is key.

Expected Outcome: You should hear a distinct, prolonged whirring sound coming from the rear of the vehicle. This sound is longer and different from the usual EPB engagement sound. Crucially, after this sequence, the EPB indicator light should illuminate again, often accompanied by the 'check engine' light or a specific EPB warning light with an exclamation mark. This signifies that the EPB is now in maintenance mode and the rear brake pistons are accessible for servicing.

Step 5: Perform Brake Maintenance

With the vehicle in maintenance mode, you can now safely turn off the ignition by pressing the start/stop button once. The EPB system is now retracted, and you can proceed with replacing your rear brake pads or performing other necessary brake work. You should be able to push the caliper pistons back into their housings using a standard brake caliper piston tool without encountering resistance from the EPB motor.

Procedure to Exit EPB Maintenance Mode

Once you have completed the brake maintenance and reassembled the calipers, you need to exit maintenance mode to return the EPB to its normal operating state. This process reverses the steps taken to enter maintenance mode.

Step 1: Prepare for Exit

Ensure all brake components are correctly installed and secured. The ignition should be OFF.

Step 2: Activate Ignition

Press the start/stop button twice without depressing the brake pedal, just as you did in Step 2 of entering maintenance mode. This brings the ignition ON.

Step 3: Initiate Exit Sequence

Follow these steps precisely:

1. Fully depress and hold the accelerator pedal.
2. Pull and hold the EPB switch in the disengaged (released) position.
3. While holding both the accelerator and the disengaged EPB switch, press the start/stop button three times.

Expected Outcome: You should again hear a prolonged whirring sound from the rear EPB motors. This sound indicates the system is recalibrating and returning to its normal operational state. The EPB indicator light, along with any associated warning lights (like the check engine light or the exclamation mark warning), should now extinguish, confirming that the EPB has exited maintenance mode and is functioning correctly.

Step 4: Final Checks

After exiting maintenance mode, you can now press the brake pedal and then engage and disengage the EPB a few times using the switch. Listen for normal operation sounds and confirm that the EPB indicator light behaves as expected (illuminates when engaged, turns off when released). Once you are satisfied, you can start the engine and drive the vehicle.

Important Considerations and Troubleshooting

Owner's Manual is King: While this guide provides a widely applicable procedure, vehicle manufacturers may have specific variations. Always refer to your vehicle's owner's manual for the exact steps related to your make and model. Some vehicles might require different button press combinations or have slightly different indicators.

Battery Voltage: Ensure your vehicle's battery is in good condition and adequately charged. Low battery voltage can interfere with electronic systems and may cause the EPB procedure to fail or behave erratically.

Warning Lights Persistence: If warning lights persist after exiting maintenance mode, it may indicate an issue with the EPB system itself or that the procedure was not completed correctly. In such cases, it is advisable to have the vehicle inspected by a qualified technician.

Fuses: In some rare cases, a blown fuse related to the EPB system could prevent the procedure from working. Consult your owner's manual or a repair manual to locate and check the relevant fuses.

Specific Models: Some high-end vehicles might require diagnostic tools to put the EPB into service mode. If the above procedure does not work, research your specific vehicle model or consult a professional.

Table: EPB Maintenance Mode - Key Differences

Frequently Asked Questions (FAQs)

Q1: Can I just disconnect the battery to disable the EPB?

A: No, disconnecting the battery is not a substitute for entering maintenance mode and can lead to system errors or require a reset procedure.

Q2: What happens if I don't put the EPB into maintenance mode before changing rear pads?

A: You risk damaging the EPB motor, caliper, or internal threads, leading to expensive repairs.

Q3: How do I know if the EPB is truly disengaged for maintenance?

A: The EPB indicator light will be illuminated on the dashboard after completing the maintenance mode entry sequence.

Q4: Can I drive the car with the EPB in maintenance mode?

A: No, the vehicle should not be driven while the EPB is in maintenance mode. The parking brake will not function correctly, and the warning lights indicate a non-standard operating state.

Q5: What if the whirring sound doesn't happen?

A: Double-check that you are performing the accelerator, EPB switch, and start/stop button presses correctly and in the specified order. Ensure the ignition is ON (not OFF or ACC) and the battery is sufficiently charged.

By following this comprehensive guide, you can confidently perform maintenance on your vehicle's rear braking system, ensuring the longevity and safety of your Electric Parking Brake system.
