Mazda 5 Brake Rotor Replacement Guide

Understanding and Replacing Your Mazda 5's Front Brake Rotors

The braking system is arguably the most critical safety component on any vehicle, and for your 2010-2018 Mazda 5, maintaining its integrity is paramount. A common point of wear and potential failure in the braking system is the brake rotor, also known as the brake disc. If you've noticed symptoms like a pulsing brake pedal, grinding noises, or a noticeable decrease in stopping power, it's highly likely that your brake rotors need attention. Fortunately, with the right tools and a step-by-step approach, replacing the front brake pads and rotors on your Mazda 5 is a manageable DIY task for many home mechanics.

This guide will walk you through the process, covering what you'll need, the detailed steps involved, and some important considerations to ensure a safe and successful replacement. We'll also touch upon common issues and provide some helpful tips.

When to Consider Brake Rotor Replacement

Brake rotors are subjected to immense heat and friction every time you apply the brakes. Over time, this can lead to several issues:

• Warping: Uneven heating and cooling can cause the rotor surface to become uneven, leading to a pulsing sensation in the brake pedal.
• Cracking: Severe heat can cause hairline cracks to form on the rotor surface.
• Grooves and Scoring: Worn-out brake pads can cause the metal backing plate to grind against the rotor, creating deep grooves.
• Minimum Thickness: Rotors have a minimum thickness specification. If they wear below this, they must be replaced for safety.
• Rust and Corrosion: While surface rust is normal, significant pitting or rust build-up, especially around the edges, can compromise the rotor's integrity.

If you experience any of these symptoms, it's time to inspect your brake rotors. It's often recommended to replace brake pads and rotors at the same time, as new pads will perform optimally on a new, flat rotor surface.

What You Will Need

Before you begin, ensure you have all the necessary parts and tools readily available. This will make the process smoother and safer.

Parts:

• Mazda 5 Front Brake Pads: Ensure they are compatible with your 2010-2018 model year.
• Mazda 5 Front Rotors: Again, confirm compatibility. It's best to replace them in pairs (both left and right).
• Brake Cleaner: For cleaning components.
• High-Temperature Brake Grease: For lubricating caliper pins, pad contact points, and shims.
• Brake Caliper Lubricant: Specifically designed for rubber boots and seals.
• Anti-Seize Compound: For the wheel hub.

Tools:

• Mechanic's Tools Metric Set: Including 3/8" drive ratchet.
• Sockets: Metric sizes, commonly 10mm, 12mm, 14mm, 17mm, and 19mm.
• Wrenches: Combination wrenches in similar metric sizes.
• Screwdriver: Flathead and Phillips head.
• Pliers: Standard and needle-nose.
• Torque Wrench: Essential for tightening bolts to the correct specifications.
• Jack: A hydraulic floor jack is recommended for ease of use and stability.
• Jack Stands: Crucial for safely supporting the vehicle. Never work under a vehicle supported only by a jack.
• Lug Nut Wrench or Tire Iron: For removing lug nuts.
• Breaker Bar: May be needed for stubborn caliper bracket bolts.
• C-Clamp or Piston Compressor Tool: To retract the brake caliper piston.
• Wire Brush: For cleaning rust and debris.
• Gloves and Safety Glasses: For personal protection.

Step-by-Step Replacement Procedure

Follow these steps carefully to replace your Mazda 5's front brake pads and rotors.

1. Preparation:
   • Park your Mazda 5 on a level surface.
   • Engage the parking brake firmly.
   • Ensure the transmission is in 'Park' (for automatics) or in gear (for manuals).
   • Loosen the lug nuts on the front wheels. Turn them counter-clockwise about half a turn to a full turn. Do not remove them completely yet. A breaker bar might be useful here if the nuts are tight.
2. Jacking and Wheel Removal:
   • Using your jack, lift the front of the vehicle at the designated jacking points.
   • Once the vehicle is raised, place jack stands securely under the frame or appropriate support points. Slowly lower the vehicle onto the jack stands. Double-check that the vehicle is stable.
   • Now, completely remove the lug nuts and take off the front wheel.
3. Accessing the Brake Caliper:

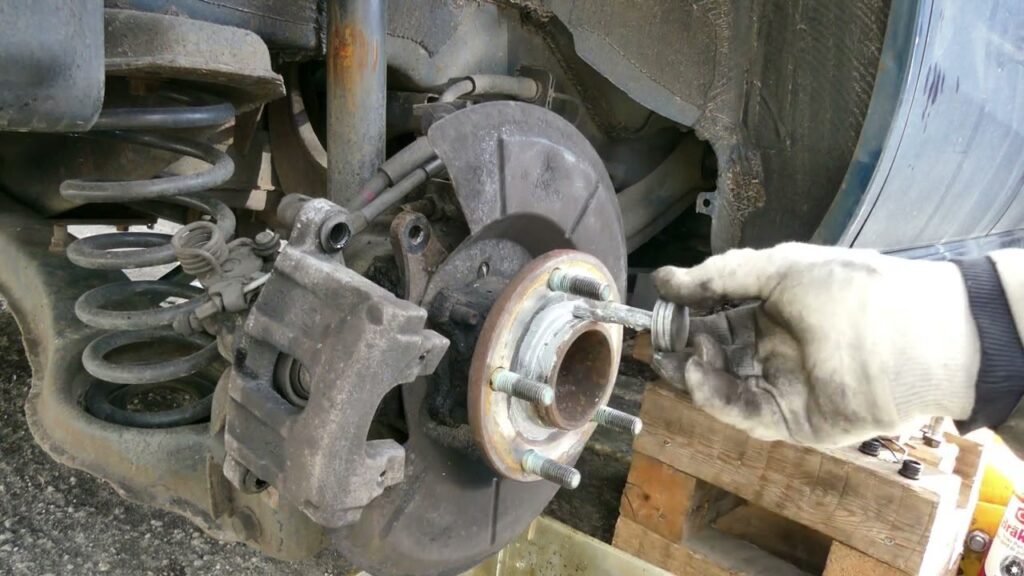

   • Locate the brake caliper assembly attached to the steering knuckle.
   • You'll see two bolts on the back of the caliper that hold it to the caliper bracket. These are often referred to as caliper slide pin bolts.
   • There might be rubber or plastic caps covering the heads of these bolts. Use a flathead screwdriver to gently pry these caps off.
   • Using the appropriate socket (often 14mm or 17mm for these bolts, check your specific model), loosen and remove these two bolts. You may need a wrench to hold the slide pin itself to prevent it from spinning.
   • With the bolts removed, you should be able to carefully slide the caliper off the rotor and brake pads. If it's stuck, a gentle wiggle should free it. Do not let the caliper hang by the brake hose; support it with a piece of wire or bungee cord, or rest it on the suspension component.
4. Removing the Caliper Bracket:
   • The caliper bracket is the larger piece that the caliper slides onto. It's typically held to the steering knuckle by two larger bolts (often 17mm).
   • These bolts can be very tight. Use your breaker bar and the correct socket to loosen and remove them.
   • Once the bolts are out, the caliper bracket can be removed.
5. Removing the Old Rotor:
   • The rotor is usually held onto the wheel hub by one or two small set screws. These are often Phillips head or Allen head screws and can be prone to stripping.
   • Use the correct screwdriver or Allen wrench. If they are stubborn, a light tap with a hammer on the screwdriver handle can help break them free.
   • Once the set screws are removed, the rotor should slide off the wheel hub. It might be stuck due to rust. If so, you can try tapping it gently with a rubber mallet or carefully using a pry bar between the rotor and the hub flange. Some rotors have threaded holes where you can insert bolts to push the rotor off the hub.
6. Cleaning and Preparation:
   • Clean the wheel hub surface thoroughly with a wire brush and brake cleaner. Ensure all rust, dirt, and old grease are removed. This is crucial for the new rotor to sit flush and true.
   • Apply a thin layer of anti-seize compound to the wheel hub surface.
7. Installing the New Rotor:
   • Place the new brake rotor onto the wheel hub. Ensure it sits flush and the bolt holes align correctly.
   • Reinstall the set screws (if applicable) and tighten them snugly.
8. Installing New Brake Pads and Caliper:
   • Retract the Caliper Piston: Before installing the new, thicker brake pads, the caliper piston must be pushed back into the caliper body. Use a C-clamp or a dedicated piston compressor tool. Place the old brake pad against the piston face and slowly tighten the clamp until the piston is fully retracted. Be careful not to damage the dust boot.
   • Lubricate: Apply a small amount of high-temperature brake grease to the back of the new brake pads (where they contact the caliper piston and bracket) and to the caliper slide pins. Also, lubricate the contact points on the caliper bracket where the pad ears sit. Do not get grease on the friction material of the pads or the rotor surface.
   • Install New Pads: Slide the new brake pads into the caliper bracket, ensuring they are seated correctly.
   • Reinstall Caliper: Slide the caliper back over the new pads and rotor. Ensure the brake hose is not twisted.
   • Reinstall Caliper Bolts: Reinstall the two caliper slide pin bolts and tighten them to the manufacturer's specified torque. For many applications, this is around 25-30 ft/lb.
9. Reinstalling the Caliper Bracket:
   • Place the caliper bracket back onto the steering knuckle, aligning the bolt holes.
   • Reinstall the two large caliper bracket bolts. Torque these bolts to the manufacturer's specification, which is typically around 80-100 ft/lb for the caliper bracket bolts. This is a critical step for safety.
10. Final Steps:
    • Once both sides are done, reinstall the front wheels.
    • Thread the lug nuts on by hand and tighten them evenly in a star pattern.
    • Lower the vehicle off the jack stands.
    • With the vehicle on the ground, use your torque wrench to tighten the lug nuts to the manufacturer's specified torque (usually around 80-100 ft/lb for the Mazda 5, but always check your owner's manual). Tighten them in a star pattern.
    • Pump the Brake Pedal: Before driving, pump the brake pedal several times until it feels firm. This is essential to seat the caliper piston and brake pads against the new rotor. Failure to do this will result in a very soft pedal and no braking power initially.
    • Test Drive: Perform a slow, gentle test drive in a safe area, checking for proper braking. Gradually increase braking pressure.
    • Bedding-in: New brake pads and rotors require a "bedding-in" process to achieve optimal performance and longevity. Consult your brake pad manufacturer's instructions for the specific procedure, but it generally involves a series of moderate stops from around 30-40 mph, followed by a period of cooling without coming to a complete stop.

Important Considerations and Tips

• Torque Specifications: Always use a torque wrench and adhere to the manufacturer's specified torque values for all bolts, especially caliper bracket bolts. Incorrectly torqued fasteners can lead to component failure and accidents.
• Brake Hose Inspection: While you have the caliper off, take a moment to inspect the brake hose for any cracks, leaks, or damage. Replace if any issues are found.
• Slide Pins: Ensure the caliper slide pins move freely. If they are sticky or seized, clean and lubricate them or replace them if necessary. This is vital for proper brake function and even pad wear.
• Lubrication: Use brake-specific grease only. Regular grease can degrade rubber components.
• One Side at a Time: If you're not experienced, it can be helpful to complete one side of the vehicle entirely before starting the other. This way, you have a direct comparison if you forget a step.
• Cleanliness: Keep the work area clean and free of dirt and debris. Avoid touching the friction surface of the new pads or rotors with your bare hands, as skin oils can cause contamination.

Common Troubleshooting

Symptom: Pulsing brake pedal after replacement.

Possible Cause: Wheel hub not cleaned properly, allowing rust or debris between the hub and the new rotor. Overtightened or unevenly torqued lug nuts. Warped new rotor (rare, but possible).

Symptom: Brake noise (squealing or grinding).

Possible Cause: Improperly seated brake pads, lack of lubrication on contact points, worn caliper hardware, or a need for further bedding-in.

Symptom: Soft brake pedal.

Possible Cause: Failure to pump the brake pedal before driving to seat the caliper piston. Air in the brake lines (unlikely from just a rotor/pad change, but possible if a brake line was disturbed).

Frequently Asked Questions

Q1: Do I need to replace brake rotors every time I replace brake pads?

A1: Not always. If your rotors are still well within their minimum thickness specification and are not warped or heavily grooved, they can sometimes be resurfaced. However, for best performance and longevity, replacing them with new pads is often recommended, especially if they show any signs of wear.

Q2: Can I just replace one brake rotor?

A2: It is strongly recommended to replace brake rotors in pairs (both the left and right side) to ensure even braking performance and prevent pulling to one side.

Q3: How long does it take to replace front brake rotors and pads?

A3: For someone with basic mechanical experience, it typically takes 1-2 hours per side. Factors like stubborn bolts or unfamiliarity with the process can increase this time.

Q4: What is the minimum thickness for my Mazda 5 brake rotors?

A4: You will need to consult your Mazda 5 owner's manual or a reliable service manual for the exact minimum thickness specification for your model year. This information is usually stamped on the edge of the rotor itself.

Replacing your Mazda 5's front brake rotors and pads is a rewarding DIY project that can save you money and give you peace of mind. By following these steps carefully and prioritizing safety, you can keep your Mazda 5 braking effectively and reliably.
