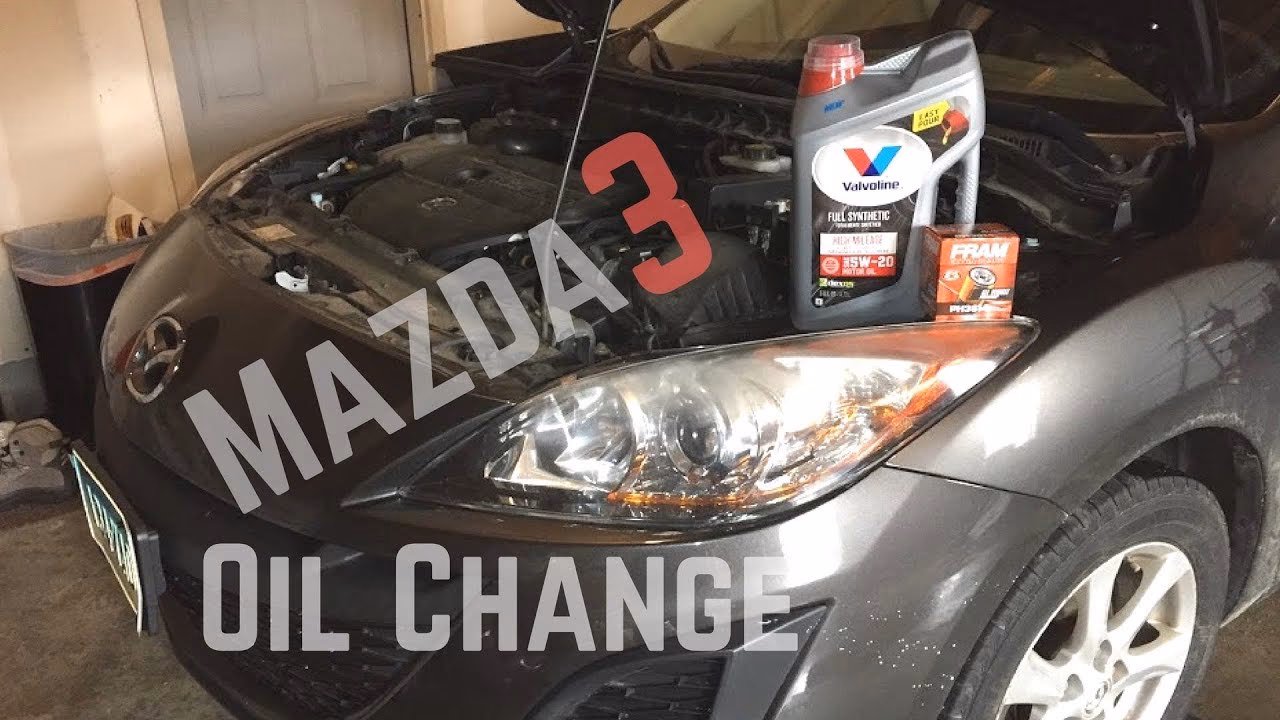

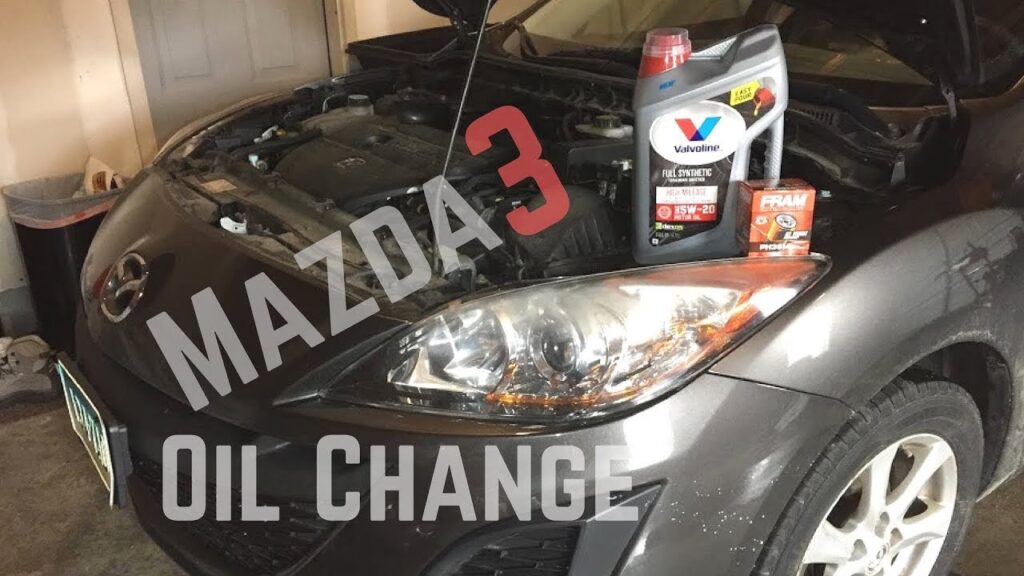

DIY Mazda 3 Oil Change: A Comprehensive UK Guide

Change is good for you, they say, and perhaps even as good as a holiday, but no one can truly know if your car feels quite that strongly about it. What's not in question, however, is that cars absolutely need their oil changed, whether they 'want' to or not. Thankfully, changing the engine oil on your Mazda 3 is one of those few vital maintenance jobs you can still confidently tackle yourself, provided you're game and possess a trusty wrench. This means you can avoid the trip to the service centre and the potential feeling of emasculation from having an actual mechanic do it for you.

Of course, you should never wait until your oil warning light illuminates on the dashboard. If it does, consider it an urgent signal to pull over immediately, switch off the engine, and call for assistance. Running a car with critically low or no oil is exceptionally detrimental and will likely 'cook' your engine, leading to extremely costly, if not irreparable, damage. Regular oil changes are the lifeblood of your engine, ensuring its longevity and smooth operation. This comprehensive guide will walk you through the entire process of changing the oil and oil filter on your Mazda 3, offering all the details you'll need.

Why Regular Oil Changes Are Crucial for Your Mazda 3's Health

Engine oil is far more than just a lubricant; it's a critical component in the intricate dance of your engine's internal parts. Its primary functions are multifaceted, directly contributing to your vehicle's performance, efficiency, and lifespan. Understanding these roles underscores why regular oil changes are not merely a recommendation but a necessity.

• Lubrication: The most well-known function. Oil creates a thin film between moving metal parts, such as pistons, crankshafts, and camshafts. This film significantly reduces friction, preventing direct metal-on-metal contact that would otherwise lead to rapid wear, overheating, and eventual seizure of components.
• Cooling: While the cooling system handles the bulk of heat dissipation, engine oil plays a crucial secondary role. As it circulates through the engine, it absorbs heat from hot components like the pistons and cylinder walls, carrying it away to be released as it passes through the oil pan.
• Cleaning: Modern engine oils contain detergents and dispersants that actively clean the engine's internal surfaces. They pick up contaminants like soot, sludge, and microscopic metal particles generated from normal wear, suspending them so they can be filtered out by the oil filter. Over time, these contaminants accumulate, turning the oil dark and reducing its effectiveness.
• Corrosion Protection: Engine oil forms a protective barrier over metal surfaces, shielding them from rust and corrosion, which can be caused by moisture and acids that form during the combustion process.
• Sealing: Oil helps to create a seal between the piston rings and cylinder walls, preventing combustion gases from escaping past the pistons and ensuring maximum compression for efficient power generation.

Neglecting oil changes allows the oil to degrade, becoming thinner and less effective at lubricating, or thickening with sludge, impeding flow. This leads to increased friction, excessive wear, reduced fuel economy, and ultimately, a dramatically shortened engine life. An old, contaminated oil offers poor protection, leaving your engine vulnerable. Hence, ensuring your Mazda 3 always runs on clean, fresh oil is paramount for its long-term health and your peace of mind.

When to Change Your Mazda 3's Engine Oil

While the general consensus points towards regular oil changes being vital, the precise interval for your Mazda 3 can vary. It's absolutely crucial to consult your vehicle's owner's manual for the manufacturer's specific recommendations. Factors such as your driving conditions (e.g., frequent short trips, extreme temperatures, heavy towing) and the type of oil used (conventional, semi-synthetic, or full synthetic) can influence how often an oil change is required. Generally, intervals can range from 5,000 to 10,000 miles or every 6 to 12 months, whichever comes first. However, always defer to the official Mazda guidelines for your specific model year and engine type to maintain warranty validity and optimal performance.

Remember, the oil warning light signifies an emergency, not a reminder for routine service. Proactive maintenance, based on mileage or time intervals, is key to preventing serious engine issues.

Choosing the Right Oil for Your Mazda 3: Viscosity and Capacity

Selecting the correct engine oil is just as important as changing it regularly. The 'weight' or viscosity of the oil, indicated by numbers like 5W-30, is crucial for proper lubrication across varying temperatures. The 'W' stands for 'Winter', indicating the oil's viscosity at low temperatures, while the second number represents its viscosity at operating temperature. Your Mazda 3's engine is designed to operate with a specific oil viscosity to ensure optimal performance and protection.

Below is a comprehensive table outlining the recommended oil types based on your Mazda 3's model year and the average ambient temperature. Always refer to this guide, or your owner's manual, to ensure you're using the appropriate oil.

Mazda 3 Recommended Engine Oil Types by Model Year and Temperature

As for the oil capacity, your Mazda 3 typically requires around 4.6 litres (4.4 US quarts) of engine oil. Always ensure you have enough on hand, with a little extra for topping up if needed.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process much smoother and safer.

Parts:

• Engine Oil: Approximately 4.6 litres of the correct SAE viscosity as per the table above (e.g., SAE 0W-20, 5W-30).
• Engine Oil Filter: It is highly advised to change the oil filter every single time you change the oil. Recommended filters include: Genuine Mazda (1WPE-14302, LF05-14-302B), Pulorator PL14612, Pulorator PL10241, 6PK MAZDA OEM SKYACTIV, Fram PH6607, Fram XG3614, Mobil 1 M1-108A, K&N PS-1008, K&N KN-198 Polaris.
• New Crush Washer for Drain Plug: Crucial for a leak-free seal. Often comes with the new oil filter, or can be purchased separately.

Tools:

• Oil Drain Pan: A pan large enough to hold at least 5 litres of old oil.
• Oil Funnel: To prevent spills when refilling.
• Trolley Jack or Floor Jack: For lifting the vehicle safely.
• Jack Stands (2x): Absolutely essential for supporting the vehicle while you work underneath. Never rely solely on a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• 8mm Allen Wrench: For the oil drain plug.
• 10mm Socket Wrench: May be needed for some under-engine panel screws.
• Flat-head Screwdriver: For removing plastic clips or screws on the under-engine panel.
• Oil Filter Wrench or Oil Filter Pliers: To loosen and remove the old oil filter.
• Work Gloves: To protect your hands from hot oil and chemicals.
• Plenty of Rags or Paper Towels: For cleaning up inevitable spills.

Step-by-Step Guide: Changing Your Mazda 3's Engine Oil and Filter

Now that you have all your tools and materials, let's get down to the business of changing your Mazda 3's oil.

1. Preparation and Vehicle Lifting

Firstly, ensure your Mazda 3 is parked on a level, hard surface. Engage the parking brake fully. For added security, place wheel chocks behind the rear wheels. It's a good idea to run the engine for a few minutes to bring the oil up to a warm temperature (not scalding hot), which allows it to drain more easily. Then, turn the engine off and let it sit for about five to ten minutes to allow the oil to cool slightly and settle in the sump.

Carefully use your trolley jack to lift the front of your vehicle. Consult your Mazda 3's owner's manual for the correct jacking points. Once lifted, immediately place jack stands securely under the vehicle's designated support points. Gently lower the vehicle onto the jack stands, ensuring it is stable before proceeding. Safety is paramount when working under a vehicle.

Next, you'll need to locate and remove the under-engine splash guard or panel. This panel is usually secured by four screws or clips. Use your screwdriver or 10mm socket wrench to carefully remove these fasteners. Once the fasteners are out, gently pull down and remove the panel, revealing the oil filter and the sump plug (also known as the drain plug).

2. Draining the Old Oil

Position your oil drain pan directly beneath the oil drain plug. Ensure the pan is large enough to contain the full 4.6 litres of old oil, plus a little extra to prevent overflow. Using your 8mm Allen wrench, loosen the drain plug by turning it counter-clockwise. Once it's loose, finish unscrewing the plug by hand. Be prepared for a sudden gush of oil, which might still be warm. Try to keep your hand clear of the stream.

Allow the oil to drain completely. This can take several minutes. While it's draining, inspect the old drain plug and, crucially, the crush washer. The crush washer is designed to deform and create a tight seal when tightened. If the old one looks at all worn, flattened, or damaged, it's essential to replace it with a new one to prevent leaks. Once the oil has completely drained, clean the drain plug and install the new crush washer. Reinstall the drain plug into the oil sump and hand-tighten it, then use your Allen wrench to tighten it to the specified torque. Over-tightening can strip the threads, while under-tightening will lead to leaks.

3. Replacing the Oil Filter

With the drain plug reinstalled, reposition your oil drain pan slightly to catch any drips from the oil filter. The oil filter will also contain a significant amount of oil, so be prepared for it to spill. Use your oil filter wrench or pliers to loosen the old filter by turning it counter-clockwise. Once loose, you should be able to unscrew it by hand. Carefully remove the old filter, trying to keep it upright to minimise spills, and place it in your drain pan.

Before installing the new oil filter, it's good practice to half-fill it with fresh engine oil. Also, apply a thin film of fresh oil to the rubber gasket on the new filter. This helps to create a better seal and prevents the gasket from tearing when tightened. Screw the new filter into position by hand until it's snug. Then, use your oil filter wrench to tighten it to the specified torque. Again, do not overtighten, as this can damage the filter or its housing.

4. Refilling with Fresh Oil

Now that the old oil is drained and the new filter is in place, you can refill the engine. Locate the oil filler cap on top of your engine, usually marked with an oil can symbol. Twist it counter-clockwise to remove it. Place a clean funnel into the oil filler neck to prevent spills.

Carefully pour in the recommended amount of fresh engine oil (approximately 4.6 litres for most Mazda 3 models, but check your manual). Pour slowly to avoid air pockets and allow the oil to settle. Once you've added the correct quantity, remove the funnel and securely reinstall the oil filler cap by turning it clockwise until it clicks or is tight.

5. Final Checks and Clean-up

With the oil refilled, you can now lower your Mazda 3 off the jack stands and onto level ground. Start the engine and let it idle for a few minutes. This allows the new oil to circulate throughout the engine and for the oil pressure to build. While the engine is idling, keep an eye on your dashboard for the oil pressure warning light – it should extinguish quickly. Also, visually inspect underneath the car for any signs of leaks around the new oil filter and the drain plug.

After idling for a few minutes, turn off the engine and wait another five to ten minutes to allow the oil to settle back into the sump. Then, perform a final check of the oil level using the dipstick (detailed instructions below). Ensure the level is between the MIN and MAX markings. If it's low, add a small amount of oil gradually until it reaches the correct level. Clean up any spills thoroughly and properly dispose of the old engine oil and filter at an approved recycling centre or garage. Never pour used oil down drains or into the ground.

Checking Your Mazda 3's Oil Level Between Services

Even with regular oil changes, it's a good idea to periodically check your oil level between service intervals, particularly before long journeys. This simple check can alert you to any unexpected oil consumption or potential leaks before they become serious issues. Here's how to do it accurately:

1. Park on Level Ground: Ensure your car is parked on a flat, level surface. An incline can give a false reading.
2. Warm Engine, Then Cool: Start the engine and let it run for a few minutes to bring it up to operating temperature. Then, turn the engine off and wait for at least five minutes (or longer if the engine was very hot) to allow the oil to drain back into the sump.
3. Locate and Clean Dipstick: Open the bonnet and locate the engine oil dipstick. It typically has a bright yellow or orange handle. Pull it out completely.
4. Wipe Clean: Using a clean rag or paper towel, wipe all the oil off the dipstick.
5. Reinsert and Recheck: Fully insert the clean dipstick back into its tube until it's seated properly. Wait a few seconds for the oil to adhere to the stick.
6. Check Level: Pull the dipstick out again and observe the oil level. There will be two marks, usually 'MIN' and 'MAX' (or 'L' and 'F' for Low and Full). The oil level should be somewhere between these two marks. Ideally, it should be closer to the 'MAX' mark.
7. Top Up if Necessary: If the oil level is below the 'MIN' mark, you need to add more oil immediately. Add small amounts (e.g., 250ml at a time), wait a few minutes for it to settle, and then recheck the dipstick until the level is correct.

Torque Specifications: Get it Right!

Applying the correct torque when tightening the oil filter and drain plug is crucial. Under-tightening can lead to leaks, while over-tightening can strip threads, crack the oil pan, or damage the oil filter housing, leading to far more complicated and expensive repairs. Always use a torque wrench to ensure accuracy.

Mazda 3 Oil Change Torque Specifications

For reference, one Newton meter (Nm) equals approximately 0.7376 foot-pounds (ft-lbs). If your torque wrench uses Newton meters, simply multiply the ft-lbs value by 1.3558 to get the Nm equivalent.

Recommended Oil Filters for Your Mazda 3

As mentioned, changing the oil filter with every oil change is strongly recommended. A new filter ensures that contaminants are effectively removed from the fresh oil, maintaining its cleanliness and protective properties. Here's a list of commonly applicable oil filters for the Mazda 3:

• Genuine Mazda (1WPE-14302)
• Genuine Mazda (LF05-14-302B)
• Pulorator PL14612
• Pulorator PL10241
• 6PK MAZDA OEM SKYACTIV
• Fram PH6607
• Fram XG3614
• Mobil 1 M1-108A
• K&N PS-1008
• K&N KN-198 Polaris

Always double-check that the filter you purchase is compatible with your specific Mazda 3 model and engine variant.

Frequently Asked Questions (FAQs)

Q: How often should I change the oil in my Mazda 3?

A: The exact interval depends on your specific Mazda 3 model year, engine type, the type of oil used (conventional vs. synthetic), and your driving conditions. Always refer to your vehicle's owner's manual for the manufacturer's recommended service schedule. Generally, it can range from 5,000 to 10,000 miles or every 6 to 12 months, whichever comes first.

Q: What happens if I don't change my car's oil regularly?

A: Neglecting oil changes can lead to severe engine damage. Old, contaminated oil loses its lubricating properties, leading to increased friction, excessive wear on internal engine components, sludge buildup, reduced fuel efficiency, and eventually, catastrophic engine failure. It's truly one of the most critical maintenance tasks.

Q: Can I use a different viscosity oil than recommended?

A: It is strongly advised to use the oil viscosity (e.g., 5W-30) recommended in your owner's manual for your specific model and climate. Using an incorrect viscosity can affect lubrication, fuel economy, and engine protection, potentially leading to premature wear or damage.

Q: Do I need to change the oil filter every time I change the oil?

A: Yes, absolutely. It is highly recommended to change the oil filter every time you change the engine oil. The filter traps contaminants and metal particles from the oil. Reusing an old, dirty filter with fresh oil defeats the purpose of the oil change, as these contaminants will immediately begin circulating through your clean engine.

Q: What should I do with the old engine oil?

A: Used engine oil is a hazardous waste and must be disposed of responsibly. Never pour it down drains or onto the ground. Most local recycling centres, garages, and auto parts stores offer facilities for proper disposal of used oil. Check with your local council for specific guidelines in your area.

Q: My oil light came on after the oil change. What should I do?

A: If your oil pressure warning light illuminates immediately after an oil change, turn off the engine without delay. Do not drive the car. Recheck the oil level with the dipstick to ensure it's full. Also, inspect the oil filter and drain plug for any leaks. The light could indicate insufficient oil, a loose filter/drain plug, or a more serious underlying issue. If the problem persists after checking these, seek professional assistance.

Q: How much oil does a Mazda 3 take?

A: Most Mazda 3 models typically require approximately 4.6 litres (4.4 US quarts) of engine oil. However, always verify the exact capacity for your specific model year and engine size in your owner's manual to ensure you add the correct amount.

Changing the oil on your Mazda 3 is a rewarding and relatively straightforward task that can save you money and give you a deeper understanding of your vehicle. By following these detailed instructions, using the correct materials, and prioritising safety, you'll ensure your Mazda's engine remains well-lubricated and performs optimally for years to come. Happy motoring!
