Mazda3 MPS Tuning Guide

Unleashing the Mazda3 MPS: A Tuner's Delight

It’s been a long time since a modern car has entered the realms of affordability for tuning enthusiasts. The clean early-model Evos, GTXs and WRXs of the ’90s are long gone, but what replaced them? There are still a few options that fit the bill, so we decided to look into some now affordable tuning platforms, starting with the Mazda3 MPS, which was released in 2007. It feels as though it was only recently that this model sold for well over $20,000, but we’ve seen them go for just over $10,000, which leaves more money in the bank for upgrades. After speaking with a wide range of enthusiasts, and a handful of tuning shops, we confirmed that there is an almost set-in-stone tuning route for these cars, so we took a closer look at the upgrades available for Mazda’s 2300cc L3-VDT engine.

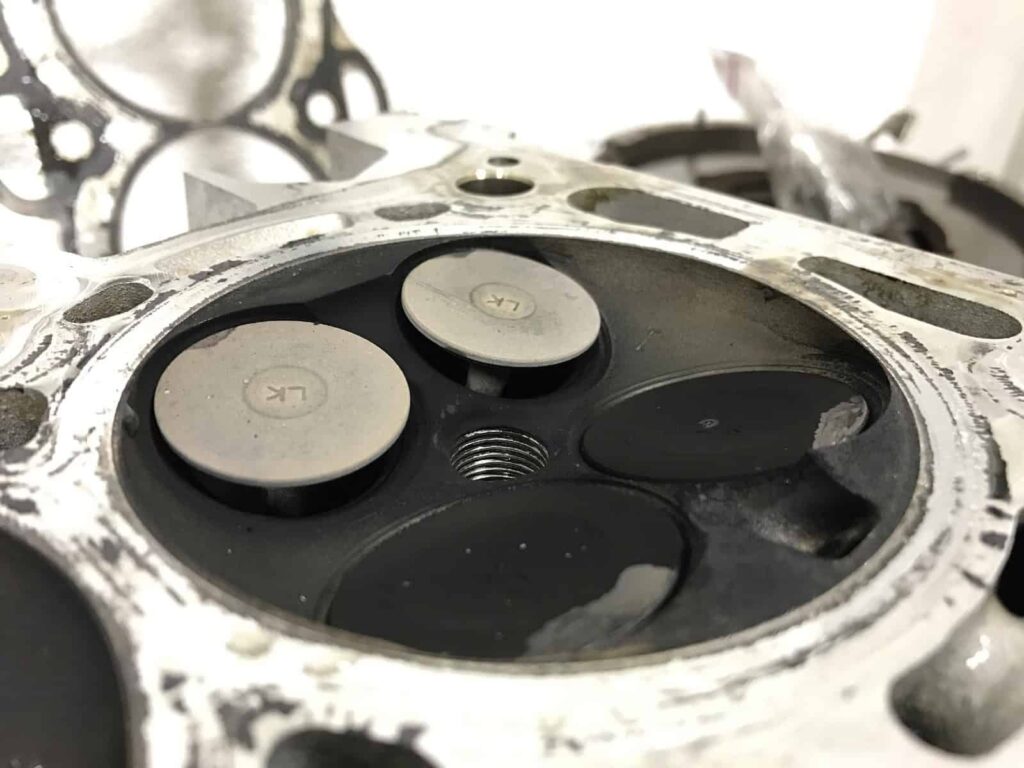

The Heart of the Beast: The L3-VDT Engine

The Mazda3 MPS is a formidable machine in stock form, capable of a brisk 0–100kph sprint in just 5.4 seconds. At its core lies the turbocharged 2.3-litre L3-VDT engine, a powerhouse paired with a rewarding six-speed manual gearbox, complete with a Limited-Slip Differential (LSD) for enhanced traction. In its factory state, this engine produces a healthy 194kW (260hp) at the flywheel. Its all-aluminium block, reinforced with iron cylinder sleeves, is topped by a factory top-mounted intercooler. While the factory turbocharger is often considered a potential weak point, it’s known to be efficient up to around 17.5psi of boost pressure, provided the supporting modifications are correctly implemented. So, what are the essential modifications for the L3-VDT?

Essential Pre-Tuning Maintenance

Before diving headfirst into increasing boost pressure with bleed valves or boost controllers, it’s crucial to ensure your Mazda3 MPS is in optimal health. Experts universally recommend starting with a high-quality fully synthetic 5W-40 or 5W-30 engine oil. This ensures proper lubrication and heat management, especially under increased load. Next, consider upgrading your spark plugs to a colder heat range, such as a seven or eight. This helps prevent pre-ignition and detonation, common issues when increasing boost. Finally, install a higher-flowing panel air filter. For those who primarily use their MPS for weekend fun or track days, an open-pod filter can offer a marginal performance gain. However, for daily driving and to minimise the risk of ingesting hot air, retaining the factory airbox with the high-flow filter is generally the more sensible choice.

Addressing Weak Points for Reliability

One common failure point that emerges with increased power is the rear lower engine mount. Numerous club members have experienced failures, particularly during track use, which can abruptly end a day of fun. Replacing this mount with a stiffer, uprated unit is a highly recommended upgrade. While you’re in the vicinity, it’s also wise to replace the shifter bushes in the gearbox. Worn bushes can lead to a sloppy gear shift, detracting from the driving experience. Furthermore, securing a base tune for your vehicle is advised. This ensures your Mazda is running optimally and is healthy enough to handle further modifications. A crucial aspect of this initial tune is ensuring your oxygen sensor is functioning correctly, as this plays a vital role in the engine’s ability to accurately read and adjust fuel mixtures, especially when you plan to load custom maps.

ECU Tuning: The Gateway to Performance

By far the most impactful upgrade you can perform on your Mazda3 MPS is to install a device capable of remapping the Engine Control Unit (ECU). The most popular and widely used option, particularly in New Zealand, is the Cobb Accessport. This remarkable device allows for the installation of custom performance maps, which can be downloaded from a vast network of e-tuners worldwide, including reputable names like Purple Drank and Freak Tune. These e-tuners will analyse your car’s data-logged information and, often within an hour, provide a tailored tune designed to complement your specific modifications. Cobb itself offers five distinct performance packages online, each with corresponding tunes. For instance, Stage One typically involves a simple ECU reflash, often coupled with an upgraded panel filter. As you progressively upgrade your MPS, you can simply update the Accessport with your new modifications, and it will automatically adjust the tune to suit. The Accessport also features a self-learning capability, ensuring the tune is constantly refined for optimal performance. A significant advantage of the Cobb Accessport is its real-time engine parameter monitoring. It displays critical data as virtual gauges on its LCD screen, eliminating the need for multiple, bulky aftermarket gauges. For those with a passion for racing, the Accessport offers advanced features such as flat-shift shifting and launch control. These functions are invaluable for maximising performance off the line at the drag strip or maintaining boost pressure between gear changes, ensuring you’re always in the power band. It’s worth noting that in its factory trim, the MPS ECU electronically closes the throttle by as much as 80% near the redline. This was implemented by Mazda to reduce wear on driveline components. However, this also results in a noticeable drop in power delivery, clearly visible on a dyno chart. Once the Cobb Accessport is fitted and a suitable tune is loaded, this throttle closure is remedied, providing 100% throttle response all the way to the redline. It's also important to be aware that, in factory form, the MPS has a boost control limit imposed in first and second gear. The Accessport allows you to overcome these limitations, unlocking the full potential of the turbocharger.

Valet and Anti-Theft Modes

Beyond performance tuning, the Cobb Accessport offers additional practical benefits. It allows you to load 'valet' and 'anti-theft' maps. The valet mode restricts engine power and throttle response, preventing unauthorised drivers from pushing the car too hard. The anti-theft mode can immobilise the vehicle, providing an extra layer of security.

Bolt-On Upgrades: Enhancing Airflow and Fueling

Once your Mazda MPS is equipped with tuning software like the Cobb Accessport, it’s time to consider the physical bolt-on modifications. Before embarking on exhaust upgrades, it's essential to ensure your fuel delivery system can keep up. The factory fuel pump may not be sufficient to handle the increased fuel demands of a tuned engine. A common upgrade involves replacing a mechanical component within the fuel pump that allows for greater fuel flow. This is a job best left to a trusted mechanic due to its complexity.

Exhaust System Modifications

Instead of immediately replacing the entire exhaust system, as was common with older turbocharged cars, the most significant gains for the MPS are achieved by upgrading the downpipe and midpipe sections connected directly to the turbocharger. These components are often the most restrictive due to the presence of catalytic converters. Aftermarket downpipes typically replace both the factory downpipe and the front pipe as a single, more free-flowing unit. Enthusiasts have reported gains of around 20 to 25kW simply by swapping these components.

Full Exhaust and Intercooler Upgrades

With the fuel pump and front pipe upgraded, the next logical step is to install a full aftermarket exhaust system. Manufacturers like Cobb, Mazda3Mods, CPE, and Corksport offer a wide range of options. At this stage, with a new map loaded via the Cobb Accessport, your car should be producing a considerable amount of power and running increased boost pressure. Another area that yields substantial improvements is the intercooler system. Replacing the small factory top-mounted intercooler with a larger top-mount unit or a front-mount intercooler kit can result in gains of approximately 14 to 15kW and significantly reduce intake air temperatures. Lower intake air temperatures lead to denser air entering the engine, resulting in more power and reduced risk of detonation.

Water/Methanol Injection

For the serious enthusiast seeking maximum performance, the addition of a water/methanol injection kit is a highly beneficial upgrade. Typically installed just before the throttle body, these kits inject a mixture of water and methanol into the intake stream. This process cools the intake charge and increases the fuel’s octane rating, allowing for more aggressive ignition timing and higher boost pressures. Gains of up to 10 to 12kW have been observed with this modification.

Chassis and Handling: Mastering the Corners

The Mazda3 MPS is already an impressive handler straight out of the factory, thanks to its rigid chassis design – which features more bracing than lower-spec Mazda3 models – and substantial 320mm front brake rotors, which are rumoured to be sourced from a Volvo. To further enhance its already capable handling, the approach is similar to most front-wheel-drive platforms. Installing adjustable coilovers will allow you to fine-tune ride height and damping characteristics, tailoring the suspension to your preferences. Upgrading the front and rear sway bars will significantly reduce body roll during cornering, improving stability and responsiveness. Crucially, don't overlook the importance of a good set of quality tyres. The best suspension and brake upgrades will be severely compromised by worn or inadequate tyres.

Real-World Results: The Prowear NZ Superlap Series

The effectiveness of these tuning modifications is vividly demonstrated in events like the Prowear NZ Superlap Series. A particularly potent Mazda3 MPS, meticulously prepared by Prowear, consistently competes and often outperforms significantly more exotic machinery. With the modifications outlined above, Khan Mackesy’s example has proven to be an exceptionally quick machine, consistently outshining cars like GT-Rs, Evos, and WRXs. Perhaps the most impressive aspect of this tuning path is its inherent reliability. Khan is able to push his Mazda3 MPS to its limits all day long, yet still drive it home in comfort and style afterwards, a testament to the well-thought-out and executed upgrades.

The Future is MPS

Given its blend of performance, affordability, and tuning potential, the Mazda3 MPS is poised to increase in popularity amongst enthusiasts. As these models continue to become more accessible, more owners will undoubtedly explore the rewarding journey of unlocking their full potential.

Frequently Asked Questions (FAQs)

Q1: What is the best first modification for a Mazda3 MPS?A1: The most impactful first modification is generally considered to be ECU tuning using a device like the Cobb Accessport, combined with essential pre-tuning maintenance such as an oil change, spark plug upgrade, and air filter. This will unlock significant performance gains and prepare the car for further modifications. Q2: Can I increase the boost pressure on my Mazda3 MPS safely?A2: Yes, you can safely increase boost pressure, but it's crucial to do so incrementally and with supporting modifications. The factory turbo is efficient up to around 17.5psi, but this requires proper ECU tuning and potentially upgraded supporting components like the fuel pump and intercooler to maintain reliability. Q3: How much power can a Mazda3 MPS make with bolt-on modifications?A3: With a comprehensive suite of bolt-on modifications, including exhaust upgrades, intercooler improvements, and ECU tuning, it’s not uncommon for a Mazda3 MPS to produce well over 300kW (400hp) at the wheels, with some extensively modified examples exceeding this figure. Q4: Is the factory turbocharger on the Mazda3 MPS a weak point?A4: While the factory turbocharger can be efficient, it is often considered a limiting factor when pushing for very high power figures. Many enthusiasts opt for upgraded turbochargers as part of more extreme builds, but for moderate power increases, the stock unit can suffice with proper supporting modifications. Q5: Do I need to upgrade the fuel pump on my Mazda3 MPS?A5: If you plan on significantly increasing boost pressure or making substantial power gains through tuning and bolt-on modifications, upgrading the factory fuel pump is highly recommended to ensure adequate fuel delivery and prevent lean conditions.
