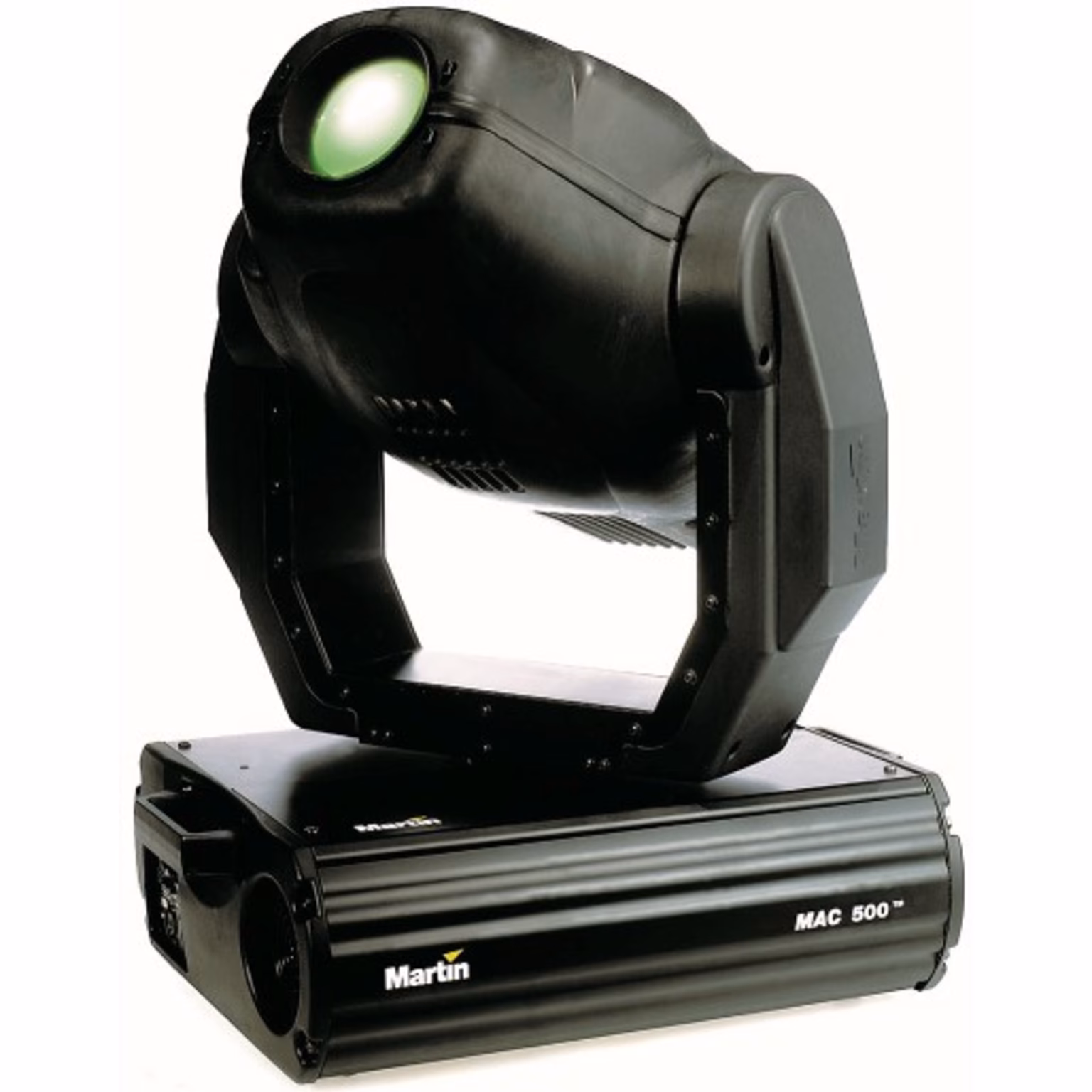

The Martin MAC 500/E is a highly regarded moving head fixture, known for its versatility and robust performance in a variety of lighting applications, from stage productions to corporate events. A key aspect of any moving head's functionality is its ability to rotate and pan, allowing for dynamic movement and precise positioning of the light beam. Understanding the number of distinct rotating positions available on the MAC 500/E is crucial for lighting designers and technicians to effectively programme and utilise the fixture to its full potential. This article delves into the specifics of the MAC 500/E's pan and tilt capabilities, aiming to provide a comprehensive overview of its movement parameters.
Understanding Moving Head Pan and Tilt
Before we specifically address the MAC 500/E, it's beneficial to understand the fundamental concepts of pan and tilt in the context of moving head lighting. Pan refers to the horizontal movement of the fixture, allowing it to sweep left and right across a stage or venue. Tilt, on the other hand, refers to the vertical movement, enabling the fixture to aim up and down. The precision and range of these movements are critical for creating fluid, captivating lighting effects. The 'resolution' of these movements, often measured in degrees or steps, determines how finely the beam can be controlled and how smoothly it can transition between positions.
The MAC 500/E's Pan Capabilities
The Martin MAC 500/E offers an impressive range of movement, designed to provide extensive coverage and dynamic effects. When it comes to its horizontal movement, or pan, the fixture is engineered to achieve a wide sweep. The exact number of discrete 'positions' can be a nuanced question, as modern moving heads often operate with very high resolution, allowing for virtually continuous movement rather than a fixed number of distinct stops. However, for practical programming purposes, manufacturers often specify the total range of motion and the resolution in terms of steps.
The Martin MAC 500/E typically offers a pan range of approximately 530 degrees. This substantial range allows for a full rotation and then some, enabling complex cues where the fixture can pan across a wide area and then return to a starting point with a degree of overlap. The resolution of this pan movement is generally very high, often in the range of tens of thousands of steps. This means that while there isn't a simple, fixed number of 'positions' like in older, less sophisticated fixtures, the fixture can be programmed to stop at an incredibly granular level of detail. For practical programming, a lighting console will interpret these high-resolution steps as a smooth, continuous pan that can be stopped at any point within the 530-degree range.
The MAC 500/E's Tilt Capabilities
Complementing its pan movement, the Martin MAC 500/E also features a comprehensive tilt capability. This allows the fixture to aim its beam vertically, from a low angle to a high angle. Similar to the pan, the tilt functionality is designed for both broad coverage and precise aiming.
The MAC 500/E typically provides a tilt range of around 267 degrees. This generous range allows the fixture to point almost directly downwards and then tilt upwards to illuminate the furthest reaches of a venue or even points above the fixture itself. Again, the resolution of the tilt movement is very high, measured in tens of thousands of steps. This high resolution ensures that tilt movements are smooth and accurate, allowing for precise framing and dynamic effects like beams cutting through smoke or fog.
Interpreting 'Rotating Positions'
The phrase "rotating positions" can be interpreted in a couple of ways when discussing modern moving heads like the MAC 500/E:
- Total Range of Motion: This refers to the maximum degrees the fixture can pan or tilt. As mentioned, the MAC 500/E offers around 530 degrees of pan and 267 degrees of tilt.
- Programmable Steps/Resolution: This refers to the number of individual steps the fixture's motors can divide its total range into. Modern moving heads have a very high step count, often allowing for millions of possible positions if you consider every single step. However, for programming, these are typically treated as continuous movement that can be stopped at any point.
Therefore, instead of a fixed, countable number of 'positions' like 10 or 20, it's more accurate to think of the MAC 500/E as having a virtually unlimited number of programmable positions within its specified pan and tilt ranges, thanks to its high-resolution motor control. This allows for incredibly fluid and nuanced programming.
Factors Affecting Perceived Movement
While the fixture's specifications dictate the raw movement capabilities, the actual perceived 'positions' or fluidity of movement can be influenced by several factors:
- Programming Speed: How quickly the lighting console is instructed to move the fixture between points. Faster moves can appear less smooth if the fixture's internal resolution can't keep up.
- DMX Channel Allocation: The number of DMX channels assigned to pan and tilt on the console. More channels generally allow for finer control and smoother movement.
- Fixture Calibration: The internal calibration of the moving head's motors.
- Environmental Conditions: Extreme temperatures or vibrations can sometimes affect motor performance.
Comparison with Other Fixtures
To put the MAC 500/E's capabilities into perspective, consider how it stacks up against other types of lighting fixtures:
| Fixture Type | Typical Pan Range | Typical Tilt Range | Resolution Concept |
|---|---|---|---|
| Martin MAC 500/E | ~530° | ~267° | High-resolution steps (effectively continuous) |
| Basic Par Can (non-moving) | N/A | N/A | Fixed position |
| Older/Simpler Moving Heads | ~180°-360° | ~90°-180° | Fixed number of discrete steps (e.g., 256 per axis) |
| Modern High-End Moving Heads | ~540°-630° | ~270°-360° | Very high-resolution steps (effectively continuous) |
As the table illustrates, the MAC 500/E sits comfortably within the capabilities of many professional moving heads, offering a significant range and the high resolution necessary for sophisticated lighting design.
Frequently Asked Questions
Q1: Does the Mac 500/E have a specific number of 'preset' rotating positions?
A1: No, the Mac 500/E does not have a fixed, countable number of preset rotating positions in the way older fixtures might have. Instead, it offers a very high-resolution pan and tilt system that allows for effectively continuous movement within its 530° pan and 267° tilt ranges. Lighting designers can program virtually any point within these ranges.
Q2: How many DMX channels does the Mac 500/E use for pan and tilt?
A2: The number of DMX channels dedicated to pan and tilt can vary depending on the chosen DMX mode (e.g., 16-bit mode vs. 8-bit mode). In 16-bit mode, which offers finer control, pan and tilt typically each occupy two DMX channels (one for coarse movement and one for fine movement). This allows for the high-resolution control mentioned previously.
Q3: Can the Mac 500/E rotate 360 degrees continuously?
A3: Yes, with its 530° pan range, the Mac 500/E can indeed achieve continuous rotation. It can pan past 360 degrees, allowing for effects like "windmill" movements or continuous sweeping without hitting a hard stop.
Conclusion
In summary, the Martin MAC 500/E is a capable moving head fixture that provides extensive pan and tilt capabilities. While it's not defined by a specific, small number of discrete rotating positions, its high-resolution motor control allows for a virtually infinite number of programmable points within its approximately 530 degrees of pan and 267 degrees of tilt. This granular control is what enables the fixture to produce smooth, dynamic, and precise lighting effects, making it a reliable choice for professionals in the entertainment lighting industry. Understanding these capabilities is key to unlocking the full creative potential of this popular moving head.
