Marine Engine Fuel Pumps: A Comprehensive Guide

For any boat owner or marine enthusiast, understanding the intricate workings of your vessel's engine is paramount. At the heart of a diesel marine engine's operation lies a critical component: the fuel pump. This unassuming part is responsible for delivering fuel to the engine's combustion chambers with precision and efficiency. However, not all fuel pumps are created equal, and knowing the different types, how they function, and their respective advantages is invaluable, especially when it comes to maintenance or potential replacement.

If you're responsible for the care and upkeep of a boat, you're likely aware that a fuel pump is an integral part of your marine engine system. What might not be immediately obvious is the existence of various types of fuel pumps, each operating with distinct mechanisms. This article will demystify the two primary types of marine fuel injection pumps you're likely to encounter in a diesel fuel injection system: the traditional Bosch jerk pump and the more modern common rail injection system. By the end, you'll have a clearer understanding of their differences, benefits, and why one might be more suited to your vessel.

Does My Diesel Engine Need a Fuel Injection Pump?

Absolutely. For a diesel engine, a fuel injection pump isn't just an optional extra; it's a fundamental requirement for its operation. Unlike petrol engines, which use spark plugs to ignite a pre-mixed air-fuel charge, diesel engines rely on compression ignition. This means that air is compressed to such a high degree that its temperature rises significantly. Fuel is then injected into this superheated air at precisely the right moment and at very high pressure, causing it to spontaneously combust. Without a dedicated fuel injection pump to deliver this high-pressure, atomised fuel, a diesel engine simply cannot run.

The fuel injection pump ensures that fuel is delivered with the exact timing and quantity required for optimal combustion, directly impacting your engine's performance, fuel economy, and emissions. Therefore, understanding and maintaining this crucial component is not merely good practice but essential for the reliable and efficient operation of any marine diesel engine.

Understanding the Heart of Your Marine Engine: Fuel Pump Basics

Before diving into the specifics of different types, let's briefly clarify the general role of a fuel pump in a marine diesel engine. Essentially, a fuel pump's job is to draw fuel from the tank, pressurise it, and then deliver it to the injectors, which in turn spray it into the engine's cylinders. This process must be meticulously controlled in terms of pressure, timing, and volume to ensure efficient combustion. An effective fuel pump contributes directly to engine power, fuel efficiency, reduced emissions, and overall engine reliability. Without proper fuel delivery, the engine will suffer from poor performance, increased fuel consumption, and potentially significant damage.

The Two Main Contenders: Bosch Jerk Pumps vs. Common Rail Systems

In the realm of marine diesel engine fuel injection, two principal systems have dominated the landscape: the robust Bosch Jerk Pump and the sophisticated Common Rail Injection System. While both achieve the goal of fuel delivery, they employ fundamentally different approaches, each with its own set of characteristics and implications for engine performance and maintenance.

The Traditional Workhorse: The Bosch Jerk Pump

The Bosch jerk pump represents a relatively older, yet highly effective and widely used, mechanism for fuel injection. Its design is characterised by its mechanical simplicity and ruggedness, making it a reliable choice for many marine applications over the decades.

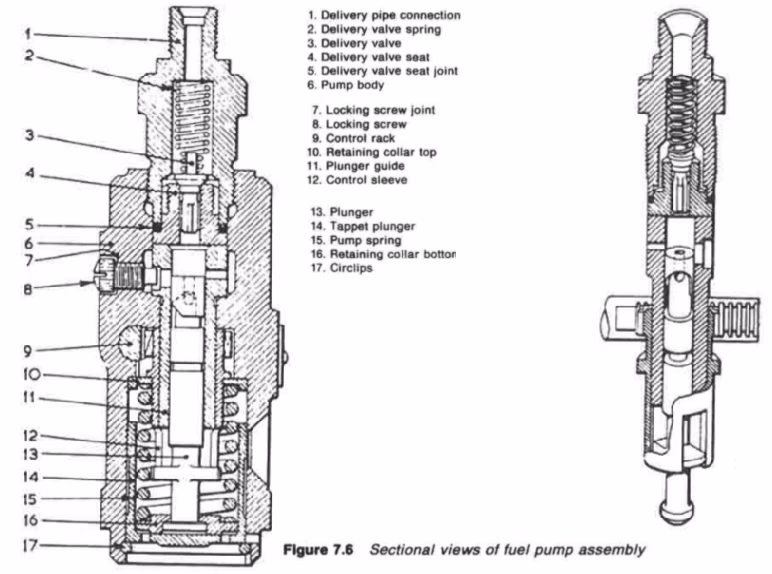

At its core, the Bosch jerk pump operates with a plunger housed within a precisely machined barrel. This plunger is typically attached to a helical spring and is actuated by a cam lobe on the engine's camshaft. As the pump is activated, the plunger moves downwards, which opens specific 'spill' and 'suction' ports. This action allows diesel fuel to fill the barrel. When the plunger subsequently moves upwards, driven by the cam, it first covers these ports. Once the ports are closed, the fuel trapped above the plunger is compressed to very high pressures. This highly pressurised fuel is then forced through a delivery valve and onwards to the injector, which sprays it into the combustion chamber.

The amount of fuel injected is ingeniously controlled by rotating the plunger. The top edge of the plunger has a helical groove (the 'helix'). By rotating the plunger, you change the effective stroke of the plunger before the helix uncovers the spill port, thereby altering the volume of fuel injected. This mechanical adjustment is straightforward but means that injection pressure is partly a function of engine speed, making it less consistent across all loads and RPMs compared to more modern systems.

While incredibly durable and easy to service due to its mechanical nature, the Bosch jerk pump's inherent design can lead to less precise fuel control, especially at varying engine speeds. This can result in slightly higher emissions and less optimal fuel efficiency compared to its modern counterparts. However, its proven track record and straightforward design ensure its continued presence in many existing marine diesel engines.

The Modern Marvel: The Common Rail Injection System

In stark contrast to the mechanical simplicity of the jerk pump, the common rail injection system represents a significant leap forward in fuel injection technology, offering unparalleled precision and control. This system is a hallmark of modern diesel engines, both on land and at sea, due to its ability to deliver superior performance, reduced emissions, and enhanced fuel economy.

The common rail system operates by first supplying fuel from the tank to a high-pressure pump via a pressure-regulating valve. This high-pressure pump is the heart of the system, generating immense pressure, typically ranging from 1,000 to 1,500 bars, and sometimes even higher in the latest designs. This super-pressurised fuel is then sent to a 'common rail' – a robust, high-pressure accumulator that acts as a reservoir for all the injectors. From this common rail, individual electronic injectors, controlled by the engine's Electronic Control Unit (ECU), precisely deliver fuel into each cylinder.

One of the key advantages of this system is that the injection pressure is generated independently of the engine speed. This means that uniform injection pressure can be maintained across the entire engine operating range, regardless of load or RPM. This consistent high pressure, combined with the electronic control of the injectors, allows for multiple, finely timed injection events per combustion cycle (pre-injection, main injection, post-injection). This multi-injection strategy maximises the amount of fuel that actually combusts, leading to significantly fewer pollutants being produced and a substantial reduction in fuel consumption.

Common rail pumps can be powered in various ways: they can be electrically driven, cam-operated, directly driven by the engine, or a combination of these methods. The flexibility and precision offered by the common rail system make it the preferred choice for marine engines where high performance, environmental compliance, and fuel economy are paramount.

Advantages of the Common Rail Injection System

While both systems are effective, the common rail injection system is a more modern way of getting fuel into your diesel engine, offering numerous benefits:

1. Uniform Injection Pressure: Maintains consistent pressure across the engine at all loads and RPMs, unlike jerk pumps where pressure is partly a function of engine speed.
2. Variable Engine Timing: Provides the ability to vary injection timing precisely while the engine is running, optimising combustion for different conditions.
3. Simpler Design, Easier Maintenance: Despite its advanced electronics, the overall mechanical design can be simpler, leading to easier maintenance and less frequent servicing.
4. Smokeless Operation: The highly atomised fuel and precise combustion control result in significantly reduced exhaust smoke. It's often referred to as “smokeless fuel injection.”
5. Enhanced Fuel Economy: Maximises combustion efficiency, leading to lower fuel consumption.
6. Reduced Emissions: The finer control over injection events drastically reduces harmful exhaust pollutants.
7. Variable Exhaust Valve Control: Offers the ability to control variable opening of the exhaust valve, further optimising engine breathing and performance.

Comparative Analysis: Bosch Jerk Pump vs. Common Rail System

To further illustrate the differences and help you decide which system might be best understood for your vessel or next purchase, here's a comparative table outlining key aspects of both technologies:

Why the Common Rail System is Often the Preferred Choice

Given the detailed comparison, it becomes clear why the common rail injection system has become the gold standard for modern marine diesel engines. Its ability to precisely control every aspect of the fuel injection process — from pressure to timing and quantity — provides a level of engine optimisation simply unattainable with older mechanical systems. This translates directly into tangible benefits for boat owners and operators.

The improved fuel atomisation and multi-injection capability mean that combustion is more complete, extracting maximum energy from every drop of fuel. This not only saves money at the pump but also significantly reduces the environmental impact of your vessel, a growing concern in today's marine industry. The "smokeless" operation is a clear indicator of cleaner combustion and fewer harmful emissions, aligning with stricter environmental regulations.

Furthermore, the consistent and high injection pressure across all engine speeds contributes to smoother engine operation, better throttle response, and a more uniform power delivery. While the initial cost and potential for more complex diagnostics might be higher, the long-term benefits in terms of fuel savings, reduced maintenance frequency, and superior performance often outweigh these considerations, making the common rail system a wise investment for the modern mariner seeking optimal longevity and performance from their engine.

Maintenance and Longevity of Your Marine Fuel Pump

Regardless of whether your marine diesel engine utilises a Bosch jerk pump or a common rail system, diligent maintenance is crucial for ensuring its longevity and reliable performance. Fuel pumps are robust components, but they are subjected to high pressures and constant operation, making them susceptible to wear and tear.

Key maintenance practices include regularly checking fuel filters and replacing them as per the manufacturer's recommendations. Contaminated fuel is a primary cause of fuel pump and injector failure. Even minute particles can cause significant damage to the precision-machined components within these high-pressure systems. Ensuring your fuel is clean and free of water is paramount. Additionally, paying attention to any changes in engine performance – such as rough idling, difficulty starting, reduced power, or increased fuel consumption – can be early indicators of a developing issue with your fuel pump. Addressing these signs promptly can prevent more extensive and costly damage down the line. Always opt for high-quality replacement parts, as the integrity of the fuel system is vital to your engine's health.

Frequently Asked Questions (FAQs)

Q1: How often should I check or service my marine fuel pump?

The frequency of checking and servicing your marine fuel pump largely depends on your engine manufacturer's recommendations, your boat's usage, and the quality of your fuel. Generally, it's advisable to inspect your fuel filters regularly (e.g., every 50-100 hours of operation or annually) and replace them as needed. The fuel pump itself typically doesn't require routine servicing unless there are signs of an issue. However, including a visual inspection of fuel lines and connections for leaks or damage during your annual engine service is a good practice. For common rail systems, professional diagnostic checks may be recommended at specific intervals to monitor system health.

Q2: What are the common signs of a failing marine fuel pump?

A failing fuel pump can manifest in several ways. Common symptoms include difficulty starting the engine, especially when warm, as the pump may struggle to build sufficient pressure. You might also notice a loss of engine power, particularly under load, or a general sluggishness. Irregular engine idling, misfires, or stalling can also point to fuel delivery issues. An increase in fuel consumption or excessive exhaust smoke (for common rail systems, this would be unusual and a strong indicator) are further signs. Any unusual noises coming from the pump area, such as a whining or grinding sound, should also be investigated promptly.

Q3: Can I upgrade my Bosch Jerk Pump to a Common Rail system?

Technically, it's possible, but it's a highly complex and expensive undertaking that is rarely practical or cost-effective for an existing engine. Upgrading would involve replacing not just the fuel pump but also the injectors, fuel lines, potentially the engine's camshaft (if it drives the jerk pump), and crucially, installing an entirely new Electronic Control Unit (ECU) along with its associated sensors and wiring. The engine itself would also need to be compatible with such an extensive modification. In most cases, if you desire the benefits of a common rail system, it's more economical and sensible to invest in a newer engine that comes equipped with this technology from the factory.

Q4: Is a common rail system more expensive to maintain than a Bosch Jerk Pump?

While the initial components of a common rail system (e.g., the high-pressure pump and electronic injectors) can be more expensive to replace than those of a Bosch jerk pump, the overall maintenance costs can be comparable or even lower over the long term. Common rail systems are designed for higher longevity and often require less frequent component replacement if properly maintained with clean fuel. However, when a common rail component does fail, diagnosis often requires specialised electronic tools, and replacement parts are typically more costly. Bosch jerk pumps, while having simpler and potentially cheaper individual parts, might require more frequent mechanical adjustments or overhauls depending on design and usage.

Conclusion

The fuel pump is undeniably one of the most vital components in your marine diesel engine, directly influencing its performance, reliability, and environmental footprint. Whether your vessel is powered by the time-tested Bosch jerk pump or the advanced common rail injection system, understanding its operation and maintenance requirements is key to ensuring smooth sailing.

The shift towards common rail technology highlights the ongoing pursuit of greater fuel efficiency, reduced emissions, and enhanced engine control in the marine industry. While traditional jerk pumps continue to serve many older vessels reliably, the advantages offered by common rail systems – from uniform injection pressure to smokeless operation – make them the preferred choice for modern marine engines. Regardless of your engine's setup, regular maintenance, keen observation of performance, and the use of clean, high-quality fuel will be your best allies in ensuring the longevity and optimal performance of your marine engine's fuel pump system.
