Unravelling Electronic Fuel Injection (EFI)

In the evolving landscape of automotive and marine engineering, the carburettor, once a staple of internal combustion engines, has largely been supplanted by a far more sophisticated and efficient system: Electronic Fuel Injection, or EFI. This technological leap has revolutionised how engines receive their vital fuel supply, moving from a mechanical, often imprecise, mixing method to an electronically controlled, highly accurate one. Understanding EFI is key to appreciating the performance, economy, and reduced emissions of modern vehicles and vessels.

At its core, EFI is a system designed to deliver the precise amount of fuel into an engine's combustion chambers at the exact right time, ensuring optimal air-fuel mixture for efficient combustion. Unlike a carburettor, which relies on Venturi effect and atmospheric pressure, EFI uses a network of sensors, an electronic control unit, and electronically operated fuel injectors to achieve unparalleled precision. This allows the engine to adapt instantly to changing conditions, whether it's varying loads, altitudes, or temperatures, leading to smoother operation and superior overall performance.

How Electronic Fuel Injection Works

The operation of an EFI system is a sophisticated dance between various components, all orchestrated by the Electronic Control Unit (ECU). Think of the ECU as the brain of the EFI system. It constantly monitors numerous engine parameters through a series of sensors:

• Oxygen Sensor (O2 Sensor): Measures the oxygen content in the exhaust gases, indicating how rich or lean the air-fuel mixture is.
• Manifold Absolute Pressure (MAP) Sensor or Mass Air Flow (MAF) Sensor: Measures the amount of air entering the engine.
• Throttle Position Sensor (TPS): Detects the position of the throttle, indicating how much power the driver is requesting.
• Coolant Temperature Sensor: Informs the ECU about the engine's operating temperature, crucial for cold starts and warm-up.
• Engine Speed Sensor (Crankshaft Position Sensor): Monitors engine RPM and piston position, ensuring fuel is injected at the correct moment.

Once the ECU receives this data, it processes the information almost instantaneously, calculating the optimal amount of fuel to deliver. This calculation considers factors like engine load, speed, temperature, and ambient conditions to maintain the ideal air-fuel ratio. After determining the fuel requirement, the ECU then sends electrical signals to the fuel injectors. These injectors, essentially electronically controlled nozzles, open for a precise duration, spraying a fine mist of fuel directly into the engine's intake manifold or, in some advanced systems, directly into the combustion chamber. A high-pressure fuel pump ensures a consistent supply of fuel from the tank to the injectors via a fuel rail.

Types of EFI Systems

While the fundamental principle remains the same, EFI systems have evolved into several distinct types, each offering different levels of precision and complexity:

• Throttle Body Injection (TBI): One of the earliest forms of EFI, TBI systems typically use one or two fuel injectors mounted in a central throttle body, much like a carburettor. Fuel is sprayed into a common plenum, where it mixes with air before being drawn into the cylinders. While more precise than a carburettor, it doesn't offer individual cylinder control.
• Multi-Port Fuel Injection (MPFI): This is perhaps the most common type of EFI. MPFI systems feature a dedicated fuel injector for each cylinder, mounted in the intake manifold directly upstream from the intake valve. This allows for more precise fuel delivery to each cylinder, leading to better atomisation, improved power, and reduced emissions.
• Sequential Multi-Port Fuel Injection (SMPFI): An advancement of MPFI, sequential systems time the fuel injection to coincide with the opening of the intake valve for each specific cylinder. This further optimises fuel delivery and combustion efficiency.
• Direct Injection (GDI - Gasoline Direct Injection): The most advanced form of fuel injection for petrol engines, GDI systems inject fuel directly into the combustion chamber, similar to diesel engines. This allows for even greater control over the air-fuel mixture, enabling higher compression ratios, improved fuel economy, and increased power output.

Benefits of EFI Over Carburettors

The widespread adoption of EFI is not without good reason. Its advantages over traditional carburettors are numerous and significant:

• Improved Fuel Economy: Precise fuel metering reduces waste and optimises combustion.
• Better Performance & Power: EFI ensures the engine always receives the ideal fuel-air mixture, leading to more consistent power delivery across the RPM range.
• Reduced Emissions: Accurate control of the air-fuel ratio allows catalytic converters to operate more effectively, significantly lowering harmful exhaust emissions.
• Enhanced Cold Starting & Driveability: EFI systems compensate for cold engine conditions, making starting easier and ensuring smooth operation from the moment the engine fires up.
• Adaptability: EFI systems automatically adjust for changes in altitude, temperature, and engine load, maintaining optimal performance regardless of environmental conditions.

EFI in Marine Applications: Navigating the Waters

While the benefits of EFI are clear in automotive contexts, its application in marine environments introduces unique challenges, primarily due to the harsh conditions (saltwater, humidity) and stringent regulatory requirements. Historically, the marine sector has lagged slightly in EFI adoption, partly due to the complex certification processes.

For instance, for many years, obtaining US Coast Guard (USCG) approval for aftermarket multi-point fuel injection (MPFI) systems was a significant hurdle. There simply weren't many, if any, readily available USCG-approved options for boat owners looking to upgrade their carburetted engines. This meant that while the automotive world embraced MPFI, marine enthusiasts often had limited choices.

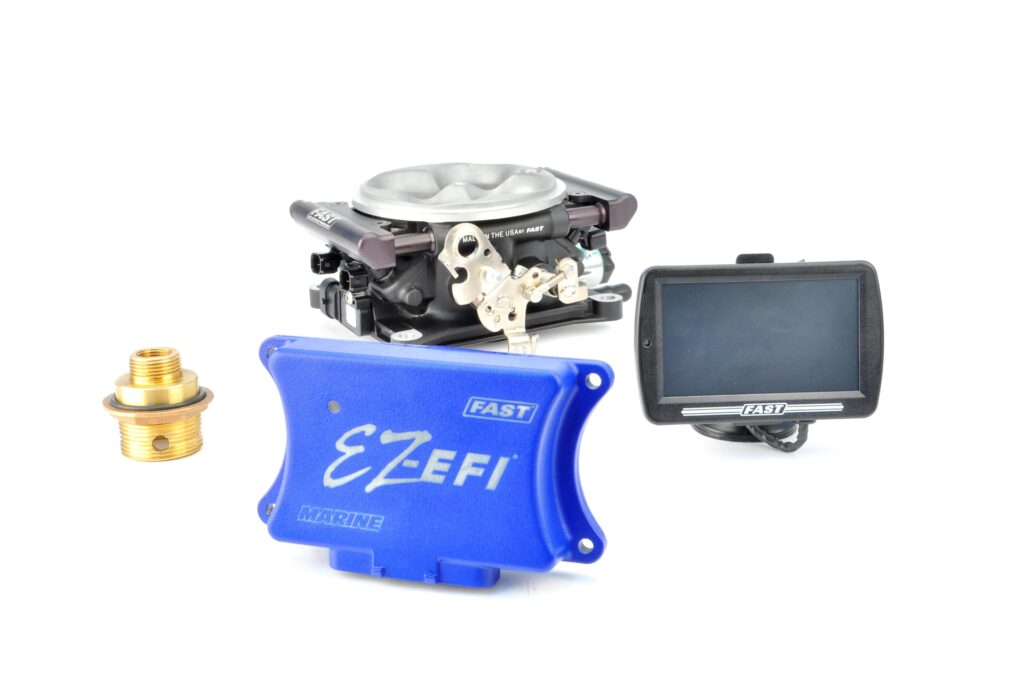

However, the landscape is slowly changing. Nowadays, options like the Sniper EFI System have emerged, offering a USCG-approved solution for converting older marine engines to modern electronic fuel injection. This is a significant step forward, providing boat owners with access to the benefits of EFI. It's important to note, however, that even with a USCG-approved EFI system like the Sniper, the journey isn't always smooth sailing. To my knowledge, there is still a notable gap in the market for USCG-approved aftermarket *fuel systems* (tanks, lines, pumps, filters) specifically designed to reliably fuel these new EFI conversion units in a marine context. This often leaves installers needing to custom-fabricate or adapt components, which adds complexity and cost.

Marine Engine Control Modules (ECMs)

The heart of any marine EFI system, much like its automotive counterpart, is the Engine Control Module (ECM). These sophisticated computers are designed to withstand the marine environment and integrate with a boat's other electronic systems. Companies like BOOSTPOWER USA are at the forefront of providing advanced marine fuel injection ECMs and related modules. These units are built to interlink seamlessly with most EFI CAN (Controller Area Network) and NMEA 2000 data-linking inputs and outputs, which are standard communication protocols in modern marine electronics.

The range of ECM options available is vast, catering to various engine configurations and performance goals:

• Sequential ECMs: Offer precise, timed fuel delivery to each cylinder.
• Batch Fire ECMs: Inject fuel to groups of cylinders simultaneously.
• Staged ECMs: Allow for the use of multiple sets of injectors, often for high-performance applications where additional fuel is needed at higher RPMs.
• Input Programmable ECMs: Provide extensive customisation and tuning capabilities, allowing for fine-tuning of engine parameters.

These ECMs are capable of controlling virtually any type of marine engine product or power adder, from naturally aspirated engines to supercharged or turbocharged setups. The quality spectrum ranges from entry-level units suitable for standard conversions to full Military Spec units, designed for extreme durability and reliability, often featuring highly programmable software.

Furthermore, comprehensive support for these systems is available. Many providers offer laptop tuning services for popular aftermarket and OEM systems, including brands such as FAST, Accel/DFI, EFI Technologies, Pectel, MEFI-Delphi, Mototron, Motorola, Holley Commander, Autronic, and Motec. This allows for custom calibration to optimise performance for specific engine builds or operating conditions. Services such as ECM re-flashing/calibrating, along with dyno tuning and diagnostics, are crucial for ensuring optimal engine health and performance across most major marine applications. Calibration software for some ECMs may also be available upon request, empowering advanced users and tuners.

EFI vs. Carburettor: A Comparative Look

Common EFI System Issues and Maintenance

While highly reliable, EFI systems can encounter issues. Common problems often stem from faulty sensors, which can send incorrect data to the ECU, leading to poor fuel metering. Clogged fuel injectors, often due to contaminants in the fuel, can cause misfires or rough idling. Fuel pump failures can lead to a complete loss of fuel pressure. Regular diagnostic checks using an OBD-II scanner (for automotive) or marine-specific diagnostic tools can help identify sensor faults or stored error codes.

Maintenance for EFI systems is generally less hands-on than for carburettors. Key maintenance tips include:

• Regular Fuel Filter Replacement: This is crucial to prevent contaminants from reaching and clogging the injectors.
• Injector Cleaning: Professional ultrasonic cleaning can restore injector performance if they become dirty.
• Sensor Checks: While not a routine replacement, if a sensor fails, it should be replaced with a quality OEM or equivalent part.
• Quality Fuel: Using clean, high-quality fuel helps prevent deposits and maintain system integrity.

Frequently Asked Questions (FAQs)

Q: Can I convert my carburetted engine to EFI?

A: Yes, many aftermarket EFI conversion kits are available for both automotive and marine engines. These kits replace the carburettor with a throttle body injection unit or even multi-port systems, along with the necessary sensors and an ECU. However, for marine applications, always ensure the conversion kit and any associated fuel system components are USCG approved if required for your vessel.

Q: What are the signs of a failing fuel injector?

A: Common signs include engine misfires, rough idle, reduced fuel economy, a strong fuel smell (indicating a leak), or a check engine light illuminating with specific injector codes.

Q: Is EFI more expensive to maintain than a carburettor?

A: While individual EFI components can be more expensive to replace than carburettor parts, EFI systems generally require less frequent routine adjustments. Diagnostic tools are often needed for troubleshooting, which can add to repair costs if you rely on a professional. However, the benefits in fuel economy and performance often outweigh these potential maintenance differences over the long term.

Q: Why is USCG approval important for marine EFI?

A: USCG approval signifies that the component meets strict safety standards for marine use, particularly concerning fire safety and preventing fuel leaks in an enclosed engine space. Using non-approved components can be dangerous and may lead to insurance issues or legal problems.

Q: What is the difference between batch fire and sequential injection?

A: In a batch fire system, fuel injectors spray fuel to groups of cylinders simultaneously, regardless of whether their intake valves are open. In contrast, sequential injection precisely times the fuel spray for each individual cylinder to coincide with the opening of its intake valve, leading to more efficient combustion and lower emissions.

Conclusion

Electronic Fuel Injection represents a significant leap forward in engine technology, offering unparalleled control over fuel delivery. From the everyday commute to high-performance marine applications, EFI systems deliver superior fuel economy, reduced emissions, and enhanced driveability. While challenges remain, particularly in adapting these systems to demanding environments like the open sea, ongoing advancements in ECM technology and the availability of USCG-approved solutions are paving the way for more efficient, powerful, and environmentally friendly engines across all sectors.
