Why Your Electrics Trip: RCDs & MCBs Explained

There’s little more frustrating than a sudden power cut, plunging your home into darkness or halting your daily routines. Often, this isn't a widespread outage but rather a trip in your home's electrical system, specifically at the consumer unit. Understanding why your Residual Current Device (RCD) or Miniature Circuit Breaker (MCB) trips is crucial not only for restoring power but, more importantly, for ensuring the safety of your home and its occupants. These vital safety devices are designed to protect you from electric shocks and prevent electrical fires. When they trip, they’re signalling an underlying issue that demands your attention. This guide will walk you through the common causes of tripping, how to safely troubleshoot, and when it’s essential to call in a professional.

Understanding Your Consumer Unit: RCDs and MCBs

Before diving into why your power might be cutting out, it’s vital to understand the key components within your consumer unit (also known as a fuse box). Modern consumer units feature circuit breakers or trip switches, a significant improvement over older fuse wire systems. They offer a much easier way to reset your power after a fault.

What is an RCD (Residual Current Device)?

An RCD is a life-saving device designed to prevent you from getting a fatal electric shock. It continuously monitors the electrical current flowing through a circuit. If it detects an imbalance – meaning electricity is leaking out of the circuit, perhaps through a person who has touched a live wire or through a faulty appliance – it will quickly cut off the power. This leakage, often referred to as an earth leakage fault, is what the RCD is primarily designed to detect and protect against. RCDs are incredibly sensitive and will trip before the leakage reaches dangerous levels.

What is an MCB (Miniature Circuit Breaker)?

An MCB is designed to protect electrical circuits from damage caused by an overload or a short circuit. Unlike an RCD, an MCB doesn't detect current leakage to earth. Instead, it trips when too much current flows through a circuit (overload) or when there's a direct, low-resistance path between two conductors (short circuit). For instance, if you plug too many high-power appliances into one socket, or if a faulty wire causes a direct connection between live and neutral, the MCB will trip to prevent overheating and potential fire.

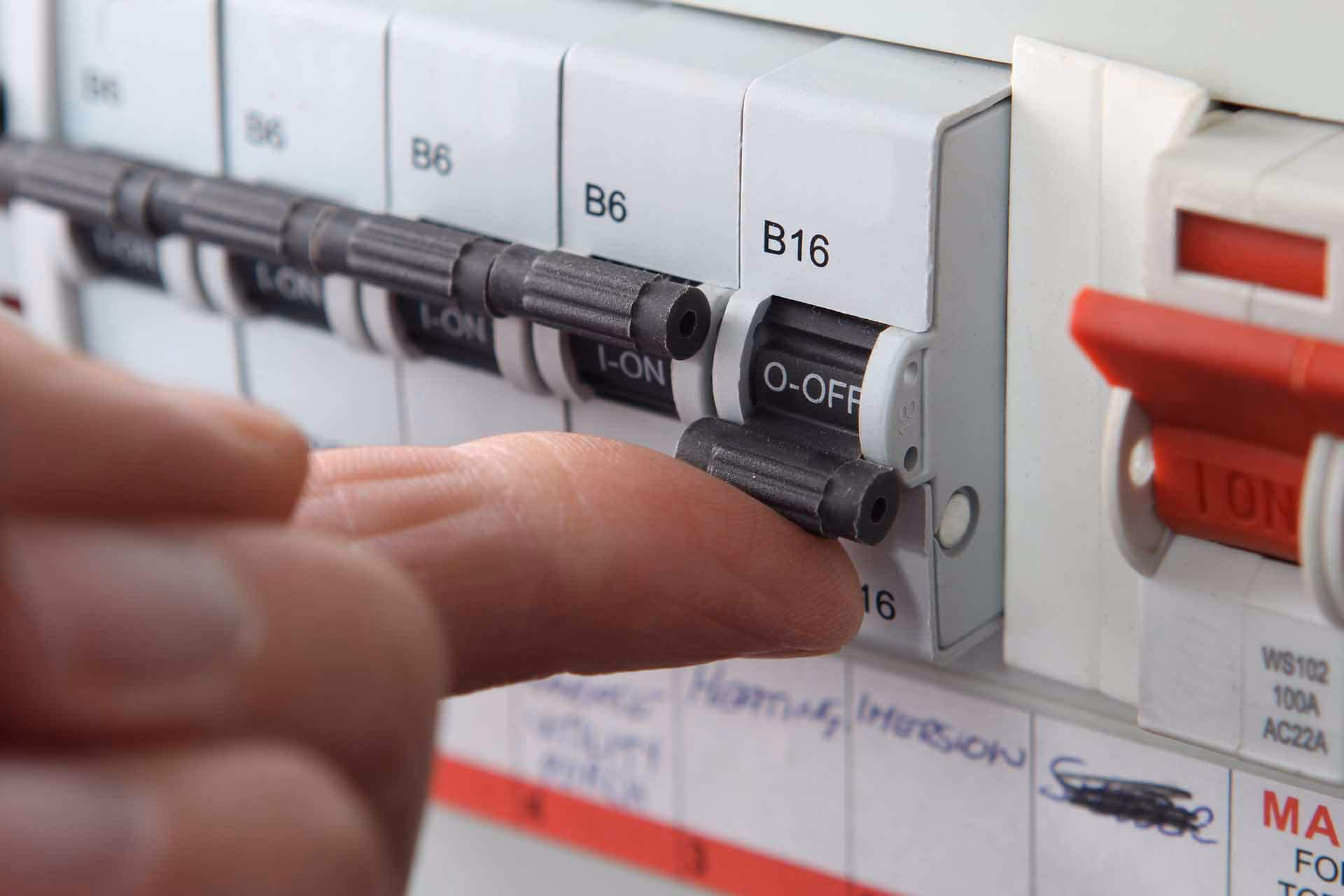

How to Identify a Tripped Switch in Your Consumer Unit

The first step when your power goes out is to locate your consumer unit. It should be in an easily accessible place, like under the stairs, in a utility room, or in a garage. Once found, lift the front cover and observe the switches.

• Most modern consumer units have switches that are "on" when in the 'up' position and "off" (tripped) when in the 'down' position.
• Identify any switches that are in the 'down' position. These are the ones that have tripped.
• Note that some RCDs might be wider than standard MCBs and may control several circuits. If an RCD has tripped, it means there's a fault on one of the circuits it protects.

Before you attempt to reset any switches, it’s crucial to understand why they might have tripped in the first place. Resetting without addressing the underlying issue could be dangerous or simply lead to the switch tripping again immediately.

Common Causes of RCD Tripping

RCDs are highly sensitive and can trip for various reasons, often related to current leaking to earth. Here are the most common culprits:

1. Faulty Appliances

One of the most frequent causes of RCD tripping is a defective appliance. Over time, the internal wiring or components of appliances like kettles, washing machines, dishwashers, or even hairdryers can degrade, causing a small amount of current to leak to earth. This leakage is enough to trigger the RCD.

• Troubleshooting Tip: To identify a problematic appliance, switch off all circuit breakers connected to the tripped RCD and unplug all appliances on those circuits. Reset the RCD. Then, systematically plug in and switch on each appliance one by one. If the RCD trips again after plugging in a specific device, you’ve likely found your culprit. That appliance will need repair or replacement.

2. Damaged or Outdated Wiring

Especially in older properties across the UK, wiring can become damaged or degrade over time. Frayed cables, loose connections, or insulation breakdown can create an unintended path for electricity to leak to earth, causing the RCD to trip. Wiring faults are serious and pose a significant safety risk, including electric shock and fire hazards.

• When to call an electrician: If you suspect a wiring fault (e.g., no specific appliance is causing the trip, or you notice flickering lights, burning smells, or scorch marks), do not attempt to fix it yourself. This requires immediate professional inspection and repair by a qualified electrician.

3. Moisture in Circuits

Water and electricity are a dangerous combination. Moisture ingress, particularly in outdoor electrical installations like garden lighting, pond pumps, or shed power, is a very common cause of RCD trips. Poorly sealed sockets, damaged cables, or even condensation can allow water to disrupt the circuit and create an earth leakage path. Indoors, damp areas like bathrooms or basements can also present issues if wiring or sockets are exposed to moisture.

• Preventive Measures: Ensure all outdoor electrical installations are correctly installed, IP-rated (Ingress Protection) for weather resistance, and regularly checked for damage. For indoor damp areas, ensure proper ventilation and sealing of electrical components.

4. Overloaded Circuits

While overloading is more commonly associated with MCB trips, it can sometimes cause an RCD to trip indirectly if the excessive current draw leads to a component failure and subsequent earth leakage. Plugging too many high-power devices into a single circuit can strain the wiring and appliances, potentially leading to faults.

5. Sensitive or Faulty RCD Itself

In some instances, the RCD itself might be faulty or overly sensitive, leading to unnecessary tripping even when there isn't a significant fault. Older RCDs might degrade over time, or they might simply not be suitable for the specific demands of your home’s electrical system. This is less common but can be frustrating if all other troubleshooting steps fail.

• When to call an electrician: If you've systematically eliminated all other possibilities, a qualified electrician can test the RCD's performance and replace it if necessary.

Common Causes of MCB Tripping

MCBs trip when they detect an overload or a short circuit. These are direct current issues, not necessarily earth leakage.

1. Circuit Overloading

This is arguably the most common reason an MCB trips. It occurs when too many electrical appliances are drawing power from a single circuit simultaneously, exceeding its safe current capacity. For example, running a washing machine, tumble dryer, electric heater, and microwave all on the same circuit can easily cause an overload.

• Troubleshooting Tip: If an MCB trips, try unplugging some high-power appliances from that circuit and then resetting the MCB. If it holds, consider redistributing your appliances to different circuits or avoiding using multiple high-demand items at once.

2. Short Circuits

A short circuit happens when there's an unintended direct connection between the live and neutral wires (or live and earth). This creates a path of very low resistance, causing a sudden, massive surge in current. This surge will immediately trip the MCB to prevent damage to wiring and appliances, and to mitigate fire risk. Short circuits can be caused by:

• Damaged appliance cords or internal wiring.
• Loose connections in sockets, switches, or light fittings.
• Nails or screws accidentally piercing cables during DIY.
• Water ingress bridging connections.

You might identify a short circuit by a burning smell, popping or crackling noises, or even visible sparks when the fault occurs.

• When to call an electrician: Short circuits are dangerous. If you suspect a short circuit, do not attempt to reset the MCB repeatedly. Isolate the affected circuit (if possible) and call a qualified electrician immediately.

3. Faulty Appliances

While faulty appliances more commonly cause RCD trips due to earth leakage, they can also cause an MCB to trip if they develop an internal short circuit or draw excessive current due to a malfunction.

Detailed Troubleshooting Steps for Tripped Circuits

When your power goes out, follow these steps systematically:

1. Locate Your Consumer Unit: Find the main fuse box in your home.
2. Identify the Tripped Switch: Look for any switches that are in the 'down' or 'off' position.
3. Reset Attempt (Initial): Try to flick the tripped switch back to the 'up' or 'on' position.
4. Observe:
   • If it immediately trips again: The fault is persistent, likely in the wiring or a fixed appliance on that circuit.
   • If it holds: The issue might have been a temporary overload, or you might have been lucky.
   • If it holds for a short period then trips: This often points to an appliance that takes time to develop the fault (e.g., a washing machine reaching its heating cycle) or an intermittent wiring issue.
5. Isolate the Problematic Appliance/Circuit: If the switch won't hold, or trips again quickly:
   1. Switch off all circuit breakers in your consumer unit that are controlled by the tripped RCD or MCB.
   2. Unplug all appliances from sockets on the affected circuit. This includes fixed appliances if you can safely access their plugs.
   3. Reset the RCD/MCB again.
   4. If it holds now: The fault is with an appliance or something plugged into a socket.
   5. If it still trips immediately: The fault is likely in the fixed wiring of that circuit. You need a professional.
6. Identify the Specific Appliance (if applicable): If the RCD/MCB held after unplugging everything, start plugging appliances back in one by one and switching them on. The moment the RCD/MCB trips again, you've found the faulty appliance. Unplug it, leave it disconnected, and reset the RCD/MCB. Do not use the faulty appliance until it has been repaired or replaced.

Important Safety Note: While it is generally safe to touch your consumer unit, faulty electrics are extremely dangerous. If you are not confident in your ability to carry out these basic checks, or if the issue persists, always seek the help of a fully qualified electrician. Never attempt to bypass safety devices or work on live circuits.

Preventive Measures to Avoid Future Trips

Once you've resolved a tripping issue, taking preventive steps can minimise future disruptions:

• Test Your RCD Regularly: Most RCDs have a 'Test' button. Press it every three months. The RCD should trip instantly. If it doesn't, it may be faulty and needs replacing by an electrician.
• Avoid Circuit Overloading: Be mindful of how many high-power appliances you use on a single circuit simultaneously. Distribute them where possible.
• Regular Electrical Inspections: Consider having a periodic electrical inspection (EICR - Electrical Installation Condition Report) every 5-10 years, or when buying/selling a property. This identifies potential wiring issues before they become serious.
• Maintain Appliances: Regularly check appliance cords for damage and ensure they are in good working order.
• Weatherproof Outdoor Electrics: Ensure all outdoor electrical installations are correctly rated for outdoor use (IP-rated) and properly maintained to prevent moisture ingress.
• Use Surge Protectors: While not directly preventing trips from earth faults or overloads, surge protectors can safeguard sensitive appliances from power surges, which can sometimes indirectly lead to component failure and subsequent trips.

RCD vs. MCB: A Comparative Overview

Understanding the distinct roles of RCDs and MCBs is key to troubleshooting. Here’s a quick comparison:

Note that some modern consumer units utilise RCBOs (Residual Current Breaker with Overcurrent protection), which combine the functions of both an RCD and an MCB into a single device, offering comprehensive protection for individual circuits.

When to Call a Qualified Electrician

While basic troubleshooting can resolve many tripping issues, there are clear instances where professional intervention is not just recommended, but essential for your safety:

• Persistent Tripping: If a circuit trips repeatedly, even after you’ve unplugged all appliances and tried to reset it, it indicates a fault within the fixed wiring.
• Burning Smells or Sparks: Any signs of burning, scorching, popping, or crackling noises from your consumer unit, sockets, or appliances are immediate red flags. Turn off the main switch if safe to do so and call an emergency electrician.
• Main Switch Tripping: If the main RCD or main switch of your consumer unit keeps tripping, this can indicate a serious fault affecting a large part or all of your electrical installation, or a fault with the consumer unit itself. Do not try to fix this yourself.
• Lack of Confidence: If you are unsure about any step of the troubleshooting process, or simply don't feel confident working with your electrical system, always err on the side of caution and contact a professional.
• Identifying Complex Faults: An electrician has specialised tools, such as insulation resistance testers and thermal imagers, to pinpoint hidden faults accurately and safely, without unnecessary disruption.
• Outdoor Circuit Issues: If your garden lights or outdoor sockets are causing trips, especially after rain, it's vital to have them checked by a professional to ensure they are adequately protected and installed to safety standards.

Frequently Asked Questions

Q1: Can I fix a tripped RCD or MCB myself?

You can safely perform basic troubleshooting steps like identifying the tripped switch, unplugging appliances, and attempting to reset it. However, if the issue persists, if you suspect a wiring fault, or if you're uncomfortable, always call a qualified electrician. Electrical work can be dangerous if not handled correctly.

Q2: How often should I test my RCD?

It is recommended to test your RCD using the 'Test' button every three months. This ensures it's functioning correctly and will trip when needed.

Q3: Why does my main switch keep tripping?

If the main switch (often a large RCD protecting multiple circuits or the entire property) keeps tripping, it suggests a significant fault somewhere in your electrical system that is causing a large earth leakage or overload. It could be a fault with the consumer unit itself or a widespread issue. This requires immediate investigation by a qualified electrician.

Q4: What's the difference between an RCD and an MCB?

An RCD protects against electric shock by detecting current leakage to earth, while an MCB protects circuits from damage due to overcurrents (overloads or short circuits). They serve different, but equally vital, safety functions.

Q5: Why do my garden lights trip the MCB (or RCBO)?

Garden lights often trip circuits due to moisture ingress into the wiring, connections, or light fittings, which causes an earth leakage fault (tripping an RCD or the RCD part of an RCBO). If it's the MCB part tripping, it could be an overload from too many lights or a short circuit in the outdoor wiring. Never increase the size of the breaker; this is extremely dangerous. It indicates a fault that needs to be located and fixed by an electrician.

Conclusion

A tripping RCD or MCB is your electrical system's way of telling you something is wrong. While often a simple fix like unplugging a faulty kettle, it can also be a warning sign of a more serious, potentially dangerous underlying issue. By understanding the purpose of these safety devices, knowing how to safely troubleshoot, and recognising when to call a qualified electrician, you can ensure your home remains safe, powered, and protected from electrical hazards. Never compromise on electrical safety; when in doubt, always seek professional help.
