Understanding and maintaining your vehicle's fuel injection system is paramount for optimal performance and fuel efficiency. At the heart of this diagnostic process often lies a specialised tool: the fuel injector tester. This guide will walk you through the ins and outs of connecting and utilising an Active Fuel Injector Tester (AFIT), ensuring you can confidently assess the health of your fuel injectors.
What is the Active Fuel Injector Tester (AFIT)?
The AFIT is a sophisticated piece of equipment designed to test the functionality and spray pattern of individual fuel injectors. It allows mechanics and DIY enthusiasts to identify faulty injectors that may be causing poor engine performance, increased emissions, or fuel wastage. By simulating the engine's control signals, the AFIT can accurately gauge how each injector is performing.
What's Included with the AFIT?
When you acquire an AFIT, it typically comes with a comprehensive set of components to facilitate thorough testing. While specific kits may vary slightly, the core inclusions are designed for ease of use and effective diagnosis. Common items you can expect to find within the AFIT package include:
- The main testing unit: This is the central hub of the system, housing the controls and display for monitoring injector performance.
- Various adapter leads and connectors: These are crucial for physically connecting the tester to different types of fuel injectors, as connector designs can vary significantly between manufacturers and models.

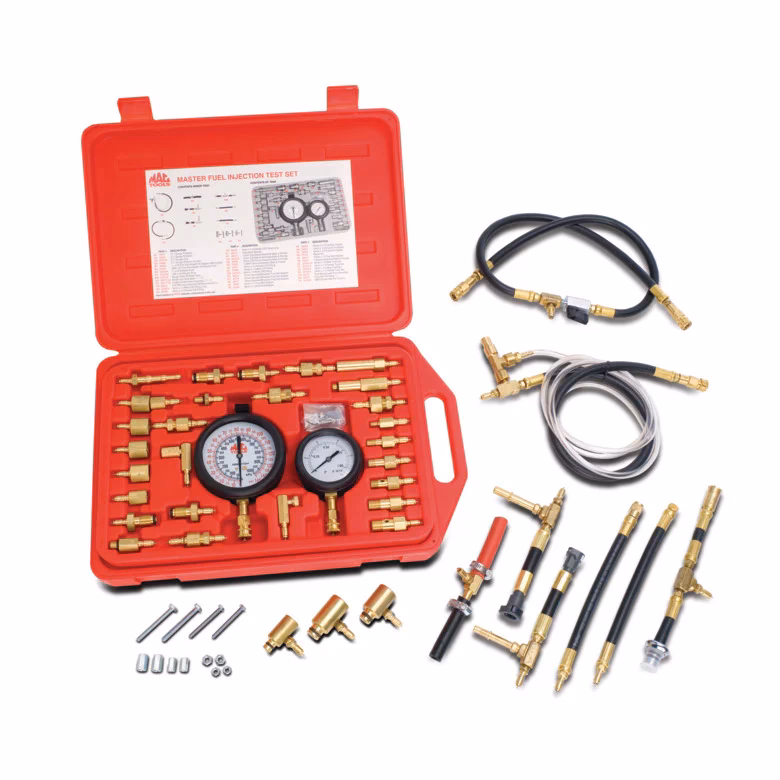

- Fuel rail pressure gauge: Some advanced kits may include a gauge to monitor the fuel pressure within the system, providing a more complete diagnostic picture.
- O-ring seal retainers: These are vital for ensuring a secure and leak-free connection between the AFIT and the fuel injectors, as well as at the FMU/FAH (Fuel Metering Unit/Fuel Airflow Unit) connections. It's essential to check these for signs of wear and ensure the connection is tight.
- Glass housing at FMU/FAH connection: Examine this for any chips or cracks, particularly around the edges, as damage here could lead to leaks or inaccurate readings.
- User manual: A detailed manual is indispensable for understanding the specific operation and troubleshooting of your AFIT model.
How to Connect a Fuel Injector Tester (AFIT)
Connecting a fuel injector tester, specifically the AFIT, requires a methodical approach to ensure accurate results and prevent damage to the vehicle or the tester itself. Here’s a step-by-step guide:
Step 1: Safety First!
Before commencing any work, ensure the engine is completely cool. Disconnect the vehicle's battery, usually the negative terminal, to prevent any electrical shorts. Wear appropriate safety gear, including safety glasses and gloves, as you'll be dealing with fuel, which is flammable and can irritate the skin.
Step 2: Access the Fuel Injectors
Locate the fuel rail and the fuel injectors. You may need to remove an engine cover or other components to gain unobstructed access. Refer to your vehicle's service manual for specific instructions on accessing the fuel injectors for your particular make and model.
Step 3: Disconnect the Original Injector Connectors
Carefully disconnect the electrical connectors from each fuel injector. These connectors usually have a locking tab that needs to be pressed or lifted to release them. Be gentle to avoid breaking the plastic clips.
Step 4: Connect the AFIT Adapter Leads
Select the appropriate adapter lead from your AFIT kit that matches the connector type of your vehicle's fuel injectors. Connect one end of the adapter lead to the fuel injector and the other end to the corresponding port on the main AFIT unit. Ensure a firm and secure connection.
Step 5: Connect the AFIT to the Fuel Rail (If Applicable)
Some AFIT setups require a direct connection to the fuel rail to monitor pressure or to deliver a controlled fuel flow for certain tests. If your kit includes this, follow the instructions for safely tapping into the fuel rail. Ensure all O-ring seals are in good condition and the connections are tight to prevent fuel leaks. Pay close attention to the glass housing at the FMU/FAH connection for any signs of damage.
Step 6: Power Up and Configure the AFIT
Once all connections are made, reconnect the vehicle's battery. Power on the AFIT unit according to its manual. You will likely need to configure the tester for your specific vehicle, which might involve selecting the number of cylinders, injector type, and desired test parameters (e.g., pulse width, frequency).
Step 7: Perform the Tests
With the AFIT configured and connected, you can now initiate the diagnostic tests. The unit will send signals to the injectors and display information such as spray pattern, flow rate, and electrical resistance. Observe the results carefully for any anomalies.
Common Fuel Injector Issues Diagnosed with an AFIT
The AFIT is invaluable for pinpointing a range of fuel injection problems:
Uneven Spray Pattern
A healthy fuel injector atomises fuel into a fine, cone-shaped mist. If an injector produces a weak, dribbling, or uneven spray, it indicates a blockage or internal wear. This can lead to poor combustion and misfires.
Incorrect Fuel Flow Rate
The AFIT can measure the volume of fuel an injector delivers over a specific period. If an injector is delivering too much or too little fuel, it can disrupt the air-fuel ratio, causing issues like hesitation, poor acceleration, or increased fuel consumption.
Leaking Injectors
A leaking injector will continue to drip fuel even when it's supposed to be closed. This can lead to a rich fuel mixture, fouled spark plugs, and potential engine damage. The AFIT can often detect this by observing fuel delivery when the injector is commanded off.
Electrical Faults
The tester can also check the electrical resistance of the injector's solenoid. An out-of-spec resistance can indicate an open circuit or a short, meaning the injector won't receive the signal to operate.
Table: AFIT Test Results and Potential Causes
| Observed Issue | Potential Cause(s) | Impact on Engine |
|---|---|---|
| Weak or uneven spray pattern | Clogged nozzle, internal wear, carbon buildup | Misfires, rough idle, poor fuel economy |
| Low fuel flow rate | Partial blockage, weak solenoid, incorrect pulse width | Hesitation, lack of power, lean condition |
| High fuel flow rate | Worn internal components, incorrect injector type | Rich condition, fouled spark plugs, excessive emissions |
| Dripping fuel (leaking) | Sticking pintle, worn seat, debris in injector | Rich mixture, fouled spark plugs, hard starting |
| No fuel delivery | Open circuit, burnt coil, disconnected wiring | Misfire on that cylinder, engine imbalance |
Frequently Asked Questions (FAQs)
Q1: Can I use the AFIT without disconnecting the fuel rail?
A1: While some AFIT models are designed for direct injector connection without touching the fuel rail, others may require a connection to monitor pressure or for specific testing procedures. Always refer to your AFIT's user manual for model-specific instructions.
Q2: How do I know if my O-ring seals are worn?
A2: Visually inspect the O-rings for signs of cracking, hardening, or degradation. If they feel brittle or lose their elasticity, they should be replaced. A leak test after connection can also indicate worn seals.
Q3: What should I do if the AFIT indicates a faulty injector?
A3: If an injector is found to be faulty, it's generally recommended to replace it. It's often advisable to replace all injectors at the same time, especially if they have a high mileage, to ensure consistent performance across all cylinders.
Q4: How often should I test my fuel injectors?
A4: There's no strict schedule, but it's beneficial to test them if you experience symptoms like rough idling, poor acceleration, decreased fuel efficiency, or check engine lights related to the fuel system. Regular maintenance checks can also include injector testing.
Q5: Is it safe to test injectors with fuel still in the system?
A5: Yes, provided you take the necessary safety precautions. Ensure the engine is off and cool, disconnect the battery, wear protective gear, and have a fire extinguisher readily available. The AFIT is designed to be used in this context.
Conclusion
Mastering the connection and use of your Active Fuel Injector Tester (AFIT) is a significant step towards understanding and maintaining your vehicle's intricate fuel system. By following these guidelines, paying close attention to safety, and understanding the diagnostic capabilities of the AFIT, you can effectively identify and address fuel injector issues, leading to a healthier, more efficient, and reliable engine. Remember to always consult your specific AFIT manual and vehicle service manual for the most accurate and detailed information.
