26/06/2019
Replacing a clutch is a significant undertaking for any vehicle owner, and understanding the time commitment is crucial for planning repairs and managing expectations. While there's no single definitive answer to how long a clutch replacement takes, as it varies considerably based on several key factors, this article will delve into the typical timelines and the elements that influence them. Whether you're a seasoned DIYer or relying on a professional garage, having a clear picture of the process will empower you to make informed decisions.
The Average Timeline for a Clutch Replacement
On average, a clutch replacement in a typical front-wheel-drive or rear-wheel-drive passenger car can take anywhere from 4 to 8 hours of labour time. However, this is a broad estimate. Some simpler jobs might be completed in as little as 3 hours, while more complex situations could extend to 10 hours or even more. It's important to remember that this labour time doesn't necessarily translate to the total time your vehicle will be at the garage. Factors like diagnostic time, parts availability, and the garage's workload can all add to the overall duration your car is off the road.
Factors Influencing Clutch Replacement Time
Several variables can significantly impact the time it takes to replace a clutch. Understanding these will help you appreciate the range of estimates: 1. Vehicle Type and Drivetrain Layout: * Front-Wheel Drive (FWD): FWD vehicles often require the engine and gearbox to be separated, and the gearbox itself needs to be removed. This can involve dropping suspension components, driveshafts, and other ancillaries, making it a more involved process. * Rear-Wheel Drive (RWD): RWD vehicles typically have the gearbox located closer to the engine, and the driveshaft needs to be removed to access it. While still a substantial job, it can sometimes be slightly quicker than FWD due to less complex suspension arrangements. * All-Wheel Drive (AWD) / Four-Wheel Drive (4WD): These systems add further complexity. Transfer cases, additional driveshafts, and more intricate layouts can significantly extend the time required for a clutch replacement. * Commercial Vehicles and SUVs: Larger vehicles, trucks, and heavier-duty SUVs often have more robust and heavier components, requiring more physical effort and potentially specialized tools, thus increasing the labour time. 2. Accessibility and Design: * Some vehicle manufacturers design their clutches to be more accessible than others. Tight engine bays, integrated exhaust systems, or complex subframes can make it harder to reach and remove the gearbox, adding to the time. 3. Mechanic's Experience and Skill Level: * An experienced mechanic who has performed numerous clutch replacements will naturally be faster and more efficient than a less experienced one. Familiarity with the specific vehicle model can also play a significant role. 4. Condition of Surrounding Components: * While the clutch itself is being replaced, it's common practice to inspect and sometimes replace related components. This might include the flywheel, release bearing (or throw-out bearing), pilot bearing, and clutch slave cylinder. If these components are seized, rusted, or require additional effort to remove, it will add to the overall time. 5. Tools and Equipment: * Having the right tools, including a suitable transmission jack, torque wrenches, and specialized clutch alignment tools, can significantly speed up the process. Garages with well-equipped workshops will generally be more efficient. 6. Parts Availability: * If the necessary clutch kit and associated parts are readily available, the repair can proceed without delay. However, if parts need to be ordered, it can add days to the overall time your vehicle is unavailable.
The Clutch Replacement Process: A Step-by-Step Overview

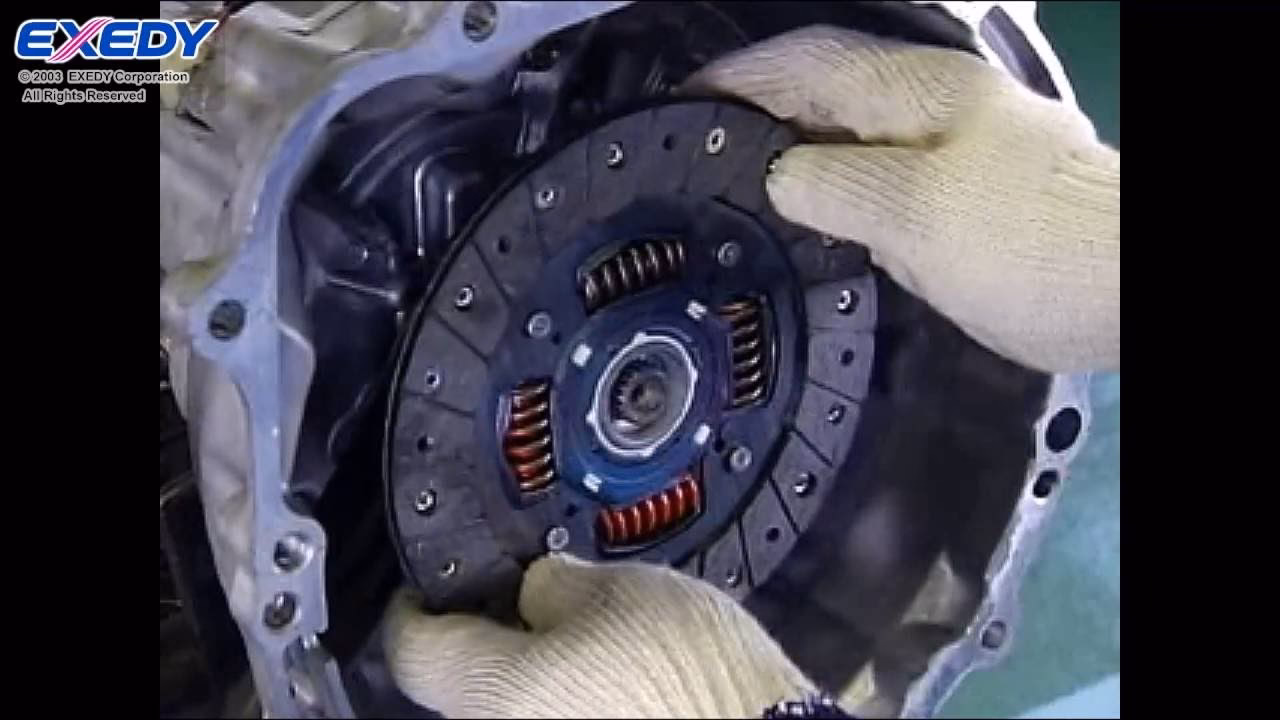

To better understand why it takes time, let's break down the typical steps involved in a clutch replacement: 1. Vehicle Preparation and Safety: The vehicle is securely lifted on a ramp or jack stands, and the battery is disconnected. Safety checks are paramount. 2. Component Removal: This is often the most time-consuming part. It involves draining gearbox oil, disconnecting gear linkages, clutch hydraulics (or cable), driveshafts, exhaust sections, starter motor, and any other components obstructing the gearbox. For FWD vehicles, this often means partially or fully disassembling the front suspension and removing the driveshafts. 3. Gearbox Removal: With all obstructions cleared, the gearbox is carefully unbolted from the engine and lowered using a transmission jack. 4. Clutch Replacement: The old clutch assembly (pressure plate, clutch disc, and release bearing) is removed from the flywheel. The new clutch disc is centered using an alignment tool, and the pressure plate is bolted onto the flywheel. The new release bearing is fitted. 5. Inspection and Refitting: The flywheel is inspected for wear and damage. If necessary, it's either resurfaced or replaced. All removed components are then refitted in reverse order. 6. Reassembly and Final Checks: The gearbox is reinstalled, fluid is refilled, linkages and hydraulics are reconnected, and all electrical connections are secured. The battery is reconnected. 7. Testing: The vehicle is lowered, and a thorough test drive is conducted to ensure the new clutch operates smoothly and correctly.
DIY vs. Professional Replacement: Time Implications
- DIY: If you're undertaking a clutch replacement yourself, expect the process to take significantly longer, potentially 10-20 hours or more, especially if it's your first time. You'll need to factor in time for research, tool gathering, potential setbacks, and the learning curve associated with each step. The risk of making mistakes that could lead to further damage also needs consideration.
- Professional: A qualified mechanic or garage can typically complete the job much faster due to their experience, specialized tools, and efficient workflow. The 4-8 hour labour estimate is for a professional job.
Table: Estimated Time for Clutch Replacement by Vehicle Type
| Vehicle Type | Estimated Labour Time (Hours) | Complexity Level | Notes |
|---|---|---|---|
| Small FWD Car | 4-6 | Medium | Relatively straightforward gearbox removal. |
| Medium FWD Car | 5-7 | Medium-High | May require more suspension disassembly. |
| RWD Saloon | 4-6 | Medium | Gearbox often more accessible than FWD. |
| RWD Sports Car | 5-8 | High | Can have tighter engine bays and more performance-oriented components. |
| AWD/4WD Vehicle | 6-10+ | High-Very High | Involves transfer case and additional driveline components. |
| SUV/Light Truck | 5-9 | Medium-High | Heavier components and potentially more robust build. |
| Heavy Duty Truck | 8-15+ | Very High | Significant weight, specialized tools, and longer labour times. |
Note: These are estimates and can vary based on specific makes and models.
Frequently Asked Questions (FAQs)
- Q1: Can a clutch be replaced in a single day?
- A1: Yes, for a professional garage with all parts on hand, it is often possible to complete a clutch replacement within a single working day. However, if parts need ordering or the vehicle presents unexpected issues, it may take longer.
- Q2: How long does the clutch alignment process take?
- A2: The clutch alignment itself, using the specialized tool, is a relatively quick process, usually taking only a few minutes once the new clutch disc is in place.
- Q3: Does replacing the flywheel add significant time?
- A3: Yes, if the flywheel needs to be removed for resurfacing or replacement, it will add to the overall time, typically an extra 1-2 hours, depending on how seized it is.
- Q4: What are the most time-consuming parts of a clutch replacement?
- A4: Removing and refitting the gearbox, along with the associated components (driveshafts, exhaust, suspension parts), is usually the most labour-intensive and time-consuming aspect of the job.
- Q5: How much does a clutch replacement cost?
- A5: Costs vary significantly based on vehicle, parts, and labour rates. Expect to pay anywhere from £500 to £1500 or more for parts and professional installation. This article focuses solely on the time aspect.
Conclusion
- A5: Costs vary significantly based on vehicle, parts, and labour rates. Expect to pay anywhere from £500 to £1500 or more for parts and professional installation. This article focuses solely on the time aspect.
Understanding the time required for a clutch replacement is essential for managing your vehicle's downtime. While a professional job typically falls within the 4-8 hour labour window, the actual duration your vehicle spends at the garage can be longer due to logistics and parts availability. By considering the vehicle type, complexity, and the experience of your mechanic, you can better anticipate the timeline and ensure your clutch repair is handled efficiently. Always consult with your chosen garage for a more precise estimate based on your specific vehicle.
