Manitou Fork Service: Seals, Springs & Pro Care

Maintaining your mountain bike's suspension forks is paramount for ensuring a smooth, responsive ride and extending the lifespan of your components. A well-serviced fork not only enhances your riding experience by providing optimal damping and travel but also prevents costly damage down the line. This guide delves into the crucial aspects of servicing Manitou forks, covering everything from the intricate process of removing dust seals and reinstalling air springs to understanding the comprehensive care offered by professional services like TF Tuned. Whether you're a seasoned home mechanic or considering professional assistance, grasping these fundamentals will empower you to keep your Manitou suspension performing at its best.

Understanding Your Manitou Fork's Anatomy

Before diving into the nitty-gritty of maintenance, it's beneficial to have a basic understanding of your Manitou fork's internal workings. At its core, a suspension fork comprises stanchions (the shiny upper tubes), lower legs (the outer casings), an air spring or coil spring system, and a damper. Dust seals and foam rings sit at the top of the lower legs, acting as the first line of defence against dirt and grime entering the sensitive internals. The air spring, typically located in one of the stanchions, provides the suspension's resistance, while the damper controls the speed at which the fork compresses and rebounds. Regular servicing focuses on replacing worn seals, refreshing lubricating oils, and ensuring all internal components are clean and functioning correctly.

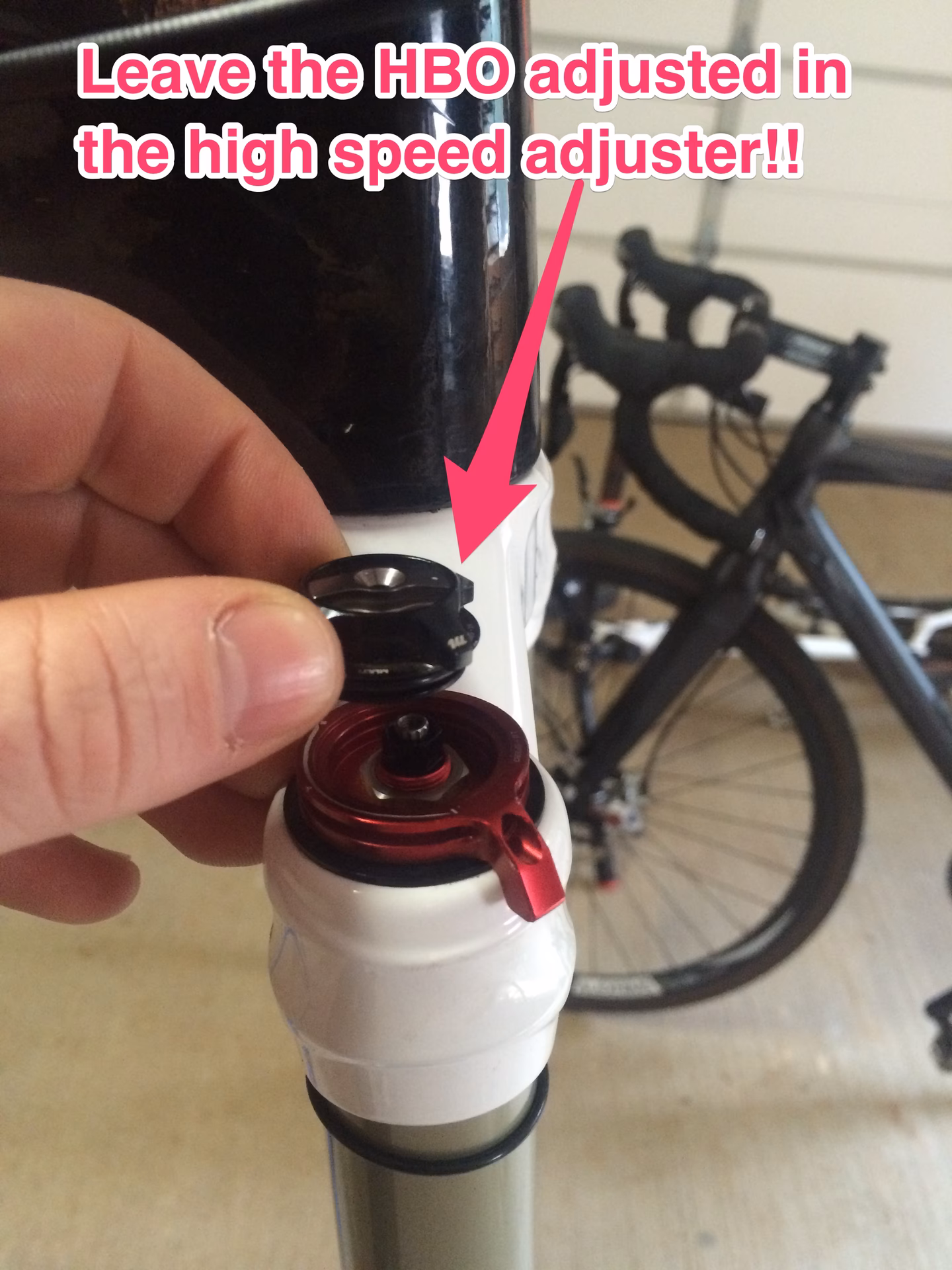

Removing Dust Seals from a Manitou Fork

The dust seals are critical for keeping contaminants out of your fork's lower legs and retaining the lubricating oil. Over time, they can become brittle, crack, or simply wear out, leading to increased friction and potential damage to your stanchions. Replacing them is a standard part of any comprehensive fork service.

Essential Tools and Preparation:

• Small flat-blade screwdriver or a dedicated seal pick tool
• Clean rags or microfibre cloths
• Isopropyl alcohol (for cleaning)
• Catch pan for old oil
• Allen keys or appropriate spanners for drain bolts
• Plastic mallet (optional, for stubborn seals)
• Nitrile gloves (recommended)

Step-by-Step Removal Process:

1. Depressurise the Air Spring: Before doing anything else, ensure all air pressure is released from the air spring. Locate the air valve (usually on the top cap of one stanchion) and depress the Schrader valve core until all air has escaped. Failure to do this can be dangerous.
2. Remove Lower Leg Bolts: Turn the bike upside down or remove the fork from the bike. Locate the small bolts at the very bottom of the lower legs, typically one on each side. Place your catch pan underneath and carefully loosen these bolts. As you loosen them, a small amount of oil will likely drip out.
3. Tap the Shafts Free: Once the bolts are loose but still threaded on by a few turns, gently tap the bolt heads with a plastic mallet or a regular hammer (using a block of wood as a buffer). This action helps to unseat the damper and air spring shafts from the lower legs. You should feel them pop free with a gentle thud.
4. Separate Lower Legs: Fully remove the lower leg bolts. With a firm but gentle pull, slide the lower legs down and off the stanchions. Be prepared for more oil to drain out. Set the lower legs aside.
5. Remove Foam Rings: Just below the dust seals, you'll find foam rings. These are designed to soak up lubricating oil and keep the stanchions slick. Use your pick tool to carefully lift them out. They will be saturated with old oil and likely contain dirt.
6. Pry Out the Dust Seals: This is the most delicate part. Use your small flat-blade screwdriver or, ideally, a dedicated seal pick tool. Insert the tip of the tool carefully between the dust seal and the lower leg casting. Apply gentle leverage to pry the seal upwards. Work your way around the seal, gradually lifting it out. Be extremely careful not to scratch or damage the lower leg casting or, more importantly, the inside of the lower leg where the bushings reside. If the seal is stubborn, try to work from different angles.
7. Clean Thoroughly: Once the old seals and foam rings are removed, thoroughly clean the lower legs, especially the seal seats and the internal bushings, using isopropyl alcohol and clean rags. Ensure no debris remains. This is also a good opportunity to inspect the bushings for any wear or damage.

Remember, patience and a gentle touch are key when removing seals to avoid damaging your components. Always refer to your specific Manitou fork's service manual for precise instructions and torque specifications.

Reinstalling Air Springs on a Manitou Fork

Reinstalling the air spring is a crucial step after servicing, ensuring your fork provides the correct travel and support. This process involves careful lubrication and precise assembly.

Essential Tools and Materials:

• Suspension grease (specific for O-rings, typically a slick honey or similar)
• Fresh fork oil (correct weight and volume as per Manitou's specifications)
• Torque wrench with appropriate sockets/bits
• Clean rags
• Seal press or dedicated seal driver tool (highly recommended for new dust seals)

Step-by-Step Reinstallation Process:

1. Inspect and Lubricate O-Rings: Before reinstallation, carefully inspect all O-rings on the air spring assembly for any nicks, cuts, or flattening. Replace any that show signs of wear. Apply a generous amount of suspension grease to all O-rings and the outside of the air spring shaft. This ensures smooth movement and a good seal.
2. Insert Air Spring into Stanchion: Carefully slide the lubricated air spring assembly back into the correct stanchion (usually the non-damper side). Ensure it slides in smoothly without resistance. If there's resistance, double-check O-ring placement or potential binding.
3. Secure Top Cap: Once the air spring is fully seated, thread the top cap back onto the stanchion. Hand-tighten it first, then use your torque wrench to tighten it to the manufacturer's specified torque. This is critical for maintaining air pressure.
4. Prepare Lower Legs for Reassembly: If you're installing new dust seals and foam rings, now is the time. Lubricate the new foam rings with fresh fork oil and insert them into their grooves in the lower legs. Then, carefully press the new dust seals into place. A dedicated seal driver tool makes this much easier and prevents damage. If you don't have one, some mechanics use a large socket or PVC pipe of the correct diameter, but be very careful.
5. Add Lower Leg Lubrication Oil: Before sliding the lower legs back onto the stanchions, consult your Manitou manual for the precise volume of lower leg lubricating oil (often different weights for each leg). Carefully measure and pour the correct amount into each lower leg. This oil lubricates the bushings and foam rings, reducing friction.
6. Reassemble Lower Legs to Stanchions: Align the lower legs with the stanchions. Gently slide them upwards, guiding the shafts into their respective holes at the bottom of the lower legs. You might need to wiggle them slightly.
7. Install Lower Leg Bolts: Once the shafts are visible through the bolt holes, reinsert the lower leg bolts. Hand-tighten them first, then use your torque wrench to tighten them to the manufacturer's specified torque. Do not overtighten, as this can strip the threads or damage the internal components.
8. Re-pressurise the Air Spring: Using a high-pressure suspension pump, re-inflate the air spring to your desired riding pressure. Cycle the fork through its travel a few times to distribute the oil and check for smooth operation and any air leaks.

Proper reinstallation, especially correct lubrication and torque settings, is vital for the fork's performance and longevity. Always double-check your work and consult the manual.

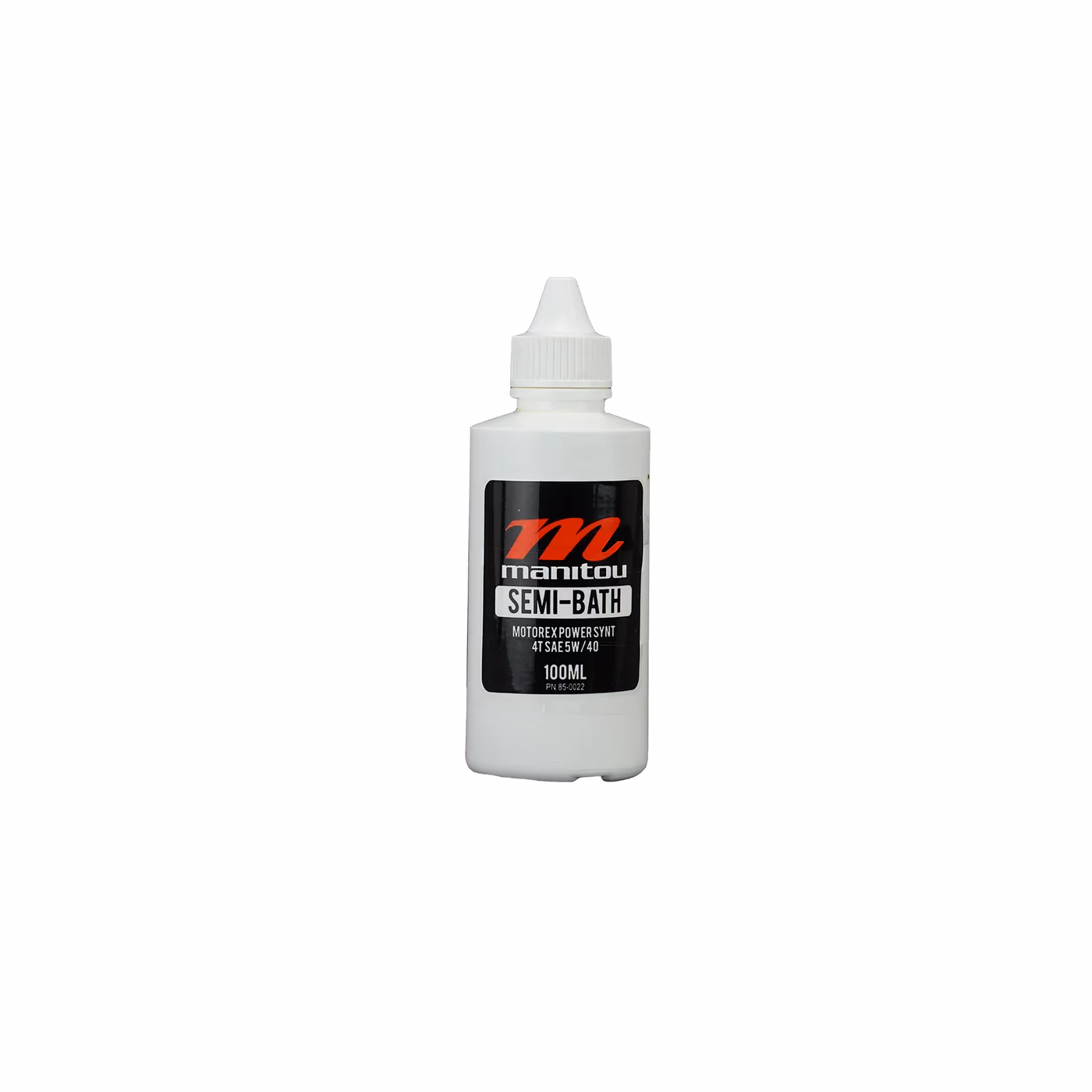

What is Included in a TF Tuned Fork Service?

While DIY servicing can be rewarding, professional services offer a level of expertise, specialised tools, and access to genuine parts that can be invaluable, especially for complex issues or if you lack confidence. TF Tuned is a highly regarded suspension service centre in the UK, known for its meticulous approach.

According to TF Tuned, their comprehensive fork services are designed to restore your suspension to optimal performance. For Manitou forks, and indeed most other brands they service, a full fork service includes:

• New Wiper Seals: These are the primary dust seals that keep external contaminants out.
• New Foam Rings: These sit beneath the wiper seals and hold lubricating oil to keep the stanchions slick.
• New O-rings: All internal O-rings within the air spring and damper assemblies are replaced to ensure proper sealing and function.
• Fresh Oils: Both the damper oil and the lower leg lubricating oil are completely replaced with fresh, high-quality fluids appropriate for your fork model.
• Bushing Re-sizing: As part of the service, TF Tuned will re-size the internal bushings as necessary. Bushings guide the stanchions within the lower legs, and proper sizing ensures smooth travel and minimises play.

It's also worth noting that TF Tuned provides services for shocks. Their shock services include new seals, oils, bushings, and replacement mount kits where necessary. They advise customers to include their existing hardware if they'd like worn kits replaced.

Important Note: TF Tuned explicitly states that they do not service older generation Manitou forks. If you are unsure of your fork model and its compatibility with their service offerings, it is highly recommended to call them before booking a service to avoid disappointment.

The benefits of a professional service extend beyond just part replacement. Experienced technicians can identify and address underlying issues, ensure correct torque settings, and often use vacuum bleeding techniques for dampers, which is difficult to replicate at home. This attention to detail can significantly enhance your fork's performance and extend its life.

DIY vs. Professional Fork Service: A Comparison

Deciding whether to service your Manitou fork yourself or send it to a professional like TF Tuned depends on your mechanical aptitude, available tools, and the desired outcome. Here's a quick comparison:

While DIY saves money upfront, a professional service can save you headaches and ensure your fork operates at its absolute best, potentially extending its lifespan and preventing costly failures due to improper assembly or worn-out internal components.

Frequently Asked Questions About Manitou Fork Servicing

How often should I service my Manitou fork?

Manitou, like most suspension manufacturers, provides recommended service intervals. Typically, a basic lower leg service (cleaning, oil change, dust seal inspection) is recommended every 50 hours of riding or every 3-6 months, whichever comes first. A full damper and air spring service, which is more involved, is usually recommended annually or every 100-200 hours, depending on riding conditions and intensity. Aggressive riders or those who ride in harsh, wet, or dusty conditions may need more frequent servicing.

Can I service my Manitou fork myself, or should I take it to a professional?

Basic lower leg service is generally achievable for a mechanically inclined individual with the right tools and a good service manual. However, full damper and air spring rebuilds are more complex and require specific tools, a clean workspace, and precise techniques. If you're unsure, lack the tools, or are uncomfortable with the process, a professional service like TF Tuned is highly recommended to ensure the job is done correctly and safely.

What kind of oil should I use for my Manitou fork?

Always refer to your specific Manitou fork's service manual for the recommended oil type (weight/viscosity) and volume for both the damper and the lower leg lubrication. Using the wrong oil can negatively impact performance and potentially damage internal components. Reputable suspension oil brands are widely available from bike shops and online retailers.

What are the signs my fork needs servicing?

Common signs that your Manitou fork is due for a service include:

• Reduced travel or harshness: The fork isn't using its full travel or feels stiff and unforgiving.
• Leaking oil: Oil visible on the stanchions, around the seals, or at the lower leg bolts.
• Excessive stiction: The fork feels sticky or hesitant to move through its initial travel.
• Loss of damping control: The fork feels bouncy or pogo-stick like, indicating issues with the damper.
• Clicking or knocking noises: Unusual sounds during compression or rebound.
• Visible wear on stanchions: Scratches or wear marks on the shiny stanchions, often due to worn seals or contaminated oil.

Why won't TF Tuned service older Manitou forks?

Service centres like TF Tuned often limit their services to newer generation forks due to several factors. Parts availability for older models can be scarce, making it difficult to guarantee a complete and effective service. Additionally, older designs may use different internal architectures or materials that are no longer supported or compatible with their current service protocols and tooling. If you have an older Manitou fork, it's best to contact TF Tuned directly or other specialist vintage suspension repair shops for advice.

Conclusion

Regular maintenance is the cornerstone of a high-performing and long-lasting Manitou suspension fork. Whether you choose to tackle basic services yourself, armed with the knowledge of dust seal removal and air spring reinstallation, or opt for the comprehensive expertise of a professional service centre like TF Tuned, investing in your fork's health will pay dividends on the trails. Keep your seals fresh, your oils clean, and your air spring precisely set, and your Manitou fork will reward you with countless hours of smooth, controlled riding.
