Malpassi Fuel Pressure Regulators: Your Carburettor's Best Mate

For enthusiasts of classic cars, motorsport vehicles, or indeed any vehicle still running a carburettor, understanding and optimising the fuel system is paramount. Unlike modern fuel-injected engines that rely on sophisticated electronic fuel pumps and sensors to maintain precise pressure, carburetted systems often require a more hands-on approach to fuel delivery. A consistent and correct fuel pressure is absolutely vital for a carburettor to function effectively, preventing issues ranging from poor performance and fuel wastage to engine damage. This is precisely where a high-quality fuel pressure regulator, such as those from Malpassi, becomes an indispensable component in your vehicle's setup.

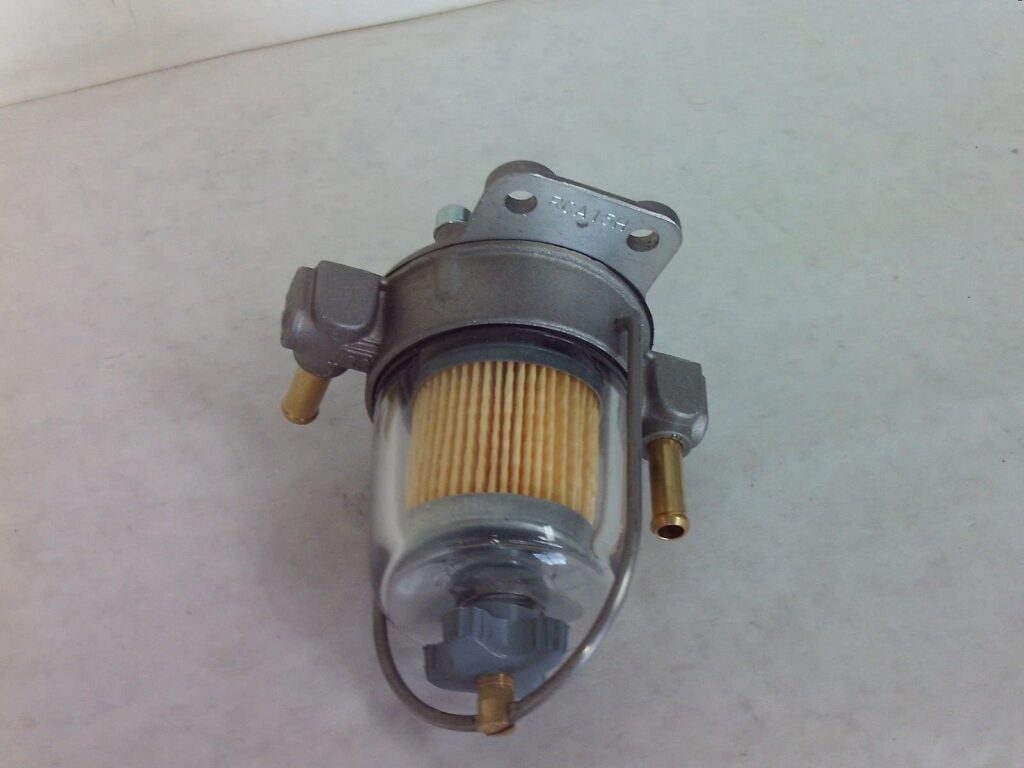

Understanding the Malpassi Fuel Pressure Regulator

At its core, a fuel pressure regulator (FPR) is designed to control the pressure of the fuel being delivered from the fuel pump to the carburettor. Without regulation, the fuel pump can often supply fuel at a pressure far exceeding what a carburettor is designed to handle, leading to an array of problems. The Malpassi FPR, specifically models like the FPR008B, is engineered for carburettor-fed engines, offering a reliable and adjustable solution to this common challenge. Its primary function is to step down and stabilise the fuel pressure, ensuring that the carburettor receives fuel at the exact pressure it needs for optimal performance. The Malpassi unit stands out due to its straightforward adjustability, typically via a simple screw mechanism on top, allowing users to fine-tune the pressure within a specified range, commonly between 1.5 and 5 PSI. This range is particularly suited for most carburettor applications, providing the flexibility required for various engine types and states of tune.

Why Correct Fuel Pressure Matters for Carburettors

Carburettors rely on a delicate balance of air and fuel to create the combustible mixture for the engine. This balance, known as the air-fuel ratio, is heavily influenced by the fuel pressure. If the pressure is too high, the float needle valve within the carburettor can be forced open, leading to an over-supply of fuel. This results in a 'rich' mixture, characterised by excessive fuel consumption, black smoke from the exhaust, poor throttle response, and even fuel washing down the cylinder walls, diluting the engine oil. Conversely, if the fuel pressure is too low, the carburettor bowls may not fill adequately, leading to a 'lean' mixture. A lean condition can cause hesitation, misfires, a lack of power, and in severe cases, engine damage due to excessive heat. The Malpassi regulator acts as a crucial gatekeeper, maintaining the optimal pressure, thereby ensuring the carburettor can deliver the precise amount of fuel required by the engine at all times, regardless of the fuel pump's output.

Key Features and Benefits of Malpassi Adjustable Regulators

The adjustability of Malpassi fuel pressure regulators is a significant advantage. While some fuel systems might incorporate a basic, non-adjustable regulator, the ability to fine-tune the pressure offers numerous benefits:

• Precision Tuning: Allows for exact matching of fuel pressure to the carburettor's specific requirements, which can vary between different carburettor models and engine setups.
• Optimised Performance: By ensuring the correct fuel delivery, the engine can run at its most efficient and powerful, preventing both rich and lean conditions that hinder performance.
• Improved Fuel Economy: A properly regulated fuel pressure prevents over-fuelling, leading to more efficient fuel consumption.
• Enhanced Reliability: Consistent fuel pressure reduces strain on carburettor components and helps prevent issues like flooding or fuel starvation, contributing to longer component life and fewer breakdowns.
• Versatility: The adjustable range (e.g., 1.5-5 PSI) makes the Malpassi FPR suitable for a wide array of carburettor applications, from single carb setups to more complex multi-carb or even some mild turbo systems (though dedicated turbo regulators are often recommended for higher boost applications).
• Component Protection: Prevents excessive pressure from damaging sensitive carburettor components like float needles and seats.

Malpassi, originating from Italy, has established itself as a reputable manufacturer in the automotive fuel system market, particularly for performance and classic vehicle applications. Their regulators are known for their robust construction and reliability, making them a popular choice for enthusiasts and professional mechanics alike.

Installation and Adjustment: A Step-by-Step Overview

Installing a Malpassi fuel pressure regulator is a relatively straightforward process for anyone with basic mechanical knowledge, but it requires careful attention to detail and safety. Always ensure the fuel system is depressurised before beginning work, and disconnect the vehicle's battery.

1. Placement: The regulator should be installed in the fuel line after the fuel pump and before the carburettor. It's often best placed as close to the carburettor as practically possible to minimise pressure fluctuations. Ensure it's mounted securely to a stable surface, away from excessive heat or vibration.
2. Connections: The Malpassi regulator will typically have an inlet and an outlet port. Connect the fuel line from the pump to the inlet, and a new fuel line from the outlet to the carburettor. Use appropriate fuel-grade hoses and secure them with high-quality hose clamps. Ensure all connections are tight to prevent leaks.
3. Pressure Gauge (Highly Recommended): For accurate adjustment, you will need a fuel pressure gauge. Some Malpassi regulators may have a dedicated port for a gauge, or you might need to install an inline gauge in the fuel line after the regulator. This is a critical tool for setting the correct pressure.
4. Initial Adjustment: With the engine off, prime the fuel system (e.g., by cycling the ignition or manually operating the fuel pump if possible) and check for leaks. Once satisfied, start the engine.
5. Fine-Tuning: With the engine running (ideally at idle), observe the fuel pressure gauge. Use the adjustment screw on top of the Malpassi regulator to set the desired pressure. Turning the screw clockwise typically increases pressure, while counter-clockwise decreases it. Consult your carburettor's specifications or engine builder's recommendations for the ideal pressure setting. For many common carburettors, a setting between 2.5 and 4 PSI is often a good starting point within the Malpassi's 1.5-5 PSI range.
6. Re-check: After adjustment, run the engine at various RPMs and under different loads (if safe to do so) to ensure the pressure remains stable. Re-check for any leaks.

Important Note: Always use fuel-resistant sealing compounds on threaded fittings, and ensure no fuel comes into contact with hot engine components. Safety first!

Troubleshooting Common Fuel Pressure Issues

Even with a quality regulator like the Malpassi, issues can sometimes arise. Understanding potential problems and their symptoms can help in quick diagnosis:

• Engine Running Rich (Too Much Fuel):
  • Symptoms: Black smoke from exhaust, strong fuel smell, poor fuel economy, engine bogging down, fouled spark plugs.
  • Possible Causes: Regulator set too high, faulty regulator (stuck open), carburettor float valve issues (though regulator can exacerbate this).
• Engine Running Lean (Not Enough Fuel):
  • Symptoms: Hesitation, lack of power, backfiring through the carburettor, engine overheating, light coloured spark plugs.
  • Possible Causes: Regulator set too low, clogged fuel filter (before regulator), faulty fuel pump, kinked fuel line, air leak in fuel system.
• Unstable Pressure:
  • Symptoms: Erratic engine performance, surging.
  • Possible Causes: Air in the fuel line, faulty regulator, inconsistent fuel pump output, loose connections.

Regularly inspecting your fuel lines, filter, and the regulator itself for signs of wear or leaks is part of good maintenance. While Malpassi regulators are built for durability, like any mechanical component, they can eventually wear out or develop internal issues. If you suspect your regulator is failing, replacement is generally the most straightforward solution.

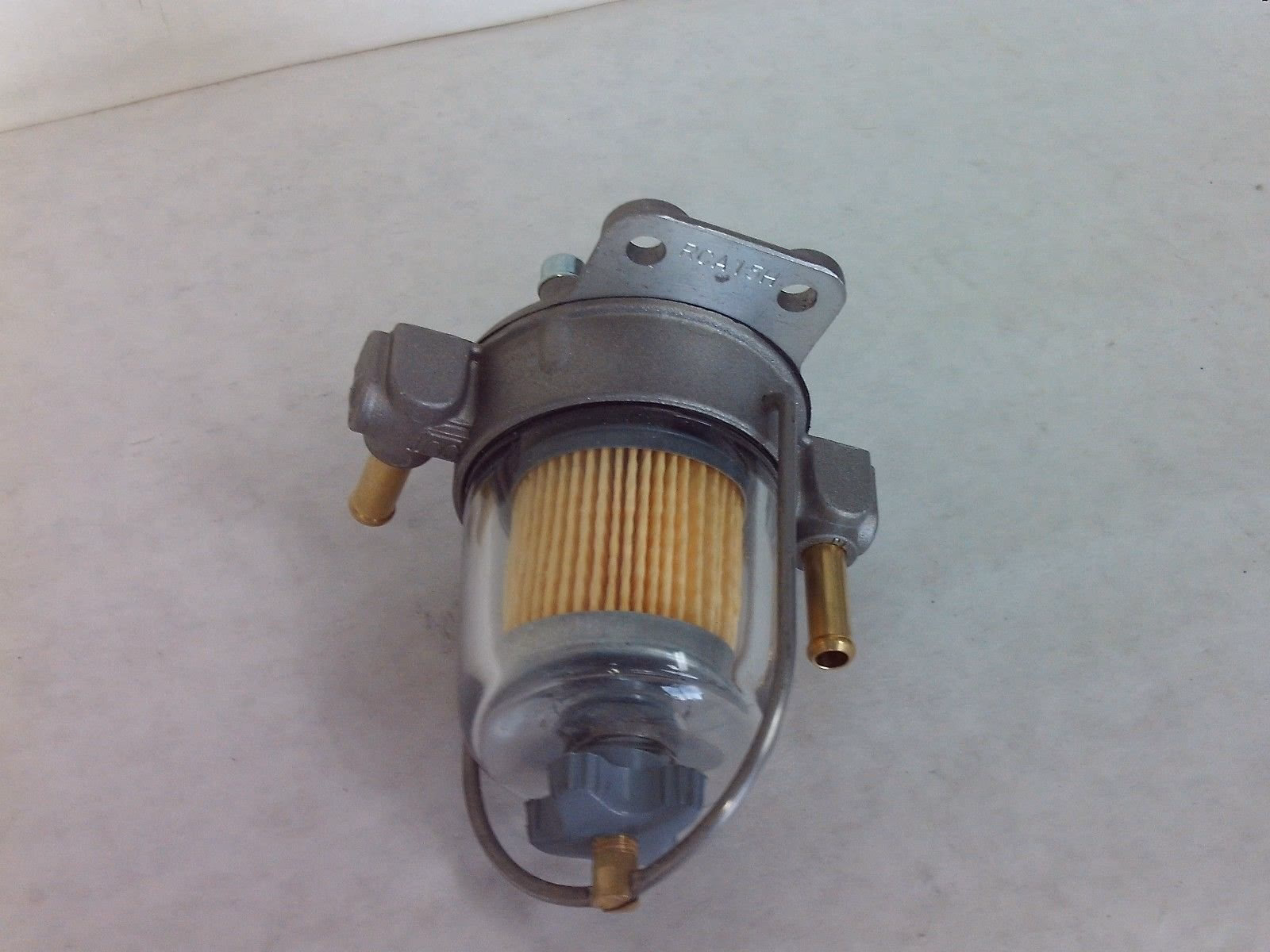

Where to Purchase Your Malpassi Regulator in the UK

For those looking to purchase a genuine Malpassi fuel pressure regulator in the United Kingdom, several reputable suppliers stock these essential components. Based on the information available, you can find Malpassi regulators from:

• Fuel Pumps Online: This specialist supplier often carries Malpassi regulators from Italy, providing a direct source for various applications, including carburettor, turbo, and motorsport cars.
• Demon Tweeks: Renowned as one of the UK's leading suppliers for motorsport, motorcycle, and performance parts, Demon Tweeks offers a wide range of Malpassi products online. They are known for their extensive stock, next-day delivery options, and finance availability, making them a convenient option for many enthusiasts.

When purchasing, always ensure you are buying from a trusted vendor to guarantee authenticity and quality. Verify the model number (e.g., FPR008B for carburettor engines) matches your specific requirements.

Fixed vs. Adjustable Fuel Pressure Regulators

To further illustrate the benefits, here's a comparison between fixed and adjustable fuel pressure regulators:

Frequently Asked Questions (FAQs)

Q: Can I use a Malpassi regulator with an electric fuel pump?

A: Yes, Malpassi regulators are commonly used with electric fuel pumps. In fact, electric pumps often deliver higher pressure than mechanical pumps, making a regulator even more essential to reduce pressure to the carburettor's required range (e.g., 1.5-5 PSI).

Q: What PSI should I set my Malpassi regulator to?

A: The ideal PSI depends on your specific carburettor. Most common carburettors, such as Weber, Dellorto, or SU types, typically require between 2.5 to 4 PSI. Always consult your carburettor's manufacturer specifications or a reputable workshop for the precise recommended pressure for your setup. Starting too high or too low can cause immediate running issues.

Q: Do I need a fuel pressure gauge?

A: Absolutely. While you can install the regulator without one, accurately setting the pressure without a gauge is impossible. A fuel pressure gauge is indispensable for proper setup and troubleshooting, ensuring your engine runs optimally and prevents potential damage.

Q: How often should I check my fuel pressure?

A: It's good practice to check your fuel pressure periodically, especially if you notice any changes in engine performance or fuel consumption. A quick check during routine maintenance can help catch issues before they become major problems. After initial installation and adjustment, an annual check or after any major fuel system work is advisable.

Q: Can a Malpassi regulator fix all my carburettor problems?

A: No. While a Malpassi fuel pressure regulator is crucial for maintaining correct fuel pressure, it cannot fix underlying issues with the carburettor itself (e.g., worn jets, clogged passages, faulty floats) or other fuel system components (e.g., a failing fuel pump, blocked fuel filter, or air leaks). It addresses the pressure aspect of fuel delivery, which is a significant factor, but it's part of a larger system that needs to be in good working order.

Conclusion

The Malpassi fuel pressure regulator is far more than just another component; it's a vital piece of the puzzle for anyone serious about the performance and longevity of their carburetted engine. By precisely controlling the fuel pressure, it ensures that your carburettor receives the exact amount of fuel it needs, preventing costly issues associated with rich or lean running conditions. Whether you're restoring a classic, optimising a motorsport vehicle, or simply seeking to improve the reliability of your carburettor-fed car, investing in a high-quality adjustable regulator like the Malpassi is a wise decision. With proper installation and adjustment, you'll unlock the full potential of your fuel system, contributing to smoother running, better fuel economy, and ultimately, a more enjoyable driving experience on the roads of the UK and beyond.
